| Year | 1989 |
|---|---|
| Make | Peddinghaus |
| Model | TDK-1000 / 3-G |
Description |
CNC Beam Drill |
| Reference # | 8068450 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

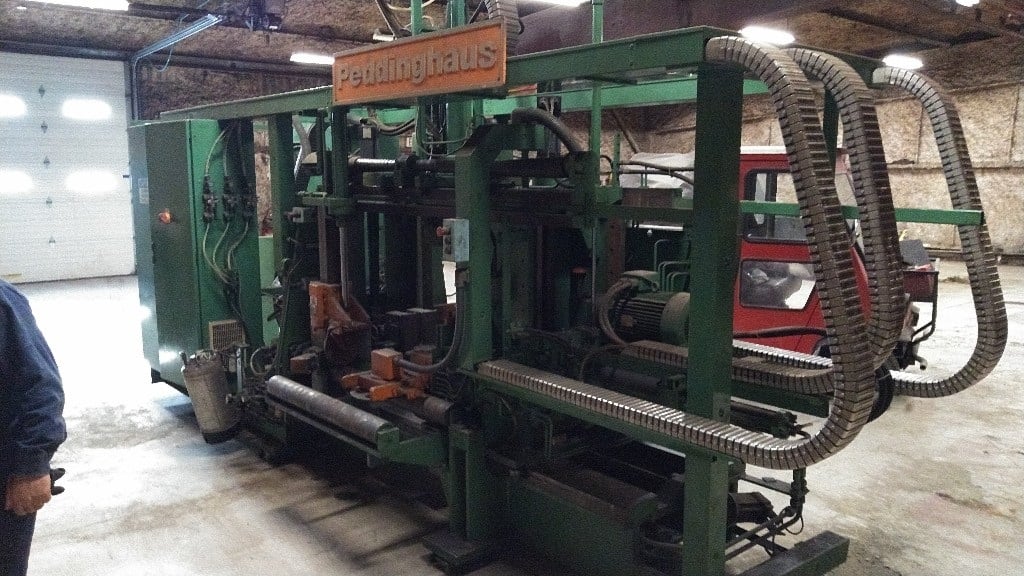

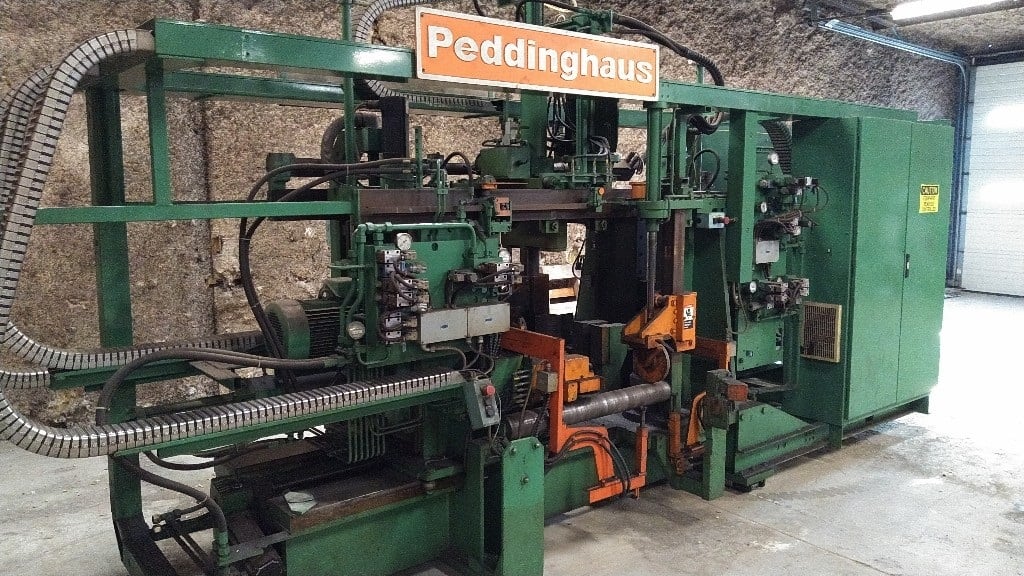

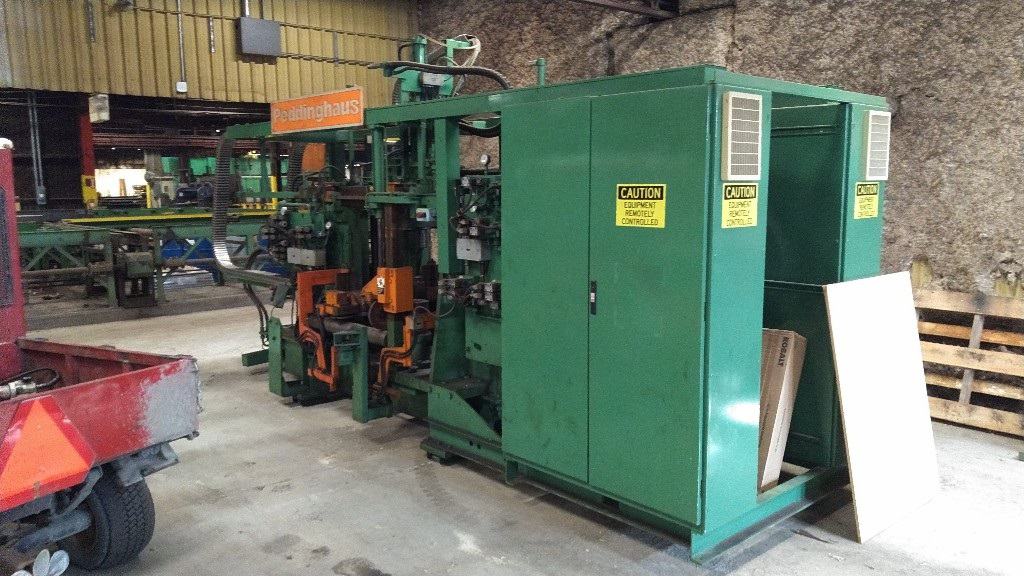

Peddinghaus TDK-1000 / 3-G
Specifications
| Number of Spindles |
1 |
|---|---|
| Spindle Travel |
300 mm |
| Spindle Motor |
11 HP |
| Spindle Speed at 60 Cycles |
280/560 RPM |
| Max. Drill Diameter |
40 mm |
| Rapid Advance And Retract |
20 FPM |
| Max Feed Rate |
12 IPM |
| Drill Holder |
No. 4 Morse Taper |
| Positioning Speed (Y,W & Z Axes) |
65 FPM |
| Horsepower To Move Tower |
3 HP |
| Roller Feed Measuring System |
130 FPM |
| Max Workpiece Weight |
18,000 Lbs |
| Work Piece Dimensions |
40" W X 24" H (Z + W) X 4" Thick X 7" Flange Thickness |

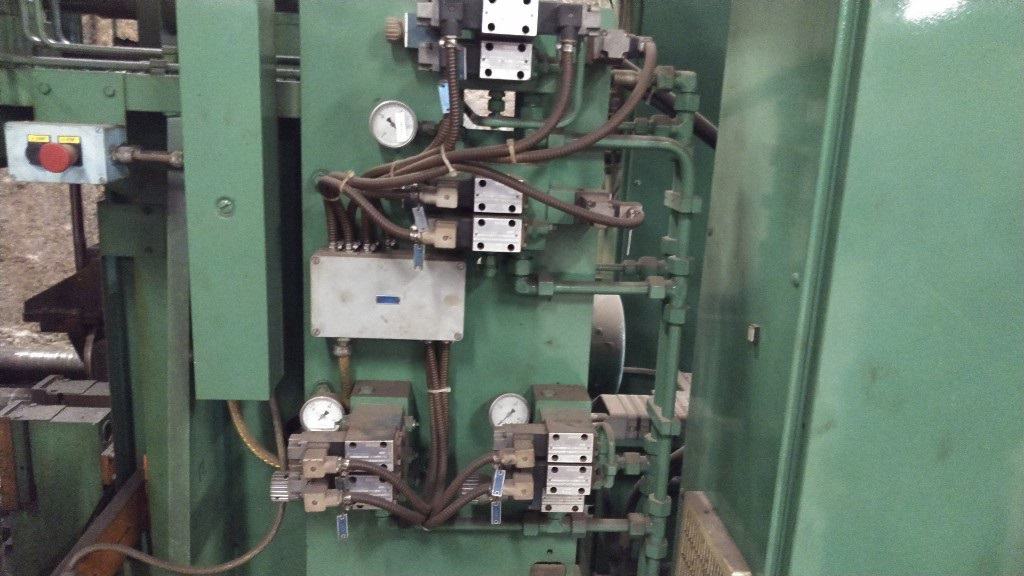

| Hydraulic Power-Pack |
10 HP |
| Note |

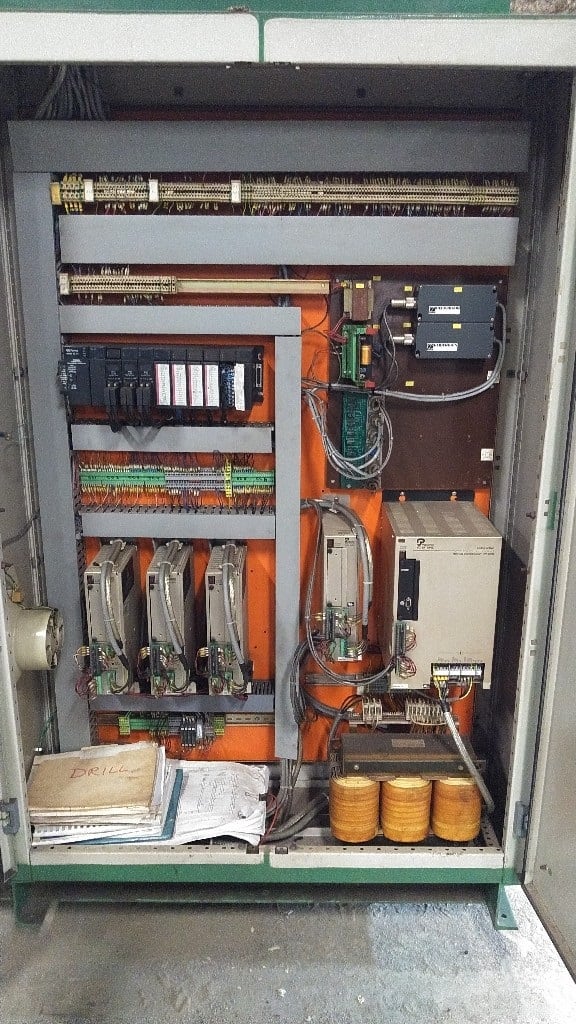

Updated Fagor Controller, Lots of Spare Parts. Refurbished in 2003. |
Features
|
(2) Flange Drill Assemblies (ea. W/ 1 Spindle) |
Horizontal & Vertical Clamps |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
