Year | 1990 |
---|---|
Make | Cincinnati |
Model | 175AF10 |
Description |
175 Ton x 12' Hydraulic Press Brake |
Reference # | 8074589 |
Price |
Activate PricingInquire Now |

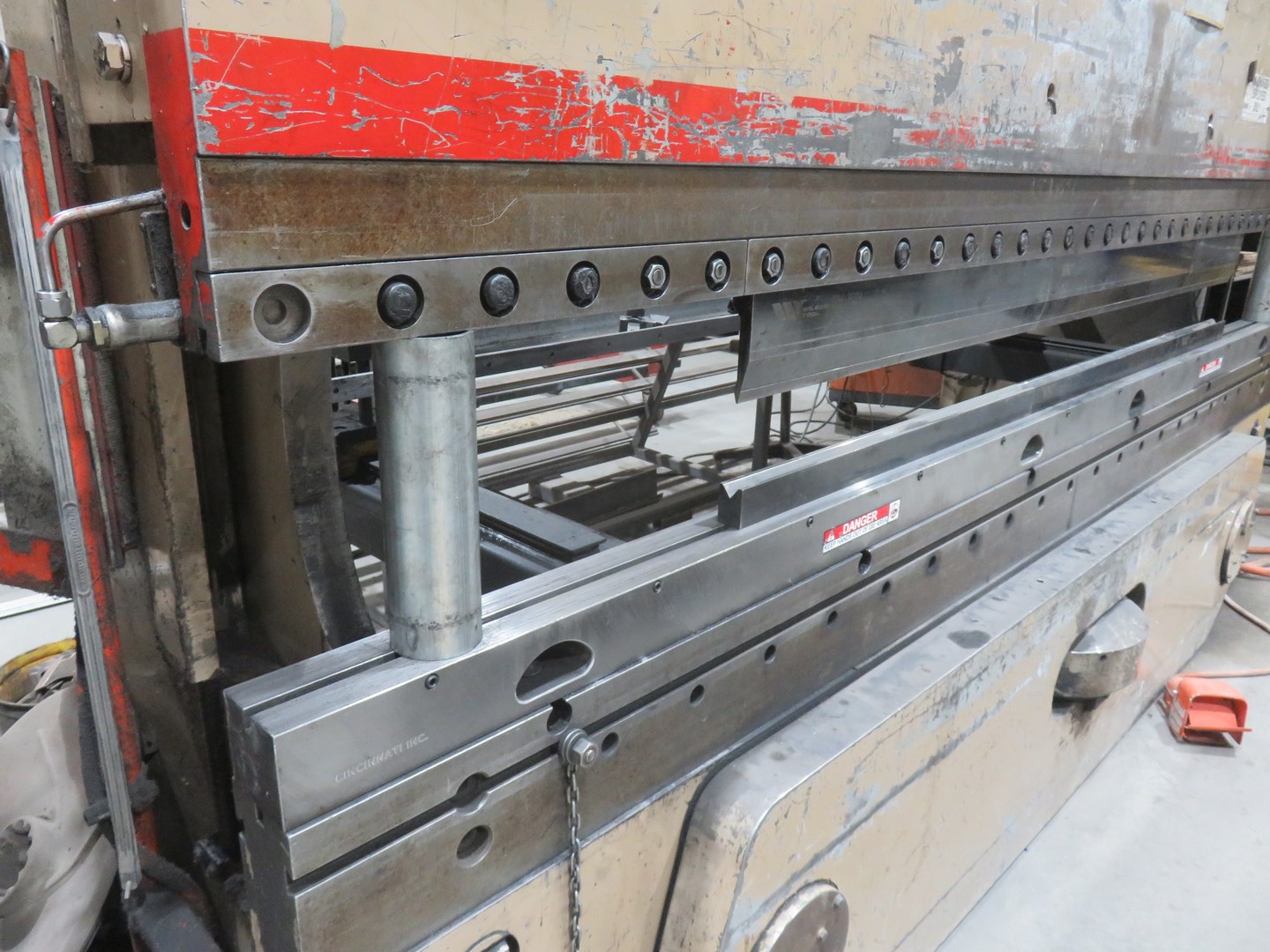

Used Cincinnati 175AF10 (1990) CNC Press Brake for Sale. This pre-owned Cincinnati CNC press brake is located in The United States. If you have any questions regarding this Cincinnati Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
Capacity |
175 Ton |
---|---|
Overall Length of Bed |
12' |
Control |
Gen 4 Cincinnati PC Based |
Distance Between Housings |
126" |
Stroke |
10" |
Throat Depth |
12" |
Open Height |
17" |
Closed Height |
7" |
Approach Speed |
230 IPM |
Form Speed |
1 - 45 IPM |
Return Speed |
1 - 250 IPM |
Width at Top of Bed |
5-1/2" |
Main Motor |
25 HP |
Power Requirement |
480/3/60 |
Features
15.1" TFT Touchscreen Display |
24" Back Gauge ( X1 / X2) |
3-Position Electric Foot Switch |
Cincinnati Autoform PC HMI Control New in 2012 |
Link Black Max Light Curtains |
New Bottom Filler Block |
New Software |
Adaptive Control Mode |
Autocrown Deflection Compensation |
CAD Design Software |
Control Mounted Palm Button Station |
Dynamic Thickness Compensation |
Off Load Center Compensation |
Precision Ram Leveling with Dual Linear Glass Scale Encoders |
Presence Sensing Interface |
Tool Library |
Variable Volume Load Sensing Pump and Servo Hydraulic System |
