| Year | 1995 |
|---|---|
| Make | Star |
| Model | JNC-25 |
Description |
CNC Swiss Lathe |
| Reference # | 8073237 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

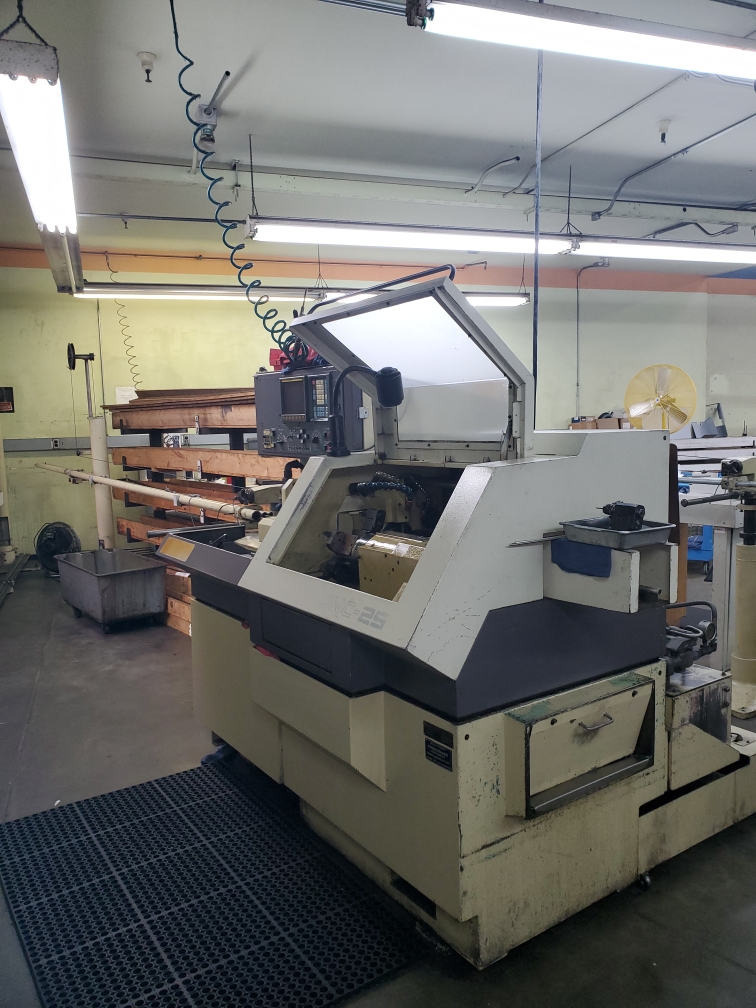

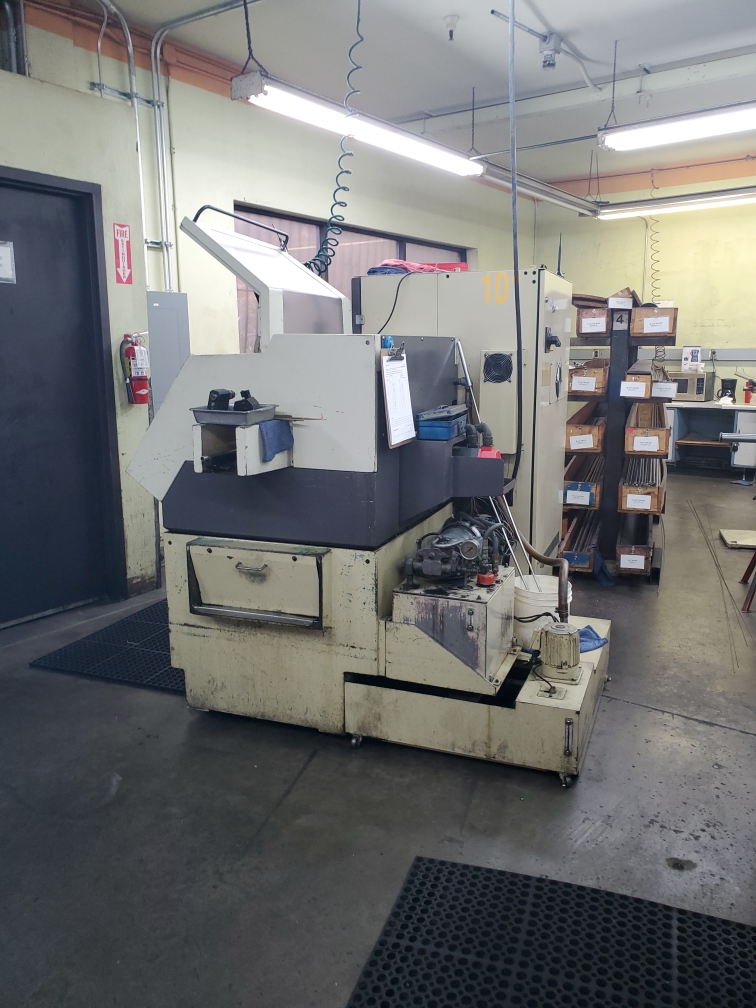

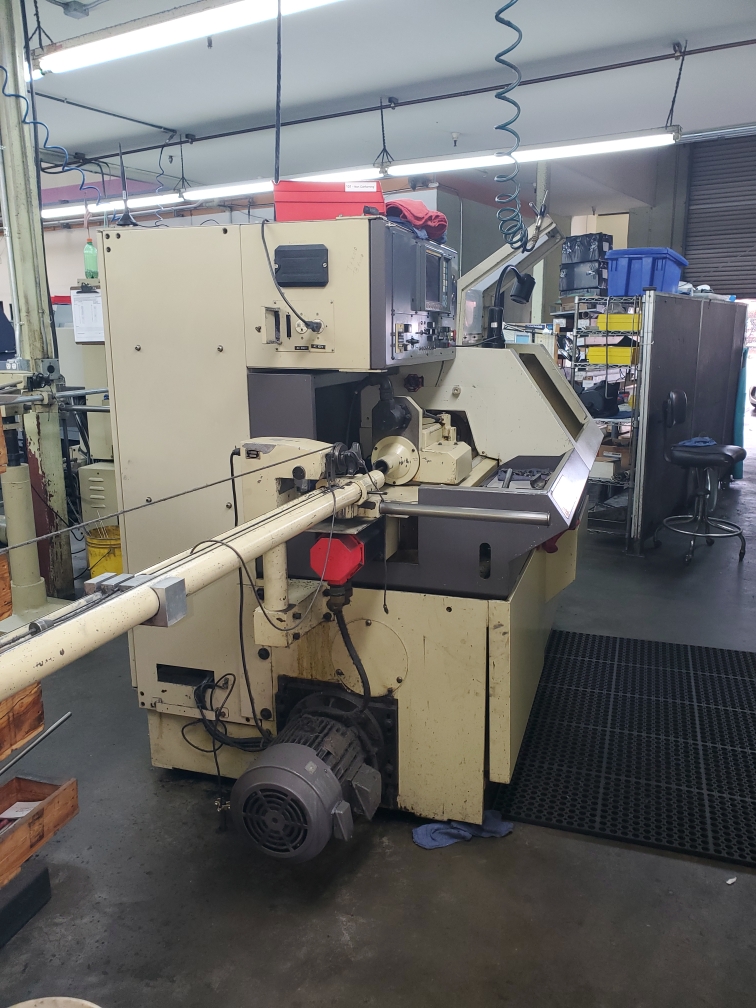

Used Star JNC-25 (1995) CNC Swiss Lathe for Sale. This pre-owned Star CNC swiss lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Star Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Bar Capacity |
1" |
|---|---|
| Spindle Speed |
6,000 RPM |
| Max. Spindle Diameter |
1-1/4" |
| Max. Headstock Stroke with Stationary Guide Bushing |
13-31/32" |
| Max. Headstock Stroke with Revolutionary Guide Bushing |
12-13/64" |
| Max. Drilling Diameter |
1/2" |
| Max. Tapping Diameter |
M12 p = 1.75 |
| Number of Tools |
10 (5 per Turret) |
| Rapid Feed Rate X-Axis |
315 IPM |
| Rapid Feed Rate Z-Axis |
393.7 IPM |
| Least Input Increment (X & Z-Axis) |
.001 mm |
| Main Spindle Motor |
7.5 HP |

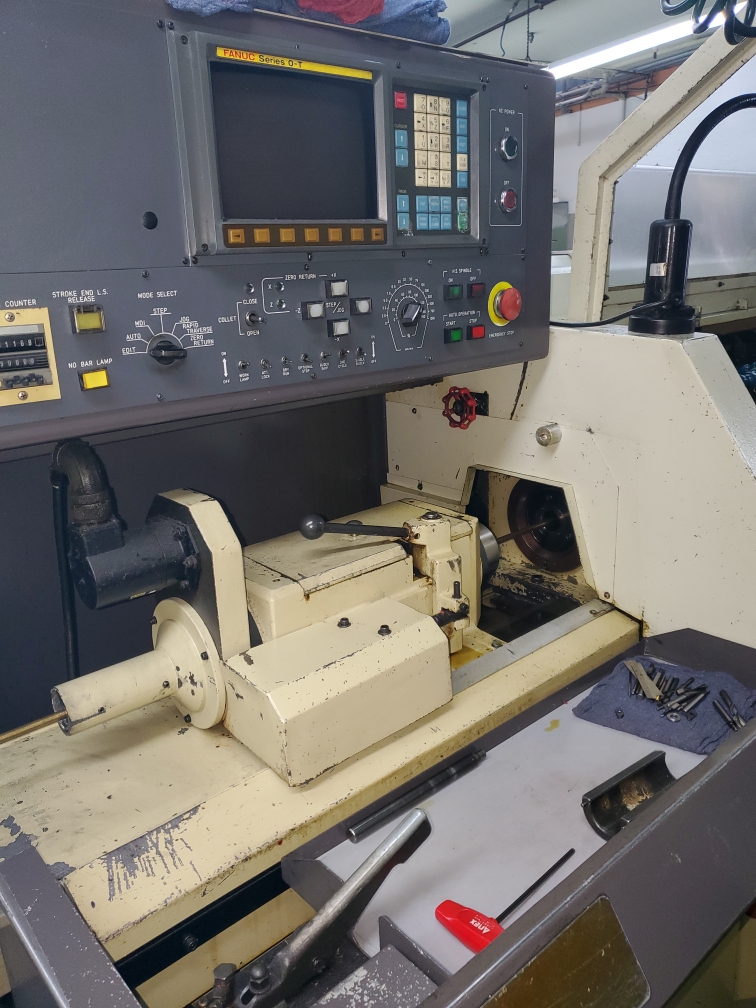

| Control |
Fanuc CNC |
| Approx. Machine Weight |
5,600 Lbs |
Features
|
Circular G02 / G03 Interpolation |
Gravity Barfeed |
|
Linear G01 Interpolation |
Steplessly Changeable Spindle Speeds with Inverter |
|
X & Z Servo Motor Drive |
