| Year | 1997 |
|---|---|
| Make | Mitsubishi |
| Model | EX30 |
Description |
EDM Sinker |
| Reference # | 8039129 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
27.6" |
|---|---|
| Y-Axis Travel |
19.7" |
| Z-Axis Travel |
13.8" |
| Control |

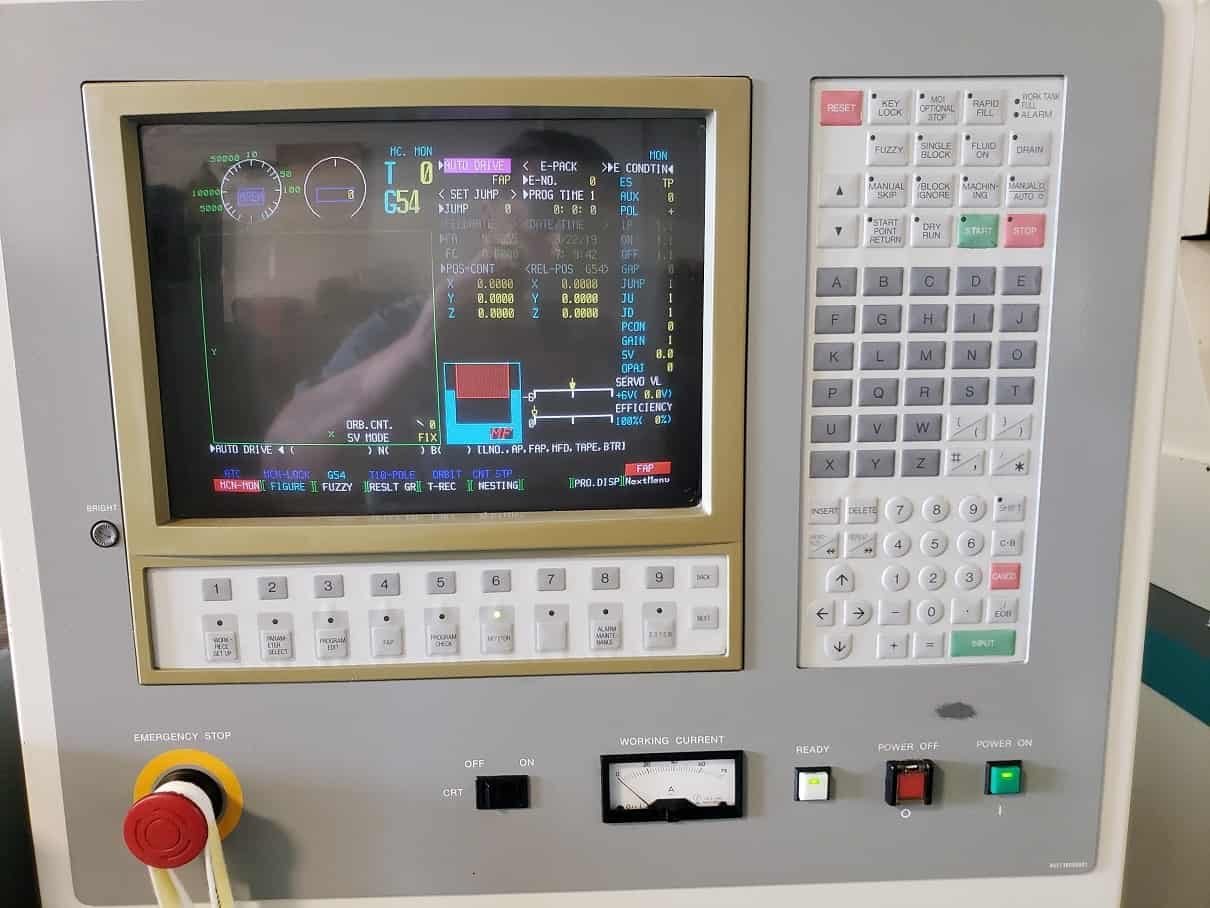

Mitsubishi Fuzzy Logic C11 |
| Power Source |
120 AMP |
| Chuck |
3R |
| Worktank Size |
47.4" x 31.6" x 15.74" |
| Maximum Workpiece Size |
46" x 30" x 14" |
| Maximum Workpiece Weight |
4,400 lbs |
| Table Size |
38.6" x 26.8" |
| Distance from Platen to Table |
9.84" - 23.62" |
| Maximum Current |
120 Amps |
| Maximum Electrode Weight |
330 lbs |
| Tank Type |
Fixed Tank |
| Floor Area (LxWxH) |
79" LR x 84" FB x 93" H |
| Machine Weight |
11,000 lbs |
| Power Requirement |
200/220/3/60 |
Features
|
Programmable Flushing |

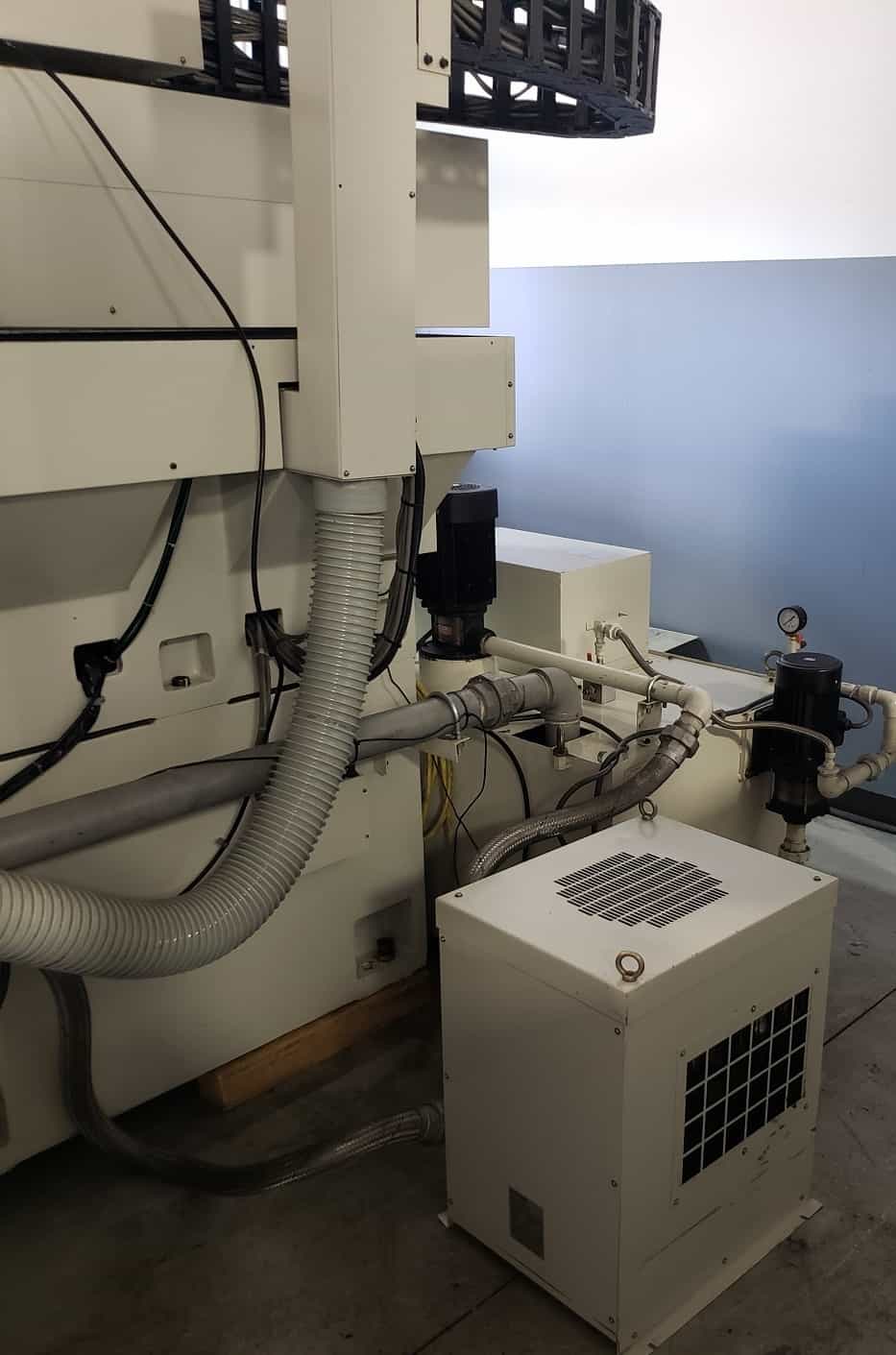

Electric Chiller |
|

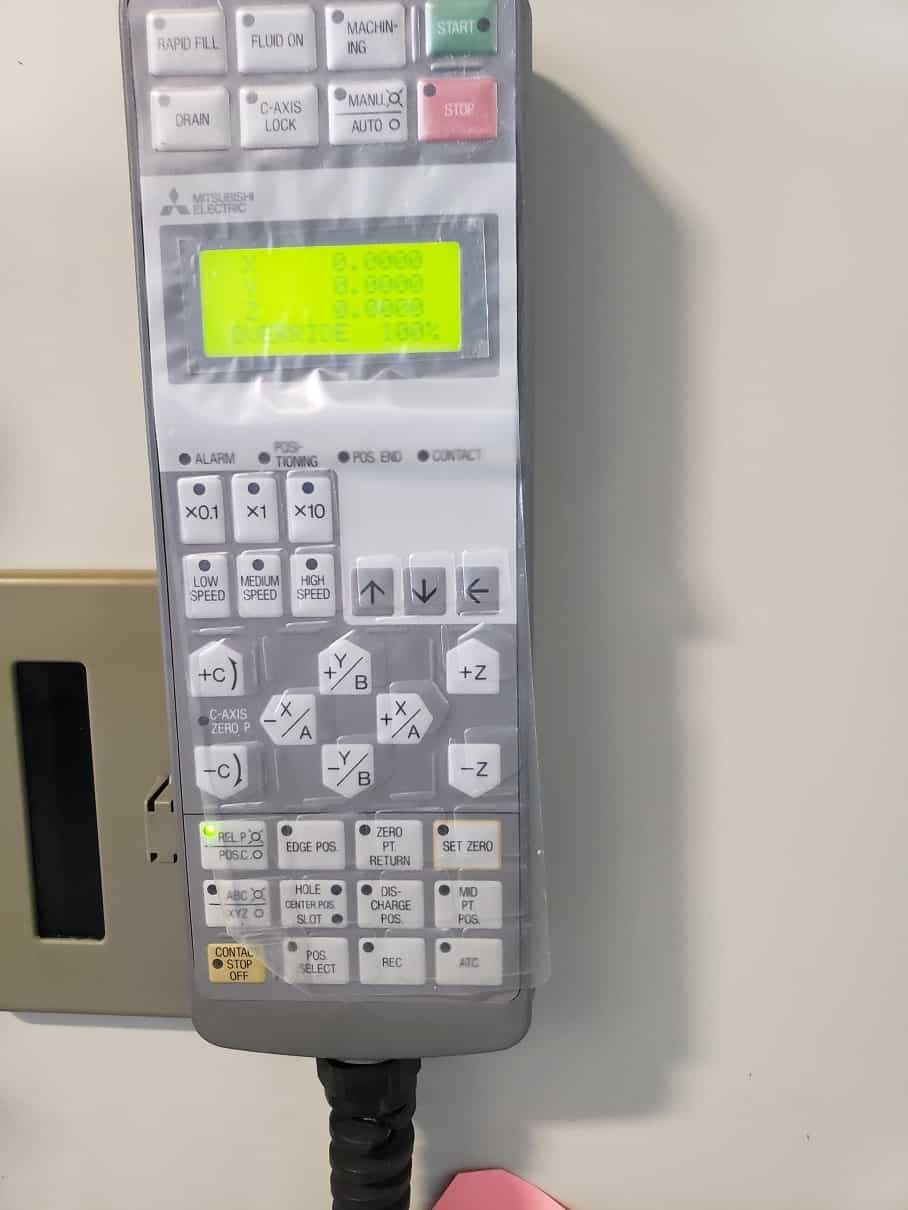

Advanced Remote Hand Pendant |
All Available Manuals and Systems Disks |
|
Dielectric Filtration System |
FP80 Power Supply (120A Peak) |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
