| Year | 1999 |
|---|---|
| Make | Current |
| Model | CT300 |
Description |

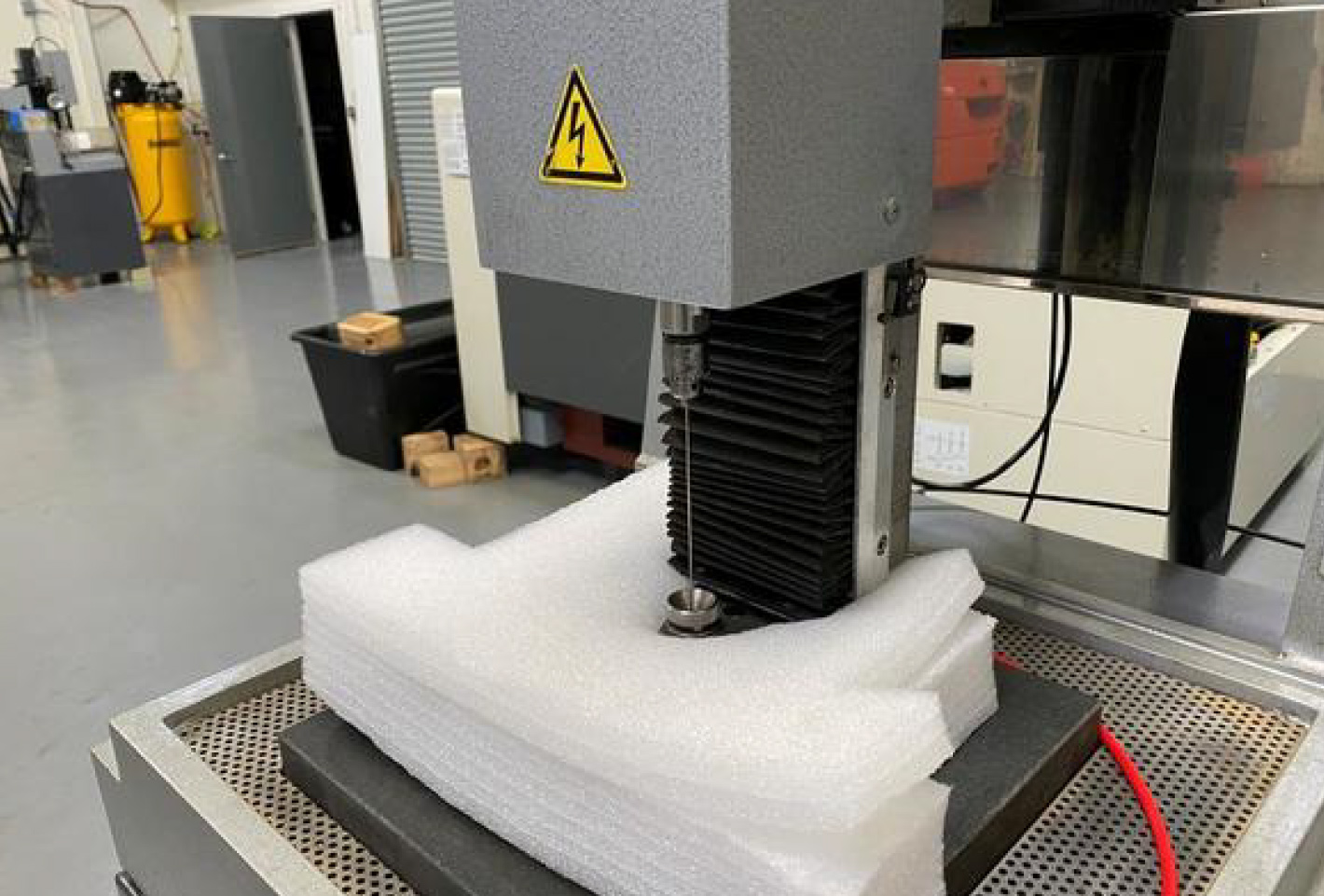

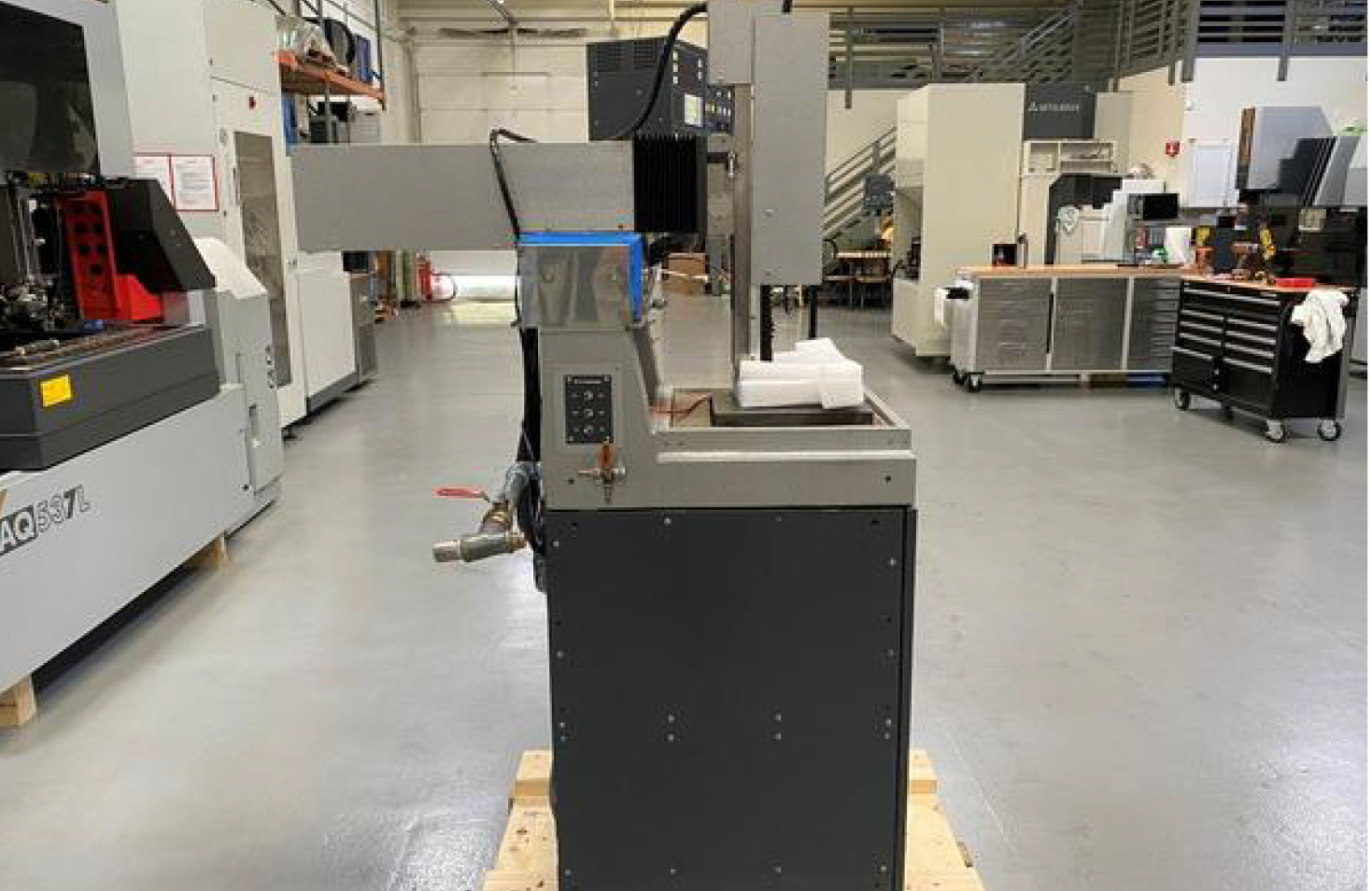

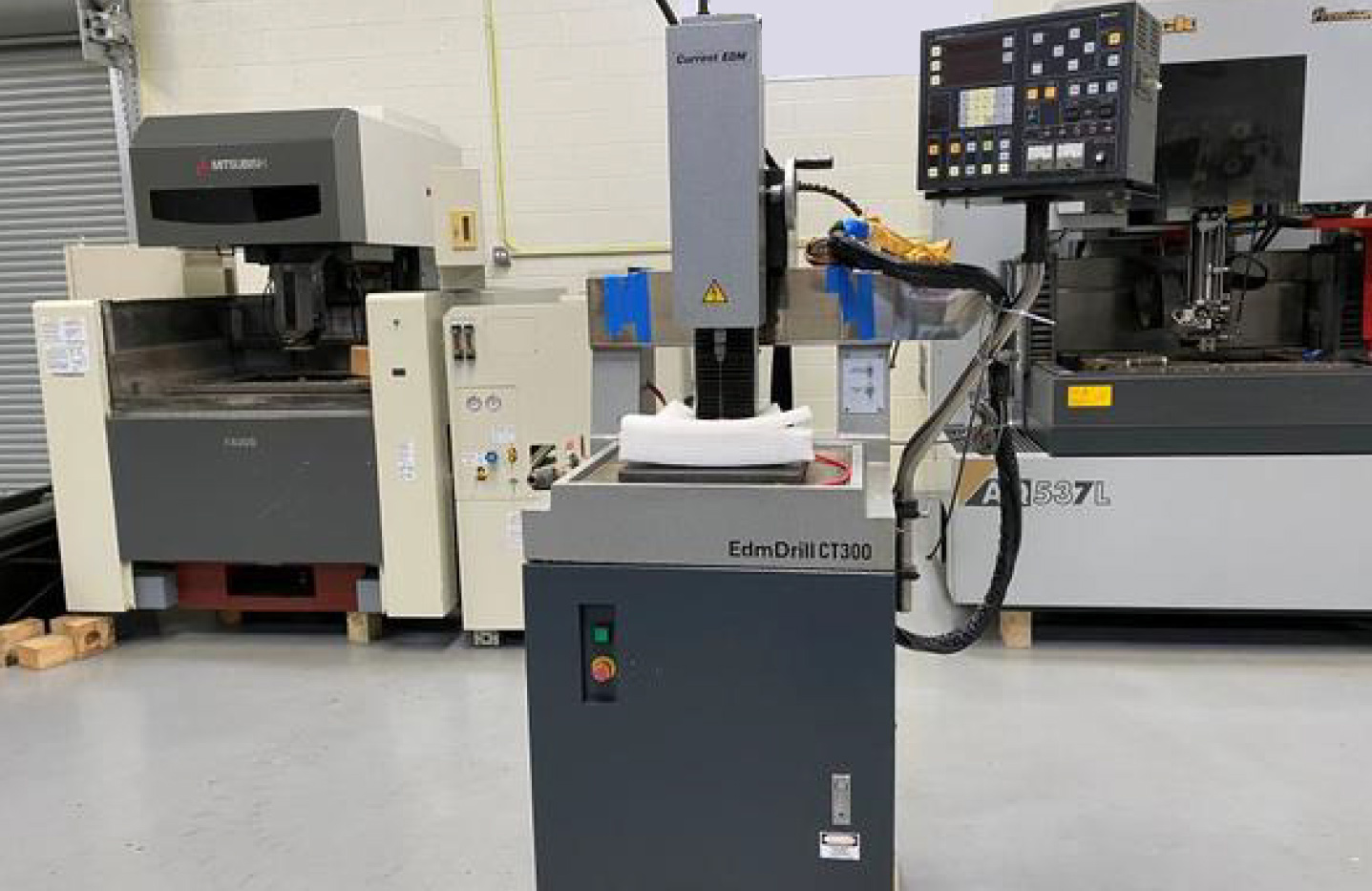

EDM Hole Popper |
| Reference # | 8071630 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used Current CT300 (1999) CNC EDM for Sale. This pre-owned Current CNC EDM hole popper is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Current EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
12" |
|---|---|
| Y-Axis Travel |
12" |
| Z-Axis Travel |
16" |
| Control |
Current CNC |
| Power Source |
57 AMP |
| Power Requirement |
200-230/3/60 |
| Positioning Accuracy |
+/- .0002" |
| Dimensions |
45" x 45" x 72" |
| Weight |
2,000 Lbs |
| Note |
Optional Filtration System Available |
Features
|
Powerful User Friendly Control Programs up to 5-Axes |
Precision-Lapped Granite Worktable with Stainless Steel Inserts |
|
Current SRJ III Option Power Supply |
FE02 Power Supply |
|
1-Micron AC Drive |
Glass Scale Feedback |
|
Single-Cast Rugged Bridge Design for Stability and Accuracy |
Splash Guards Around Table |
|

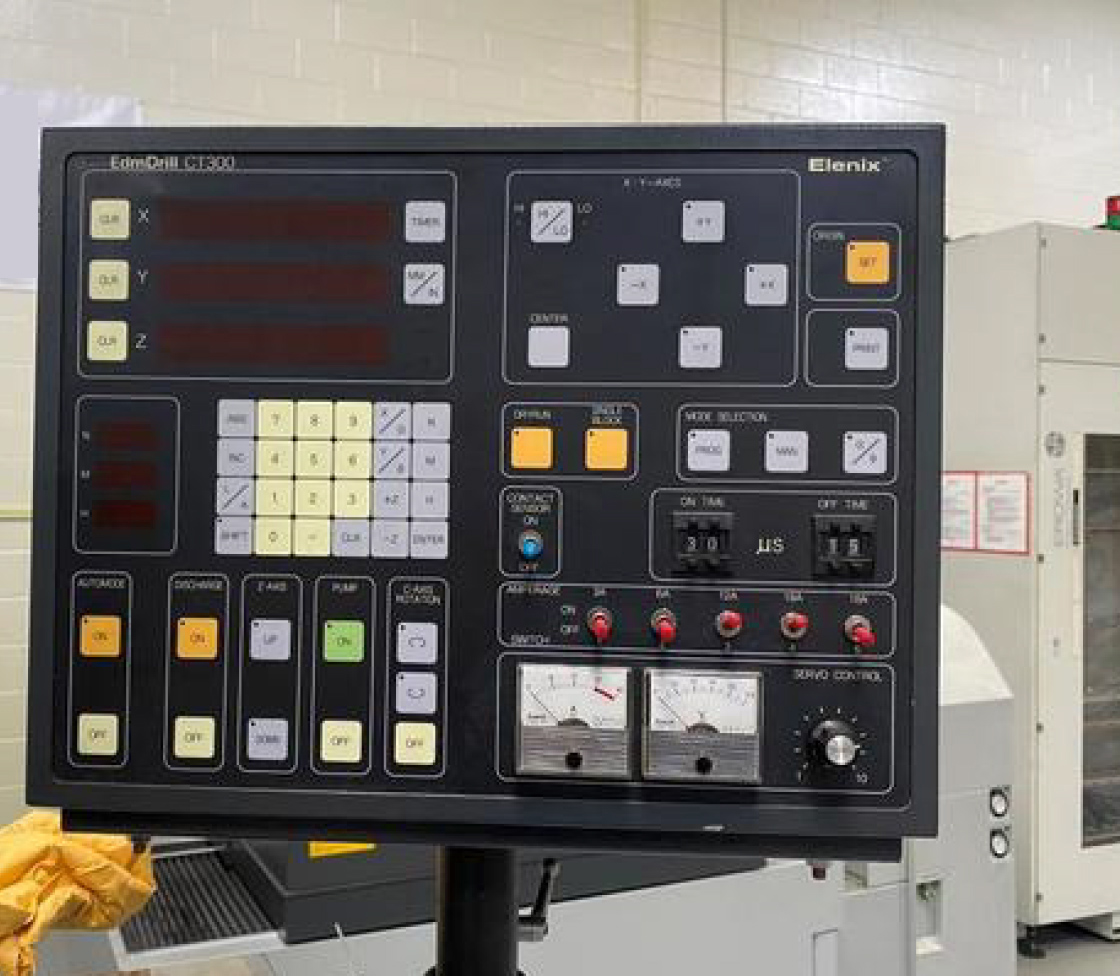

Current 3-Axis CNC Control with Hand Pendant |
Economical and Consistent Results Using Water Dielectric |
