| Year | 1999 |
|---|---|
| Make | Mitsubishi |
| Model | QA10 |
Description |
EDM Wire |
| Reference # | 8070913 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

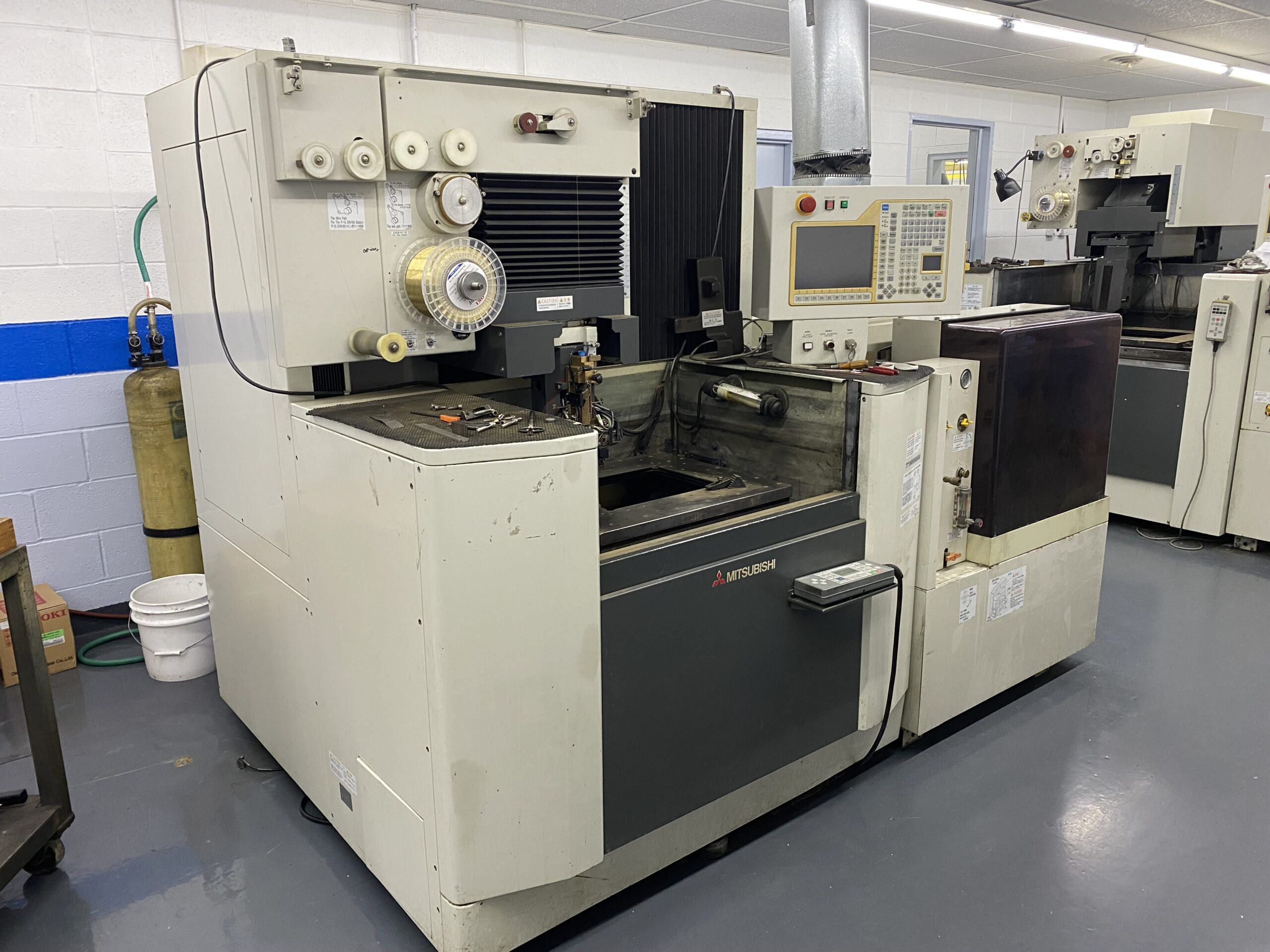

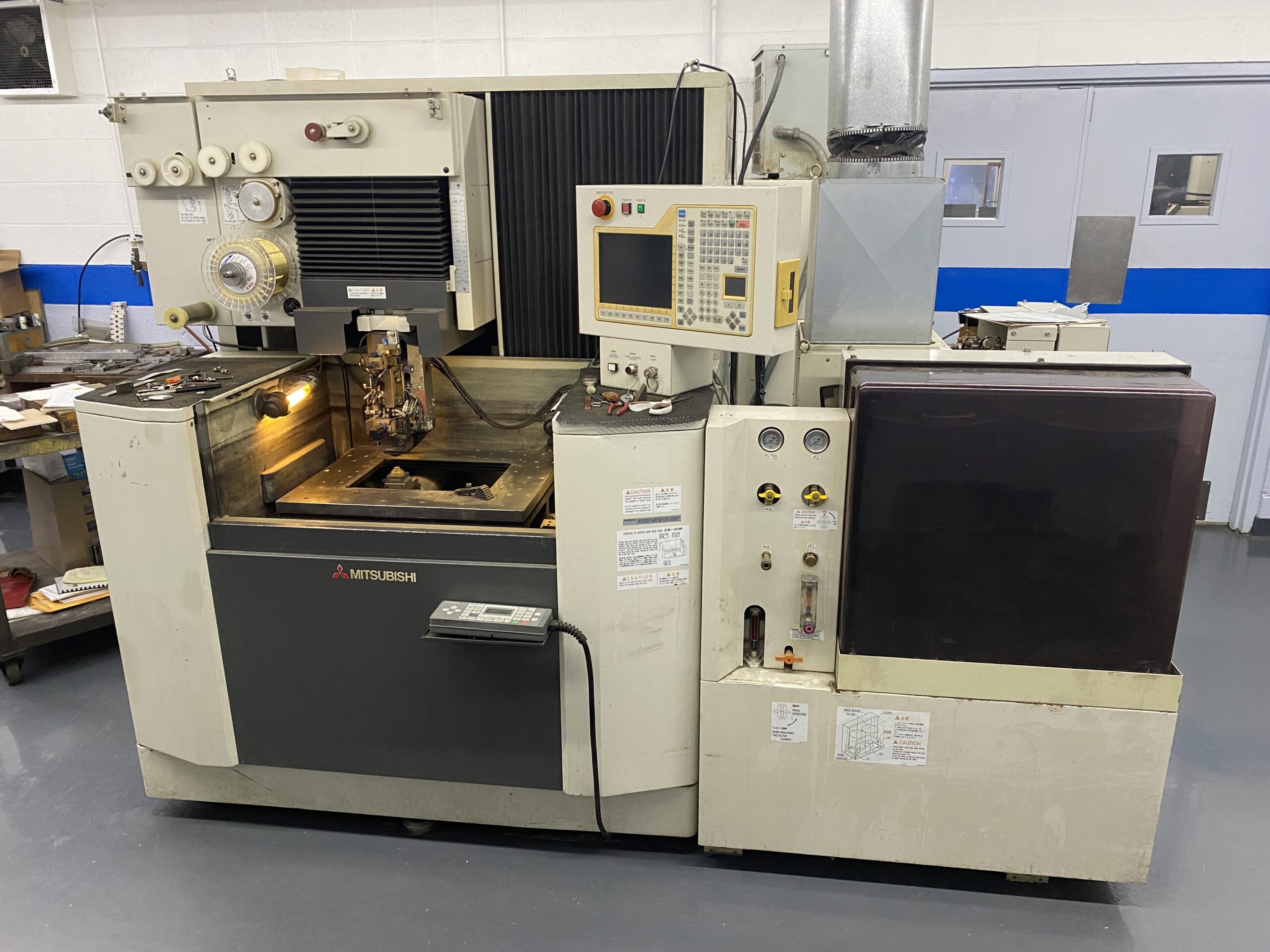

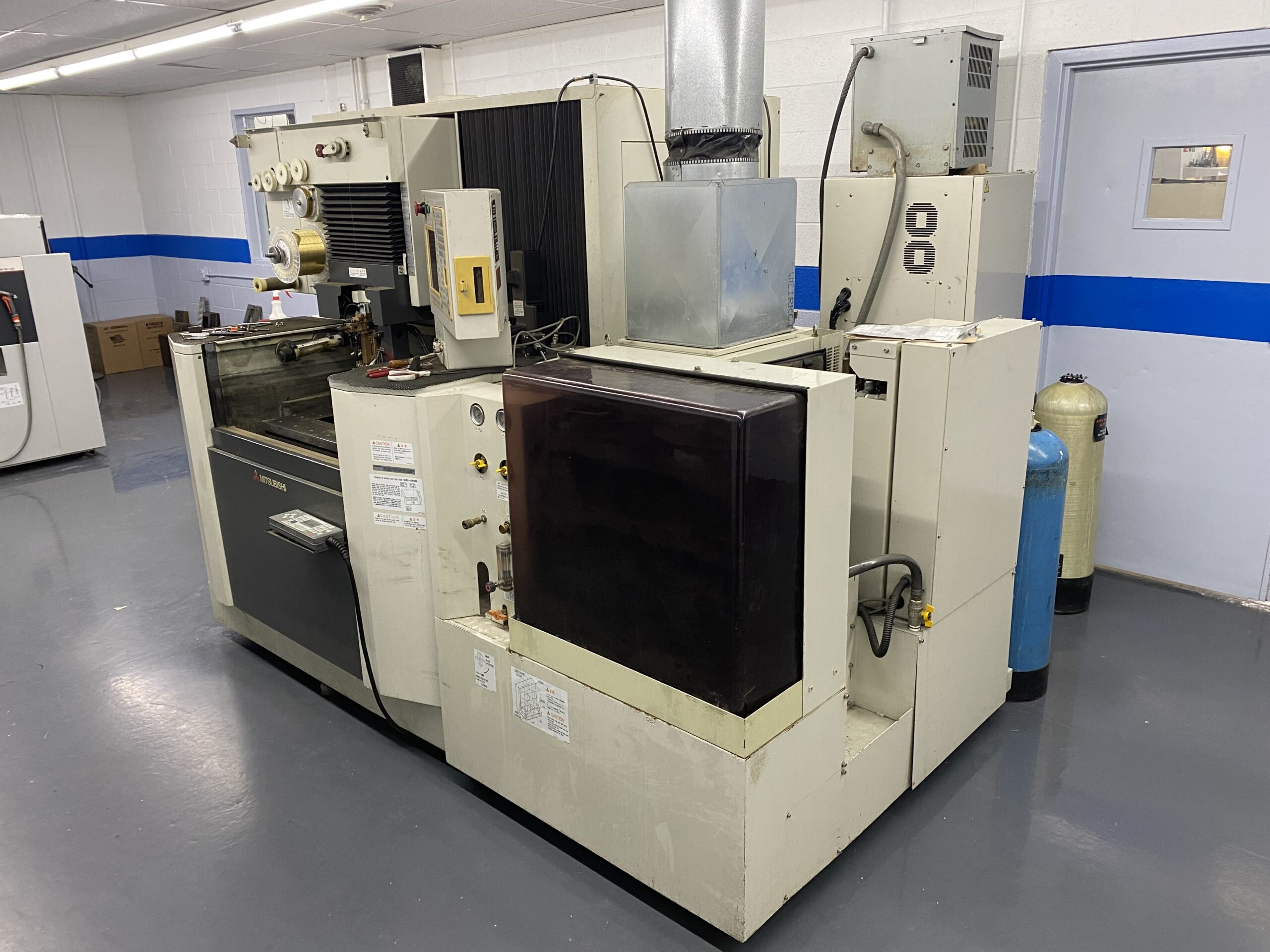

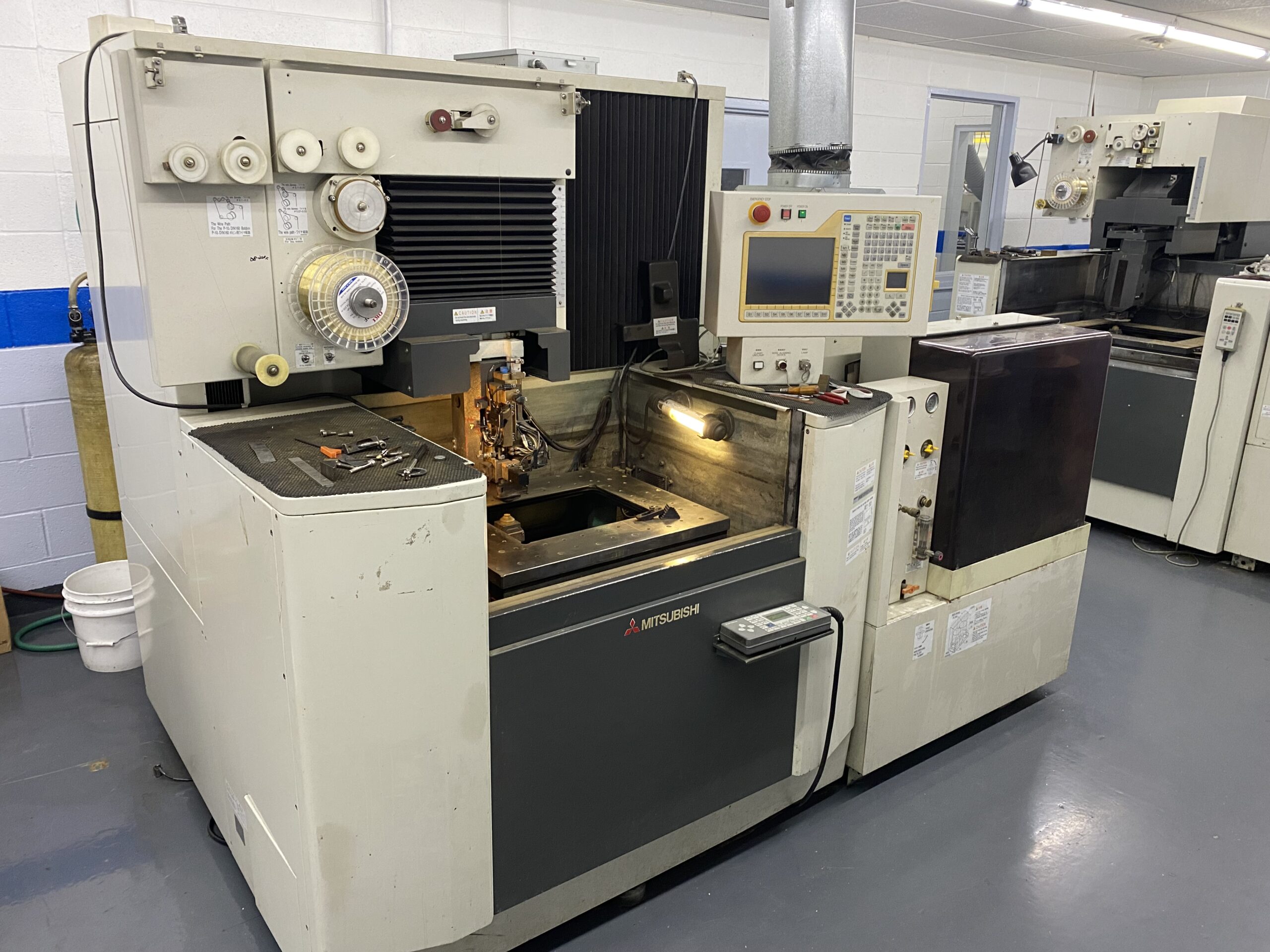

Used Mitsubishi QA10 (1999) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM wire is located in Minnesota and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
13.8" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.7" |
| Control |
Mitsubishi CNC |
| U/V Axis Travel |
1.25" x 1.25" |
| Degree Taper Cutting |
15 at 4" |
| Inside Tank Dimensions |
31.5" x 22.6" |
| Power Requirement |
200-230/3/60 |
| Glass Scale Feedback |
Linear Glass Scales |
| Machining Range |
13.8" x 9.8" x 8.66" |
| Weight of Machine Unit |
5,512 Lbs |
| Wire Electrode Diameter Range |
.002 ~ .012 |
| Wire Spool Size |
11 Lbs |
| Minimum Prog. Input/Minimum Resolution |
.00001 / .000004 |
| Standard Wire Diameter |
.002 ~ .010 |
| Minimum Start Hole Diameter |
.012 |
| DI Exchange Resin |
10 L |
| Tank Volume |
105.7 Gallons |
| Max. Workpiece Dimensions |
31.5" x 22.6" x 8.4" |
| Max. Workpiece Weight |
1,763 Lbs |
| Proposed Floor Space Requirement |
63.5 Sq Ft |
| Installation Footprint |
100.8" x 90.6" |
Features
|
Power Supply Unit Type AE III with MP Circuit |
Auto Wire Threading |
|

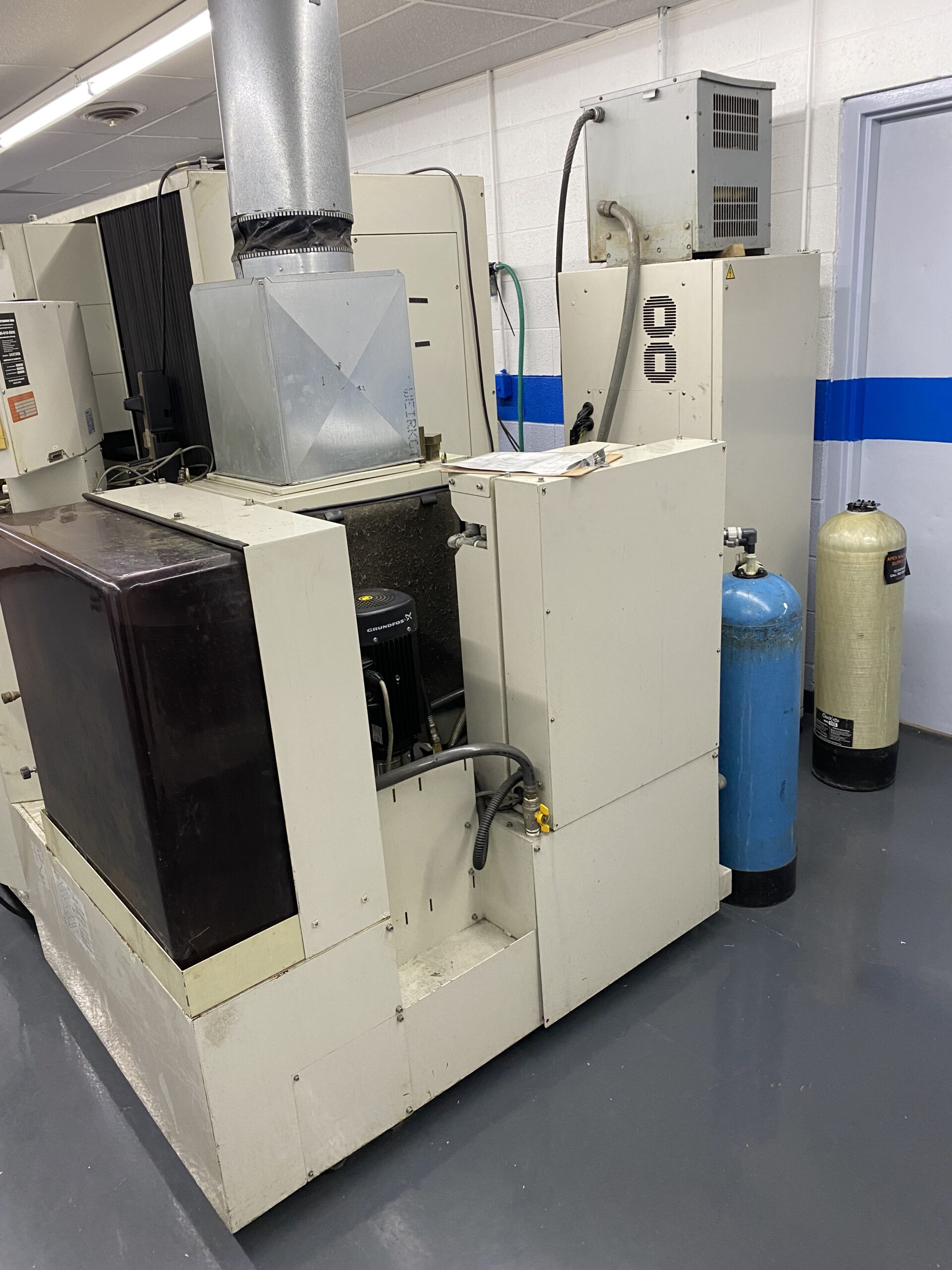

Chiller |
Glass Scale Feedback |
|
4 Sided Table |
Automatic Power Selection / Operation PM2 |
|
Control CPU / Type 64-bit Industrial PC/CNC |
Corner Master / Corner Master 2 |
|
Fine Machining - FM |
Fluid Temperature Control (Chiller) |
|
Graphic Display 10.4" TFT Color LCD |
Machining Type Submerged |
|

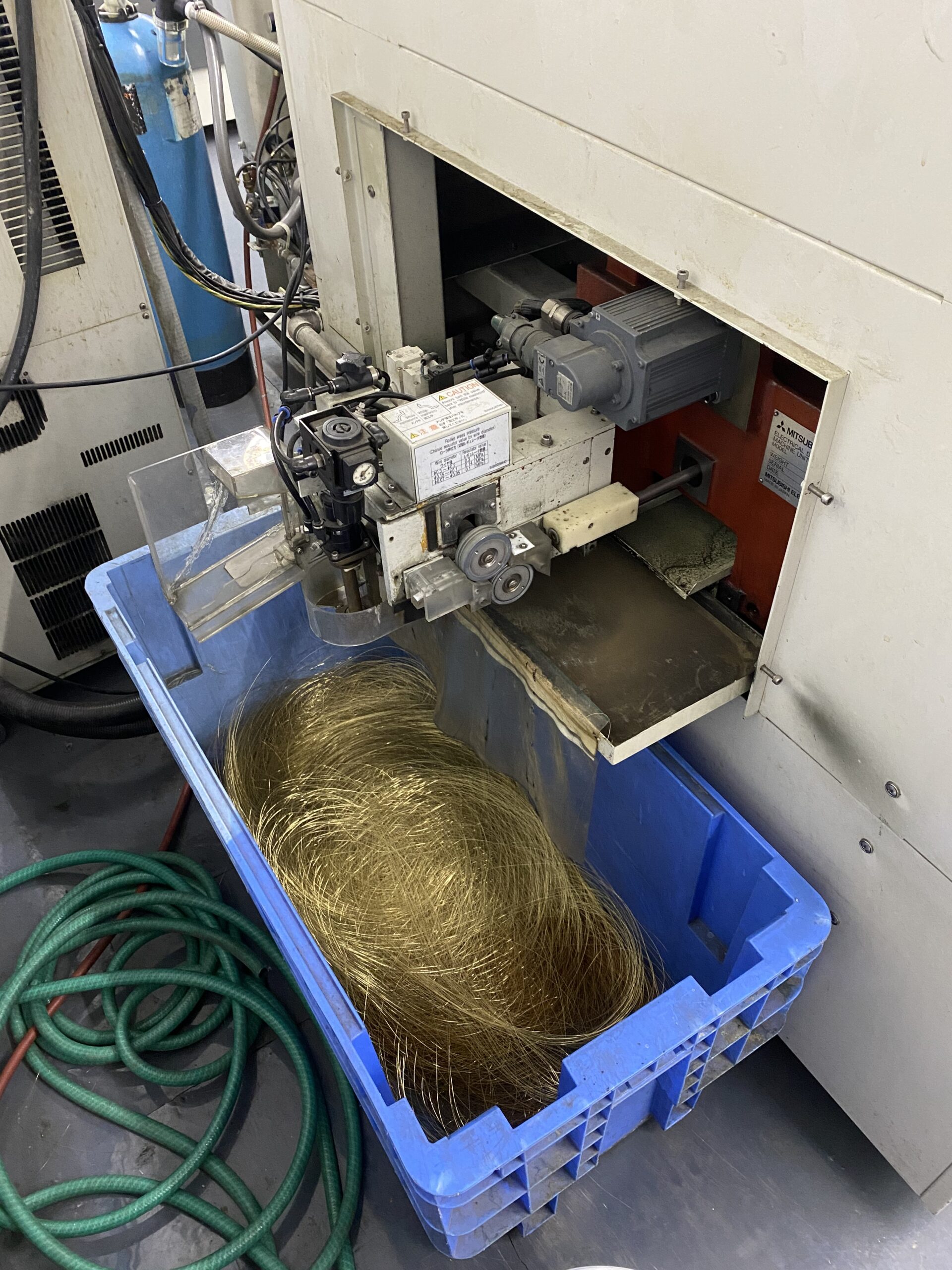

Wire Collection Method Drop Basket (No Chopper) |

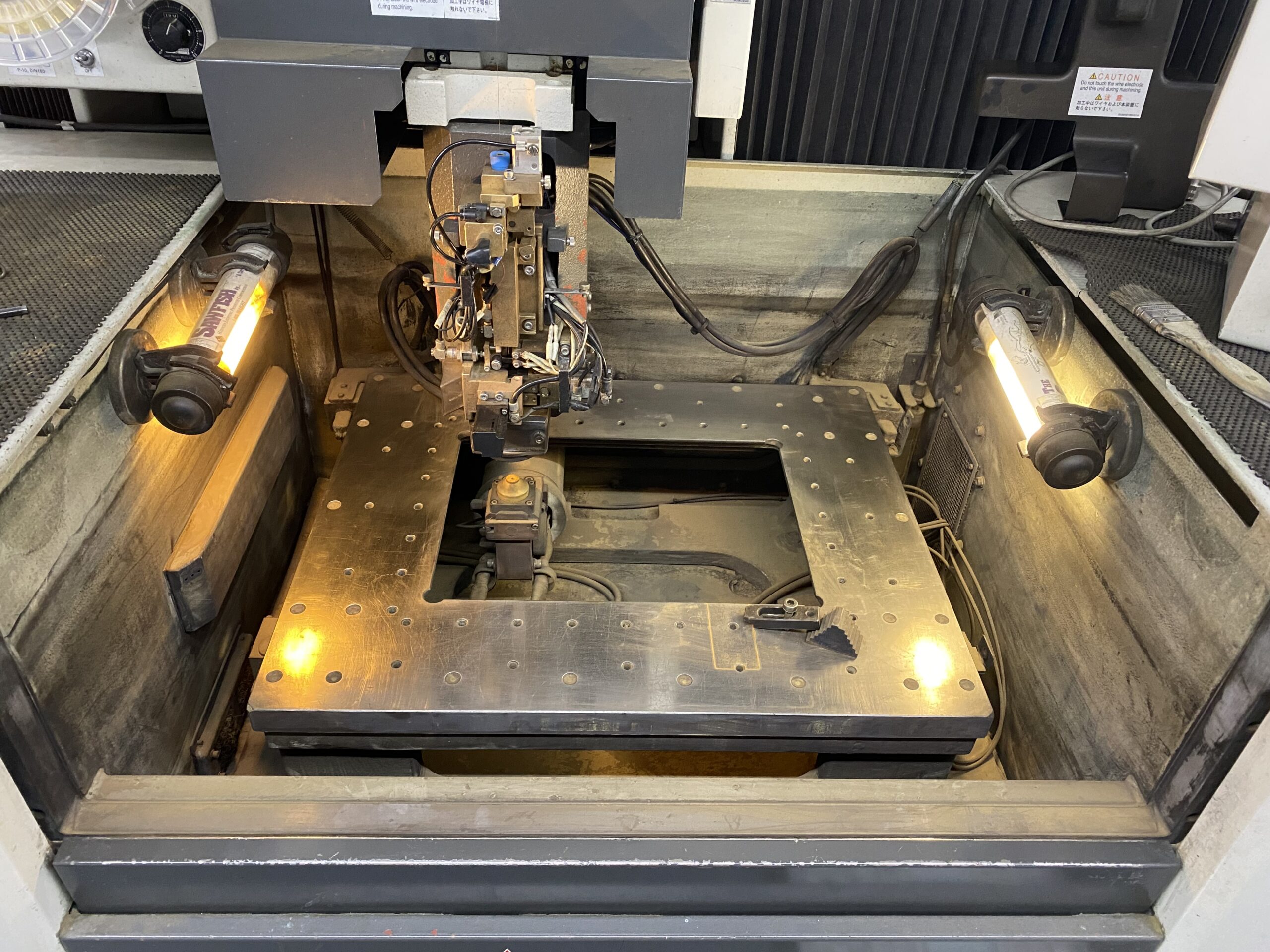

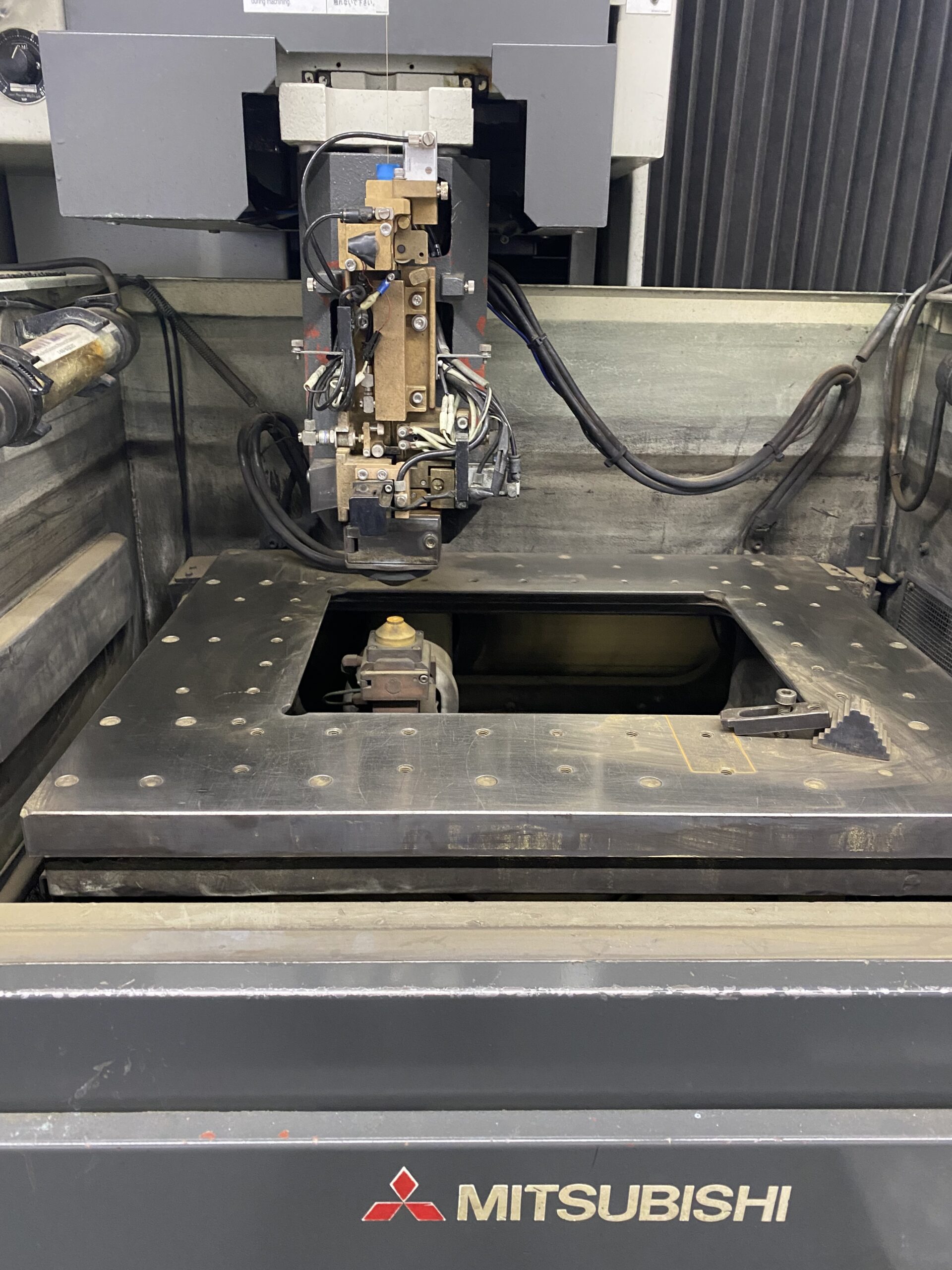

Worktable Style Fixed Position Square Frame |
|
X/Y Positioning Accuracy Method Linear Scale |
Z-Axis Drive Method AC Servo / Ball Screw |
