Year 1999
Make Van Dorn
Model 230HT1220

Description

230 Ton 25.4 oz Shot Size Injection Molding Machine
Reference # 8071646

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

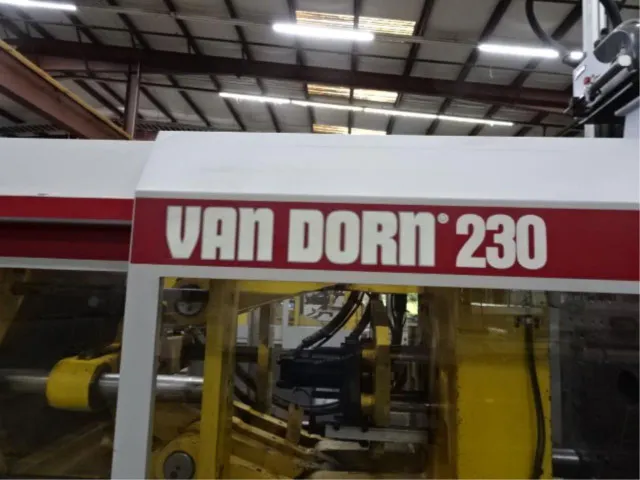

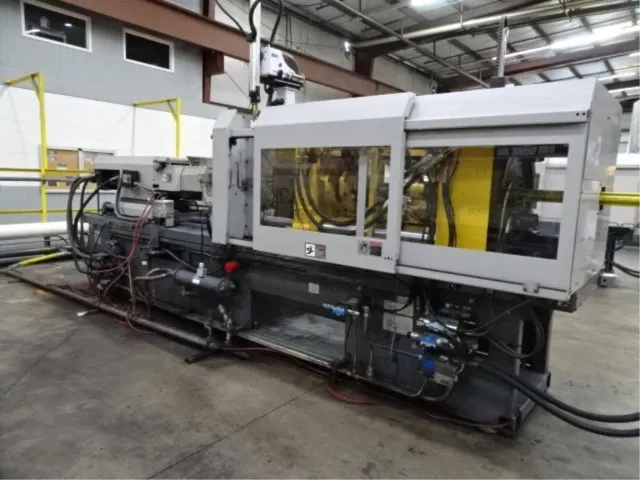

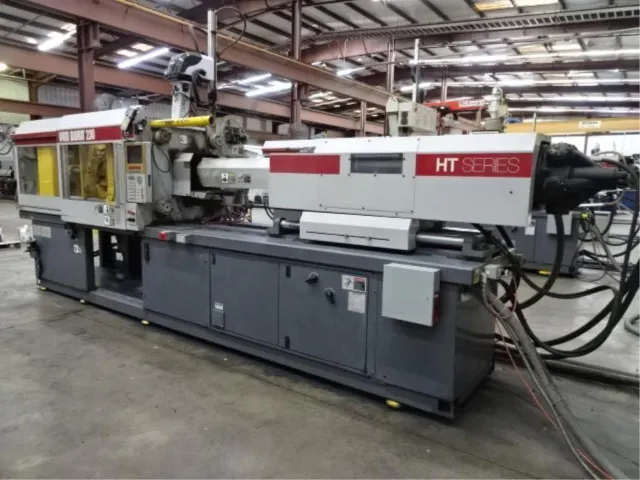

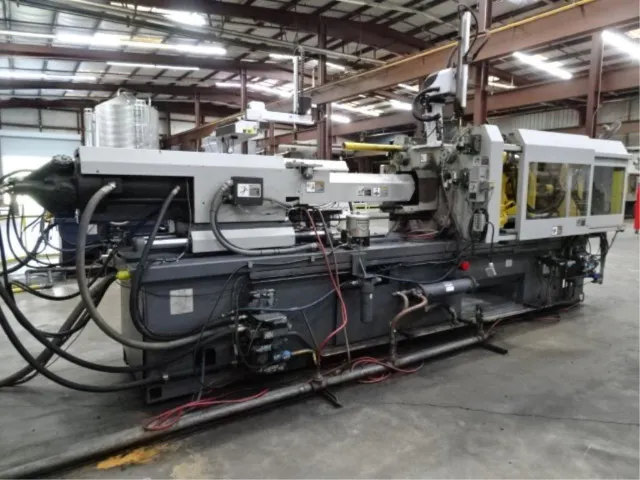

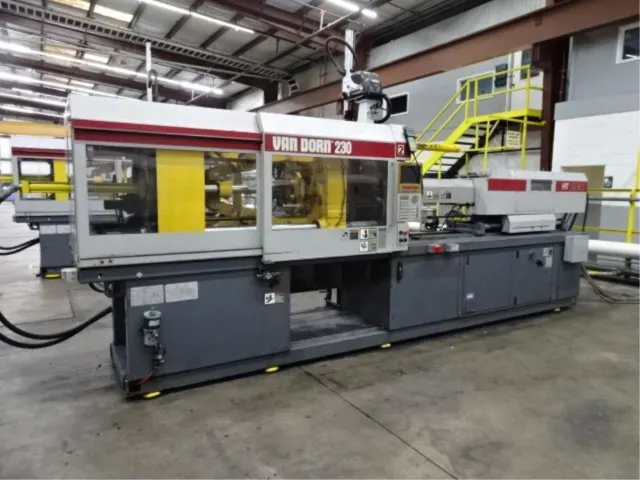

Used Van Dorn 230HT1220 (1999) Injection Molding Machine for Sale.  This pre-owned Van Dorn plastic injection molding machine is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this Van Dorn Injection Molding Machine, please feel free to contact us.  You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Capacity

230 Ton

Shot Size

25.4 oz

Tie Bar Spacing

22" x 22"

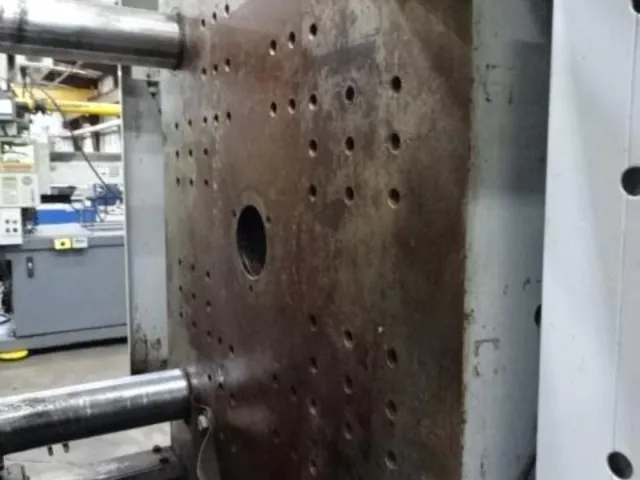

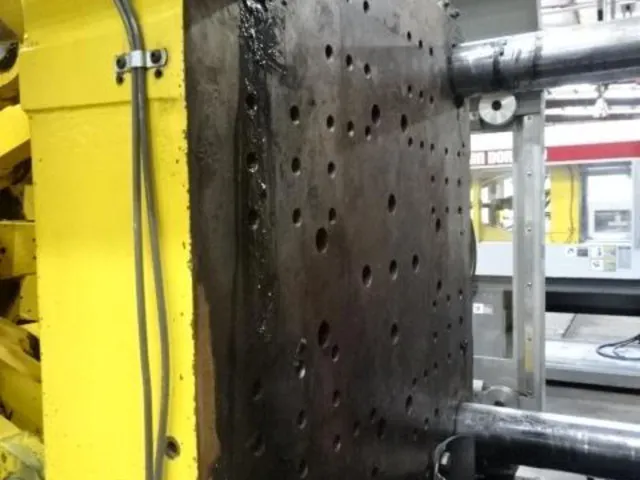

Platen Size

32" x 32"

Max Daylight

42"

Clamp Stroke

20"

Min Mold Height

7"

Screw Diameter

60 mm

Ejector Stroke

4.5"

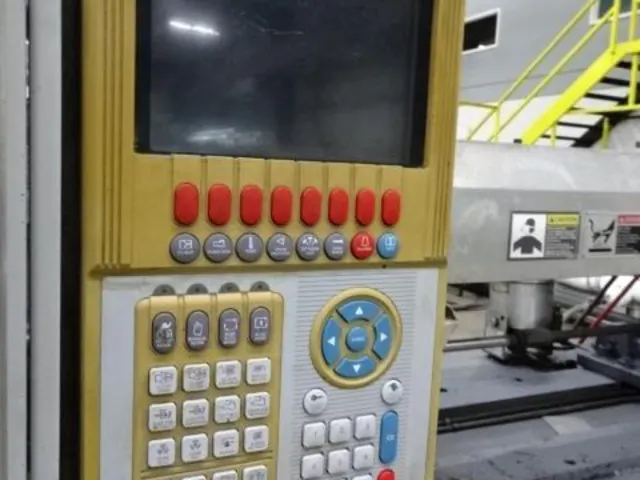

Control

Pathfinder 5000

Power Requirement

460/3/60

Machine Dimensions

22'4" x 4'7" x 6'6"

Machine Weight

21,300 Lbs

Features

Core Pull

Air Eject

Hydraulic Knockout

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
