| Year | 2000 |
|---|---|
| Make | Mazak |
| Model | Integrex 200Y |
Description |
CNC Lathe |
| Reference # | 8072935 |
Price |
Activate PricingInquire Now |

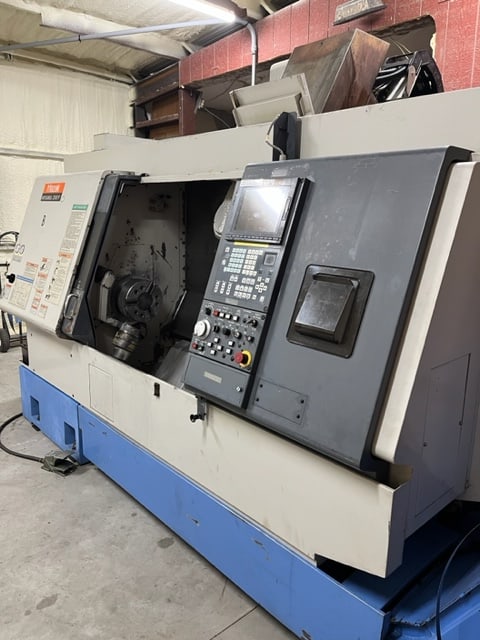

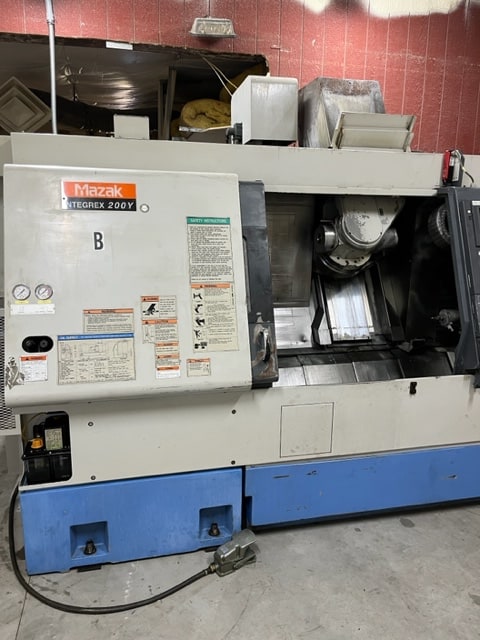

Used Mazak Integrex 200Y (2000) CNC Lathe for Sale. This pre-owned Mazak CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mazak Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2" |
| Swing |
21.26" |
| Spindle Speed |
5,000 RPM |

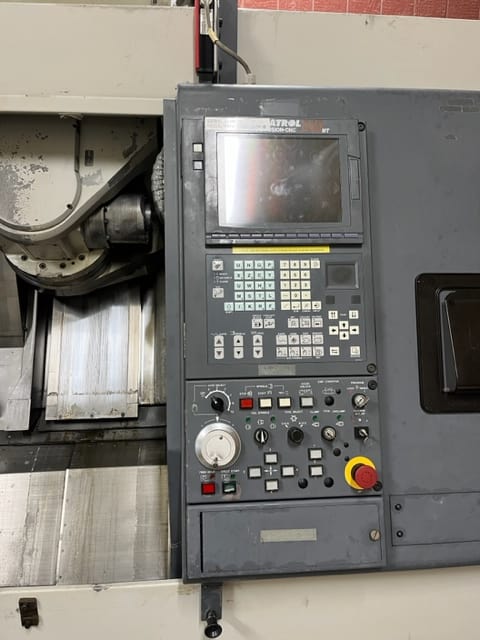

| Control |
Mazatrol 640MT |
| Distance Between Centers |
40" |
| Turret |
40 Position |
| Spindle Motor |
30 HP |
| Rotary Tool Speed |
6,000 RPM |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Machine Dimensions |
142" x 87" x 98" |
Features
|
(2) PCMCIA Slots / 2 GB Hard Drive |
Auto Tool Presetter |
|
Background Tool Path Check |
Coolant Through Spindle on Milling Head |
|
Milling Spindle Synchronous Tapping |
Tailstock |
|
Tool Eye Measurement |
Variable Feed Rate Control |
|
40 Tool KM-63 Magazine |
Tool Wear Compensation |
|
Door Interlock |
N-EIA/ISO Option Package |
