| Year | 2002 |
|---|---|
| Make | Berstorff |
| Model | ZE 25Rx44D |
Description |

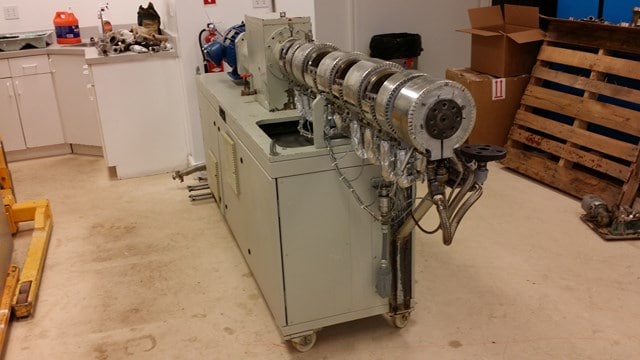

Co-Rotating Twin Screw Extruder |
| Reference # | 7763170 |
Price |
Activate PricingInquire Now |
Used Berstorff ZE 25Rx44D (2002) Extruder for Sale. This pre-owned Berstorff plastic extruder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Berstorff Extruder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Extrusion Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Screw Size |
25mm |
|---|---|
| Co-Rotating Screw Design |
600 RPM |
| L/D Ratio |
44:1 |
| Horsepower |
10 |
| Quick Clamps |

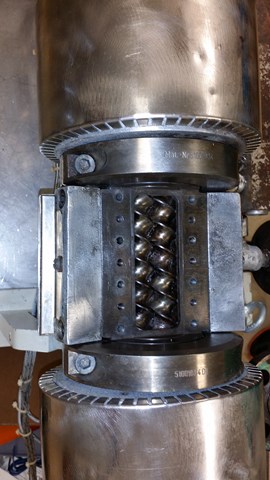

10- Barrel Sections / 4- Open Barrel Sections W/Bolt On Blanks |
| Main Feed |

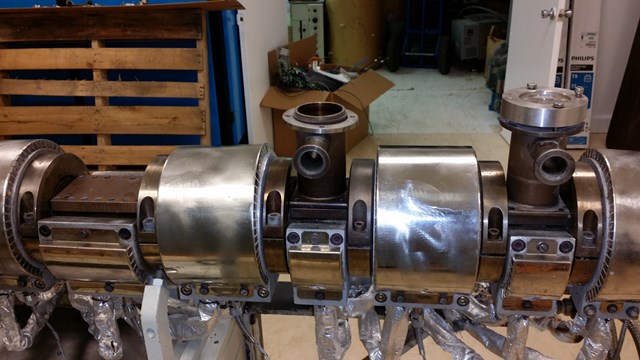

2- Bolt on Stacks for the Open Sections to Adapt Feed or Vent Options |
Features
|
16 Spare Unused Screw Elements and Misc Other Spare Parts |
80 Hours on Optical Fiber Acrylic Materials Both Solid and Gel-State |
|
Adjusting Vacuum Venting Manifold |

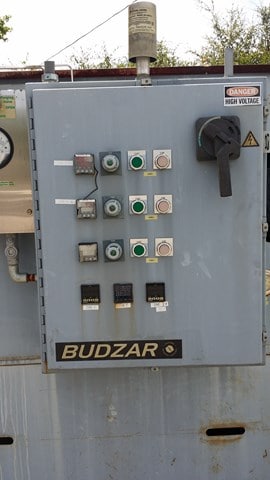

Budzar 3-Zone Temperature Control Unit |
|

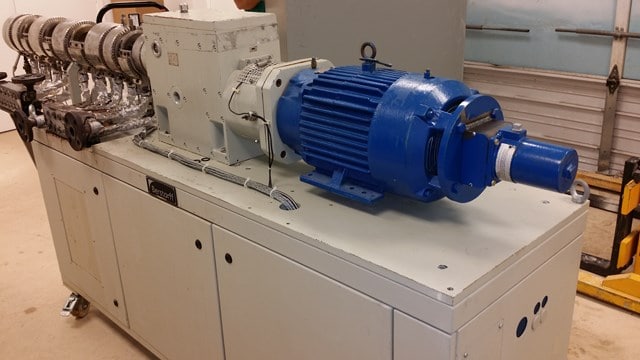

Flender Gearbox |
Hot Oil Temperature Contolled |
|
Vacuum Pump |

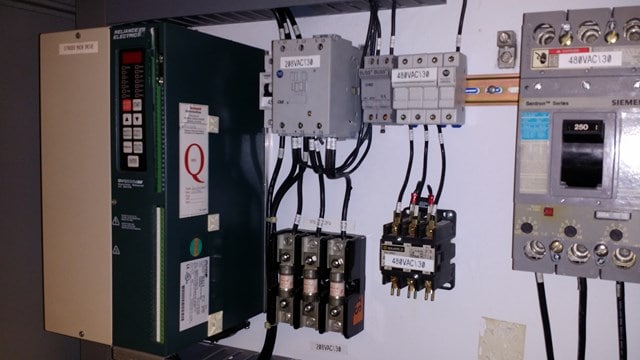

Reliance Variable Speed Drive |
|
The unit has no side feeder or control panel |
Top Sight Glasses |
