| Year | 2002 |
|---|---|
| Make | Mitsubishi |
| Model | EA12 |
Description |
EDM Sinker |
| Reference # | 8072597 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

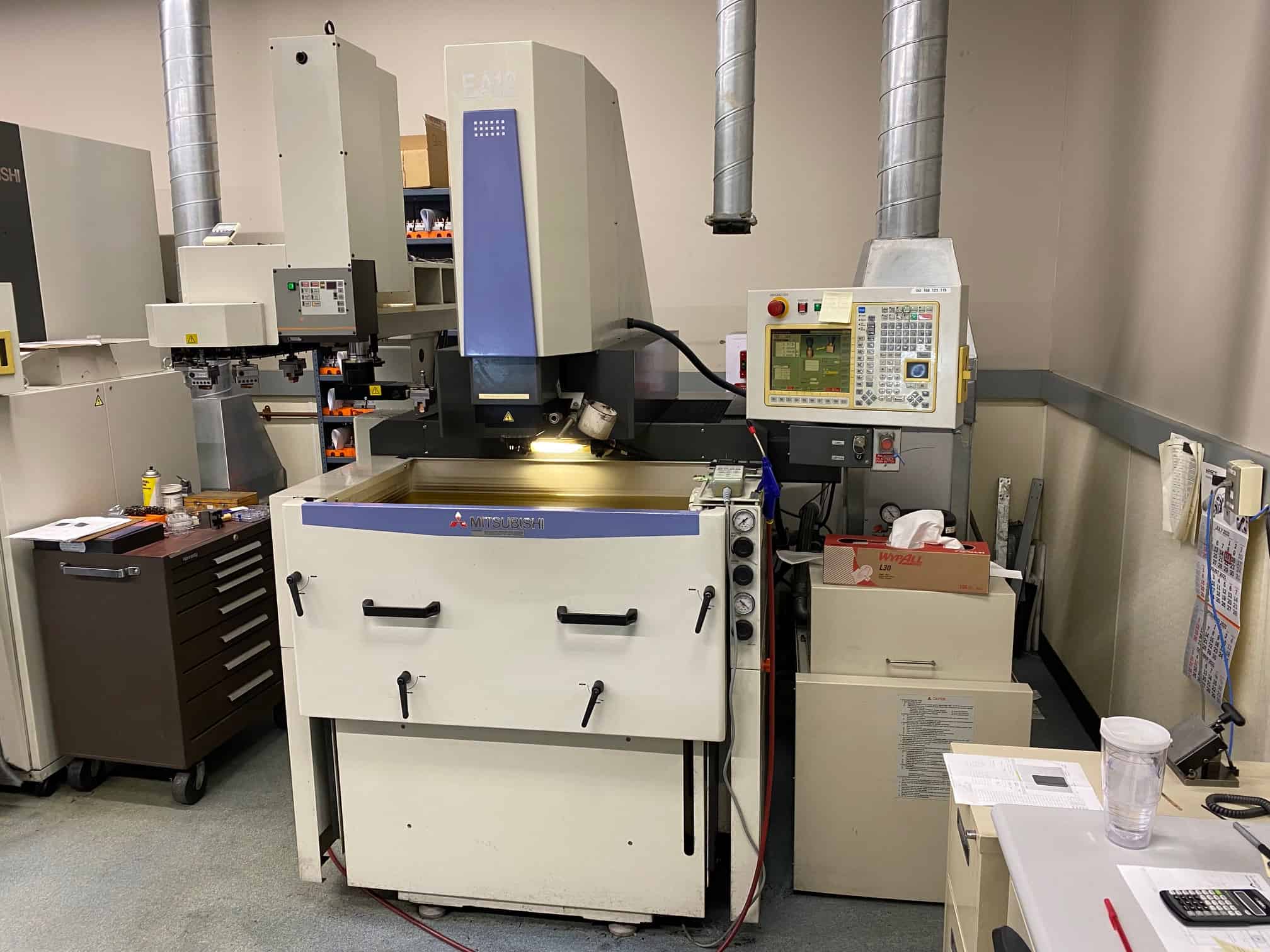

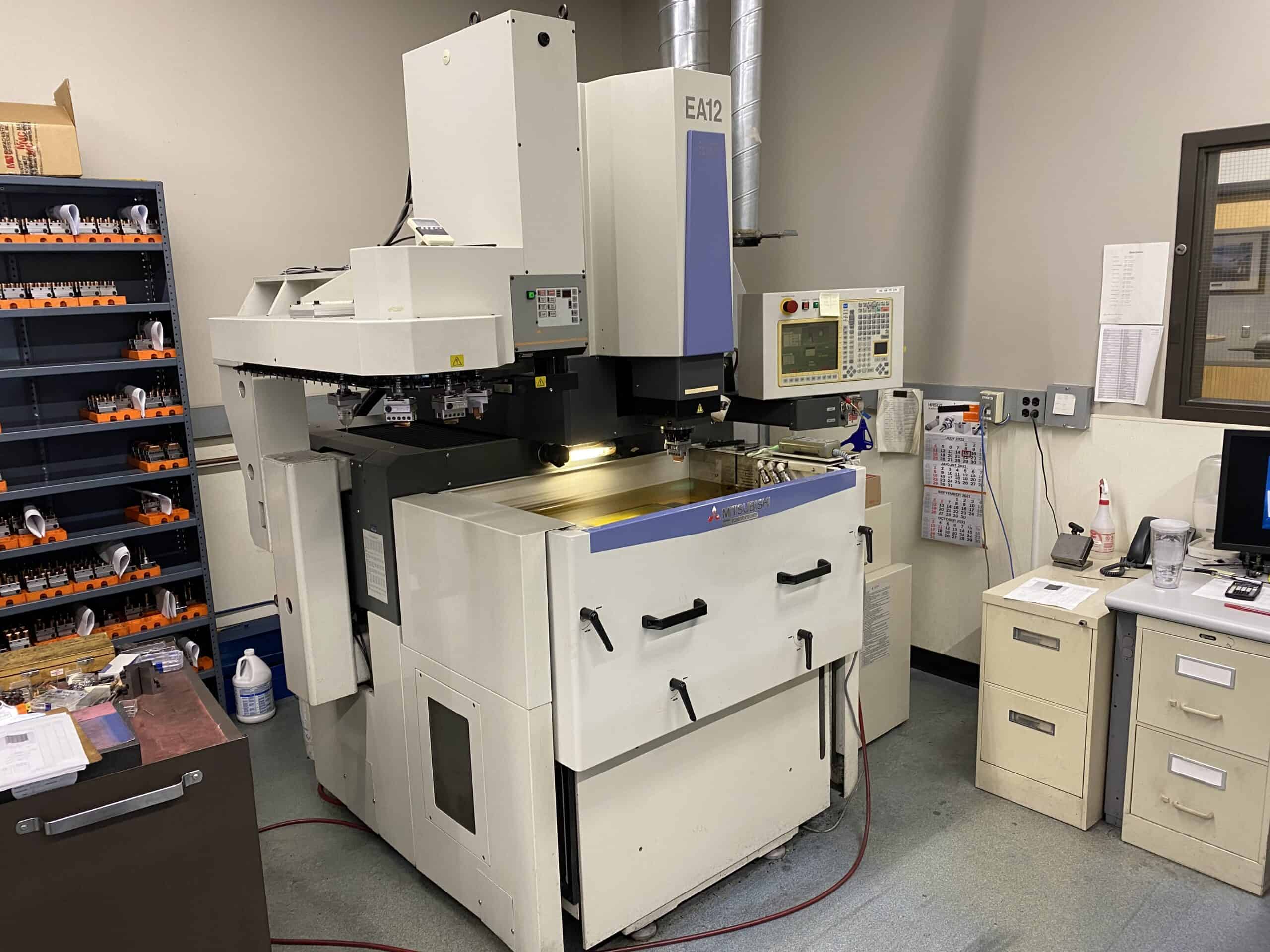

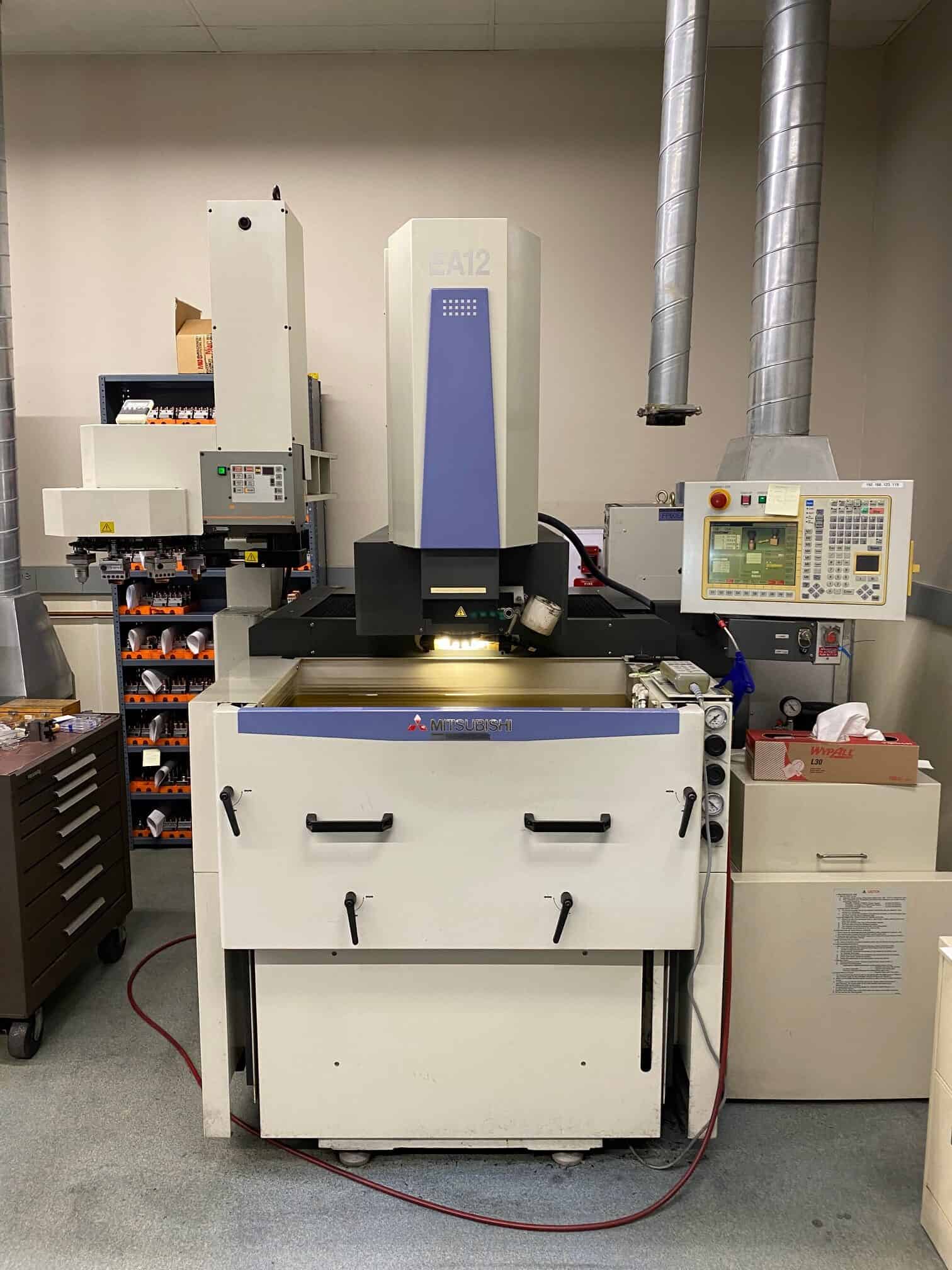

Used Mitsubishi EA12 (2002) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM sinker is located in Illinois and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
15.75" |
|---|---|
| Y-Axis Travel |
11.81" |
| Z-Axis Travel |
11.81" |
| Control |
Mitsubishi CNC |

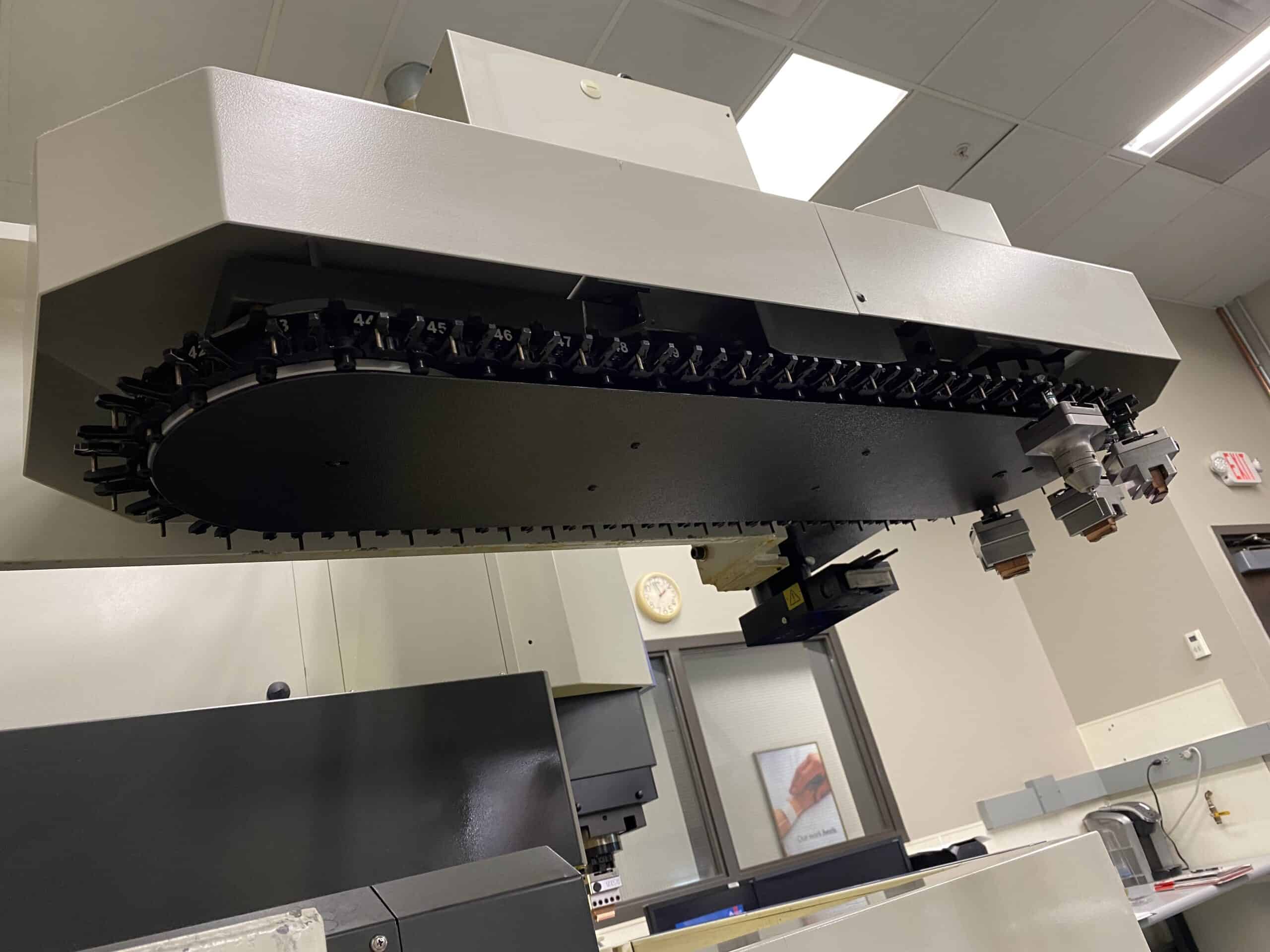

| Tool Changer |
40 Position |
| Power Source |
60 AMP |
| C-Axis |
Yes |
| Chuck |
3R |
| Power Requirement |
200-230/3/60 |
| Table Dimensions |
23.62" x 17.71" |
| Table to Platen |
7.8" x 19.6" |
| Minimum Input |
.0001" |
| Min Drive Resolution |
.000002" |
| Max Electrode Weight |
110 Lbs |
| Max Workpiece Weight |
1,543 Lbs |
| Work Tank Dimensions |
33.46" x 23.62" x 13.78" |
| Machine Dimensions |
100.6" x 120.5" |
| Machine Weight |
5,000 Lbs |
Features
|

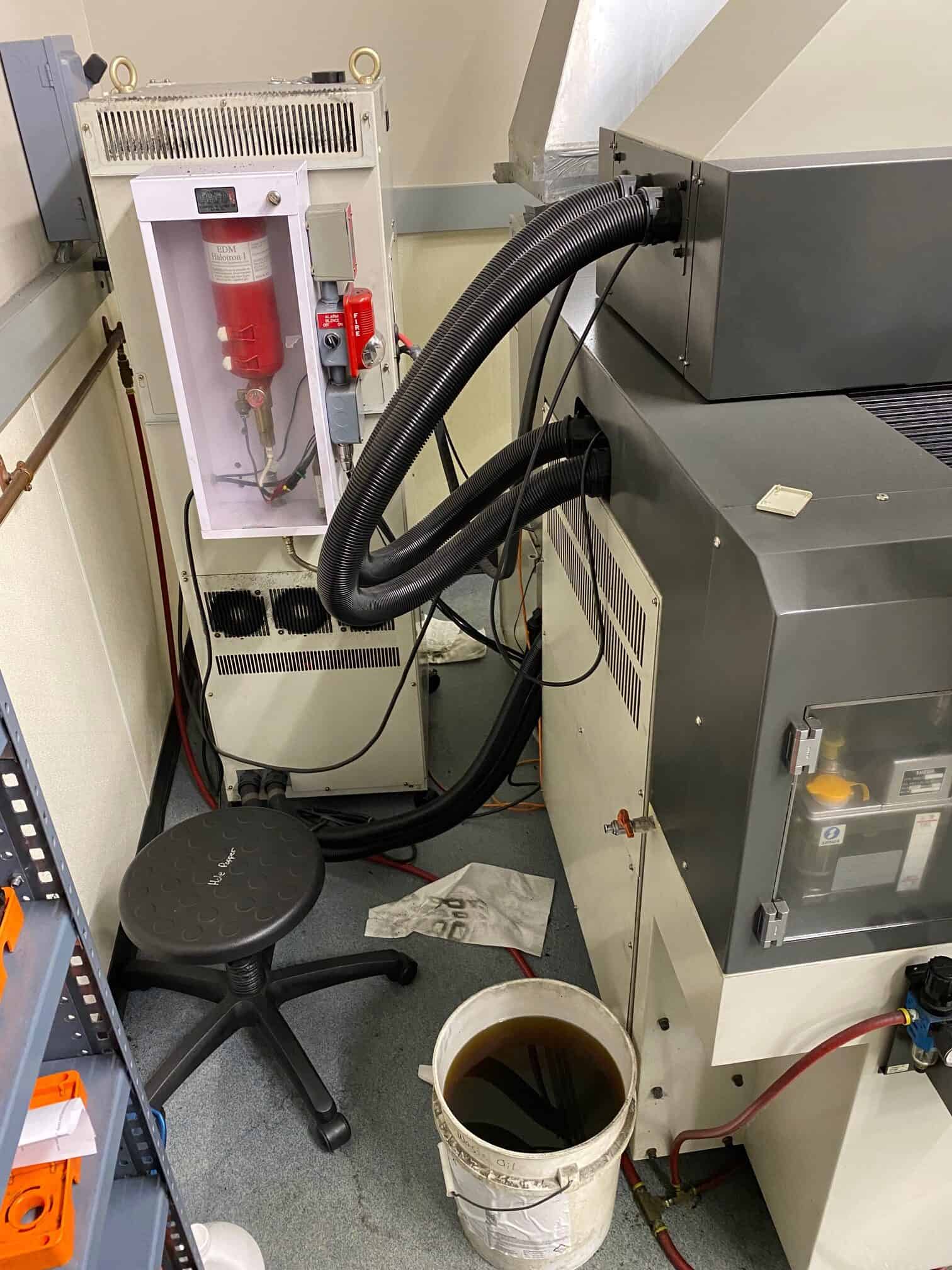

Chiller |

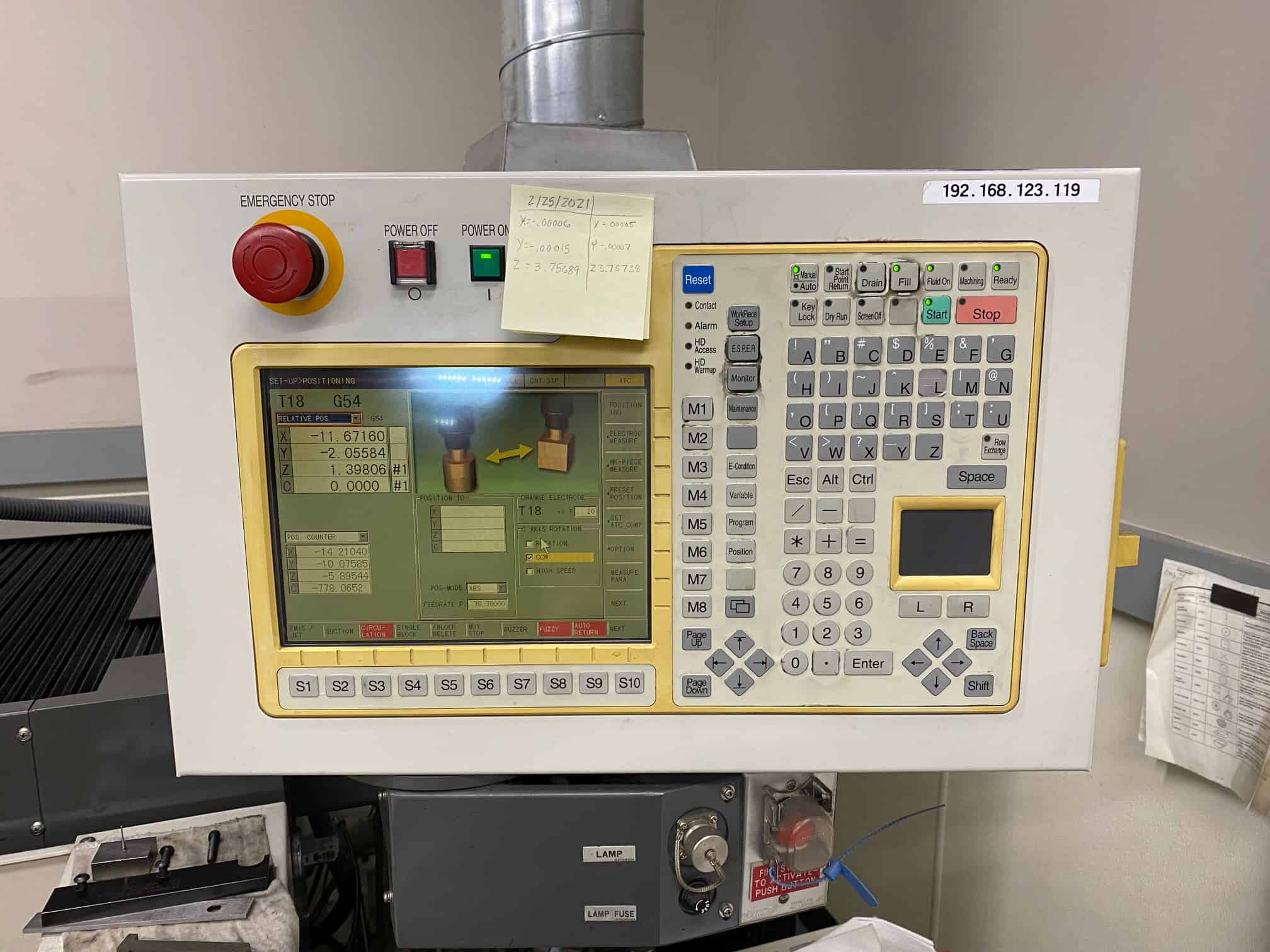

10.4" TFT Color LCD |
|
Linear Motion Guide Ways |
Saddleless Moving Column Design Allows Greater Workpiece Weight Capability and Easier Loading / Unloading of Workpieces |
|

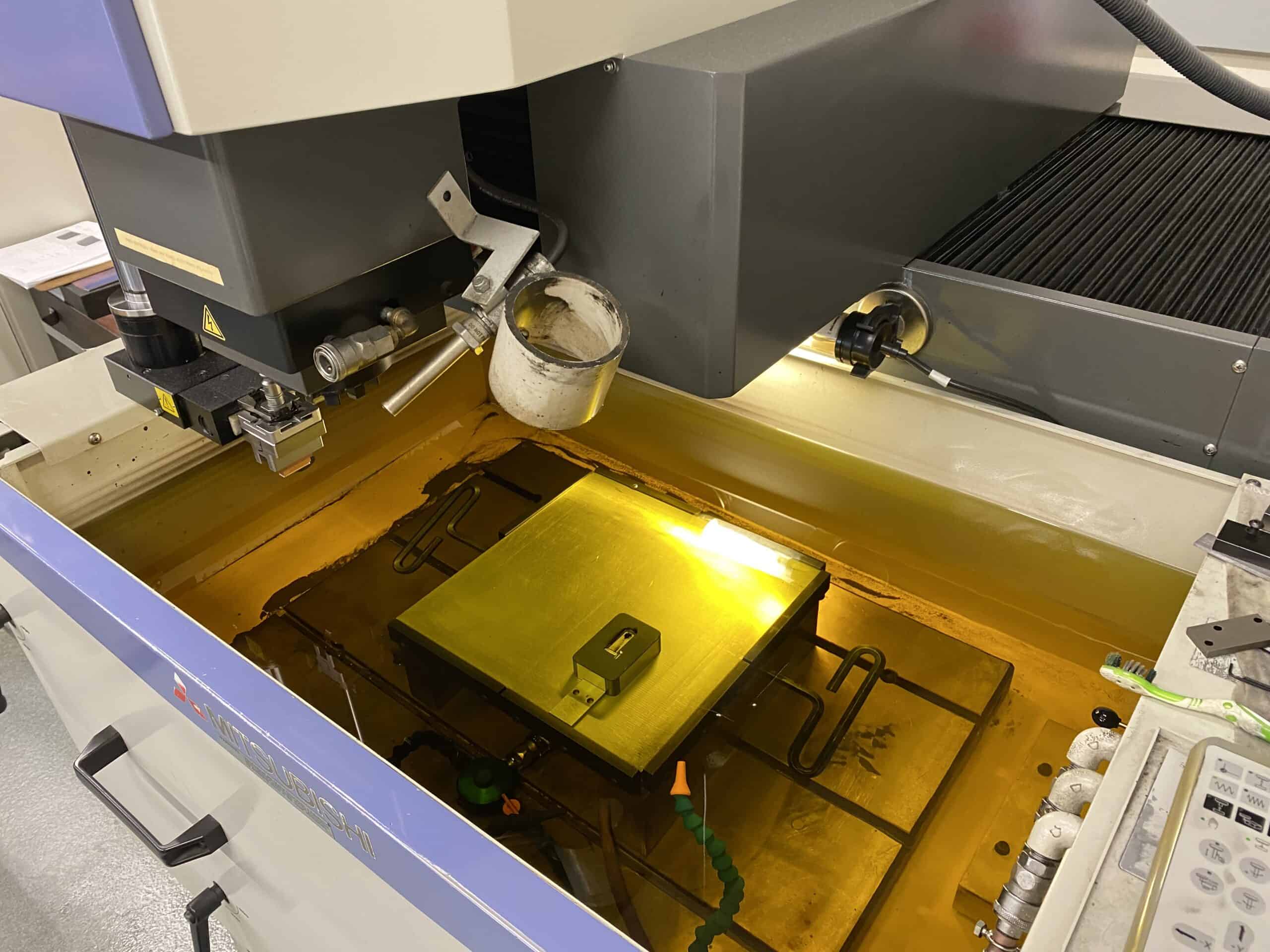

3-Sided Drop Tank |
Z-Axis Linear |
|
Combi C-Axis Macro & Mini |
Direct Drive Ball Screws |
|
Fuzzy Pro3" Control System |
Newly Designed AC Smart Servo Drive System |
|
XYZ Glass Scale Feedback |
