| Year | 2003 |
|---|---|
| Make | Mitsubishi |
| Model | FA20 |
Description |
EDM Wire |
| Reference # | 8074428 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

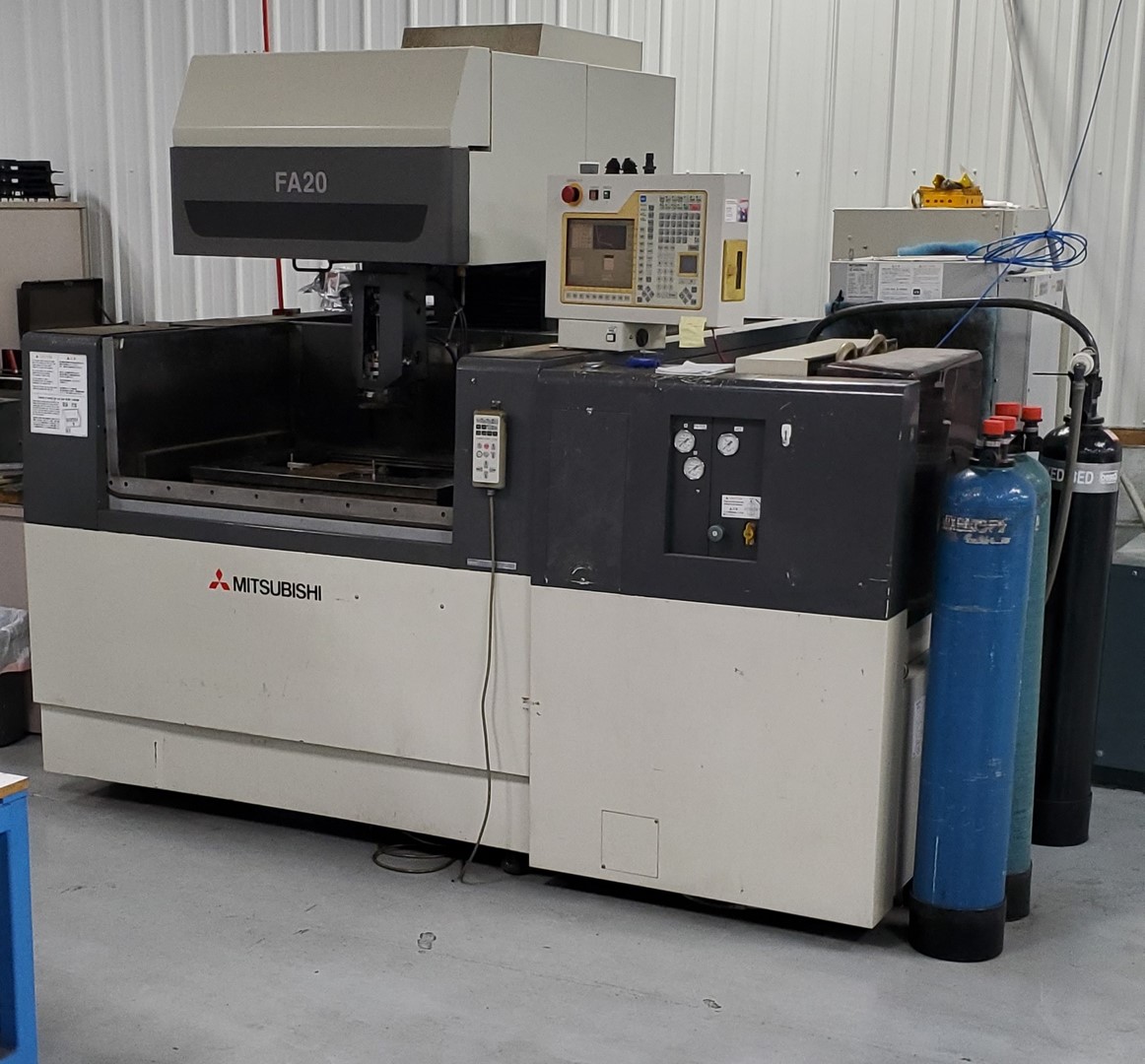

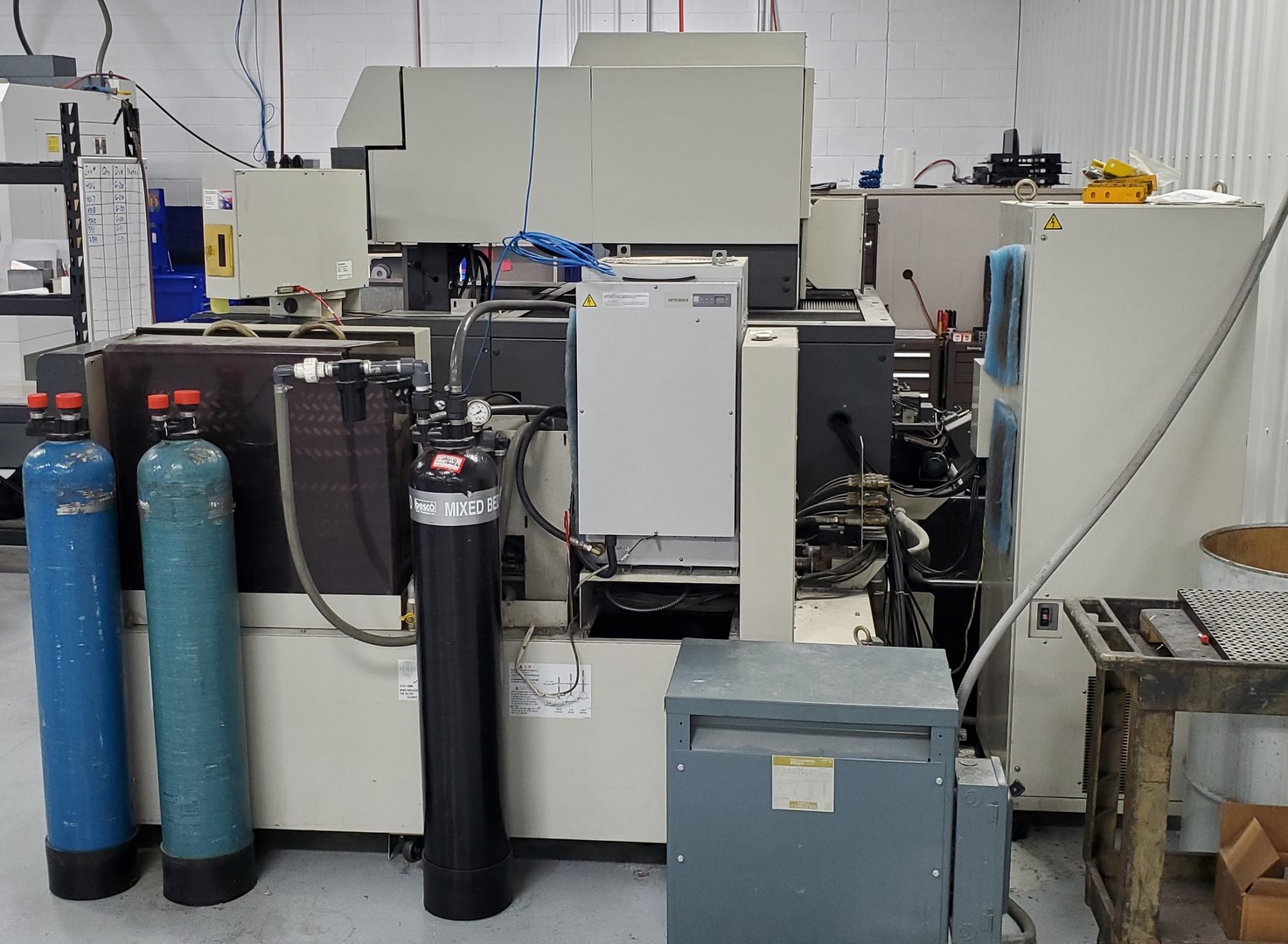

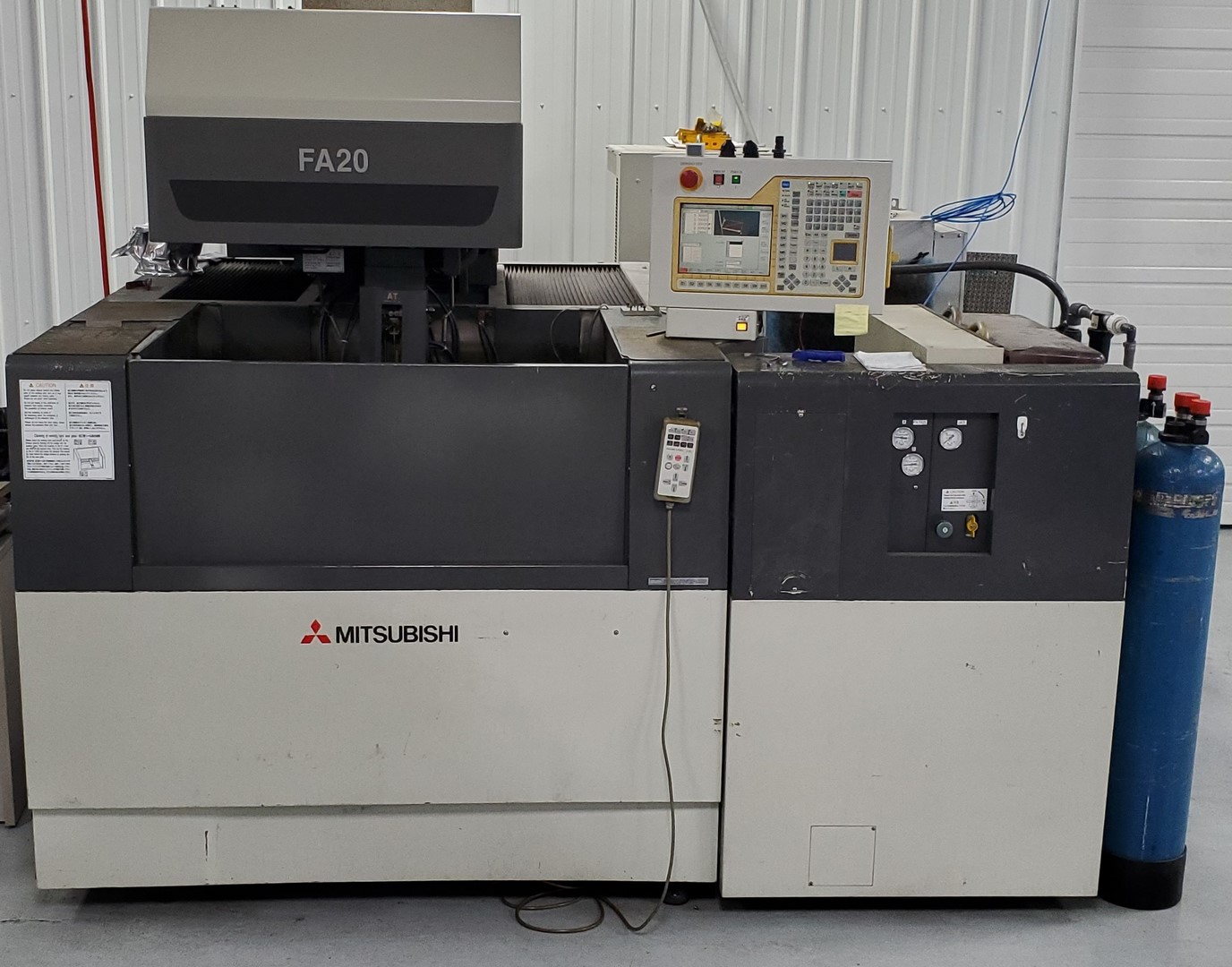

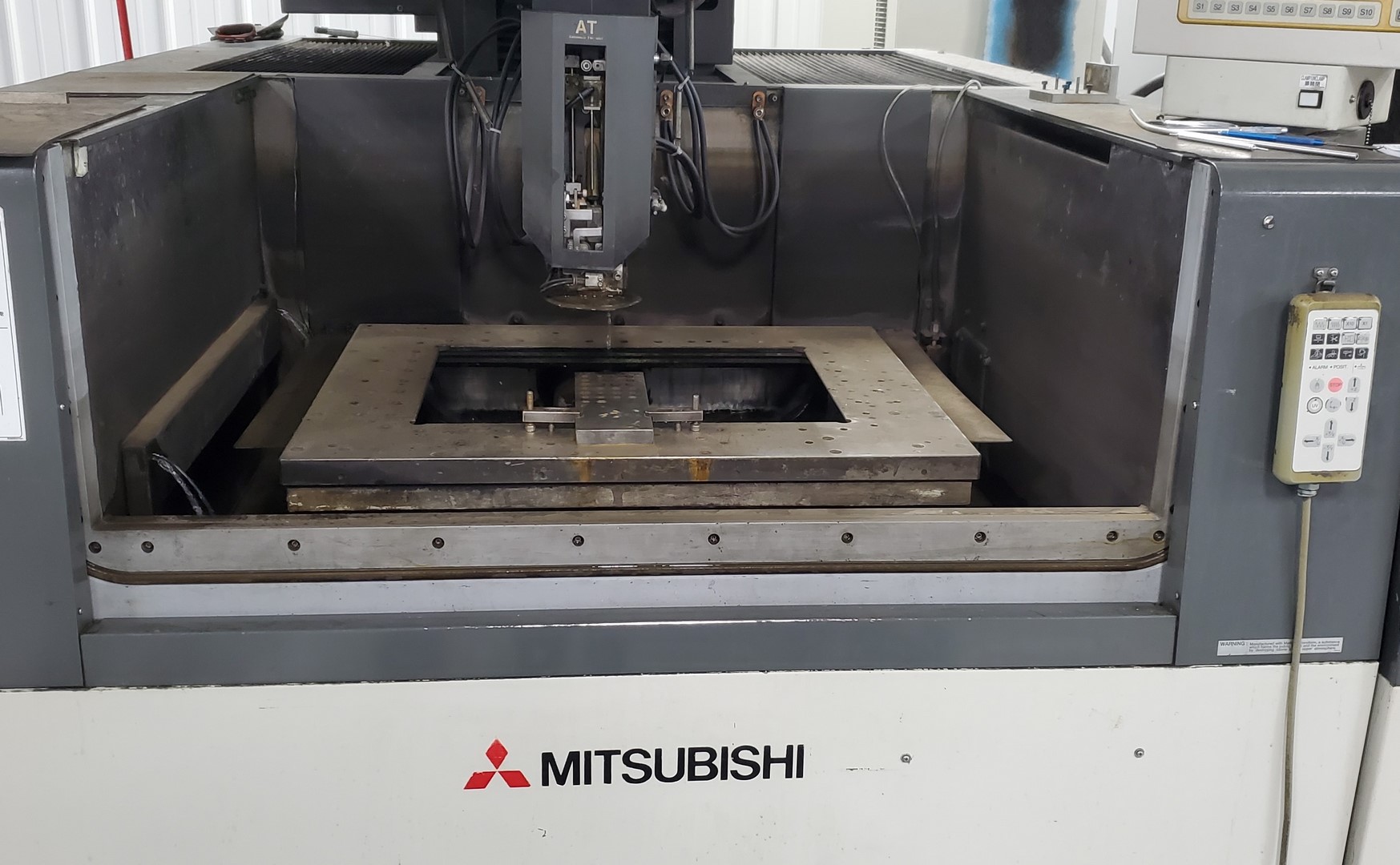

Used Mitsubishi FA20 (2003) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM wire is located in Michigan and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
19.69" |
|---|---|
| Y-Axis Travel |
13.77" |
| Z-Axis Travel |
11.81" |

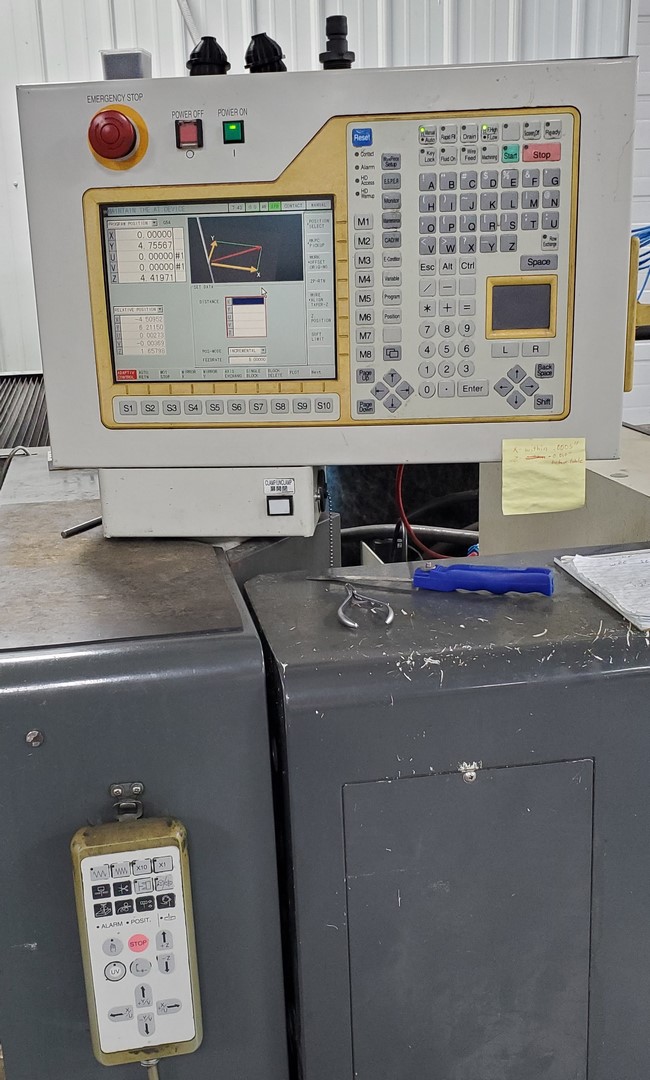

| Control |
Mitsubishi |
| U/V Axis Travel |
1.25" x 1.25" |
| Degree Taper Cutting |
15 @ 4" |
| Inside Tank Dimensions |
41.34" x 31.50" |
| Workpiece Weight |
3,300 Lbs |
| Resolution |
.000002 |
| Table Dimensions |
30.71" x 24.8" |
| Filter Tank |
190 Gallons |
| Machine Weight |
8,600 Lbs |
| Power Requirement |
200-230/3/60 |
| Dielectric Tank Dems |
35" x 81" x 60" |
| Machine Dems |
74" x 103.2" x 84" |
Features
|

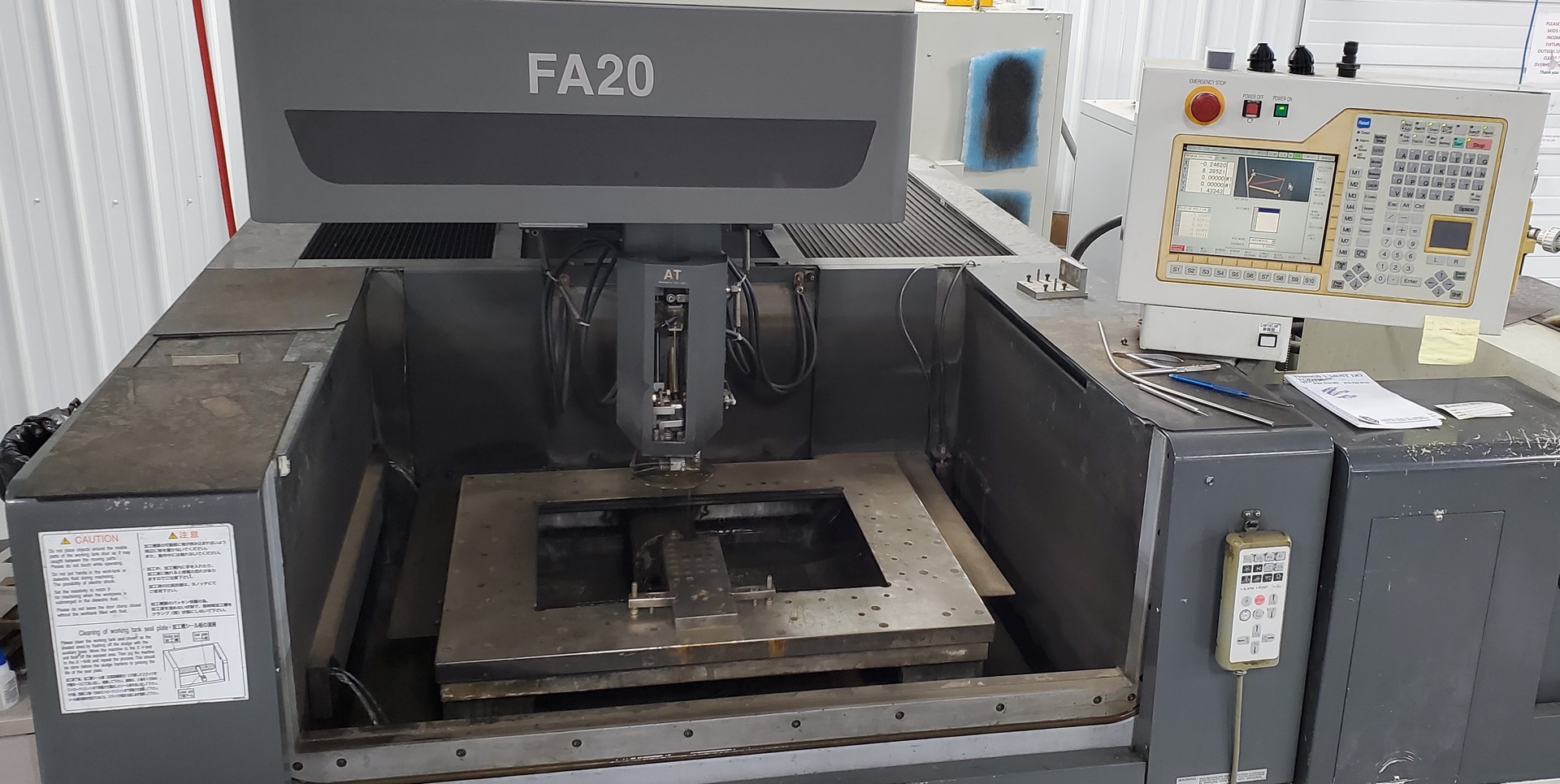

4-Sided Table (One-Piece) |
Auto Wire Threading |
|
Chiller |

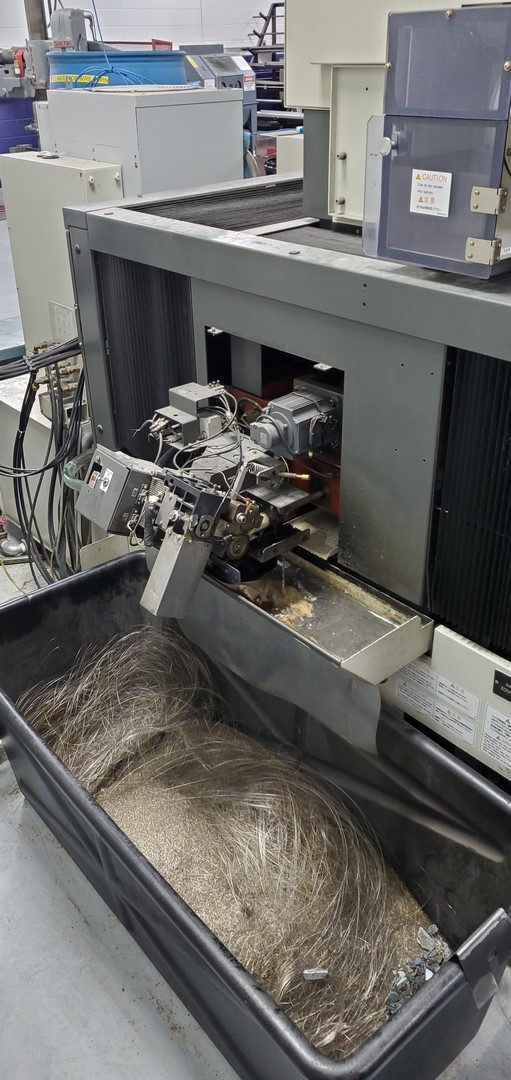

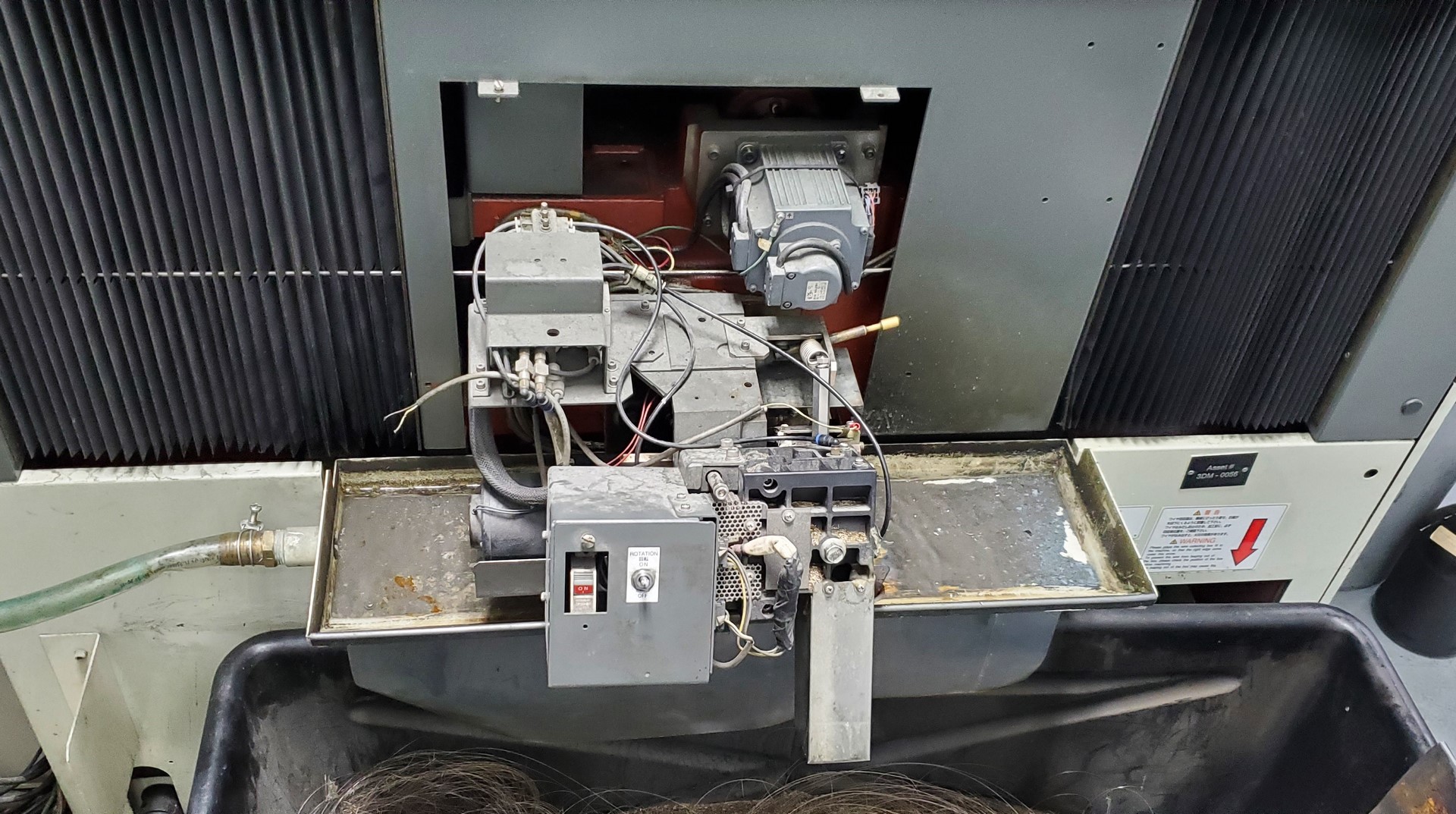

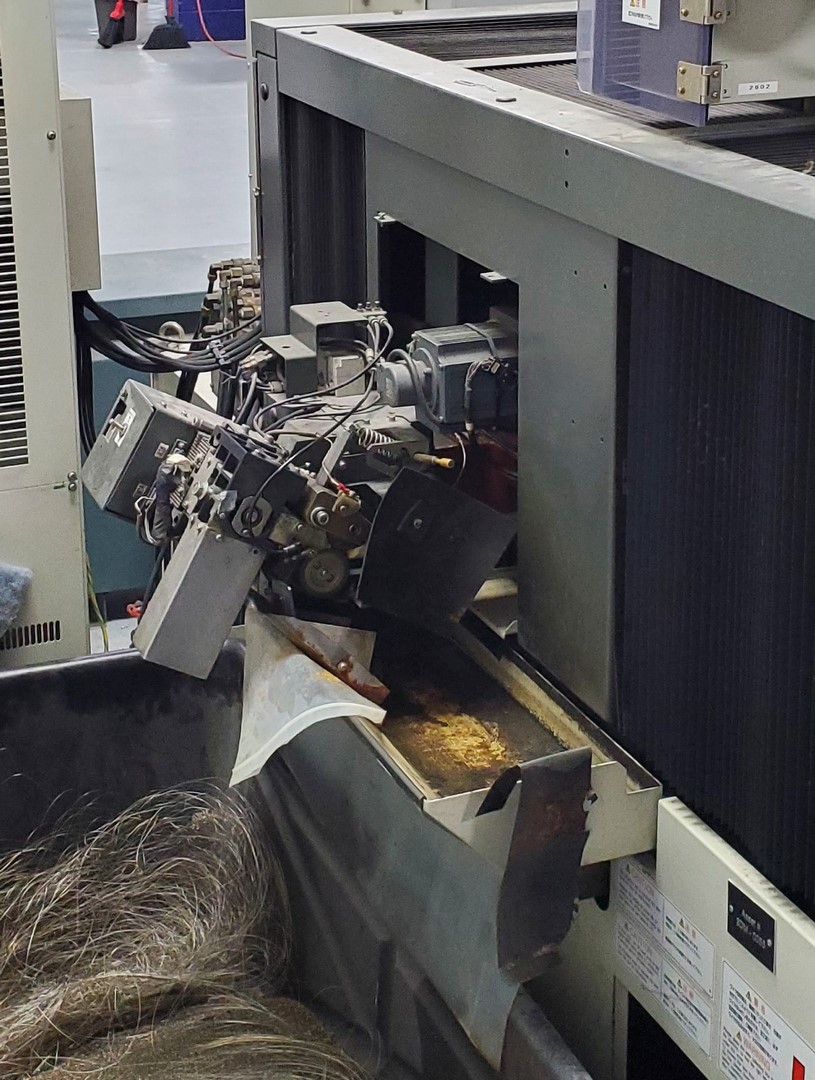

Wire Chopper |
|
Submerged Threading |
Adaptive Power Supply |
|
Auto Voltage Regulator |
Digital AC Servos Drives |
|
Linear Glass Scale Feedback |
