| Year | 2004 |
|---|---|
| Make | Engel |
| Model | TG 2550/500 WP-US-EC100-A03 |
Description |
500 Ton 38.7 oz Shot Size Injection Molding Machine |
| Reference # | 8073093 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

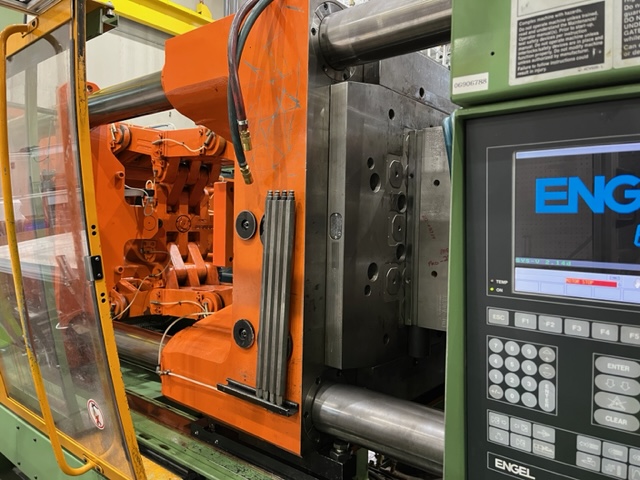

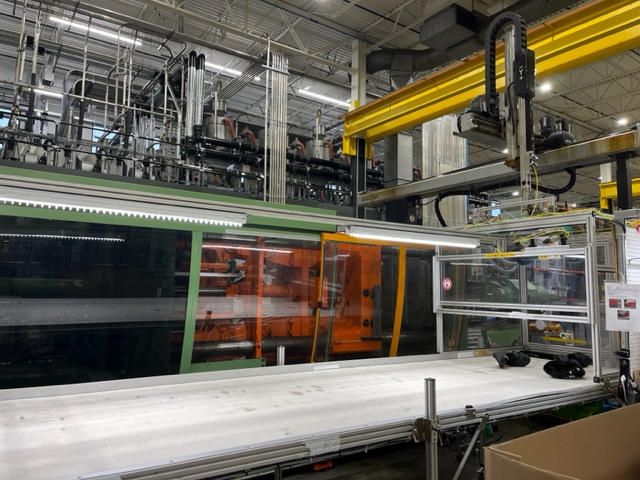

Used Engel TG 2550/500 WP-US-EC100-A03 (2004) Injection Molding Machine for Sale. This pre-owned Engel plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Engel Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
500 Ton |
|---|---|
| Shot Size |
38.7 oz |
| Tie Bar Spacing |
44.09" x 33.07" |
| Platen Size |
58.26" x 47.24" |
| Min /Max Mold Height |
11.81"/33.94" |
| Clamp Stroke |
27.56" |
| Ejector Stroke |
9.45" |

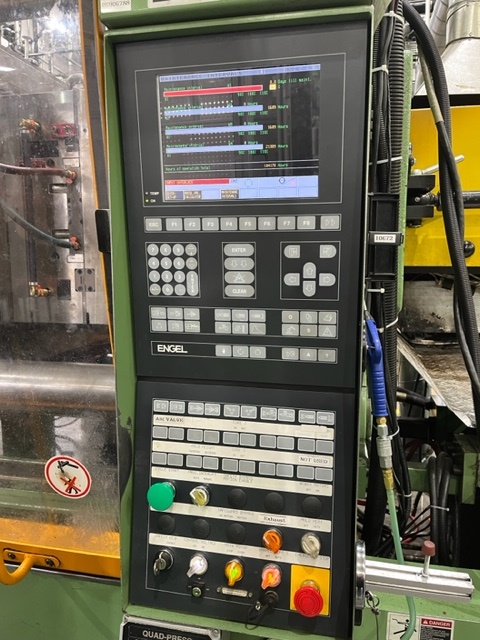

| Control |
CC100 |
| Press Dimensions |
Injection End: 12’ x 6’ (L x W) Clamp Unit: Unit: 16’ x 8’ (L x W) |
| Press Weigh |
Total Weight: 60,000 lbs. Injection Unit: 18,000 lbs. Inj. Unit: 42,000 lbs. |
Features
|
Core Pull |
Hydraulic Knockout |
|

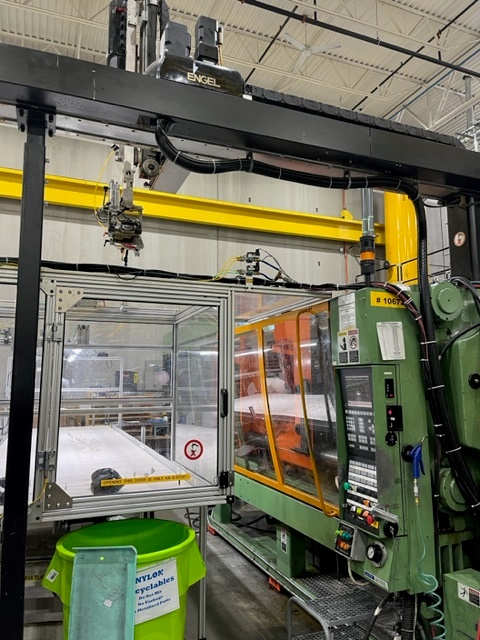

Robot Interface |
Under Power |
|
Toggle Clamp |
Magnetic Platen |
