| Year | 2004 |
|---|---|
| Make | Mitsubishi |
| Model | FA10 |
Description |
EDM Wire |
| Reference # | 8074215 |
Price |
Activate PricingInquire Now |

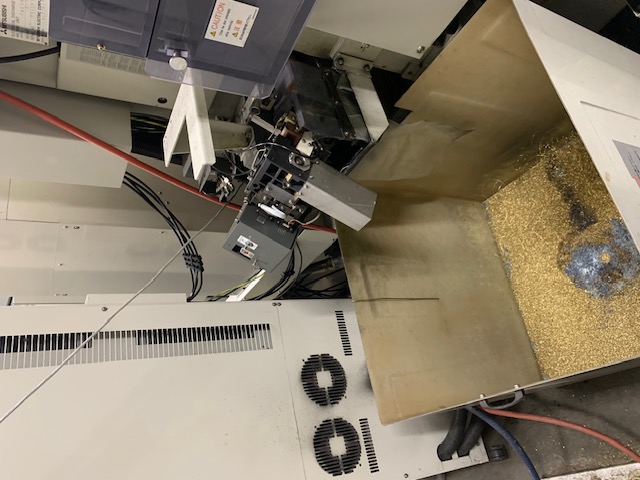

Used Mitsubishi FA10 (2004) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM wire is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
13.7" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.6" |
| Control |
Mitsubishi 64 Bit Controller |
| U/V Axis Travel |
1.25" x 1.25" |
| Degree Taper Cutting |
15 at 4" |
| Inside Tank Dimensions |
31.4" x 23.6" |
| Power Requirement |
200-230/3/60 |
| Wire Tension |
50 ~ 2500 (g) |
| Table Rapid Feed |
51.2 IPM |
| Guides |
.010" |
| Resolution |
.000002" |
| Dielectric System Dimensions |
40.1" x 60.6" x 59.1" |
| Filter Tank Capacity |
116 Gallons |
| Dielectric System Weight |
770 Lbs (Empty) |
| Table Dimensions |
23.2" x 20.2" |
| Workpiece Weight |
1,100 Lbs |
| Max. Workpiece Dimensions |
31.4" x 23.6" x 8.4" |
| Machine Weight |
4,400 Lbs |
| Machine Dimensions |
62.0" x 65.6" x 75.9" |
Features
|

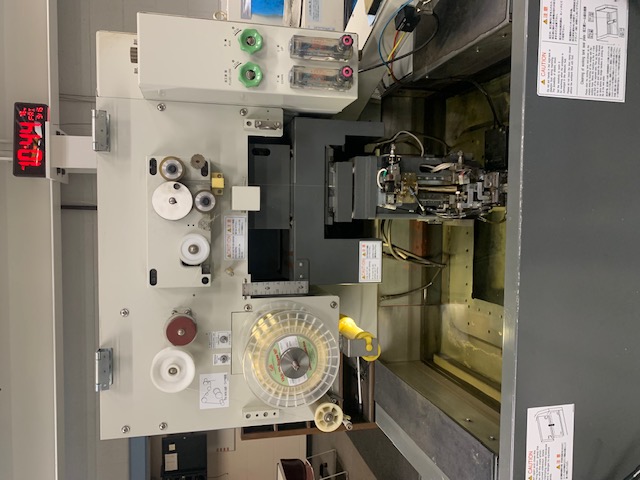

Auto Wire Threading |
Chiller |
*
