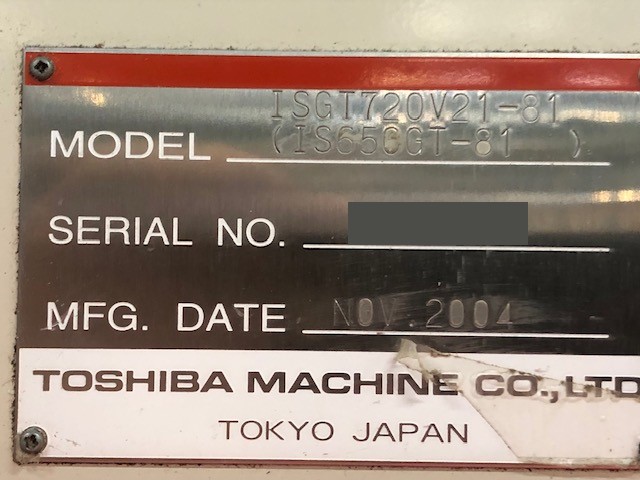

| Year | 2004 |
|---|---|
| Make | Toshiba |
| Model | ISGT720V21-81 |
Description |
720 Ton 183 oz Shot Size Injection Molding Machine |
| Reference # | 8074018 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

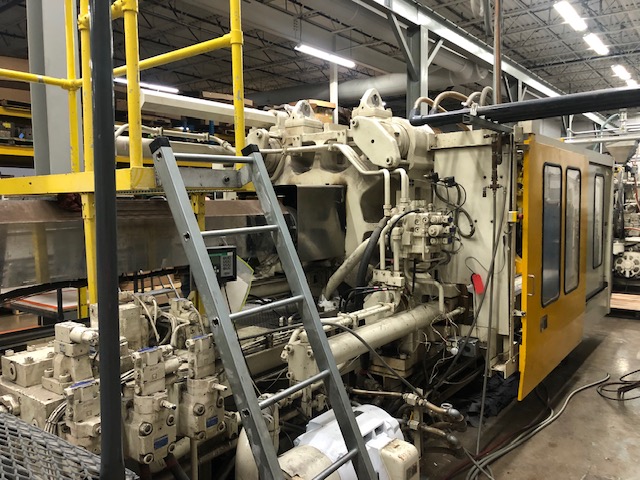

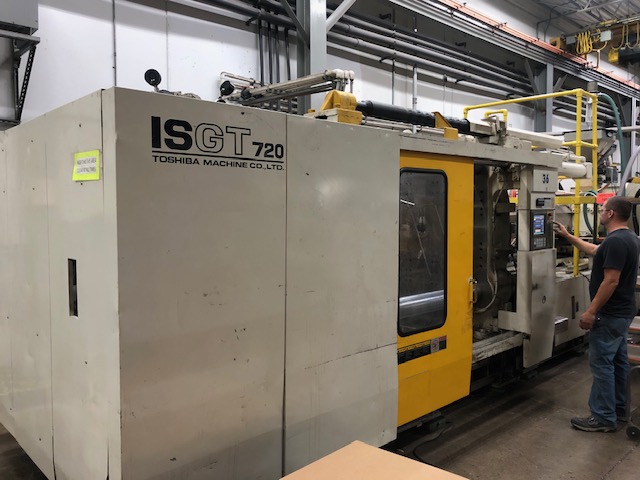

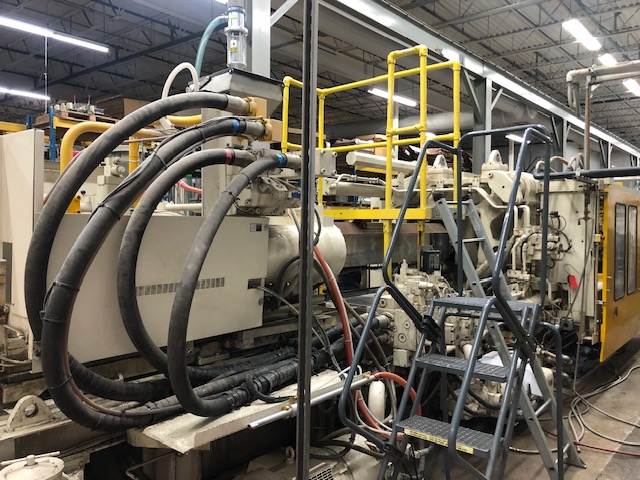

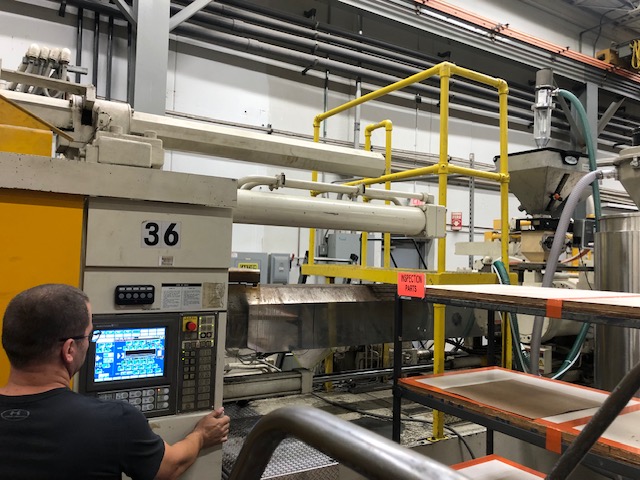

Used Toshiba ISGT720V21-81 (2004) Injection Molding Machine for Sale. This pre-owned Toshiba plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Toshiba Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
720 Ton |
|---|---|
| Shot Size |
183 oz |
| Tie Bar Spacing |
37.7" x 37.7" |
| Platen Size |
55.1" x 55.1" |
| Max Daylight |
70.9" |
| Min /Max Mold Height |
17.7"/37.4" |
| Clamp Stroke |
53" |
| Control |
Injectvisor V21 |
| Clamp Weight and Dimensions |
12' L x 8' W x 10' H / 50,000 Lbs |
| Injection Unit Weight and Dimensions |
16' L x 8' W x 8' H / 20,000 Lbs |
Features
|
Dual Air Blow |
Dual Core Pull |
|
Low Hours |
Robot Interface |
