| Year | 2004 |
|---|---|
| Make | Trumpf |
| Model | TruMatic 5000R |
Description |
25 Ton Turret Punch |
| Reference # | 8074289 |
Price |
Activate PricingInquire Now |

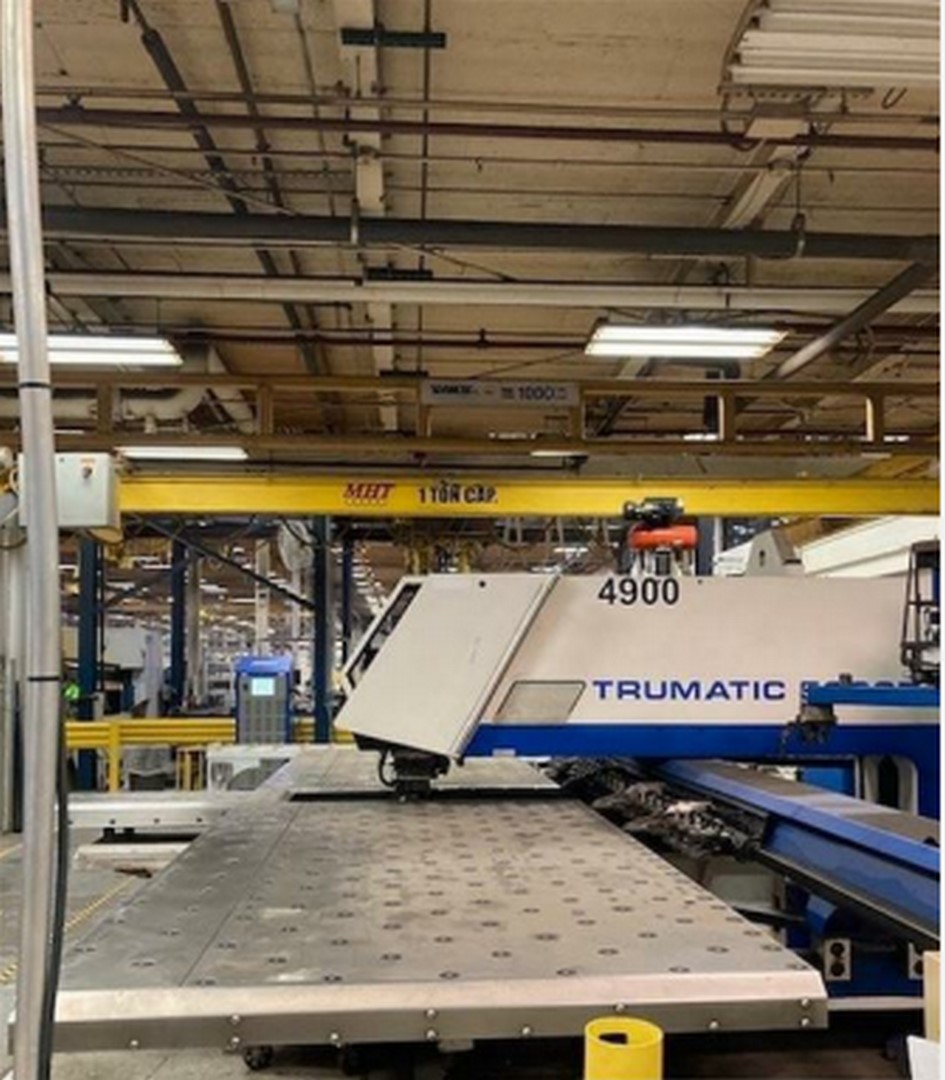

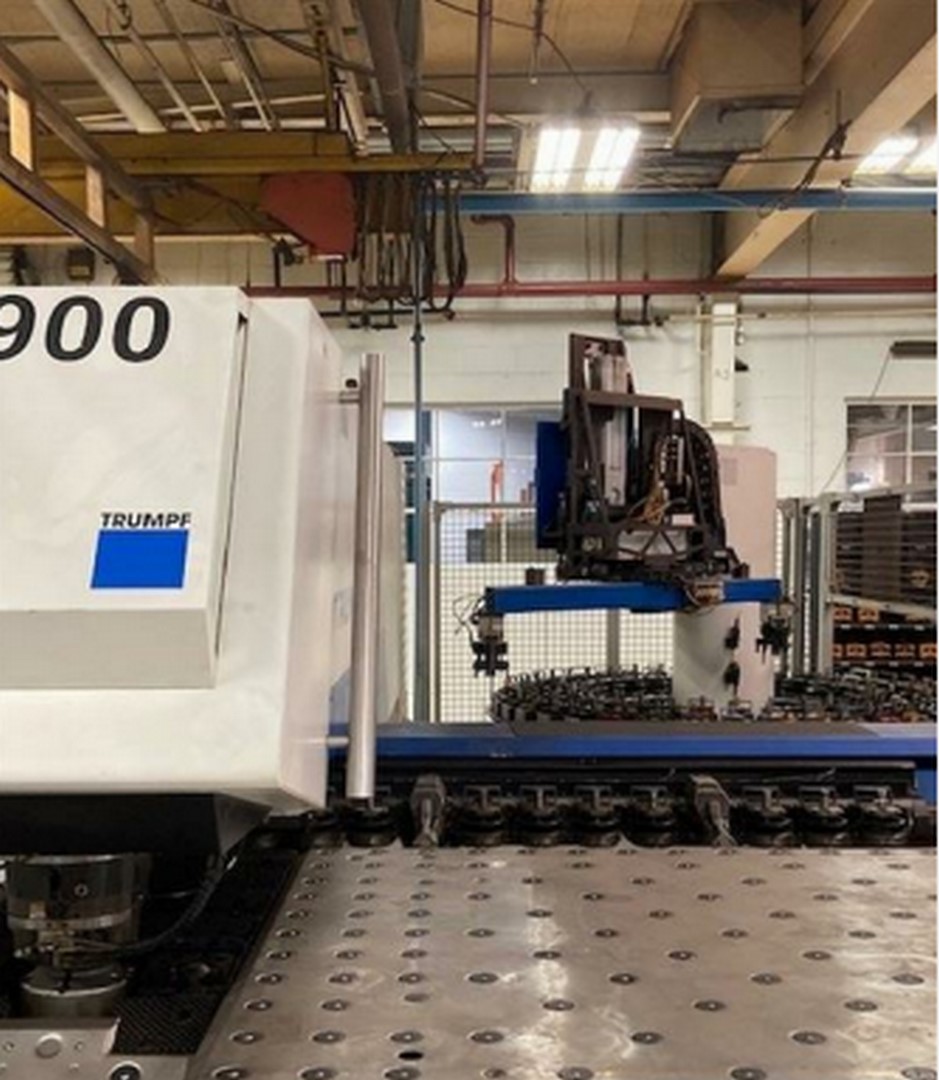

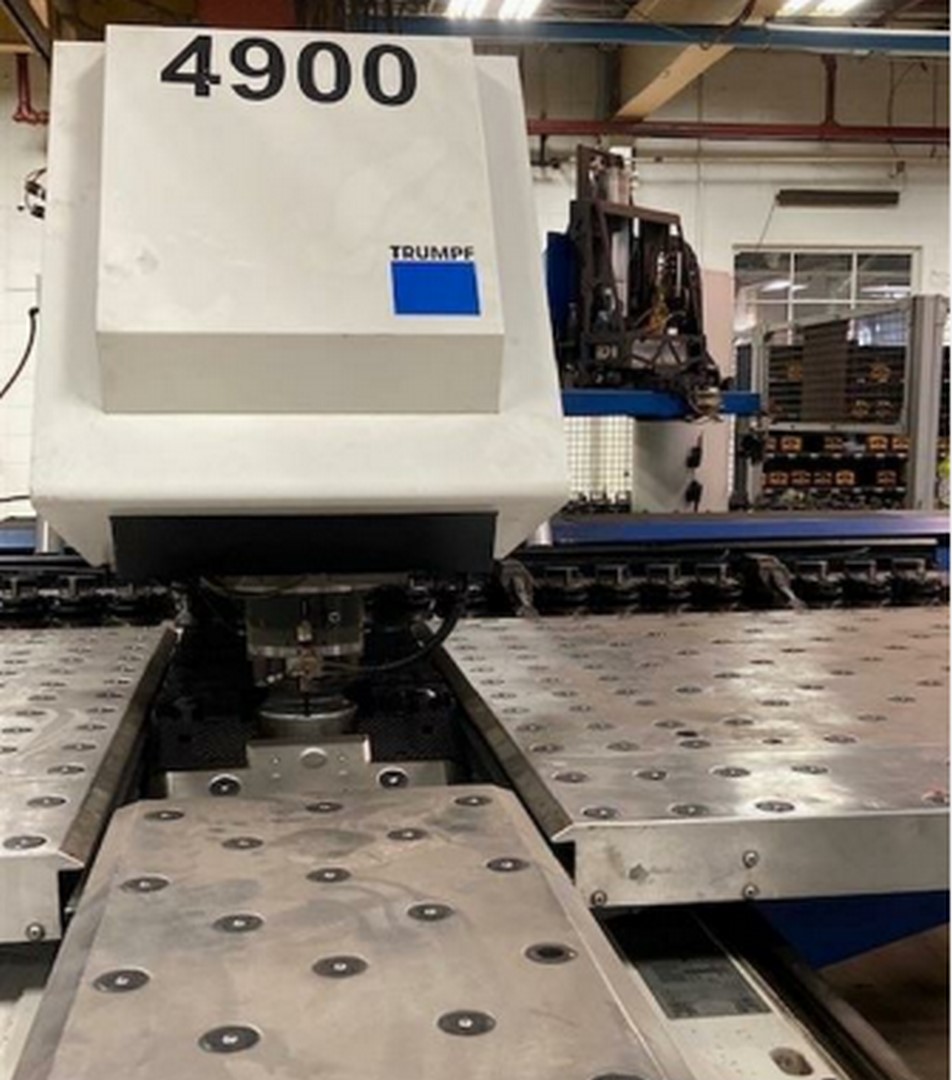

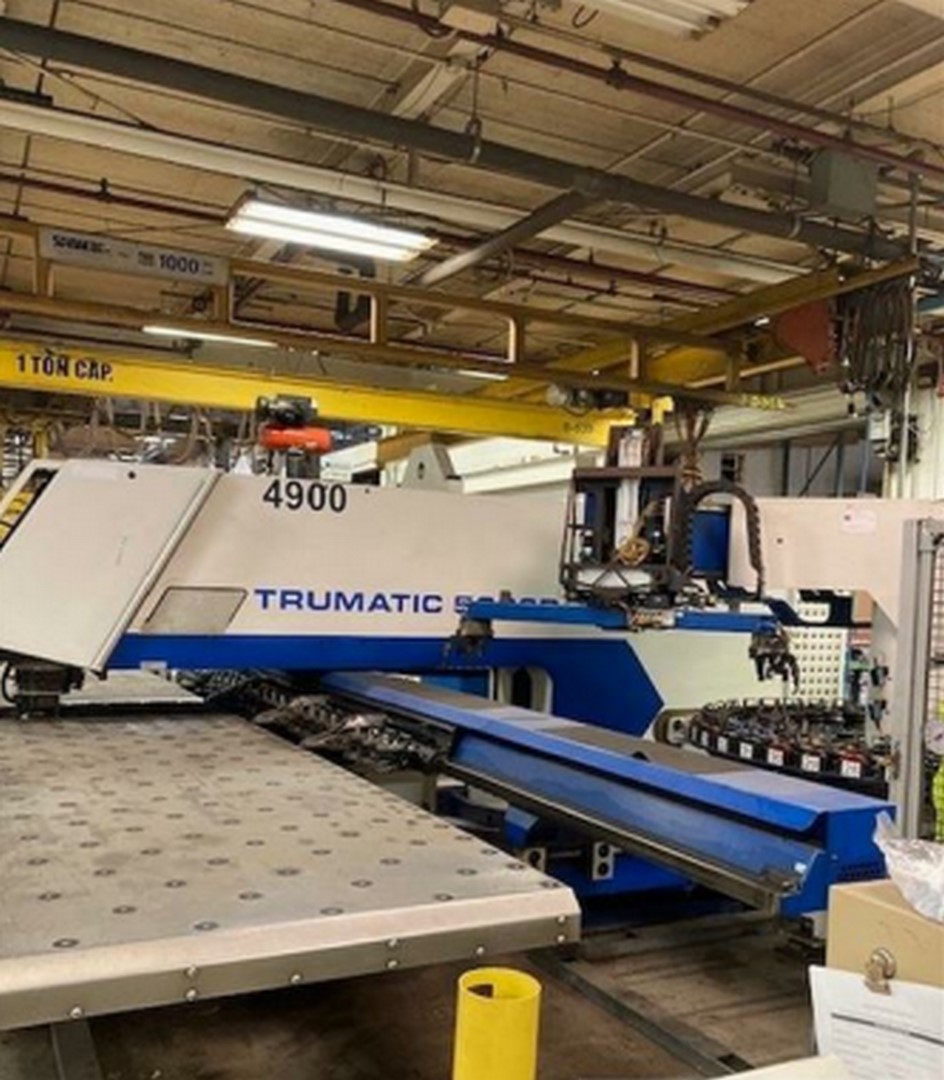

Used Trumpf TruMatic 5000R (2004) Turret Punch for Sale. This pre-owned Trumpf turret punch is located in the United States. If you have any questions regarding this Trumpf Turret Punch, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
25 Ton |
|---|---|
| Turret Stations |
21 |
| Max Sheet Thickness |
0.31" |
| Max Punch Diameter |
3" |
| Max Work Piece Weight |
510 Lbs |
| Max Stroke per 1" Centers |
300 SPM |
| X-Axis Speed |
4,000 IPM |
| Y-Axis Speed |
2,340 IPM |
| C-Axis Speed |
330 RPM |
| Positioning Accuracy |
+/- .004" |
| Programmable Part Chute |
20" x 20" Max |
Features
|
(4) Hydraulic Work Clamps |
CNC Rotation All 21 Stations |
|
Light Barrier Safety System - Full Perimeter |
Auto Sheet Re-Positioning |
*
