| Year | 2005 |
|---|---|
| Make | Citizen |
| Model | L-20 VIII |
Description |
CNC Swiss Lathe |
| Reference # | 8072470 |
Price |
Activate PricingInquire Now |

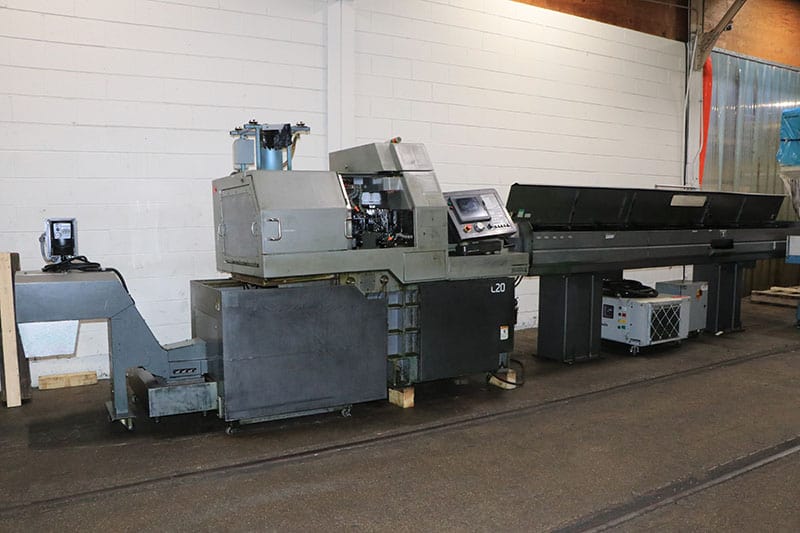

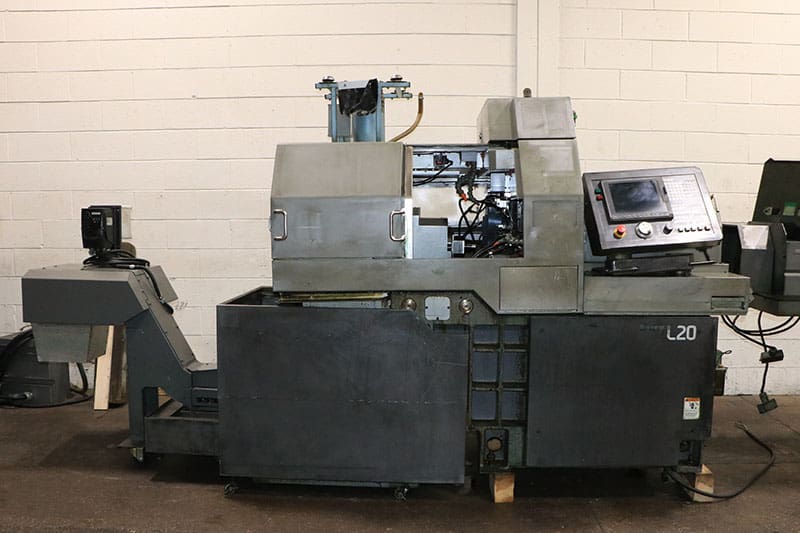

Used Citizen L-20 VIII (2005) CNC Swiss Lathe for Sale. This pre-owned Citizen CNC swiss lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Citizen Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Max. Machining Diameter |
.79" |
|---|---|
| Max. Machining Length |
7.87" (per one chuck) |
| Max. Drilling Diameter |
up to .394" |
| Min. Spindle Input Increment |
0.01 Degree Full C-axis |
| Spindle Speed |
200 - 10,000 RPM |
| Tooling |
1/2" (T01 5/8") |
| Main Spindle Motor |
2.2/3.7 kW |
| Live Tooling |
C-Axis Live Tooling |
| Control |

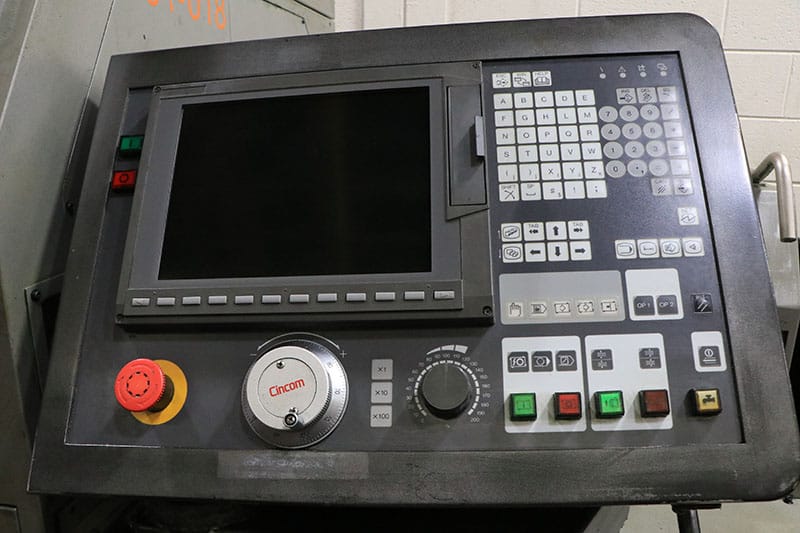

Cincom CNC |
| Pick-Off Spindle Speed |
200 - 8,000 RPM |
| Pick-Off Spindle Motor |
.75/1.5 kW |
| Rotary Spindle Speed |
200 - 5,000 RPM |
| Rotary Tool Motor |
1 kW |
| Number of Tools Mounted |
18-21 |
| Chip Removal |
Chip Conveyor |
| Power Requirement |
6 KVA |
| Approx. Dimensions |
83.5" x 48" x 81" |
| Approx. Weight |
5,000 Lbs |
Features
|
3Nine Clara Mist Collector |

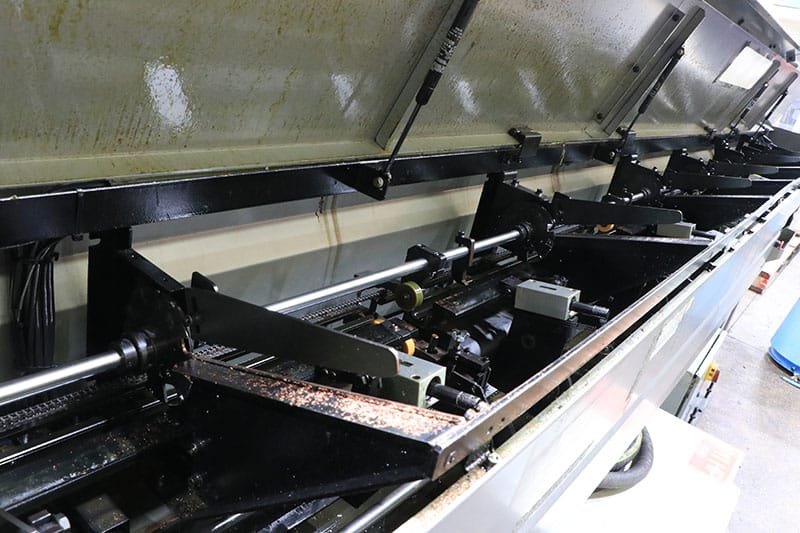

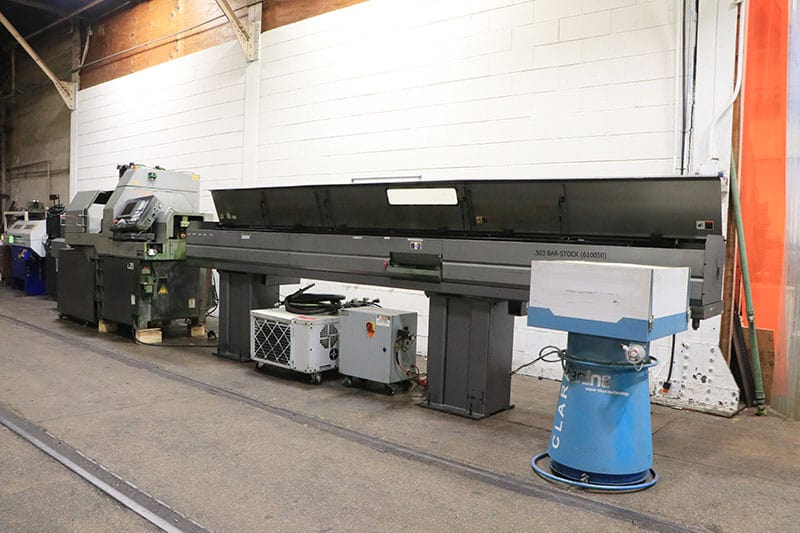

Citizen CAV20-IS Magazine Bar Loader |
|
CoolBlaster High Pressure Coolant |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
