| Year | 2005 |
|---|---|
| Make | Okuma & Howa |
| Model | 2SP-V80 |
Description |
CNC Lathe |
| Reference # | 8071414 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

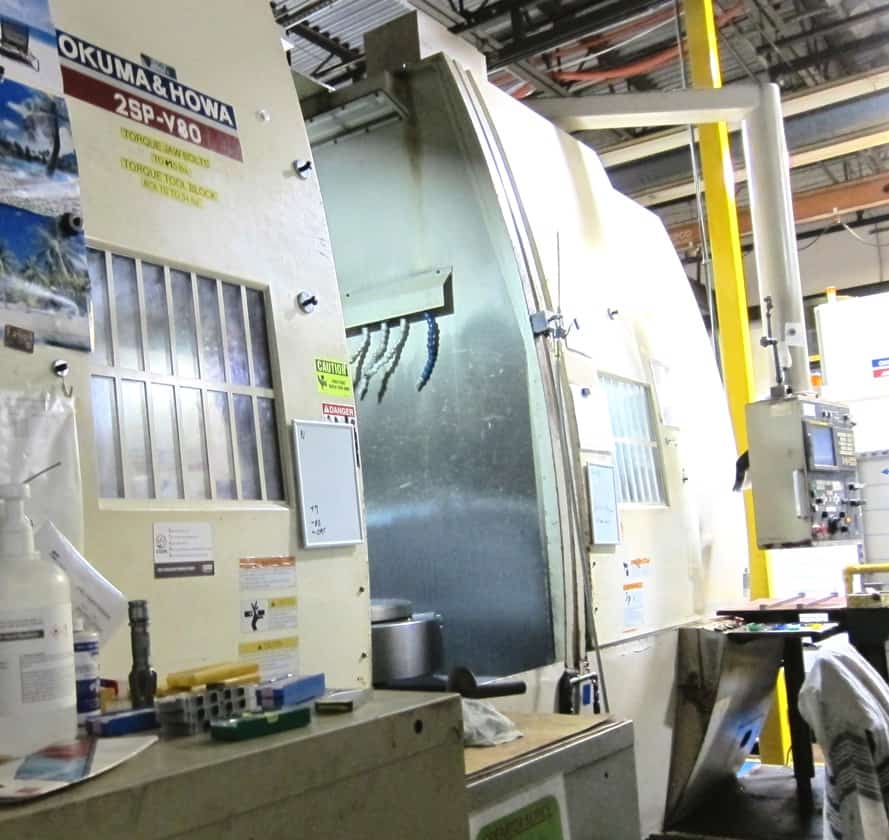

Used Okuma & Howa 2SP-V80 (2005) CNC Vertical Turret Lathe for Sale. This pre-owned Okuma & Howa CNC vertical turret lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Okuma & Howa Vertical Turret Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
31.5" |
|---|---|
| Swing |
39.37" |
| Turning Diameter |
39.9" |
| Spindle Speed |
1,250 RPM |
| Control |

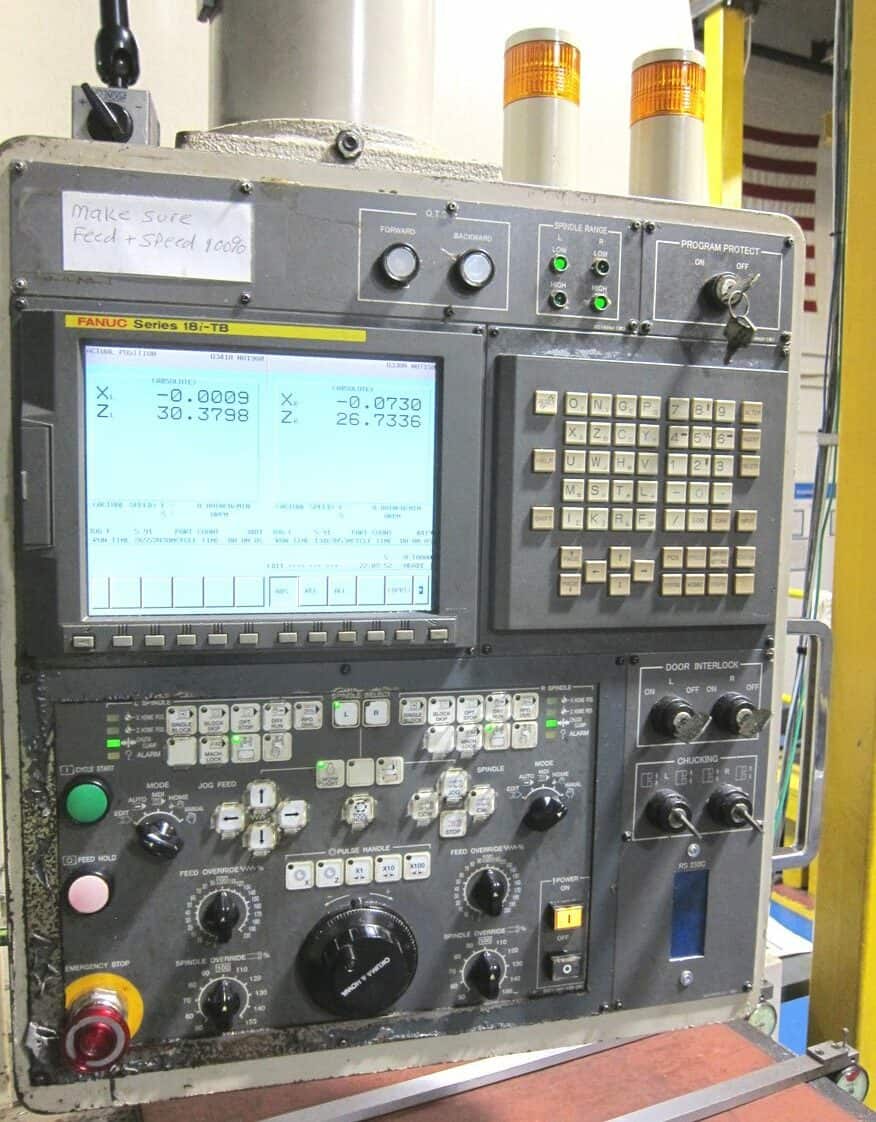

Fanuc 18i-TB |
| Turret |
12 Station |
| Live Tooling |
Milling/ C-Axis |
| Chip Removal |
Chip Conveyor |
| Max. Cutting Length |
33.07" |
| Spindle Center Height From Floor |
45.28" |
| Spindle Motor (FANUC aP60) |
40 HP 2-Speed Gear Box Motors - Excellent Hard Materials |
| Speed Range Shift |
2- Speed Gear Box Programmable High-Low Range |
| X Axis Travel (FANUC a22/3000i AC 4.0 HP) |
18.31" |
| Z Axis Travel (FANUC a22/3000iB AC 5.0 HP) |
33.07" |
| Max. Number of Tools |
12 |
| Standard Turning Tool Size |
1.25" x 1.25" |
| Max. Boring Bar Size |
2.0" & 2.5" |
| Machine Electric |
85 KVA (200v) Transformers |
| Hydraulic Motor |
AC 1.5 Kw |
| Slide way Lubrication Pump Motor |
AC 20w |
| Coolant Pump Motor: Turret (SPK2-8/8; 57 psi/ 8 gpm) |
AC 550w |
| Coolant Pump Motor: Wash (CHK4-60/2; 14 psi/31.5 gpm) |
AC 620w |
| Machine Light |
AC 100v-20w |
| Reservoirs Hydraulic Tank |
10.6 gal |
| Reservoirs Slideway Lubrication Tank |
1.59 gal |
| Reservoirs Coolant Tank |
118 gal |
| Machine Height |
13.3' (160.0") |
| Floor Space Requirement |
8.0' x 9.0' (96.0" x 108.0") |
| Machine Weight |
50,600 lbs. |
