| Year | 2006 |
|---|---|
| Make | Mazak |
| Model | QTN 450-II |
Description |
CNC Lathe |
| Reference # | 8071960 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

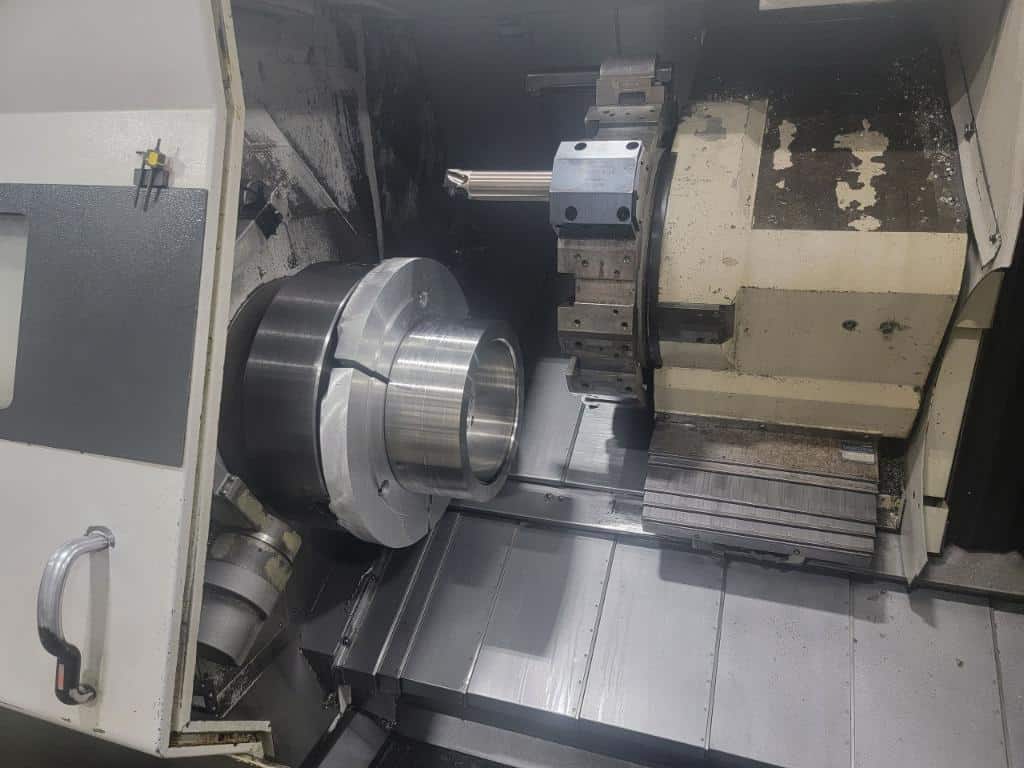

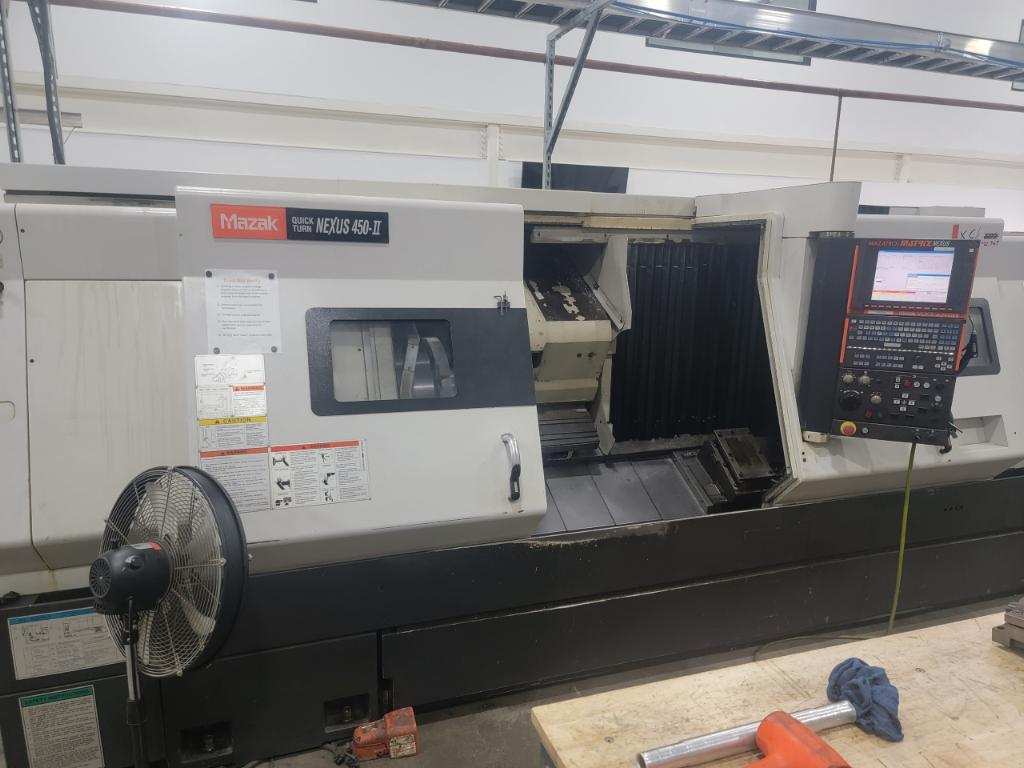

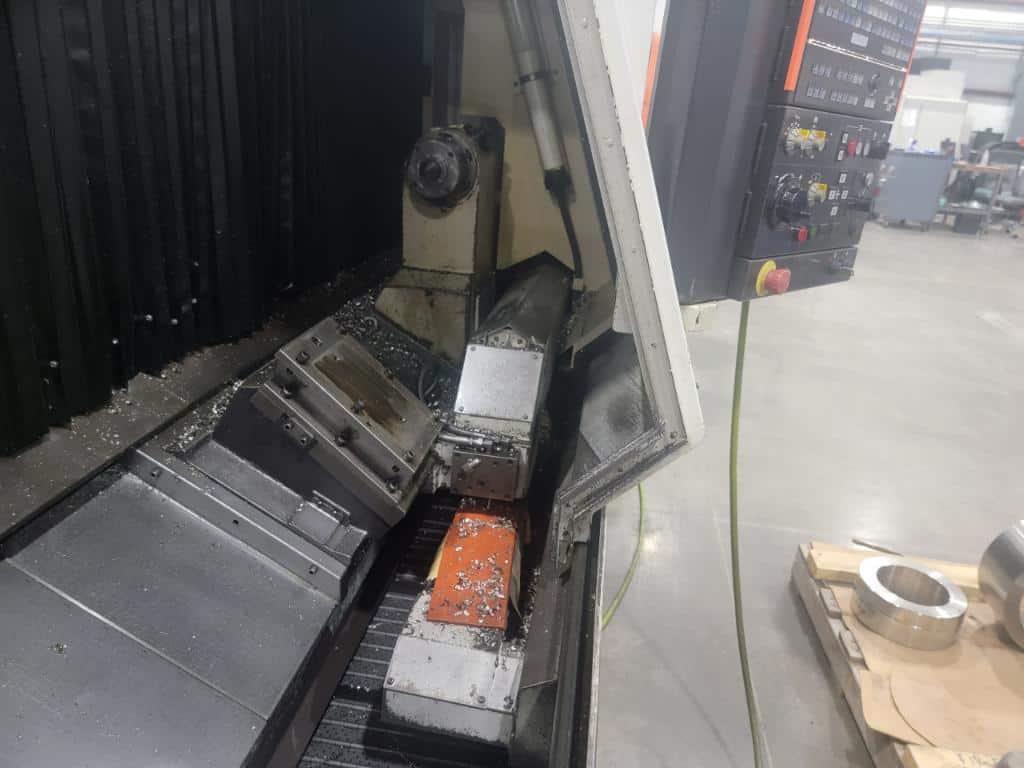

Used Mazak QTN 450-II (2006) CNC Lathe for Sale. This pre-owned Mazak CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mazak Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
21" |
|---|---|
| Bar Capacity |
5.5" |
| Swing |
33.25" |
| Turning Diameter |
22.8" |
| Spindle Speed |
2,000 RPM |
| Control |
Mazatrol Matrix |
| Distance Between Centers |
83.46" |
| Turret |
12 Station |
| Chip Removal |
Chip Conveyor |
| Spindle Motor |
40 HP |
| Spindle Torque |
1,363 Ft/Lb |
| X-Axis Travel |
13.3" |
| Floor Space Requirement |
203.94" x 90" |
| Machine Weight |
25,500 Lbs |
Features
|
Auto Tool Presetter |
Automatic Tool Eye |
|
Re-Threading |
118 PSI Coolant |
|
Tailstock |
Thread Start Point Compensation |
|
A2-15 Spindle Nose |
EIA/ISO Option |
|
Hydraulic Pressure Interlock |
Manual Steady Rest DRAG |
|
MT#5 Tailstock |
Multitap Transformer |
|
Operator Door Interlock with Lock Switch |
Windows XP Operating System |
