| Year | 2006 |
|---|---|
| Make | Mazak |
| Model | QTN 450-IIM |
Description |
CNC Lathe |
| Reference # | 8077148 |
Used Mazak QTN 450-IIM (2006) CNC Lathe for Sale. This pre-owned Mazak CNC lathe is located in New Mexico and available to be seen under power for an inspection. If you have any questions regarding this Mazak Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
18" |
|---|---|
| Bar Capacity |
6.5" |
| Swing |
33.26" |
| Turning Diameter |
22.8" |
| Spindle Speed |
2,000 RPM |

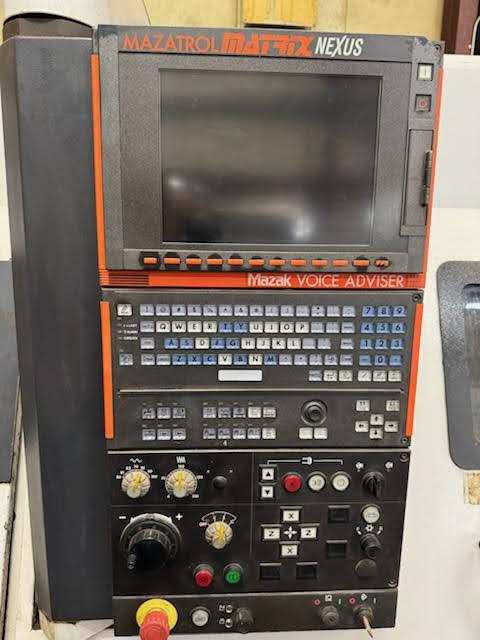

| Control |
Mazatrol Matrix Nexus |
| Distance Between Centers |
80" |
| X-Axis Travel |
13.3" |

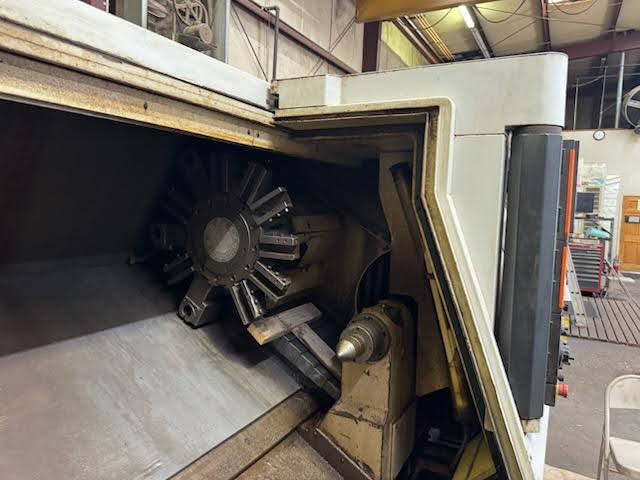

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling |
| Mill Spindle Motor |
10 HP |
| Chip Removal |
Chip Conveyor |
Features
|

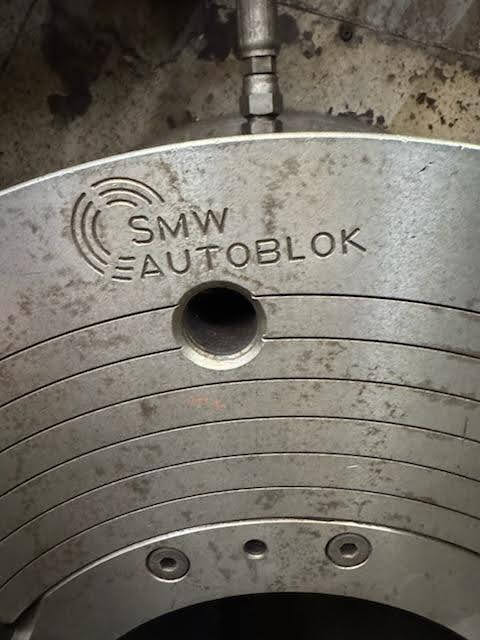

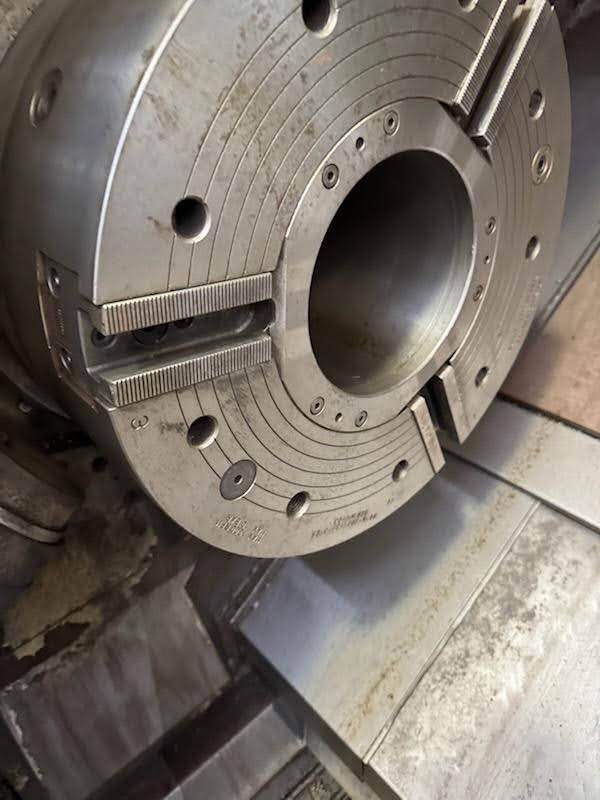

3-Jaw Air Chuck |
Auto Tool Presetter |
|
Tailstock |
Programmable Tailstock |
|

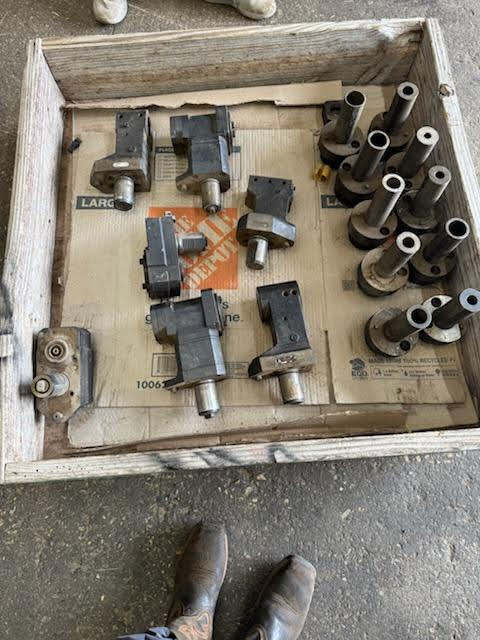

Tooling Included |
A2-15 Spindle Nose |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
