Year 2006
Make VisionWide
Model VB-2516

Description

CNC Vertical Machining Center
Reference # 8069838

Price

Activate PricingInquire Now

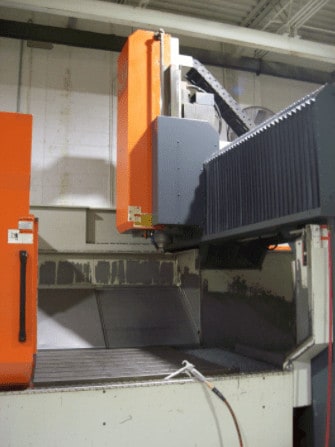

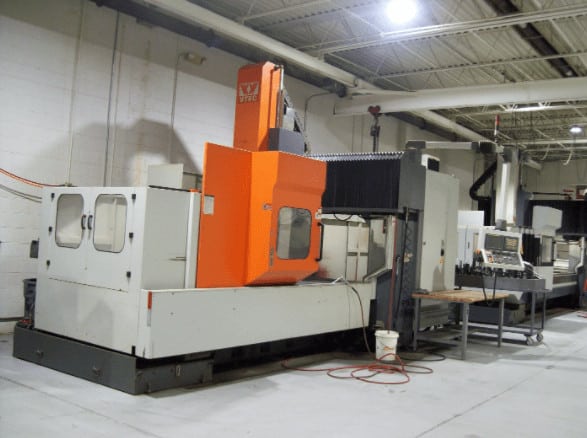

Used VisionWide VB-2516 (2006) CNC Vertical Machining Center for Sale.  This pre-owned VisionWide CNC vertical mill is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this VisionWide Vertical Machining Center, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

X-Axis Travel

98.4"

Y-Axis Travel

63"

Z-Axis Travel

31"

Spindle Speed

6,000 RPM

Spindle Taper

CAT 50

Tool Magazine Capacity

32 ATC

Spindle Motor

35 HP

Table Size

98.4" x 51"

Max Load on Table

19,800 lbs

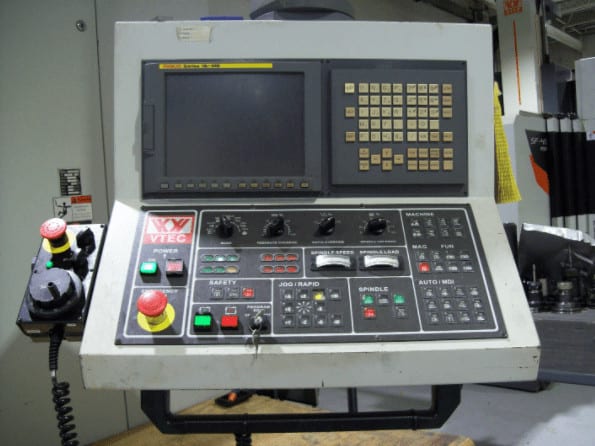

Control

Fanuc 18i-MB

Chip Removal

Chip Conveyor

Coolant

Flood Coolant

Approx Machine Weight

56,000 lbs

Approx Dimensions (LxWxH)

337" x 210" x 159"

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
