| Year | 2008 |
|---|---|
| Make | Daito |
| Model | CSDII-1050 |
Description |
3-Spindle Drill and Saw |
| Reference # | 8077204 |

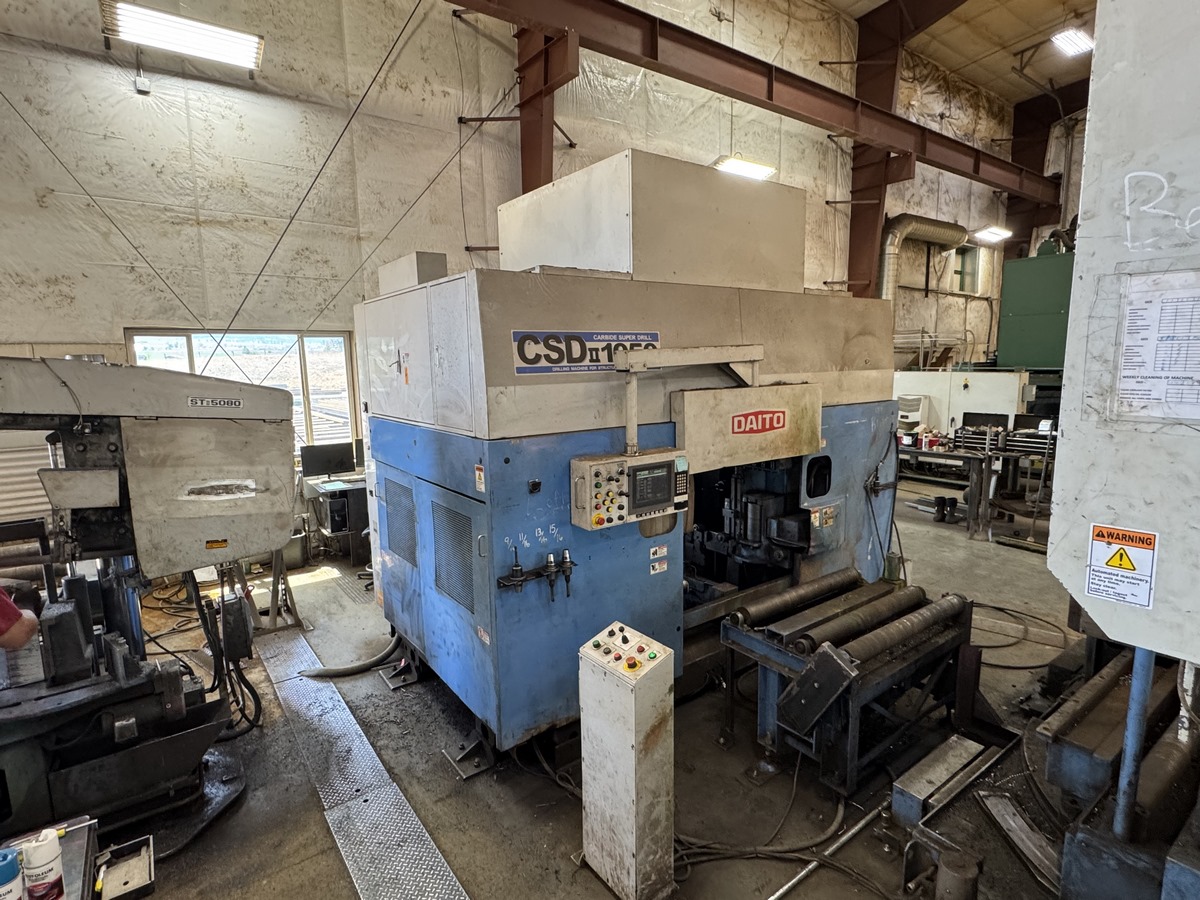

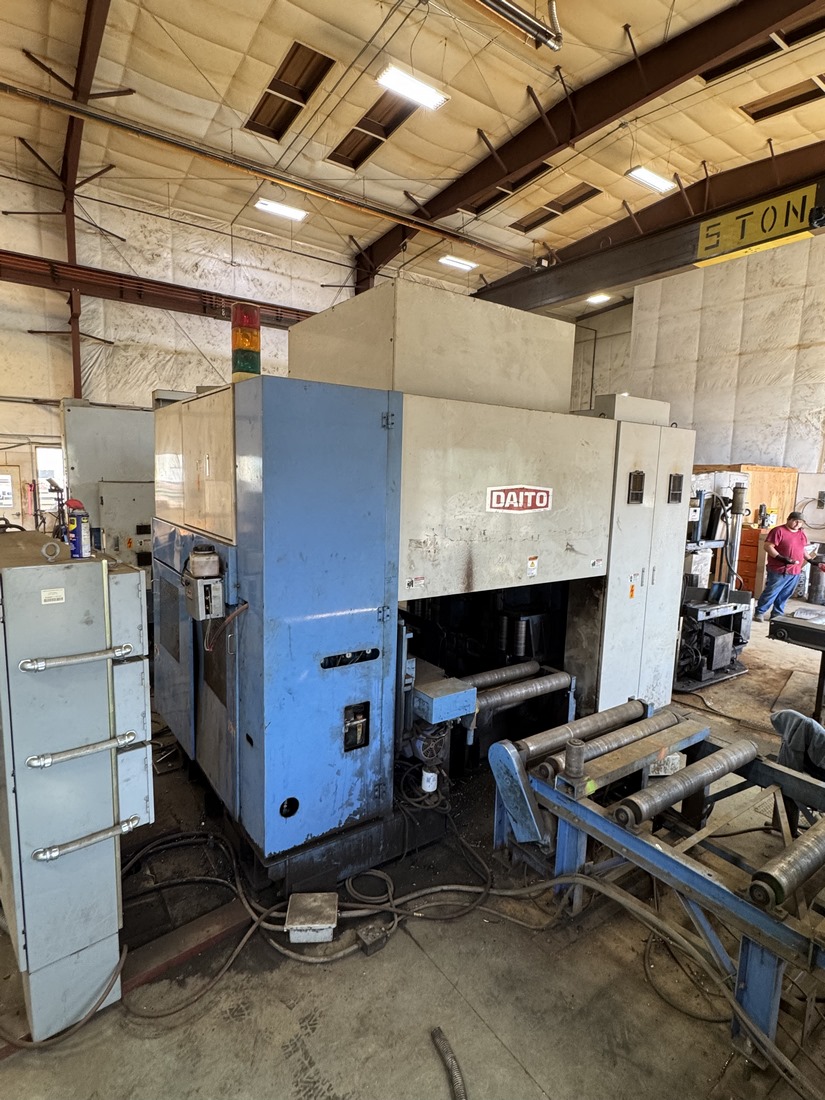

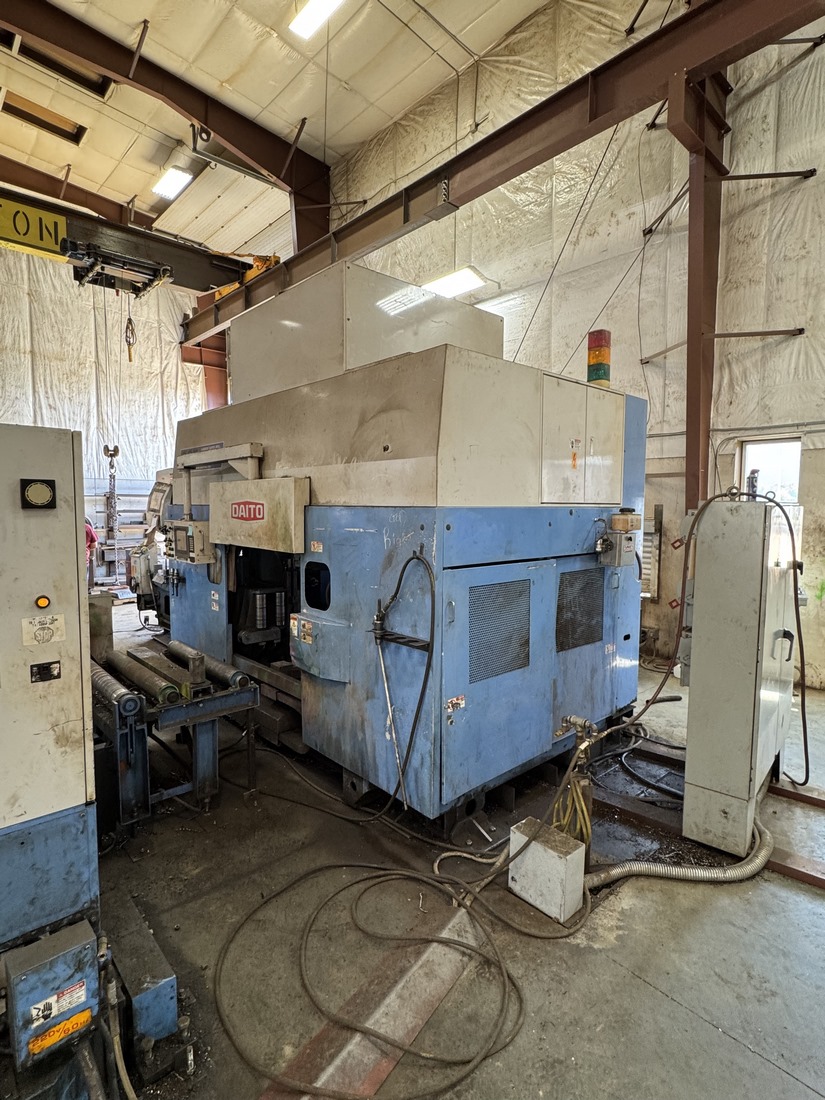

Used Daito CSDII-1050
Specifications
| Beam Width Min/Max |
6"/40" |
|---|---|
| Flange Height Min/Max |
3"/20" |
| Min/Max Thickness |
1/4" - 2" |
| Max Hole Diameter |
Carbide 1" H.S.S. 2" |
| Min Hole Diameter |
Carbide 5/8" H.S.S. 3/8" |
| X-Axis Travel |
21.625" |
| Y-Axis Travel |
18.5" |
| Z-Axis Travel |
36.625" |
| Number of Drill Spindles |
3 |
| Spindle Power |
20 HP |
| Spindle Speed |
2,250 RPM |
| Number of Drills in Web ATC |
5 |
| Max. Feeding Speed |
100 FPM |
| Max. Work Load |
33,000 Lbs |
| Power Requirement |
200A (AC208V) |
Features
|
(4) Vertical Clamps |
Flange Height Gauges |
|
Pendant Operational Panel |
Pinch Roll System |
|
Positioning Compensation |
Power Cleaning Brush |
|
Twin Measuring Disk |
Web Supports |
|
X-Y Positioning 3 Drill Method |
Automatic Tool Changer |
*
