| Year | 2009 |
|---|---|
| Make | Cincinnati |
| Model | 600PF16 |
Description |

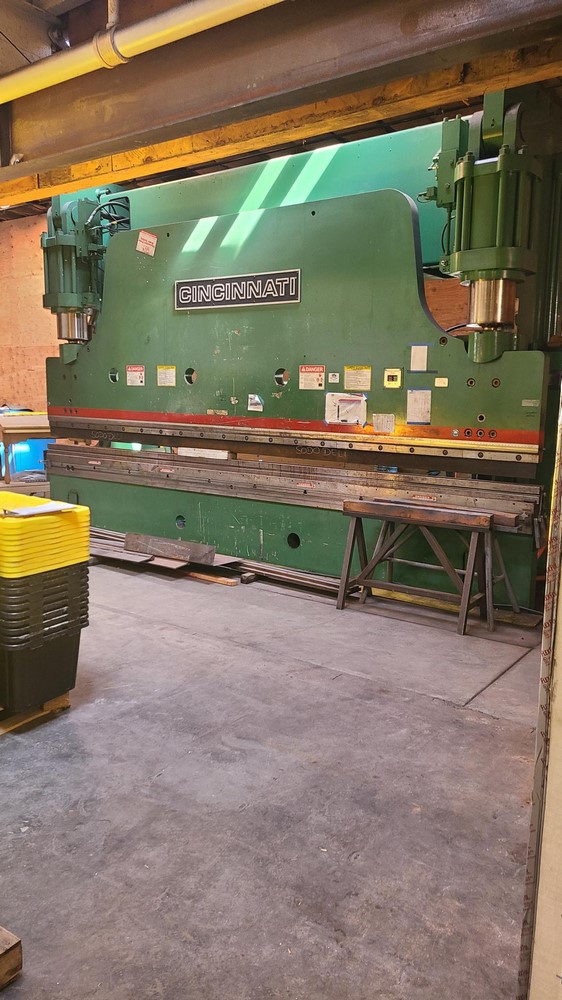

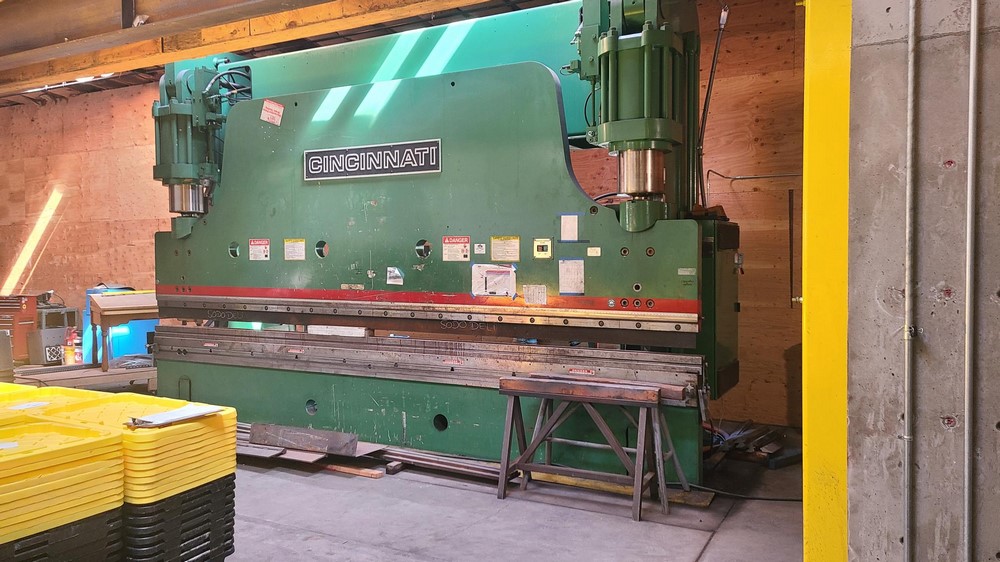

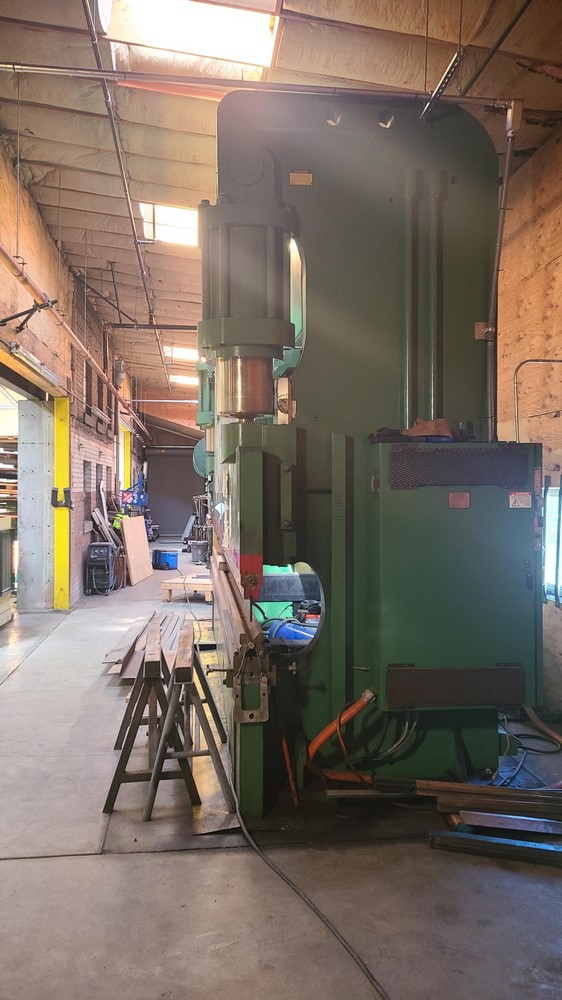

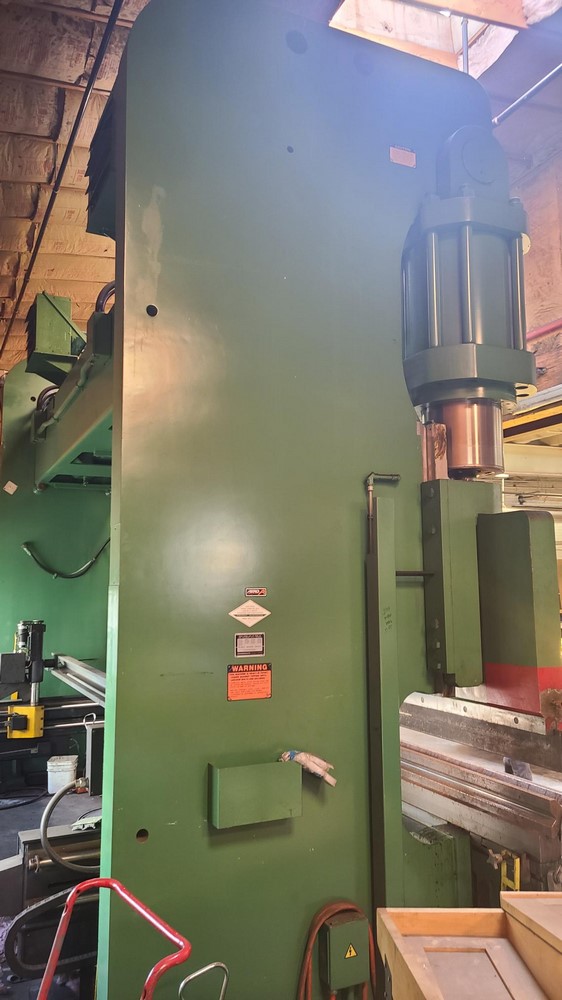

600 Ton x 20' Hydraulic Press Brake |
| Reference # | 8073754 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

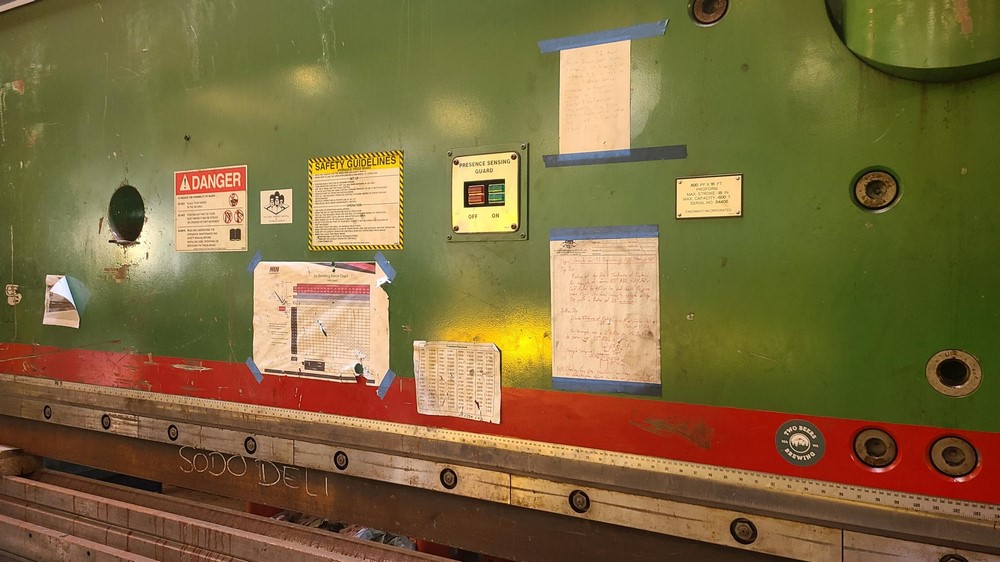

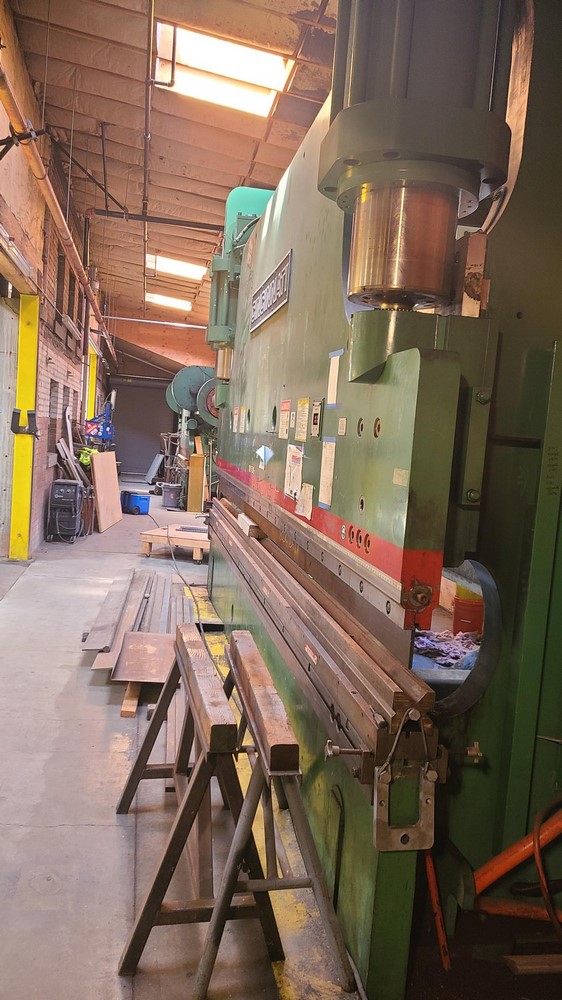

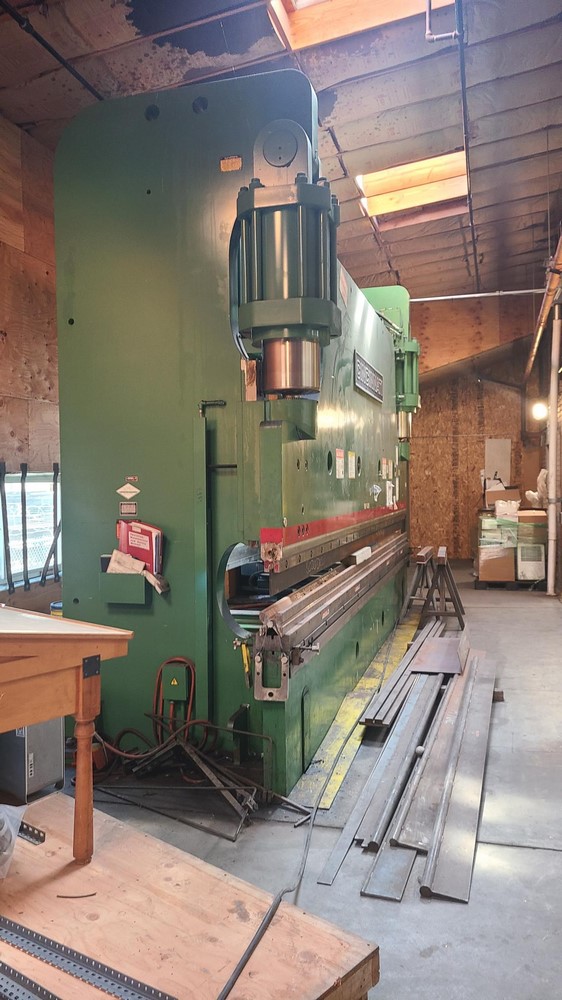

Used Cincinnati 600PF16 (2009) CNC Press Brake for Sale. This pre-owned Cincinnati CNC press brake is located in The United States. If you have any questions regarding this Cincinnati Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
600 Ton |
|---|---|
| Overall Length of Bed |
20' |
| Control |
Gen 3 Cincinnati |
| Distance Between Housings |
197.75" |
| Stroke |
18" |
| Throat Depth |
18" |
| Closed Height |
10" |
| High Approach Ram Speed |
214 IPM |
| Variable Forming Ram Speed |
1 - 47 IPM |
| Return Ram Speed |
1 - 201 IPM |
Features
|

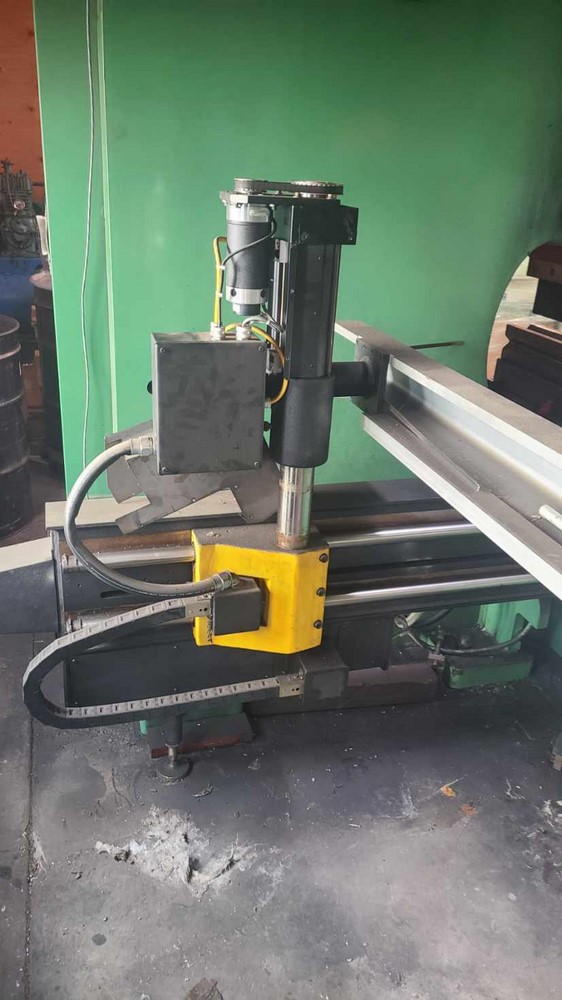

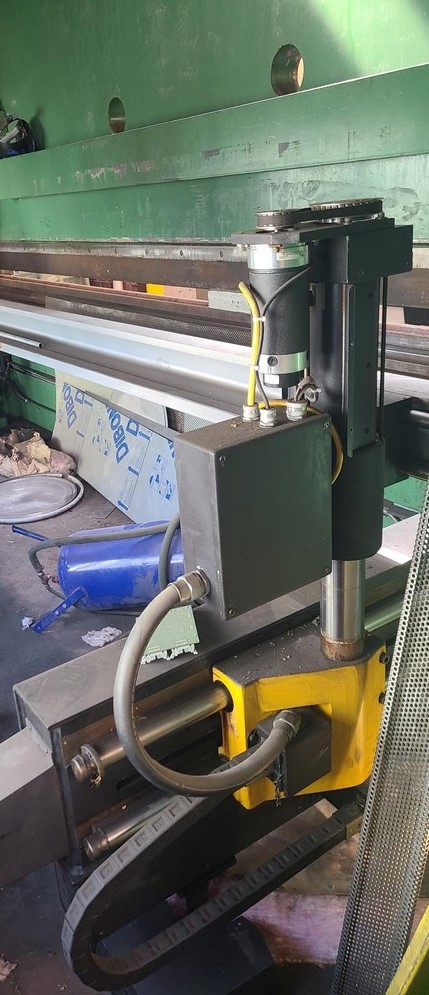

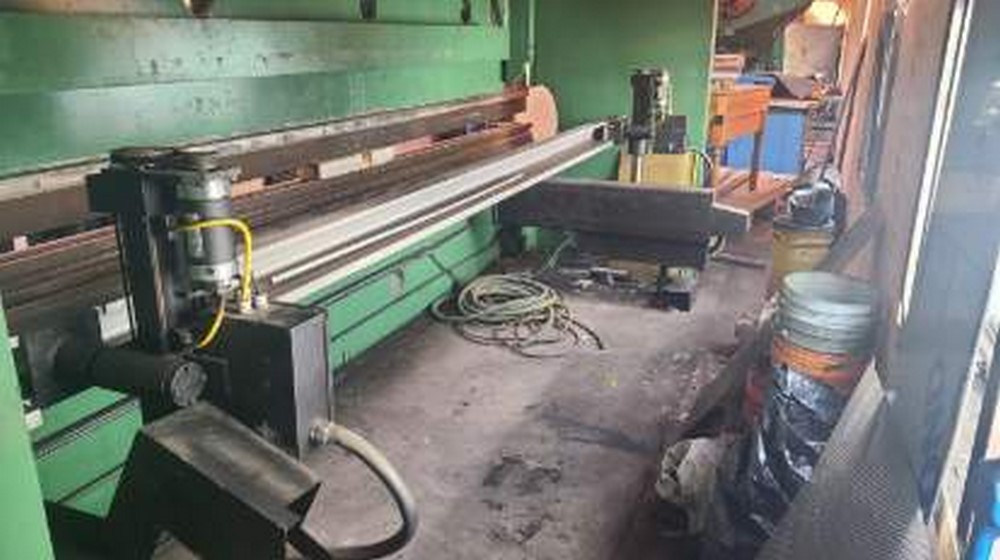

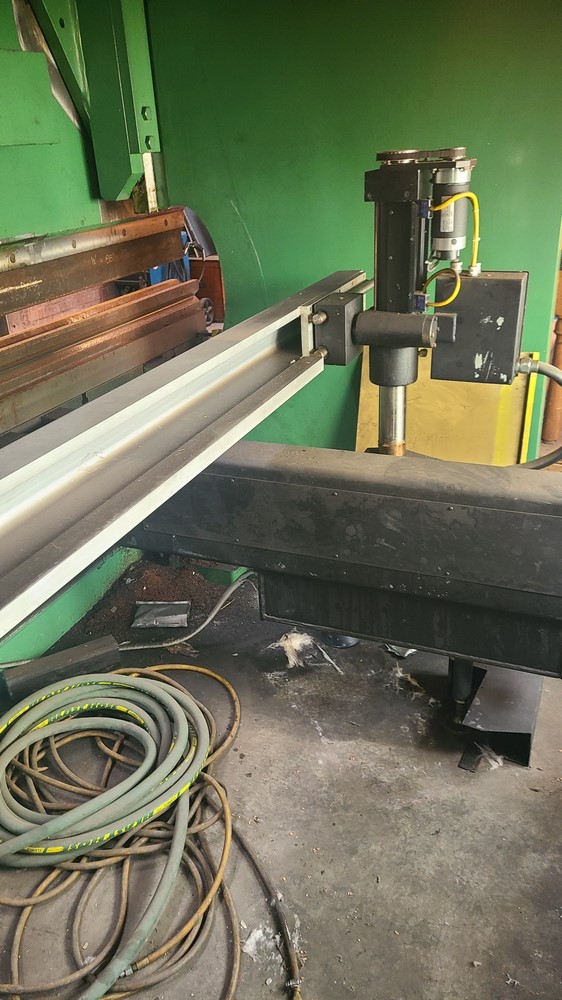

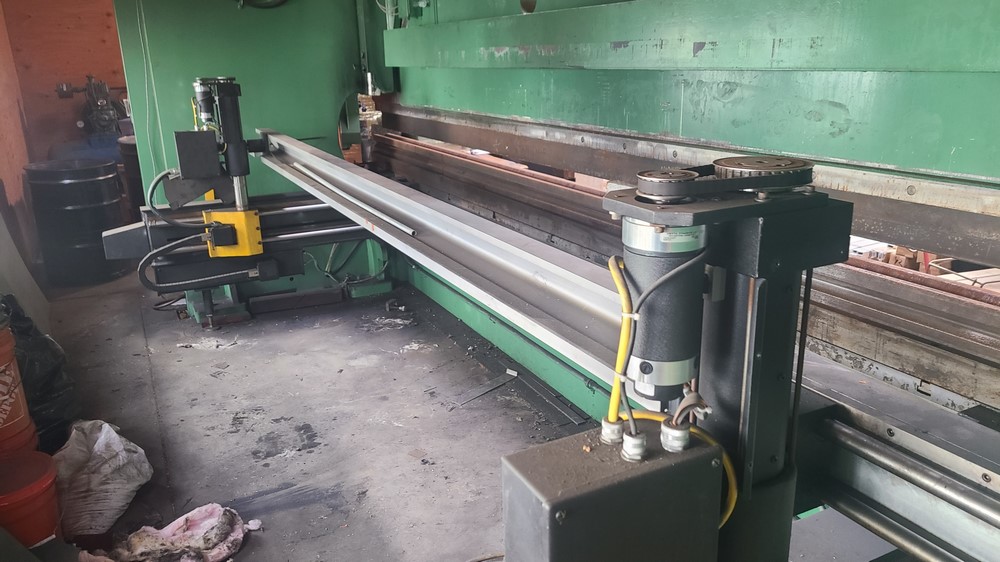

4-Axis CNC Backgauge |
Microcrowned Bed and Ram |
|
Over 8” Vee Die |
Cross “T” Slots in Bed Top on 24 (Centers) |
|
Full Length Die Slot Top |
Full-Length Dovetail Slots/Front and Rear |
|
3-Position Footswitch |

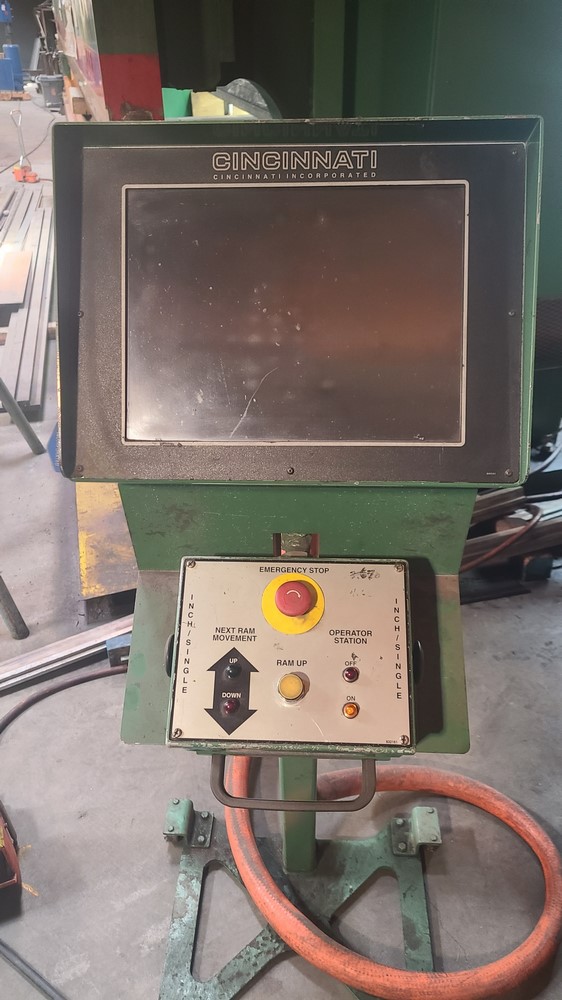

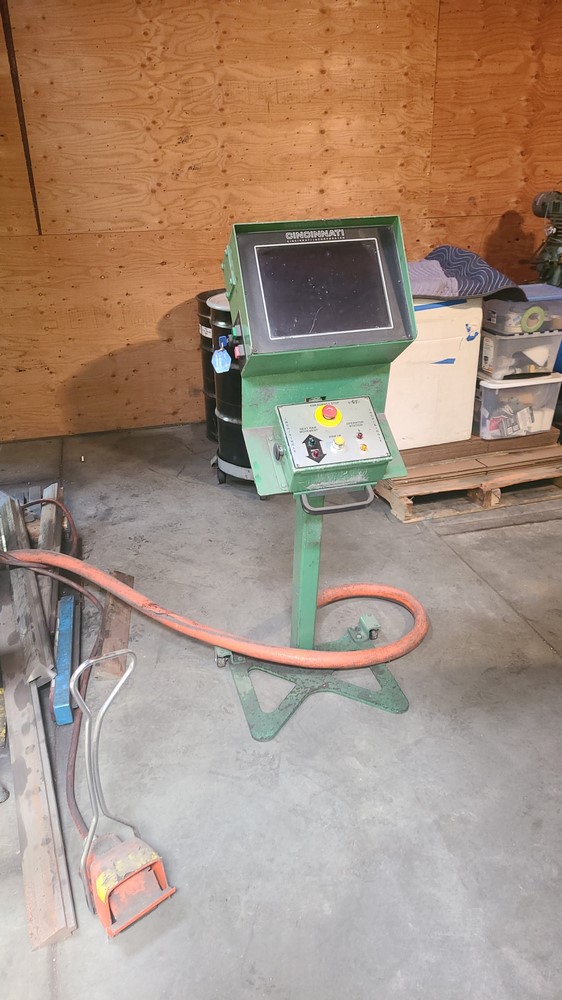

Pedestal Mounted Industrial PC-Based Control |
|
LCD Flat Panel Color Display |
Tool Library/Program Storage/CAD Design |
|
Control Software with Palmbutton Operator Station and Emergency Stop |
(2) 25 HP Open Drip-Proof Motors and Variable Displacement Pumps |
|
Universal Filler Block |
Lifting Lugs on Ram |
