| Year | 2009 |
|---|---|
| Make | Davis Standard |
| Model | Scrap Reclaim Line |
Description |
Extruder |
| Reference # | 8077024 |

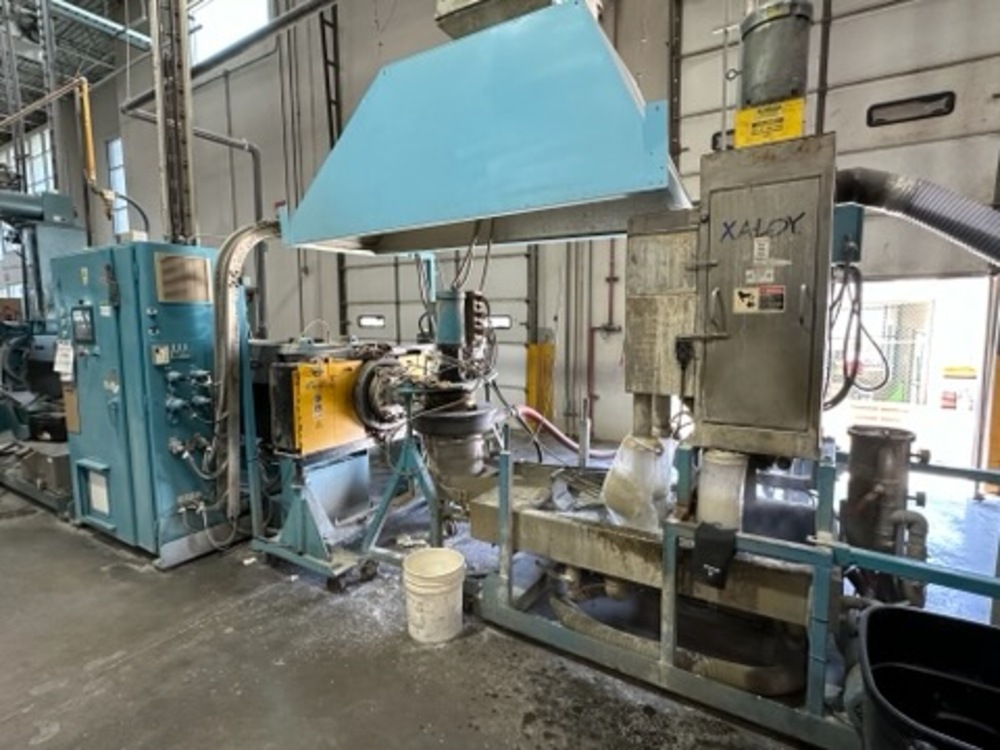

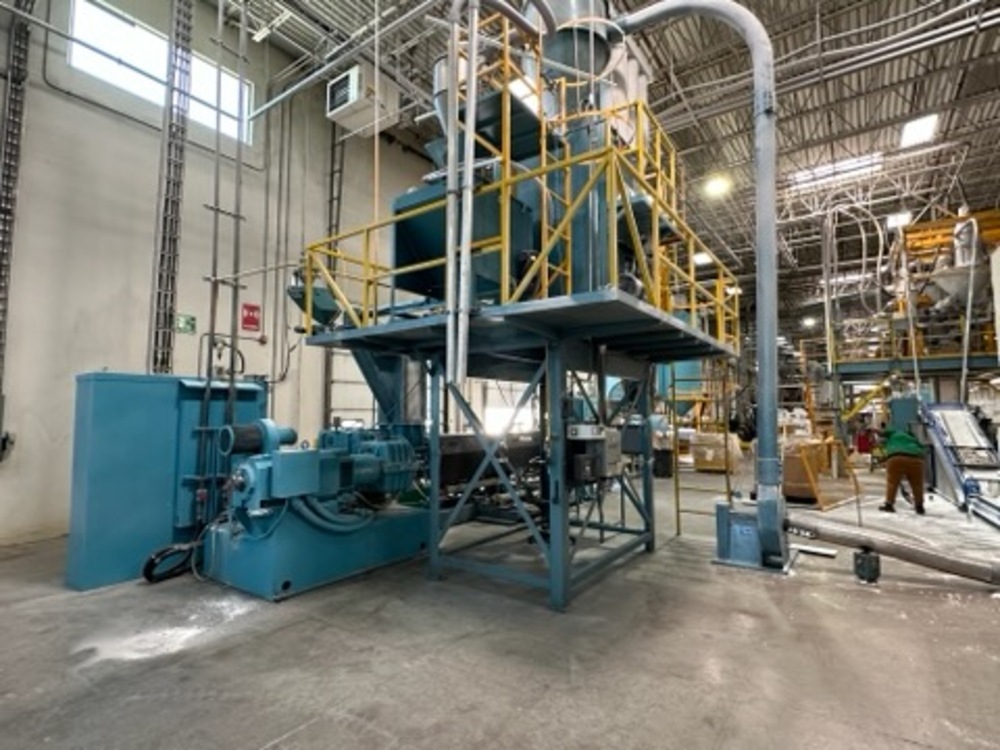

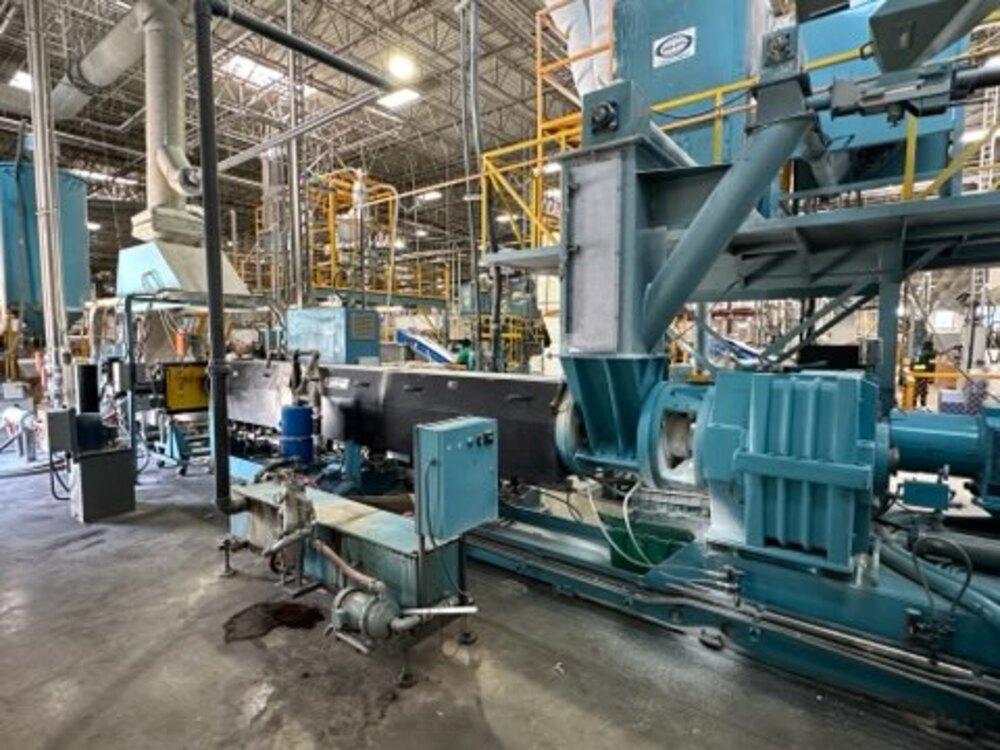

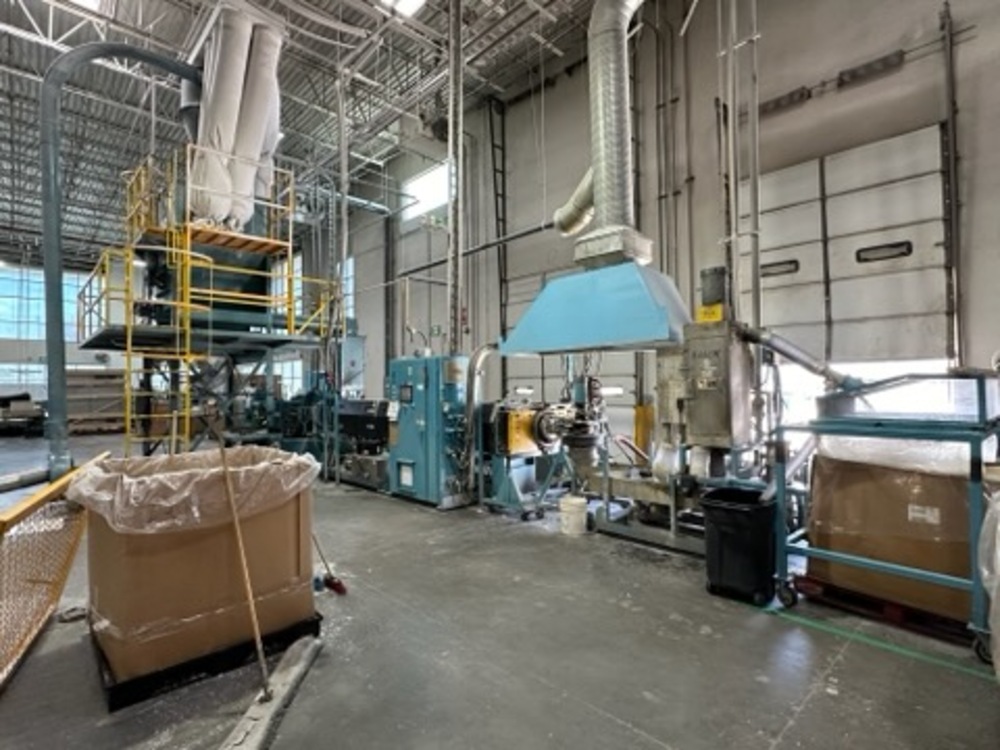

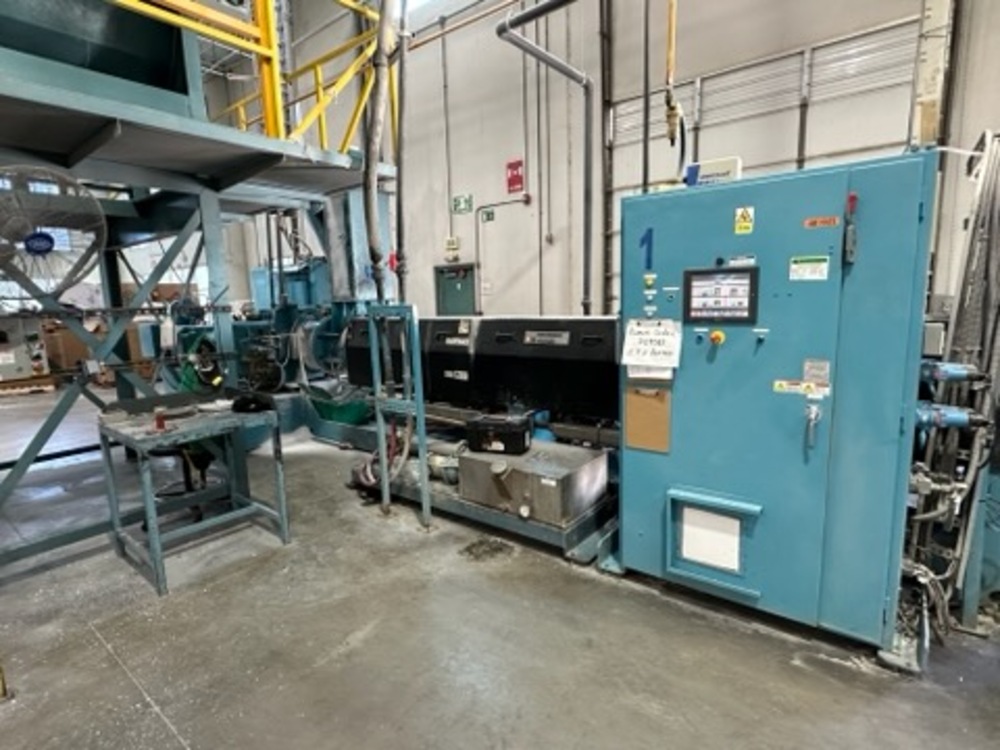

Used Davis Standard Scrap Reclaim Line (2009) Extruder for Sale. This pre-owned Davis Standard plastic extruder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Davis Standard Extruder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Extrusion Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Screw Size |
6.0" |
|---|---|
| L/D Ratio |
34:1 |
| Vented |
Yes |
| Water Cooled |
Yes |
| Number of Zones |
(7) Seven Zones |
| Additional Zones |
(5) Heat Only Zones (3 Screen Changer/1 Adapter/1 Die) |
| Horsepower |
500 HP AC Motor |
| Drive |
Yaskawa AC Variable Frequency Drive (1750 RPM) |
| Gearbox Ratio |
17:1 |
| Gearbox Rating |
530 HP Rating @ 100 RPM |
| Control |
DS-TPC (Touch Panel) |
| Screen Changer |
Hydraulic Slide Plate Screen Changer, Fully Assembled and Arranged for Connection to Extruder Discharge, Downstream Reducer Bushing, (2) Two Breaker Plates, Solenoid Operated Directional Valve Integral with Hydraulic Cylinder |
| Water Ring Pelletzer |
Pellets are cut in air at the die face, and then quenched in a ring of cooling water, Hot, dry cutting provides simple start-up with no critical timing sequence, Production is continuous and is insensitive to flow disruptions caused by screen changes or loss of feed, "Flex Blade" design eliminates adjustment, automatically compensates for blade wear, and provides long blade life, No micrometer adjustment is required and critical alignment of the cutter shaft to the die face is eliminated |
