Year 2009
Make Kia
Model 21V

Description

CNC Lathe
Reference # 8071793

Price

Activate PricingInquire Now

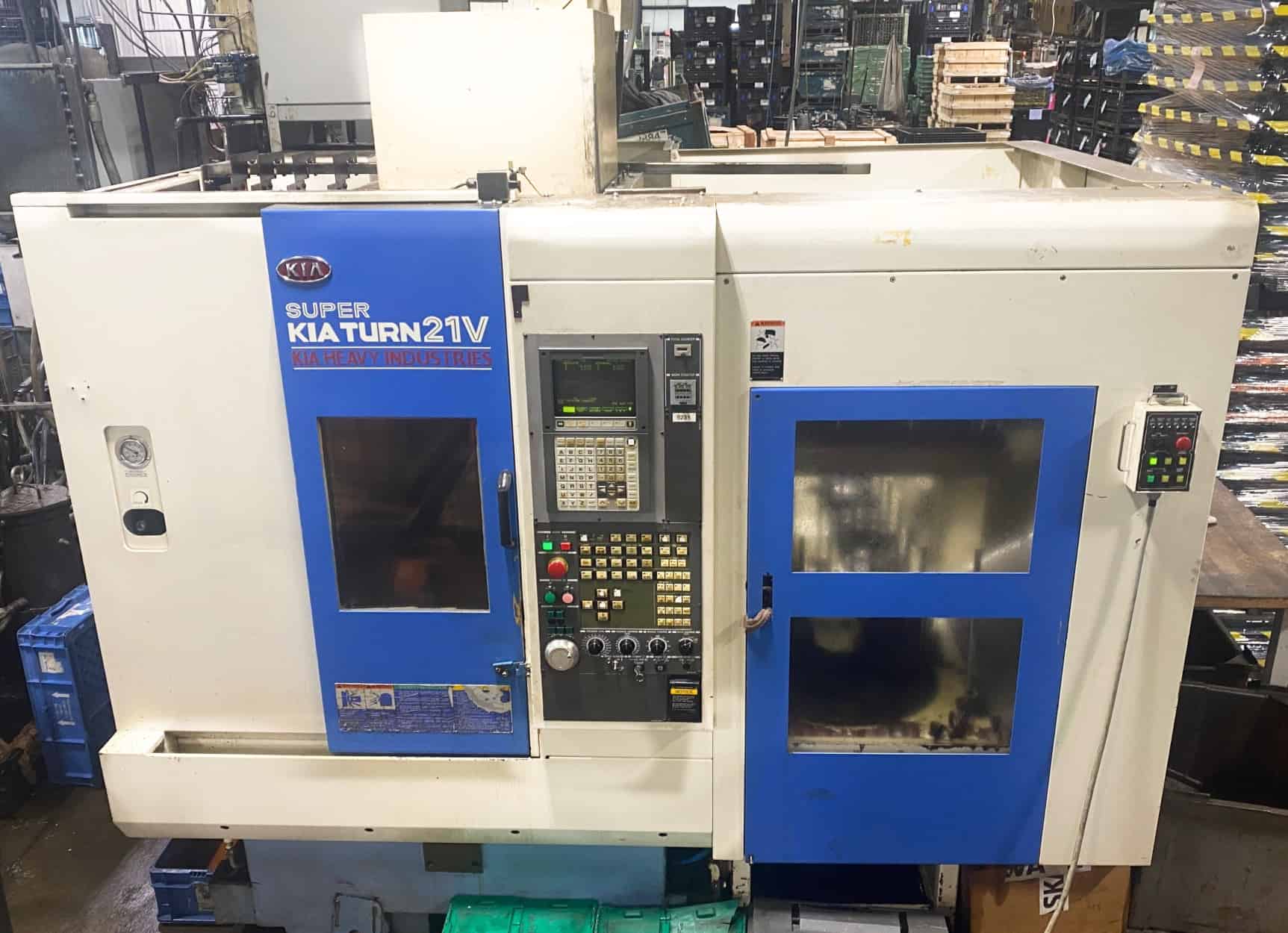

Used Kia 21V (2009) CNC Lathe for Sale.  This pre-owned Kia CNC lathe is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this Kia Lathe, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Chuck Size

8"

Swing

26"

Turning Diameter

13.7"

Spindle Speed

5,000 RPM

Control

Yasnak J300L

Distance Between Centers

5.9"

Turret

12 Station

Rapid Traverse

1,181 RPM

Turret Indexing

0.3 Second 1 Face / 0.6 Second 7 Face

Power Requirement

200-220V/26 KVA

Machine Weight

10,000 Lbs

Features

Auto Tool Presetter

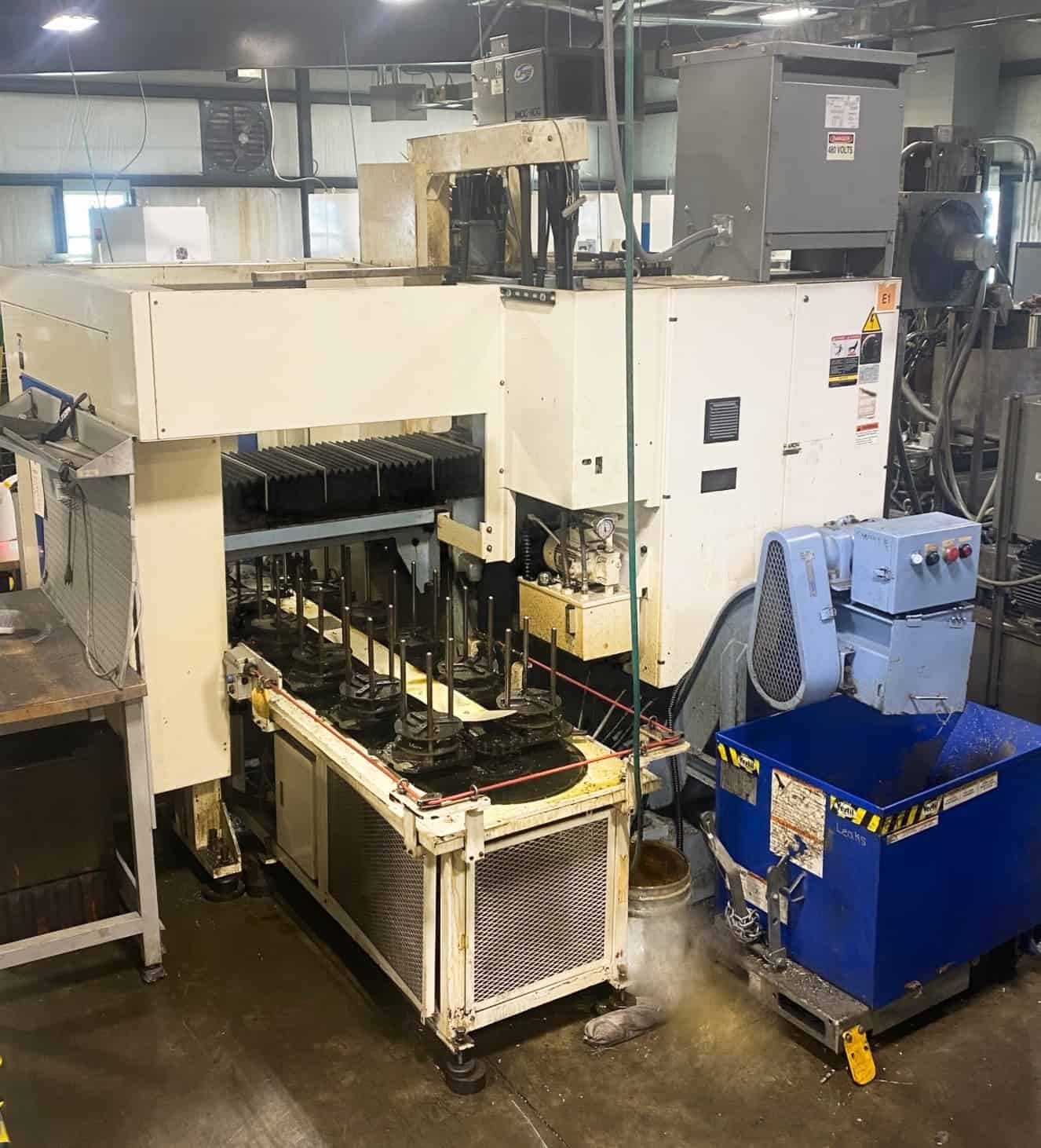

12 Pallets for Multi-Part Work Piece Stacker

12 Tools Turret with Coupling Clamp

15 HP Spindle Drive with Wide Full Power Range

Separate 64 Gallon Coolant Tank

Spindle with Chiller Unit

Tool “Q-Setter”

Electric NC Soft Torque Limiter

Environmentally Safe no Lubrication Oil System

NSK Ball Screws (Permanent Grease)

NSK Linear Motion Guideways (Permanent Grease)

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
