| Year | 2009 |
|---|---|
| Make | Mitsubishi |
| Model | EA8PV |
Description |
EDM Sinker |
| Reference # | 8075369 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

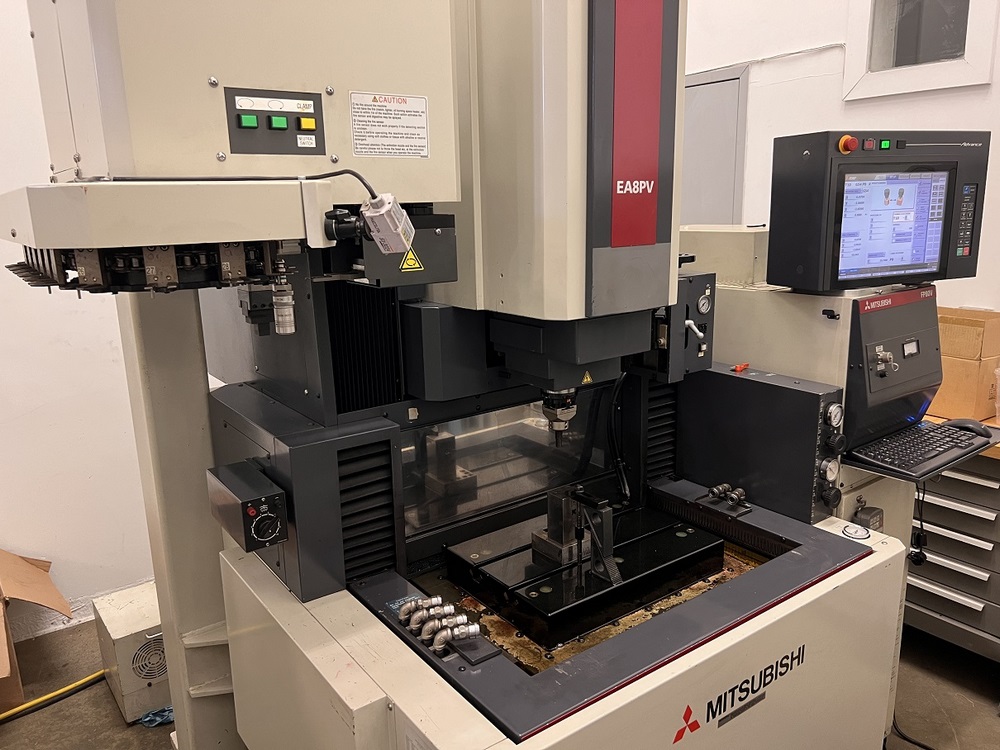

Used Mitsubishi EA8PV (2009) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM sinker is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button!
Specifications
| X-Axis Travel |
11.8" |
|---|---|
| Y-Axis Travel |
9.84" |
| Z-Axis Travel |
9.84" |

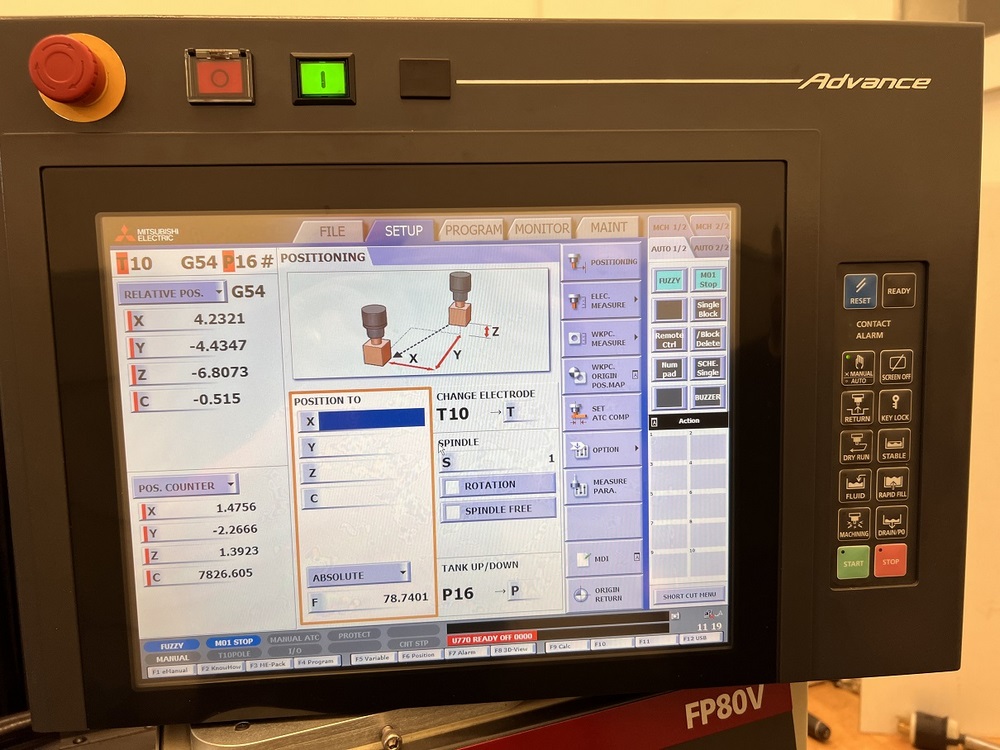

| Control |
Mitsubishi M700 |
| Power Source |
80 AMP |
| C-Axis |
360 Degree (.001 Increments) |

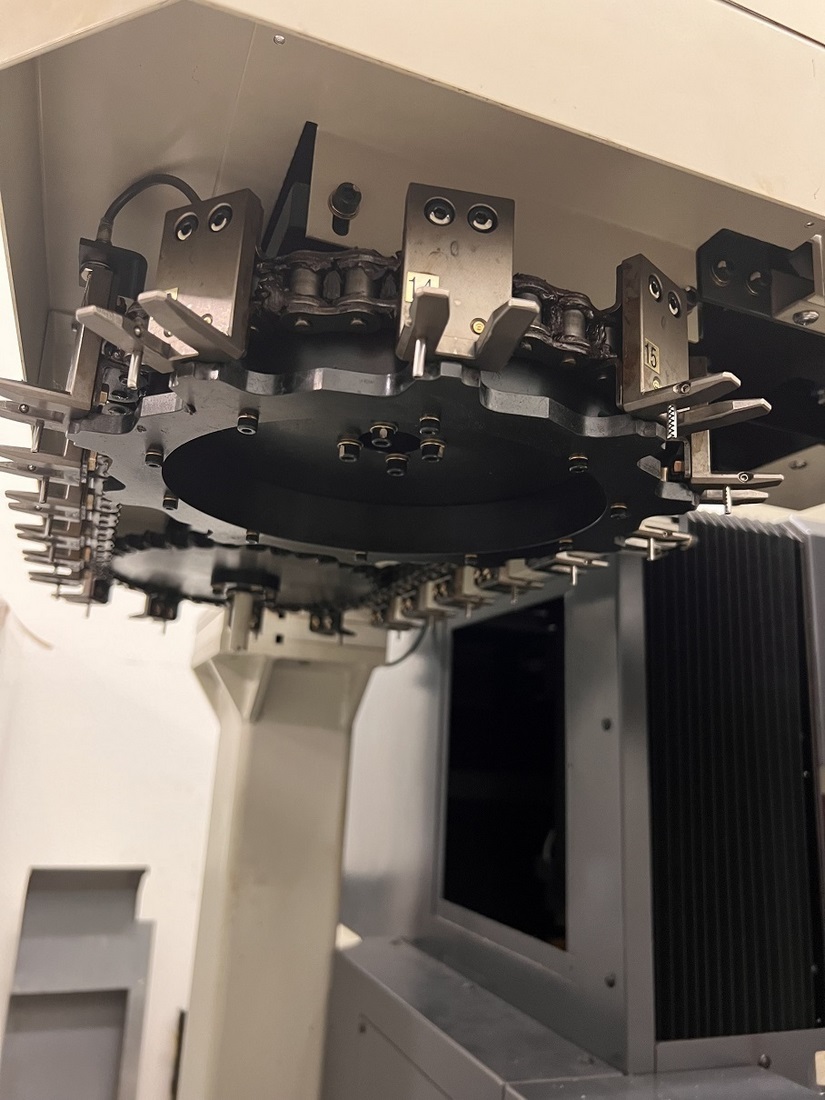

| Tool Changer |
20 Station |
| Chuck |
3R |
| Distance from Platen to Table |
8.8" - 18.6" |
| Fine Hole Drilling Capability |
0.15 - 2.0mm (.006'' / .079'') |
| Machine Footprint |
81'' x 80'' x 82'' |
| Machine Total Weight |
4,409 Lbs |
Features
|
4 Position Programmable Flushing Ports |
Automatic Drop Tank Design |
|

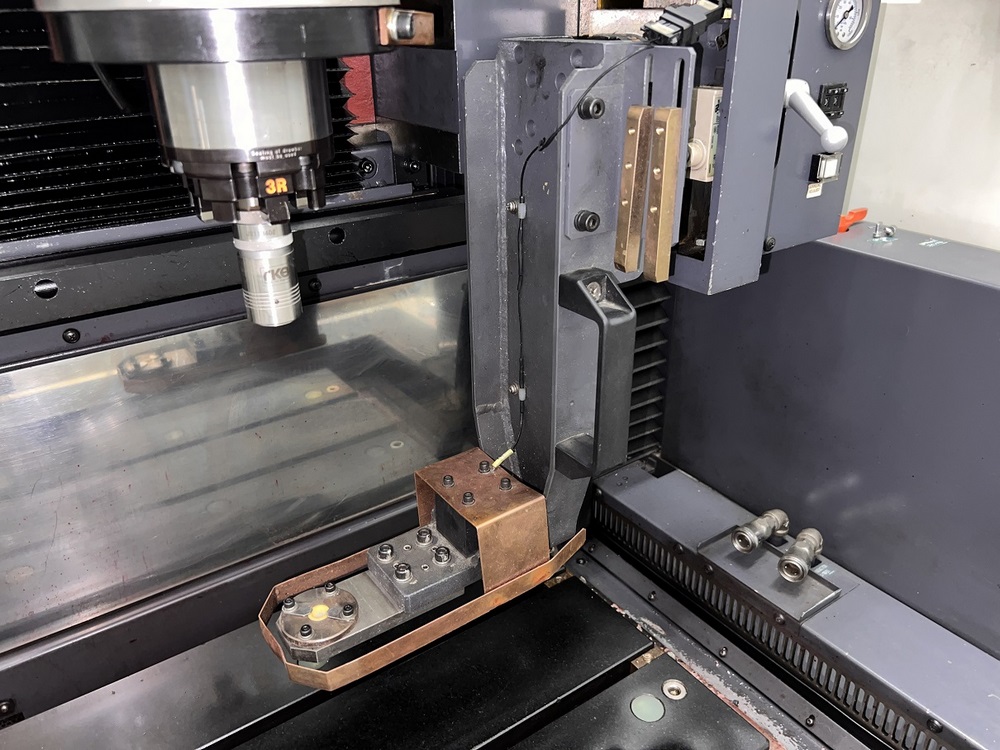

Fine Hole Drilling Jig |
Fine PS Matte Finish Circuit |
|
Fixed Table Traveling Column Construction |
FP80S Power Supply |
|
Fuzzy Pro Plus |
Glossy Mirror GM2 Finish Circuit |
|
Granite Worktable with T-Slots |
High Speed Spindle (1500 RPM) |
|
Narrow Gap Circuit |
Thermal Displacement Compensation System |
|
Tungsten Carbide Machining Circuit |
Ultrafine NP2 Matte Finish Circuit |
|
C-Axis |

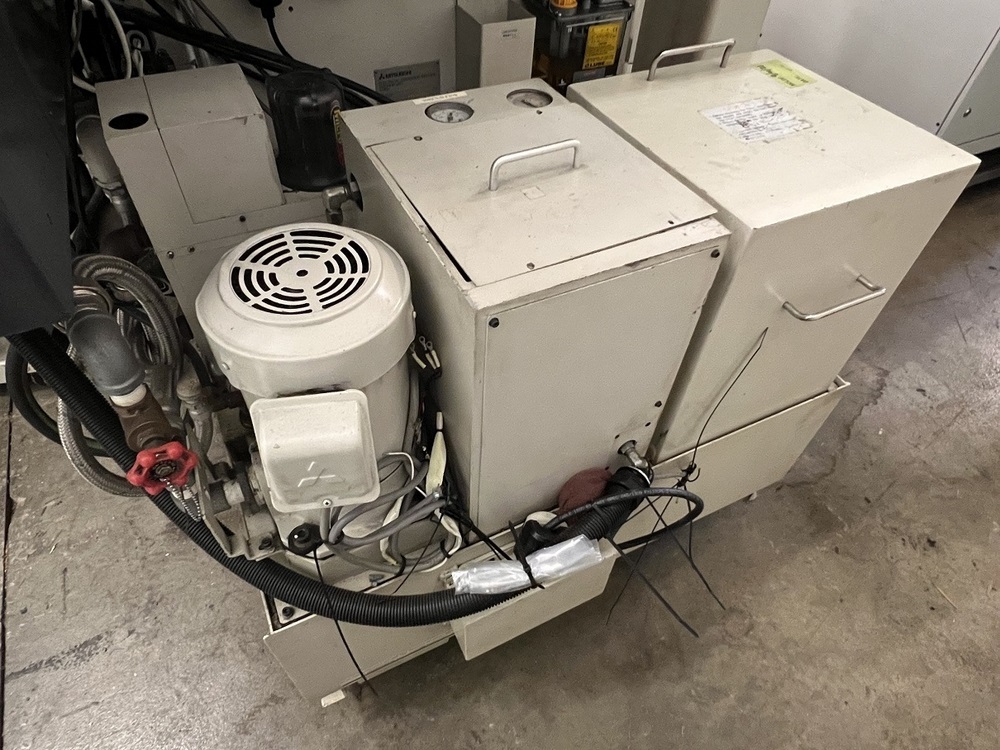

Chiller |
|
Glass Scale Feedback |

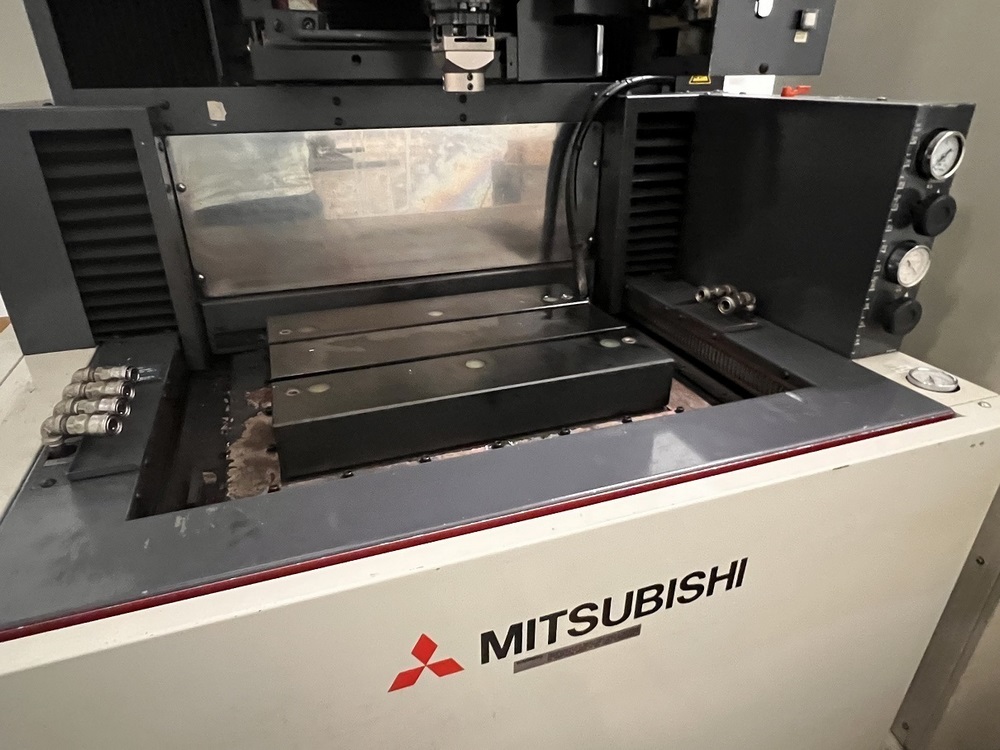

Tank Type 3-Sided Drop Tank |
|

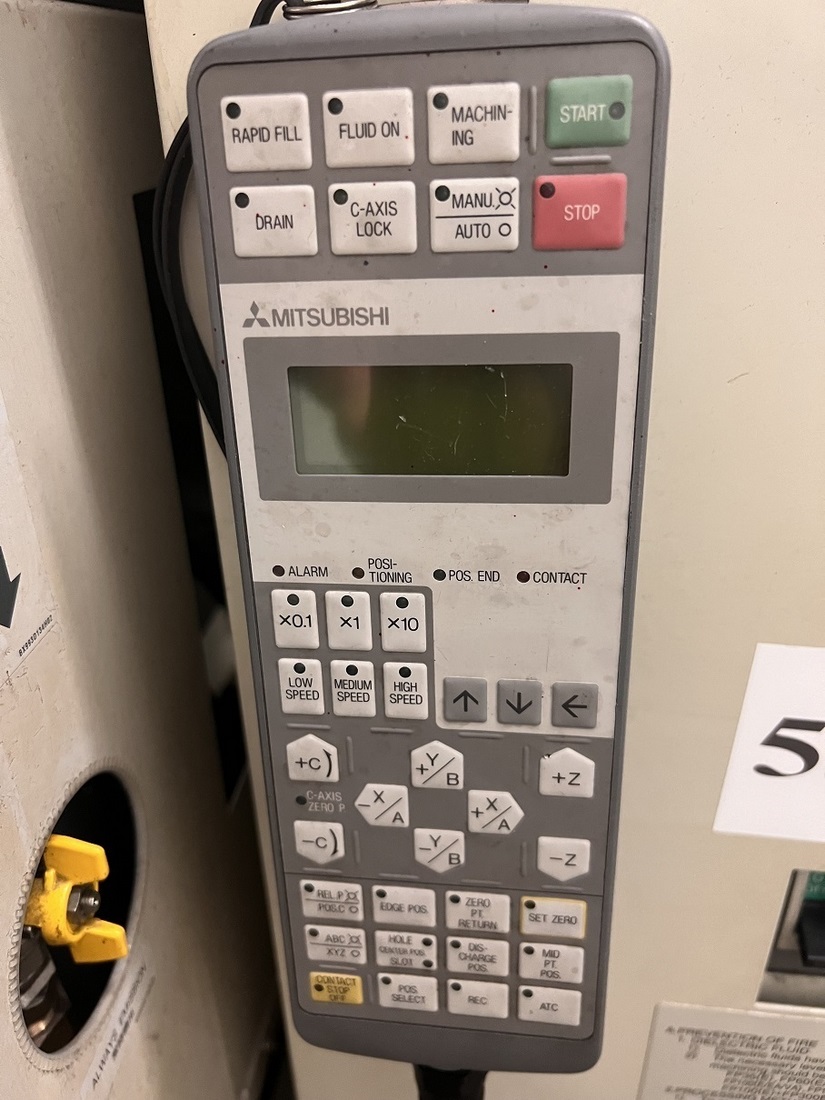

Advanced Remote Hand Pendant |
Auto Fill/Drain |
|
Auto Way Lubrication |
CNC Orbiting (All Axes) |
|
ESPER Automatic Programming |
