| Year | 2009 |
|---|---|
| Make | Sodick |
| Model | AQ560LX |
Description |
EDM Wire |
| Reference # | 8070550 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

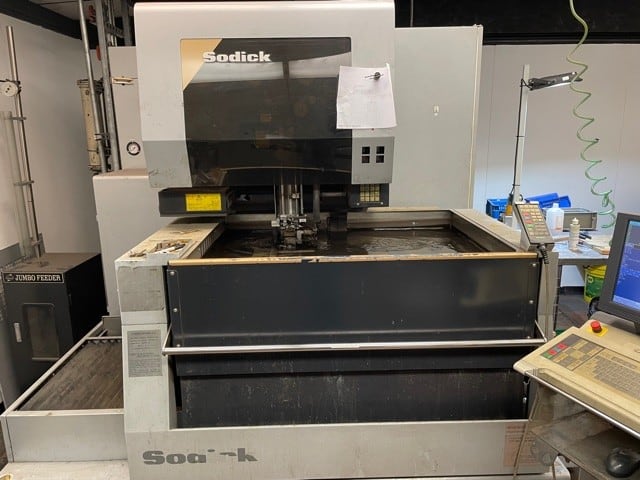

Used Sodick AQ560LX (2009) CNC EDM for Sale. This pre-owned Sodick CNC EDM wire is located in Ohio and available to be seen under power for an inspection. If you have any questions regarding this Sodick EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
22.04" |
|---|---|
| Y-Axis Travel |
13.8" |
| Z-Axis Travel |
11.8" |
| Control |
Sodick LN1W |
| U/V Axis Travel |
3.15" x 3.15" |
| Degree Taper Cutting |
20 @ 3.2" |
| Inside Tank Dimensions |
42.9" x 33.6" |
| Power Requirement |
200-208/3/60 |
| Glass Scale Feedback |
X,Y,U,V |
| Wire Diameter Range |
.006-.013" |
| Wire Tension Range |
200-2,800 Grams |
| Wire Feed Speed |
16.5"/sec |
| Work Tank Dimensions |
43.1" x 33.1" |
| Max Workpiece Weight |
1,763 Lbs |
| Max Workpiece Dimensions |
30.3" x 19.7" x 12" |
| Machine Weight |
11,000 Lbs |
| Machine Dimensions |
95" x 109" x 86" |
| Required Floor Space |
132" x 151" |
| Dielectric Capacity |
225 Gallons |
Features
|
Auto Wire Threading |
Chiller |
|
Remote Hand Control and Mouse |
Glass Scale Feedback |
|
15" LCD Color Monitor |
Wire Chopper |
|
Super-Jet AWT High-Speed Automatic Wire Threader |
Advanced Corner Control |
|
User Memory 30 MB |
Automatic Dielectric Fluid Level Control |
|
Built-In Voltage Stabilizer |
Dielectric Cooling Unit |
|
External Memory - USB (1 GB) |
FT-II (Precision Pick-Up Function) |
|
Heart-NC CAM Software Windows XP |
High-Speed Electrolysis-Free Power Supply |
|
Internal Multi Tap Transformer |
Ion Exchange Processor |
|
Large 44 lbs Spool Option |
Linear Scales (X/Y/U/V) |
|
Paper Cartridge Exchange Filter (Internal Pressure Drum Filter - x2) |
