Year 2010
Make Flow
Model Mach 3 1313b

Description

4.2' x 4.2' Dynamic Head CNC Waterjet
Reference # 8070980

Price

Activate PricingInquire Now

Used Flow Mach 3 1313b (2010) CNC Waterjet for Sale.  This pre-owned Flow CNC waterjet is located in Ohio.  If you have any questions regarding this Flow Waterjet, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Table Width

4.2'

Table Length

4.2'

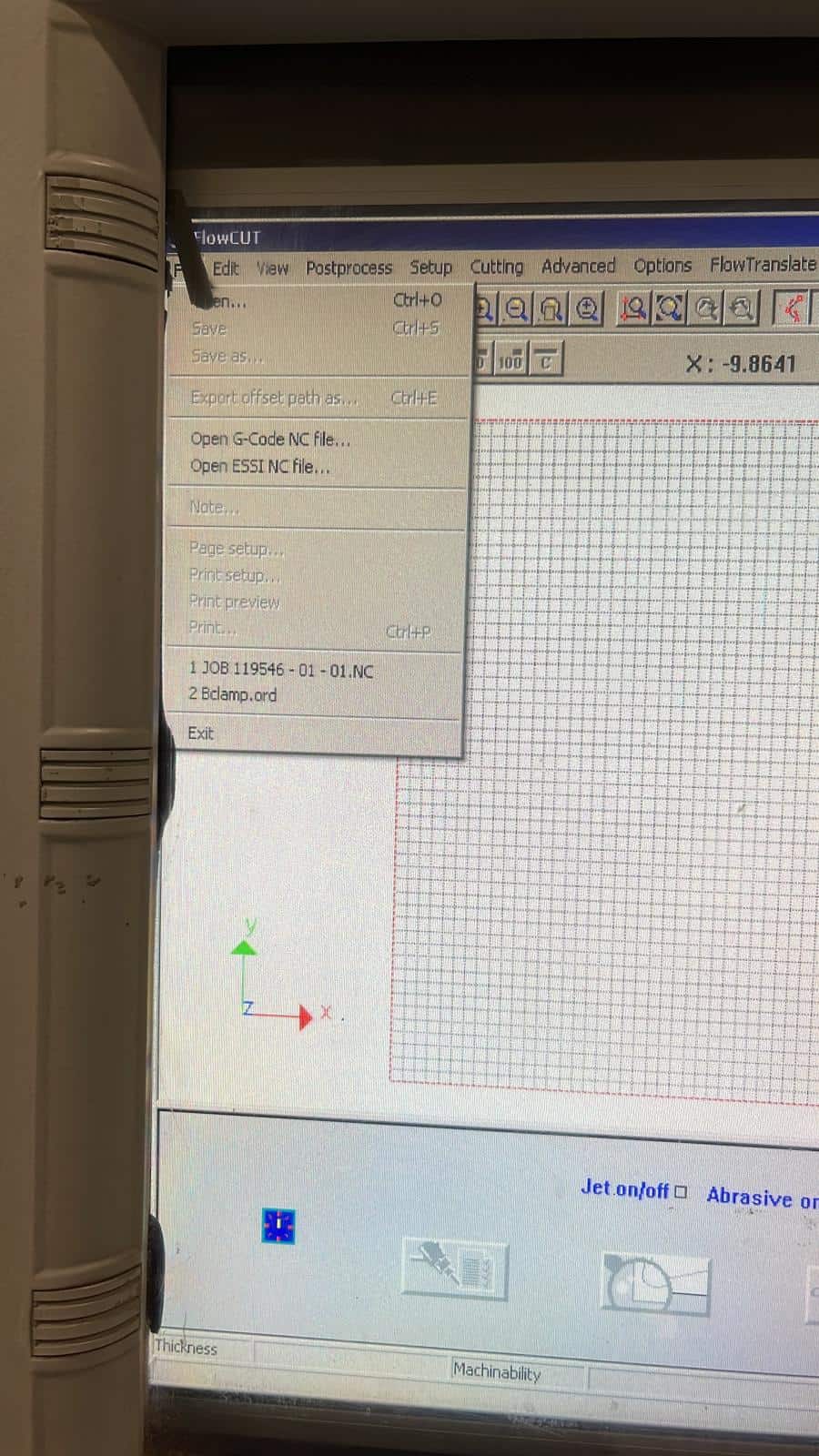

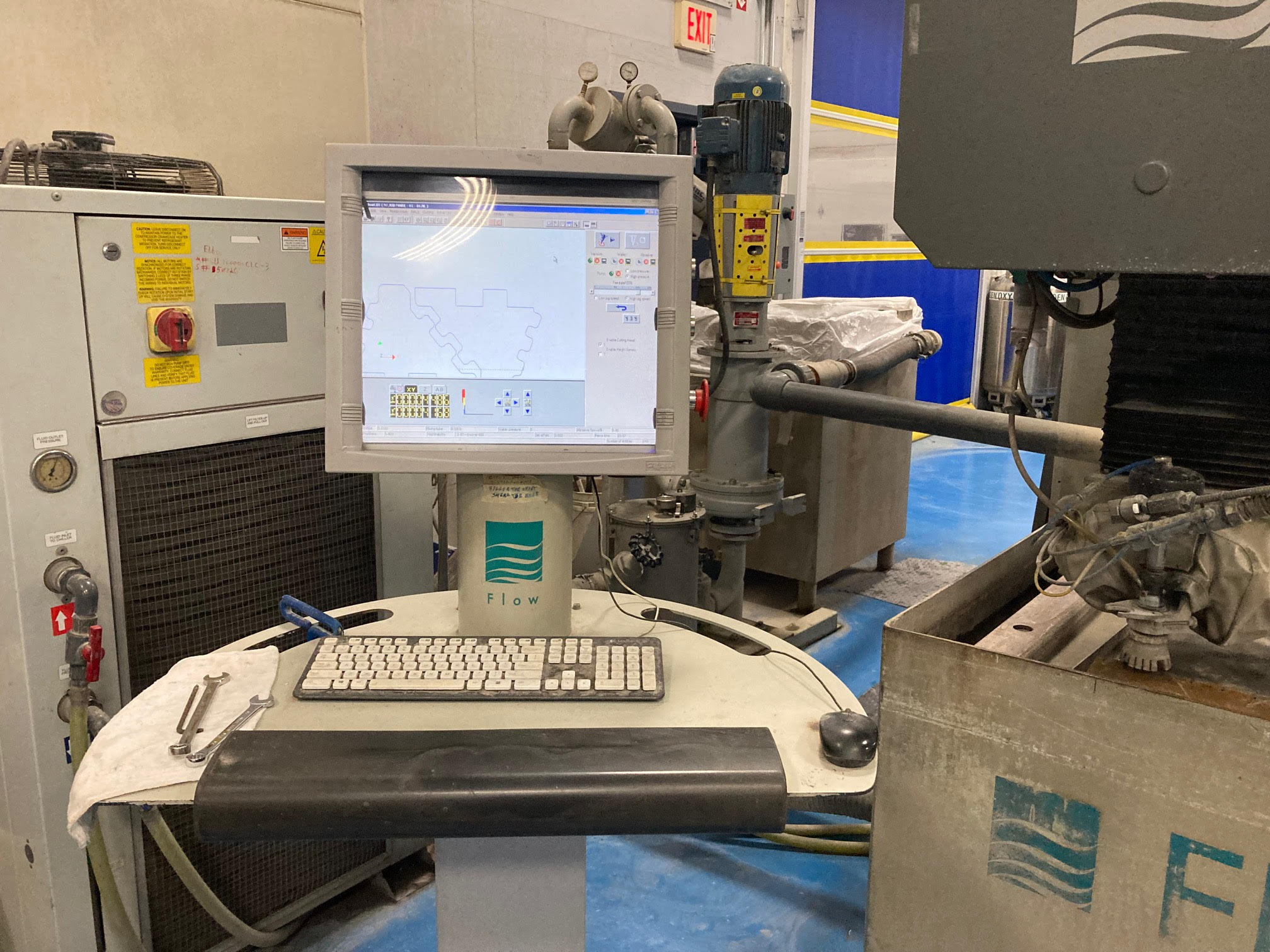

Control

Flowmaster

Pump

50 HP

Max Cutting Pressure

94,000 PSI

Power Requirement

460-480/3/60

Z Axis Servo Driven

7"

Linear Positioning Accuracy

+/-.003

X & Y Repeatability

+/- .002

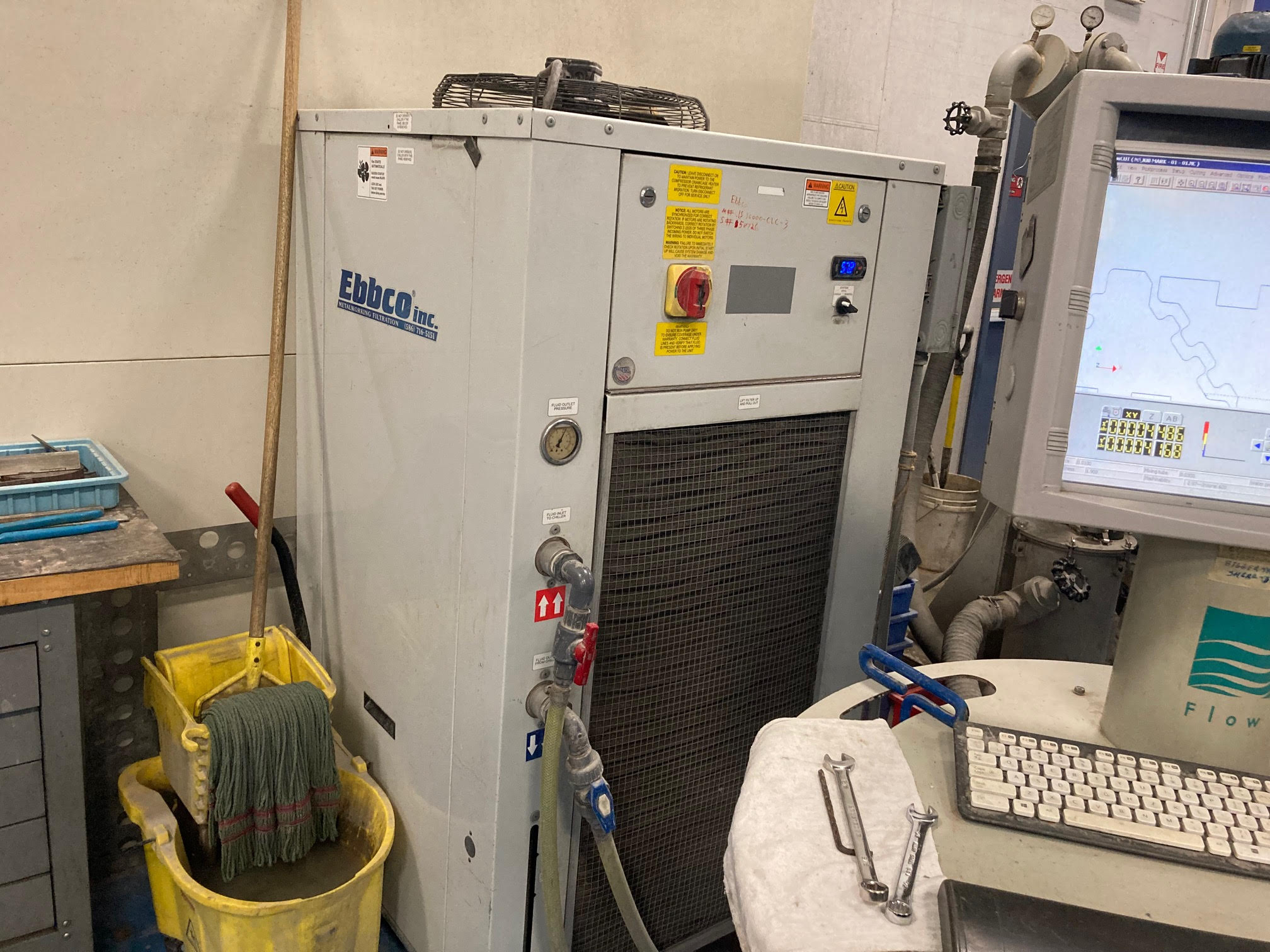

Chiller

24,000 BTUs

Rapid Speed

500IPM

Imports

DXF,DWG, IGS, CADKEY, CDL, and HPL Files

Note

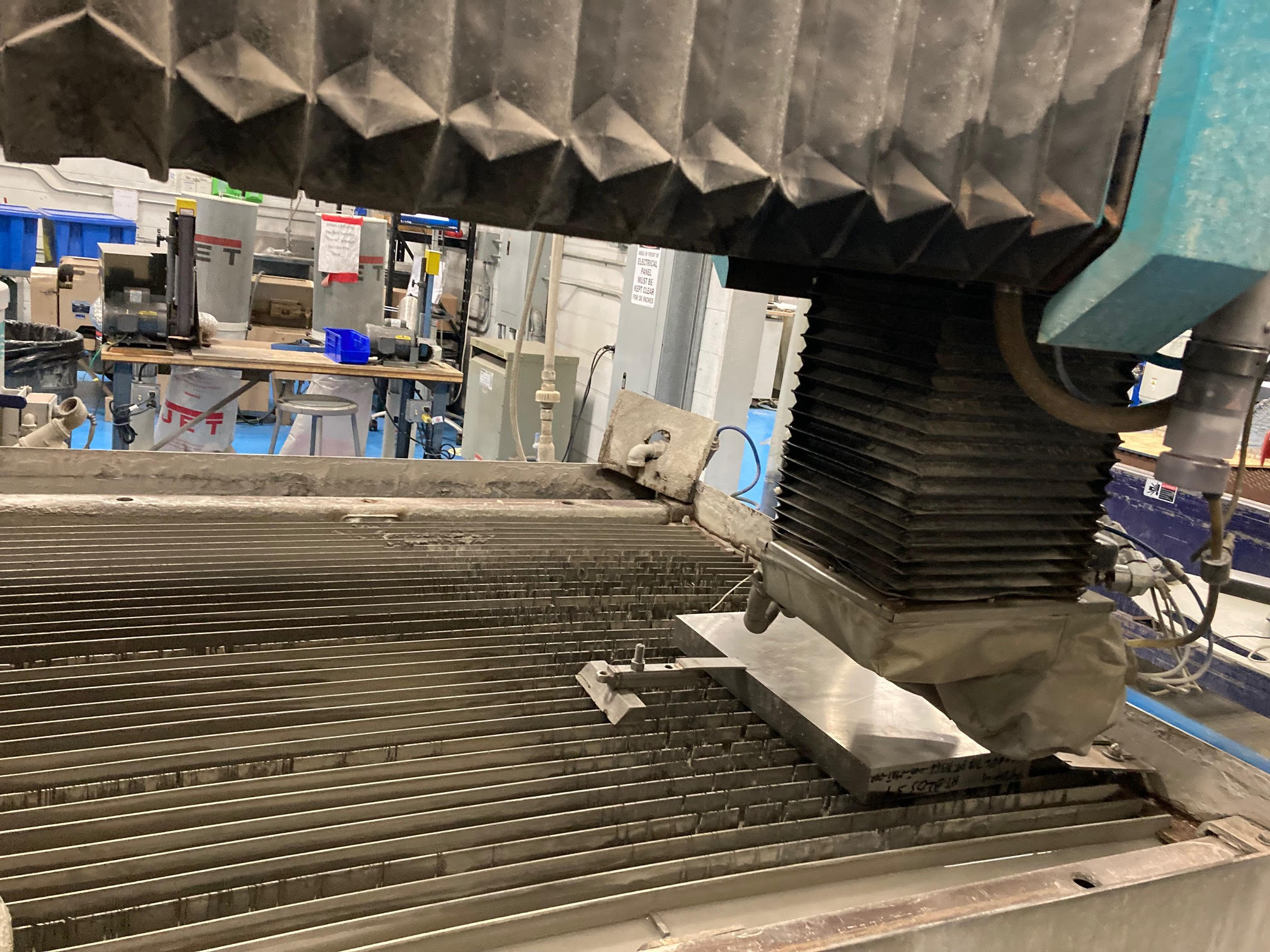

5-Axis Dynamic Cutting Head Taper Compensating, Easy To Use CAD Drawing and Editing Tools, 3D Drawing in Z Plane, Allows Water Level to Be Controlled for Underwater Cutting, Virtually Eliminates Cutting Noise - 3" Level Adjustment, Dramatic Increase in Cutting Cleanliness - Pneumatically Powered and Manually Controlled

Features

50 HP Hyperjet 94k PSI Intensifier Pump

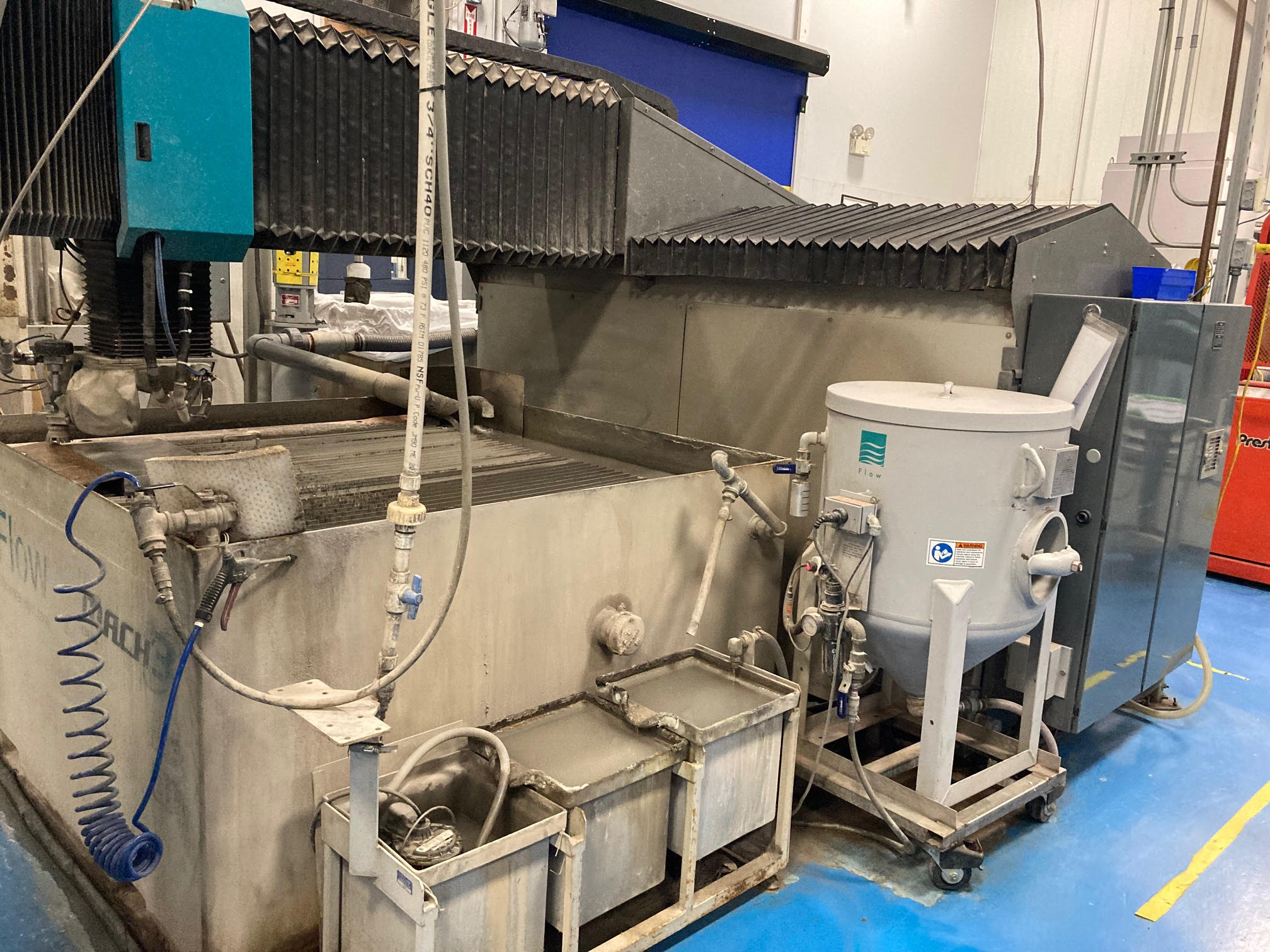

600 Lbs Abrasive Hopper with Sensor

All AC Servo Driven Ballscrews

NC Fillier Option for Transferring G-Code Programs

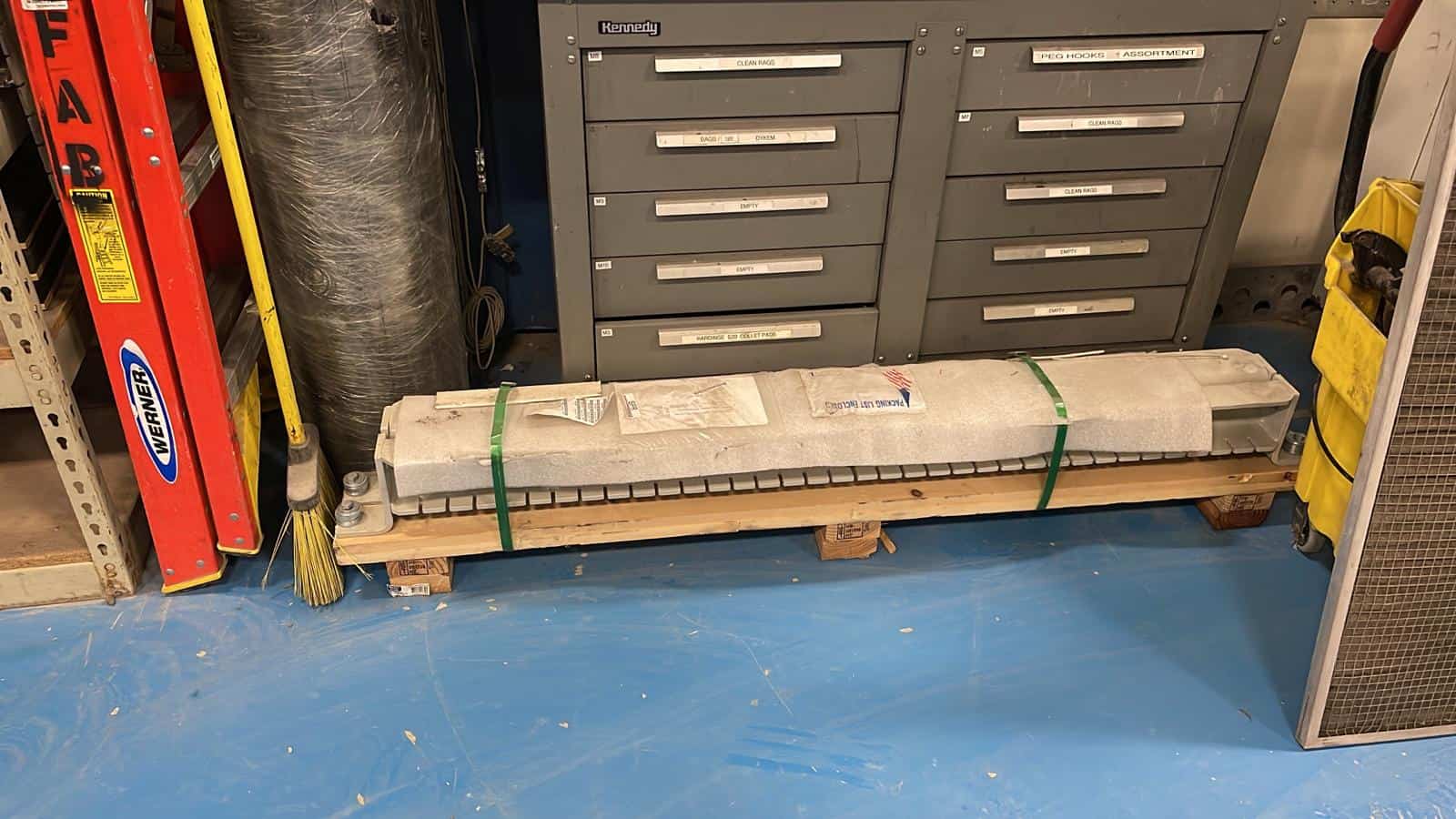

New Set of Structure Rails That Hold Slats

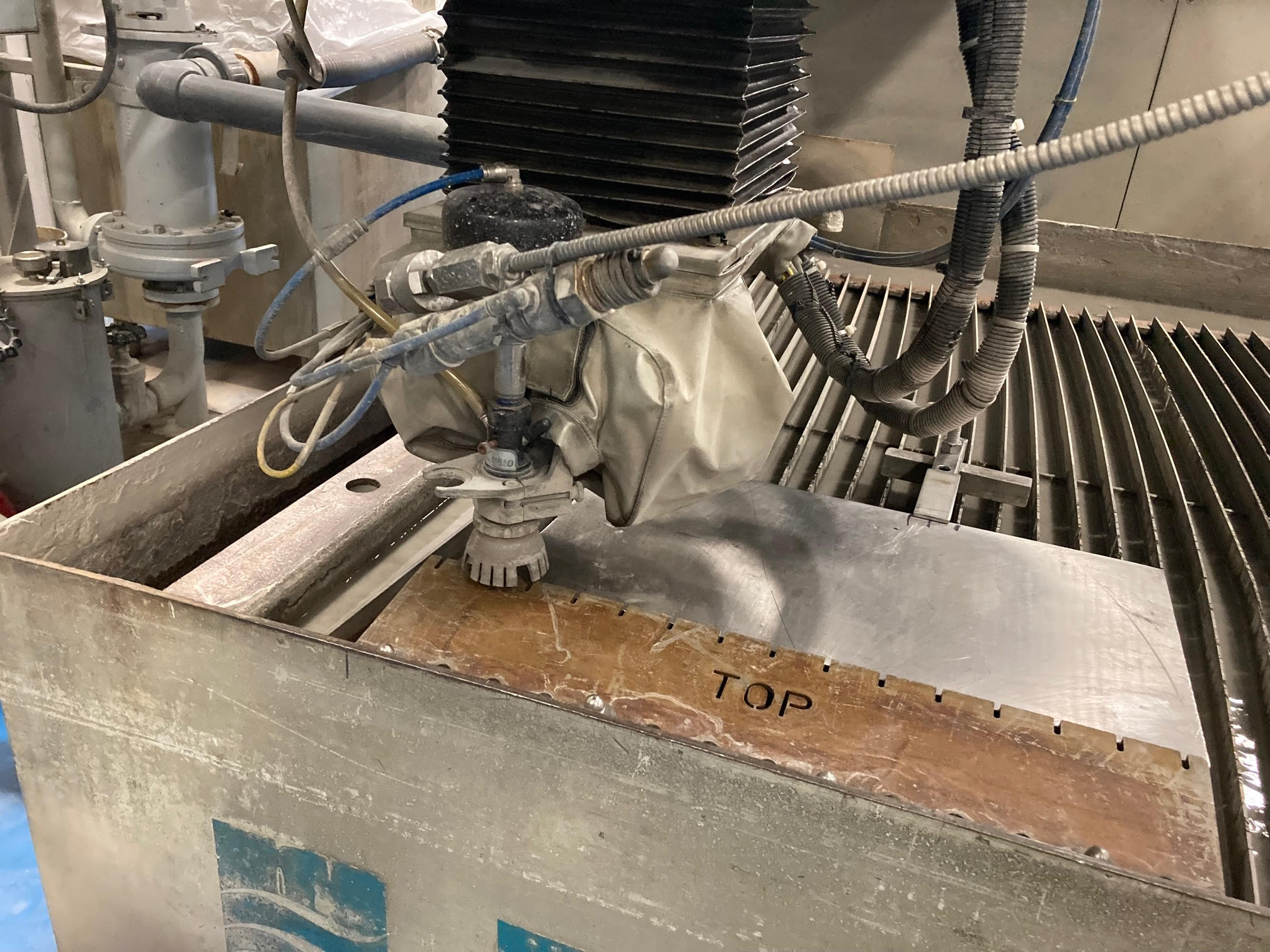

Paser ECL Cutting Head

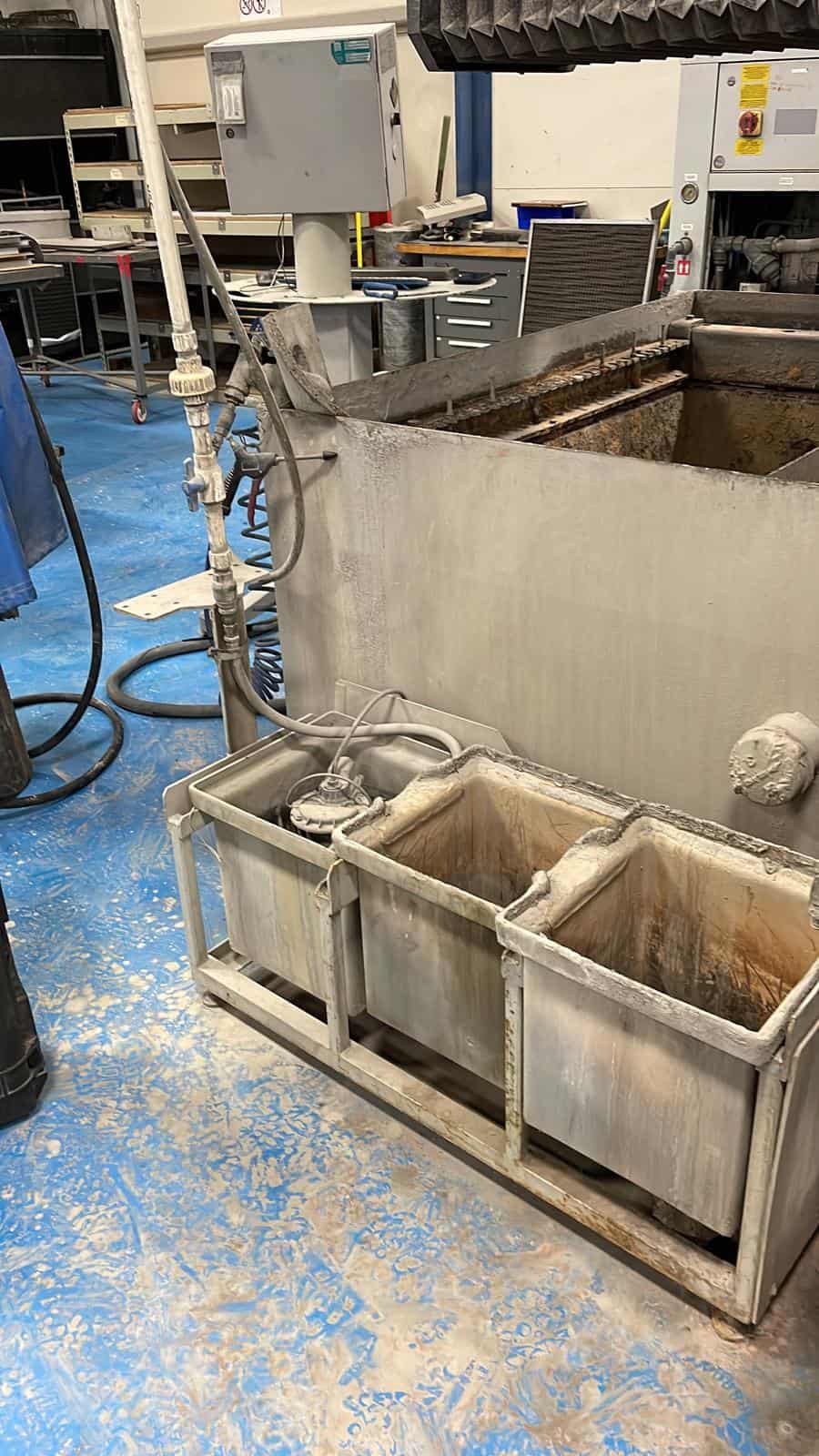

Weir Settling Tanks

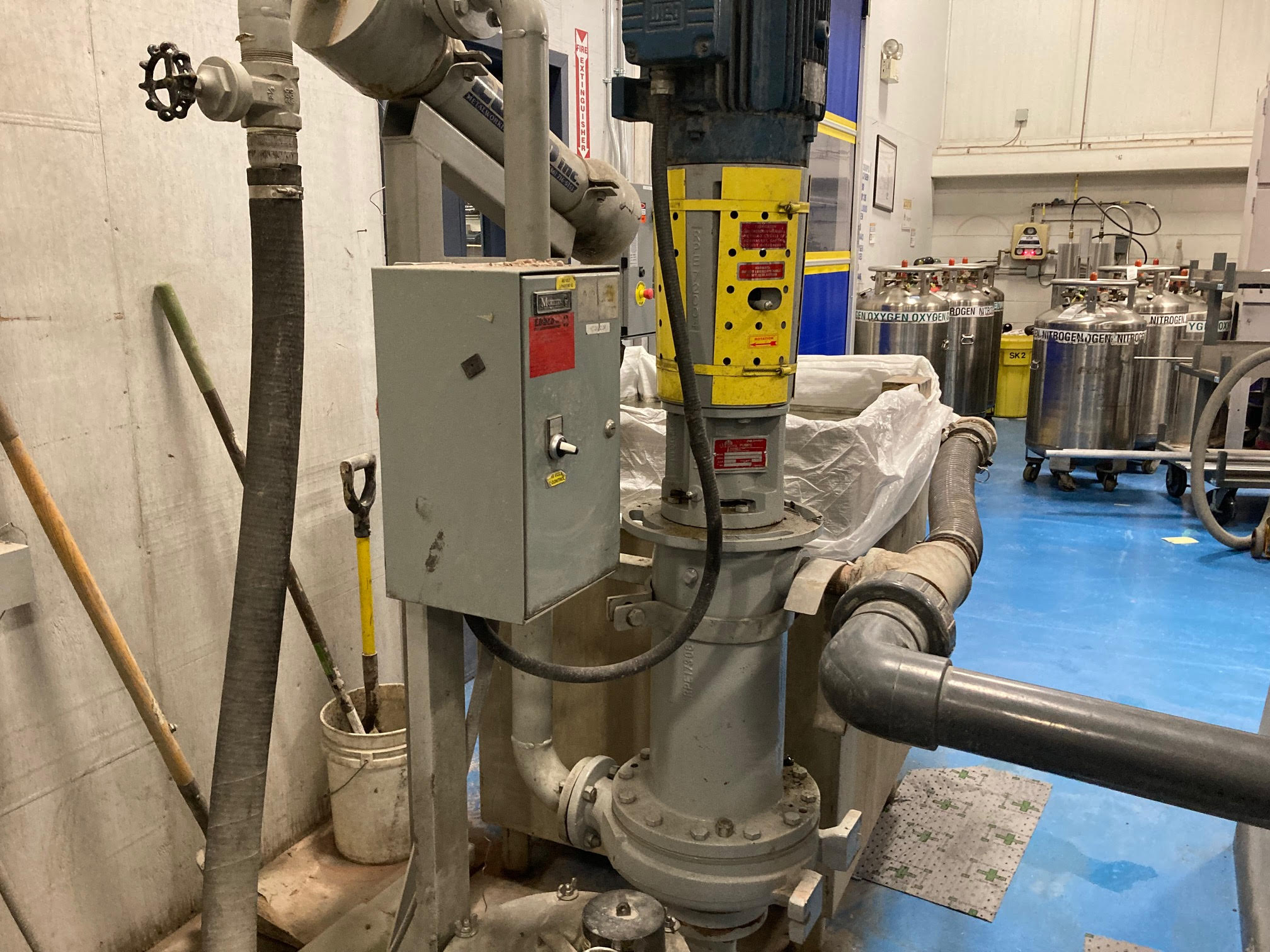

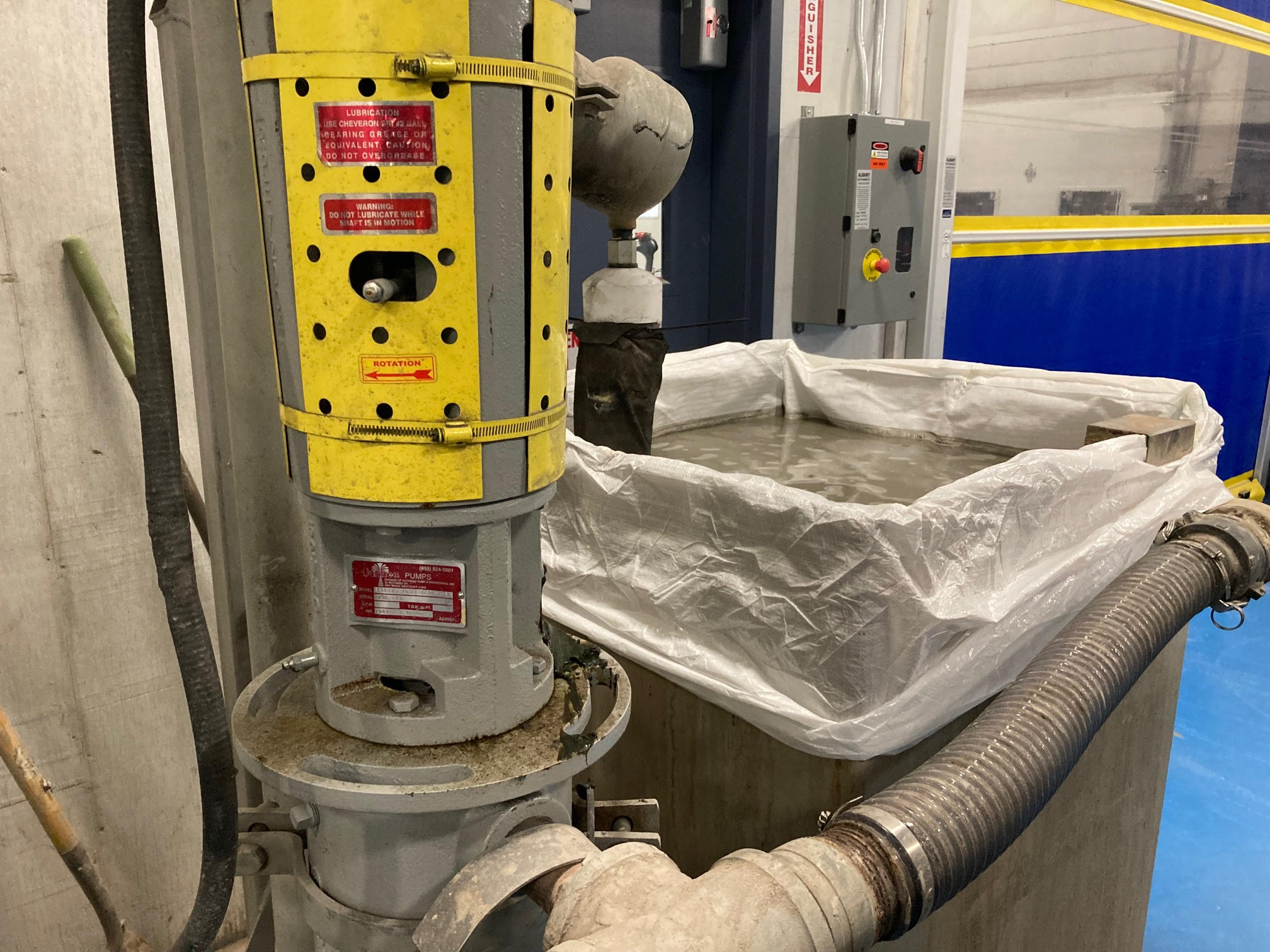

EBBCO Garnet Removal System

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
