| Year | 2010 |
|---|---|
| Make | Flow |
| Model | Mach 3 4020b-X5 |
Description |
6.6' x 13.1' XD Head CNC Waterjet |
| Reference # | 8073271 |
Price |
Activate PricingInquire Now |

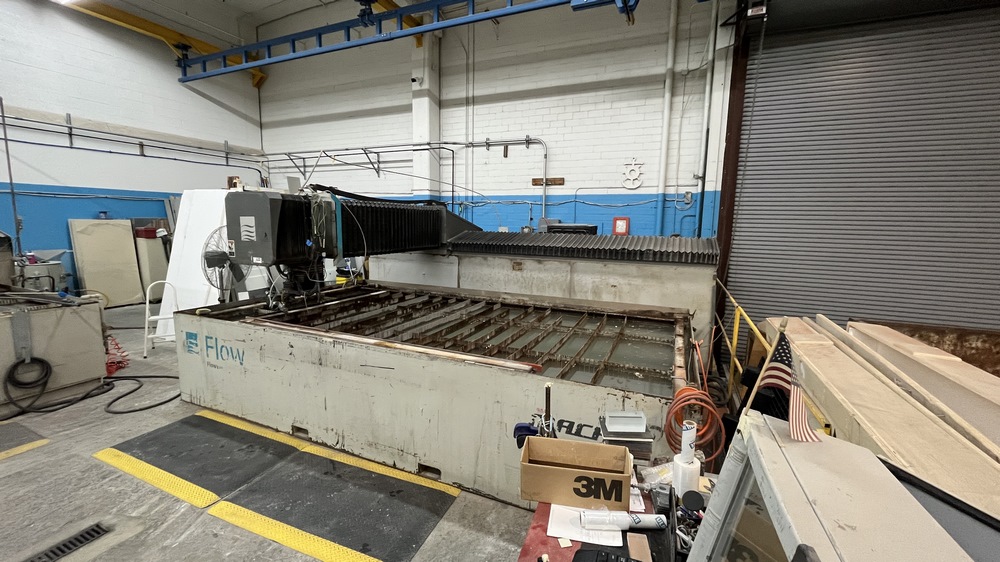

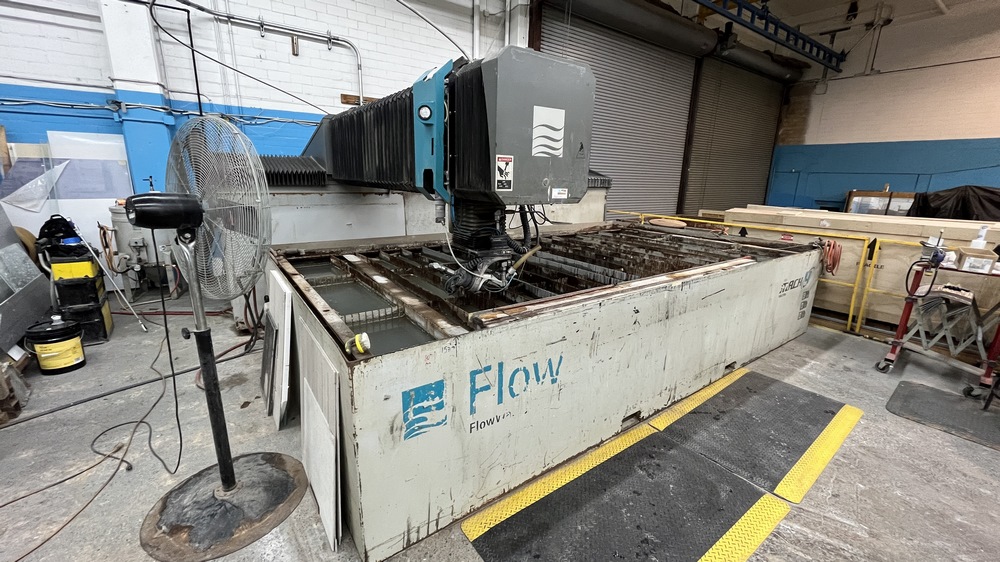

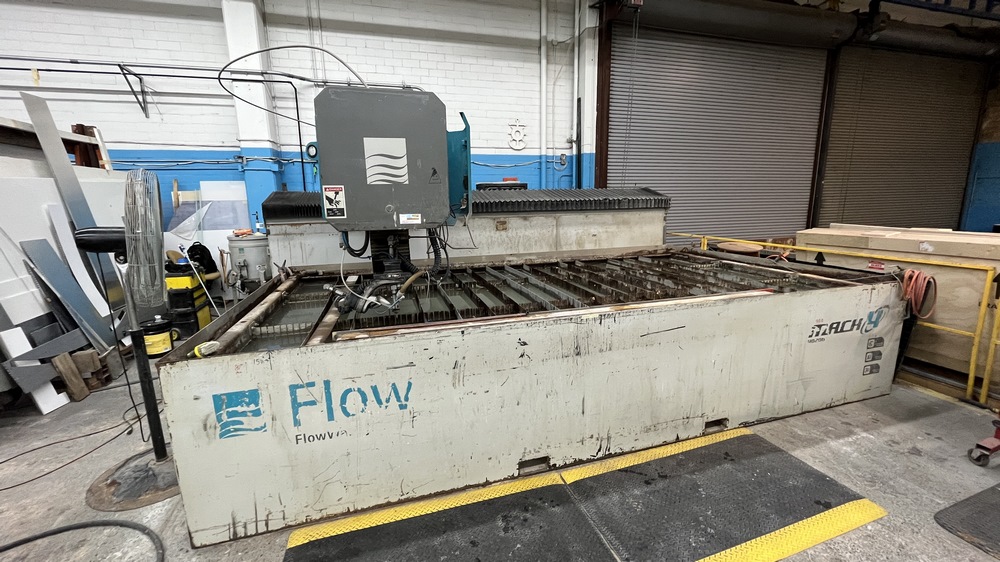

Used Flow Mach 3 4020b-X5 (2010) CNC Waterjet for Sale. This pre-owned Flow CNC waterjet is located in Ohio. If you have any questions regarding this Flow Waterjet, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
6.6' |
|---|---|
| Table Length |
13.1' |
| Control |
Flowmaster PC Based |
| Pump |
100 HP |
| Max Cutting Pressure |
94,000 PSI |
| Z-Axis Travel |
12" |
| Rapid Traverse |
1,400 IPM |
| Max Contouring Speed |
1,000 IPM |
| Linear Straightness |
.001" per 3ft |
| Repeatability |
.002" |
| Power Requirement |
460/3/60 |
Features
|

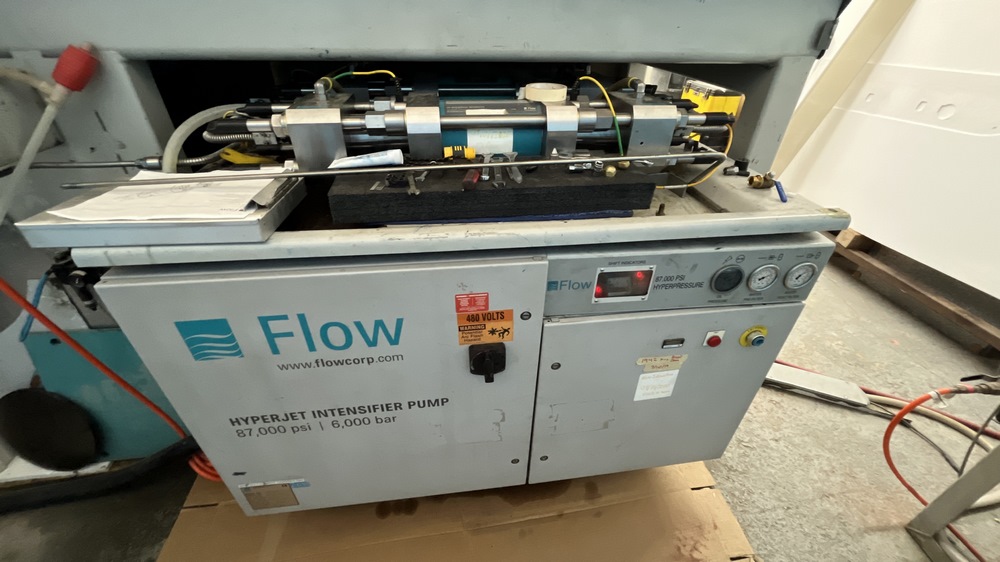

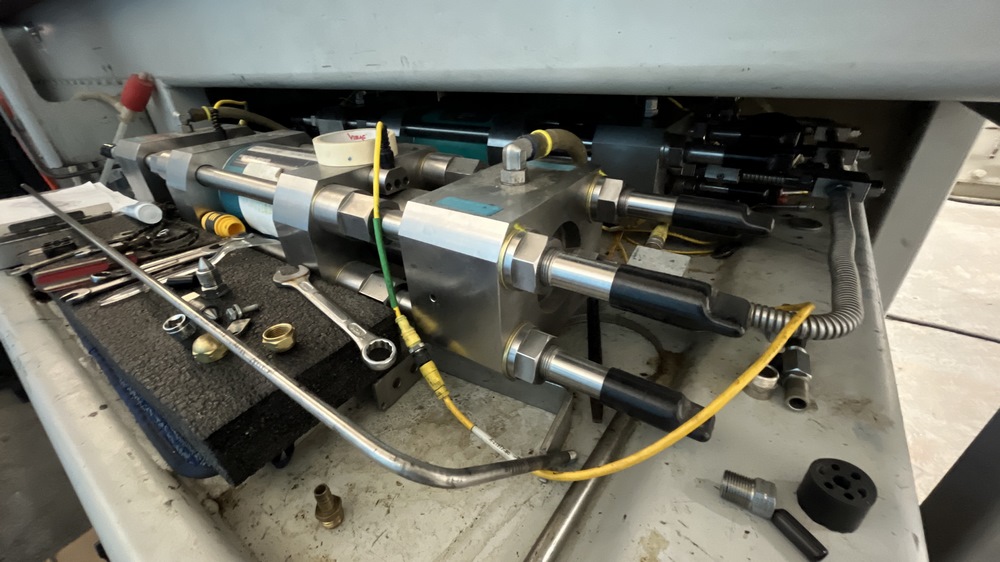

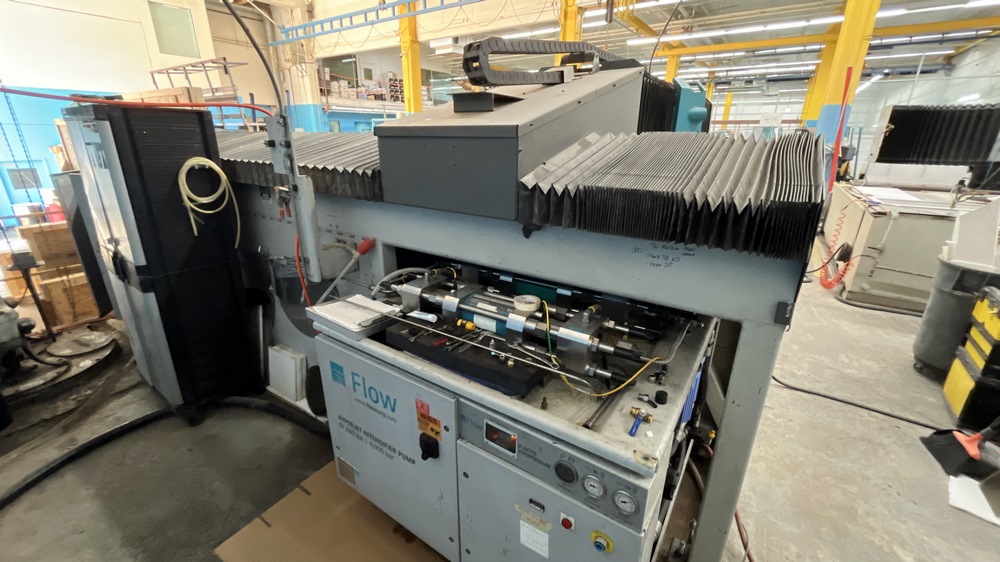

Dual 50 HP HyperJet Pump with Redundant Intensifiers |
Vacuum Assist for Piercing Brittle Material Included |
|

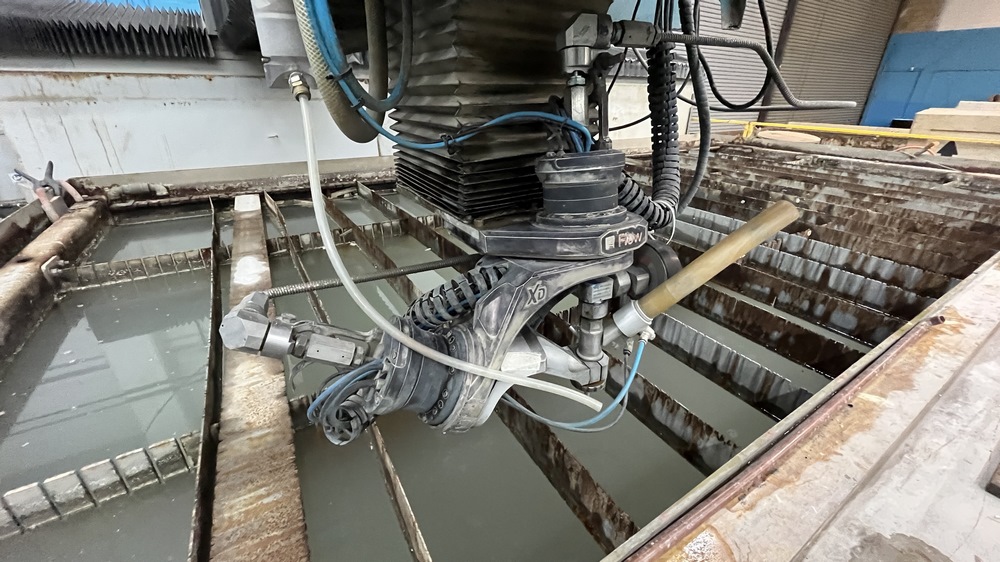

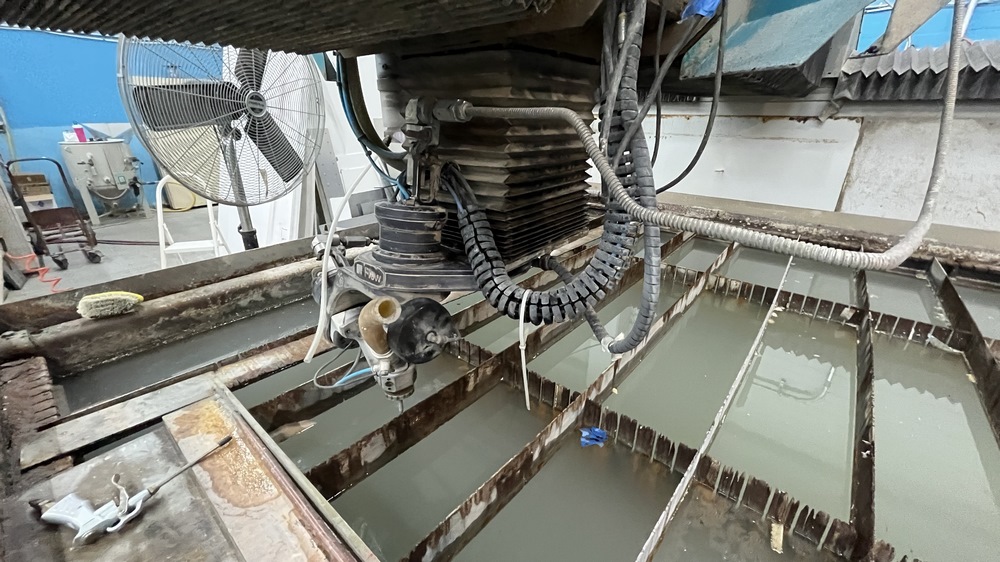

XD Dynamic 5 Axis Cutting Head with Taper Compensation |
Protection Package Is Heavy-Duty Collapsing Bellows to Protect Base and Bridge Rail Systems |
|
Fully Programmable Servo-Driven Z-Axis |

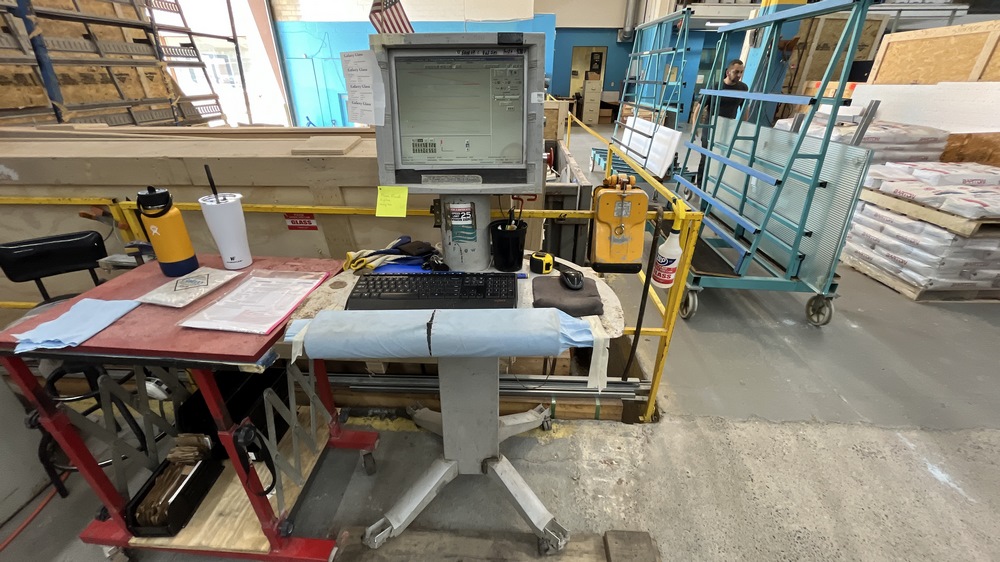

Roll Around Controller with 15" Color Touch Screen |
|
3D Expert Desktop Software |
Standard Air-Conditioned Motion Components Ensure Long Life in Any Operating Environment |
|
Standard Touch Screen Mobile Control Station/Cabinet Increases the Convenience |

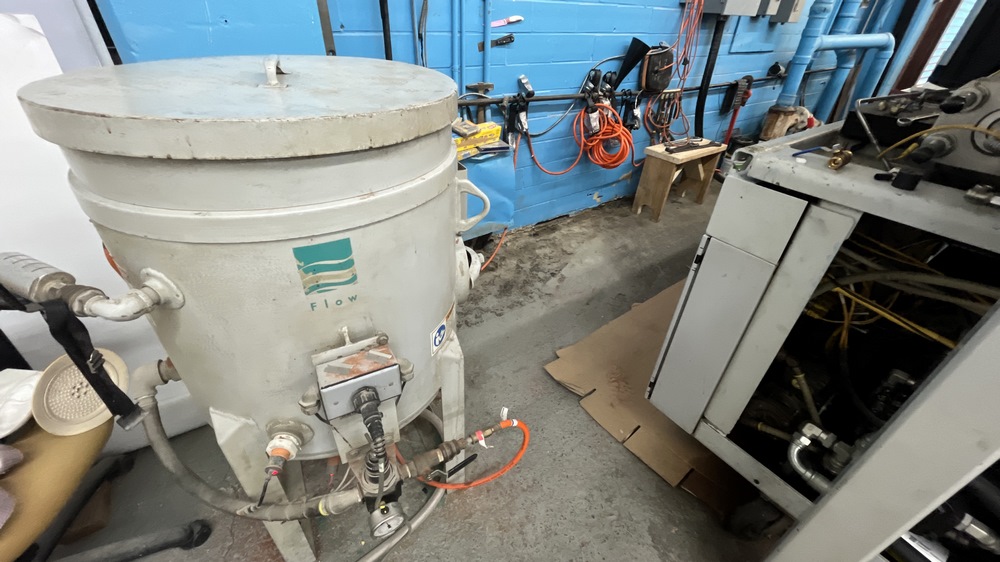

Abrasive Hopper with Lower Level Warning |
|
All Electronic Manuals Available |
Base Rails Are Below the Top of The Catcher - Reducing the Potential Impact of Loading A Heavy Work Piece |
|
Dual-Drive Base Axis (Each of The Base Axes Have Dedicated Servo Drives) |
Flow Nesting Module |
|
Graphic Programming with No G Code Needed |
Paser 4 Cutting Head |
