| Year | 2010 |
|---|---|
| Make | Mitsubishi |
| Model | MD-Pro II |
Description |
EDM Wire |
| Reference # | 8073104 |
Price |
Activate PricingInquire Now |

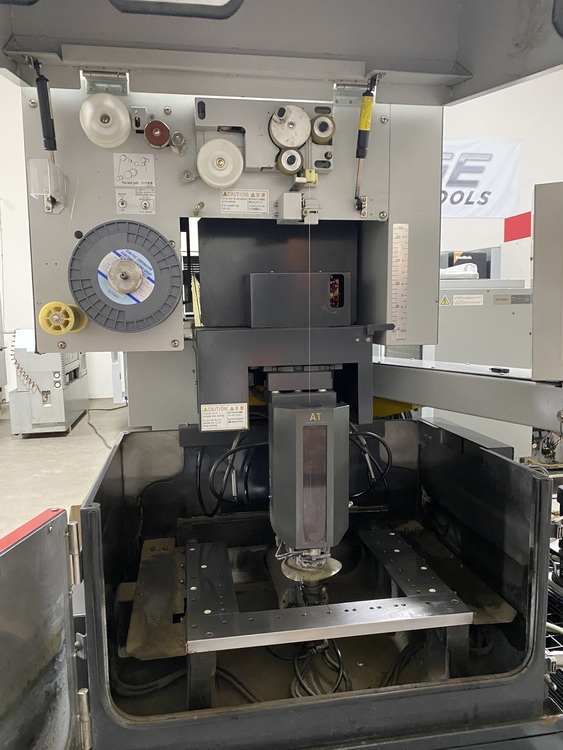

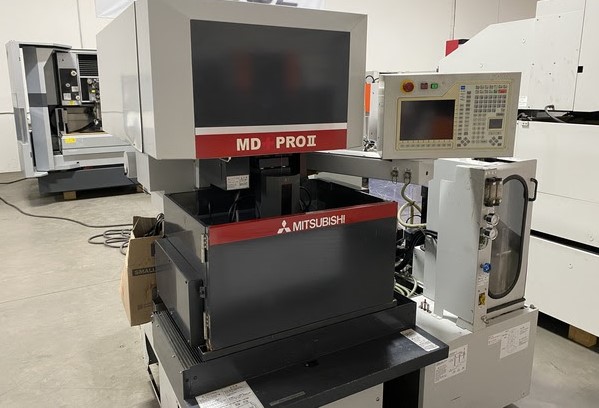

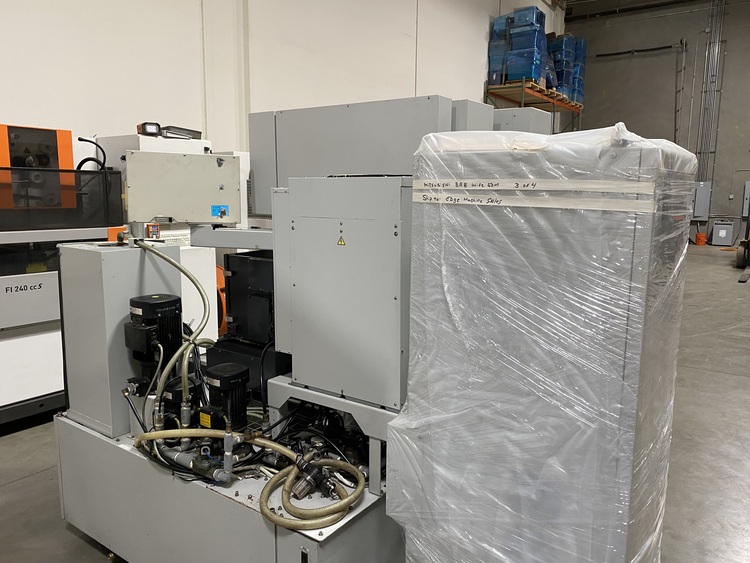

Used Mitsubishi MD-Pro II (2010) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM wire is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
12.6" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
8.7" |
| Control |
Mitsubishi 64-Bit CNC |
| U/V Axis Travel |
1.3" x 1.3" |
| Degree Taper Cutting |
15 Degrees |
| Inside Tank Dimensions |
21.3" x 16.9" |
| Power Requirement |
200-220/3/60 |
| Min/Max Wire Diameter |
.004" - .012" |
| Table Load Capacity |
1,100 Lbs |
| Table Size |
21.3" x 16.9" |
| Dimensions |
70" x 94" x 80" |
| Weight |
4,500 Lbs |
Features
|
Graphic User Interface Expert System ESPER |
Manuals and Disc |
|
Auto Wire Threading |
Chiller |
|
Submerged Cutting |
5-Axis |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
