| Year | 2010 |
|---|---|
| Make | Swistek |
| Model | AB42 |
Description |
CNC Swiss Lathe |
| Reference # | 8072696 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

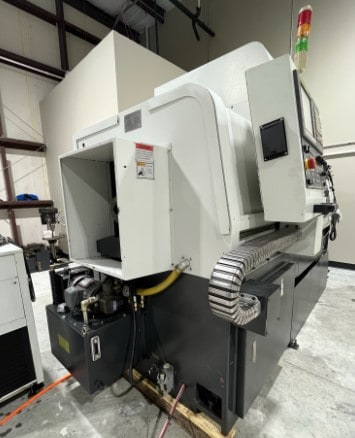

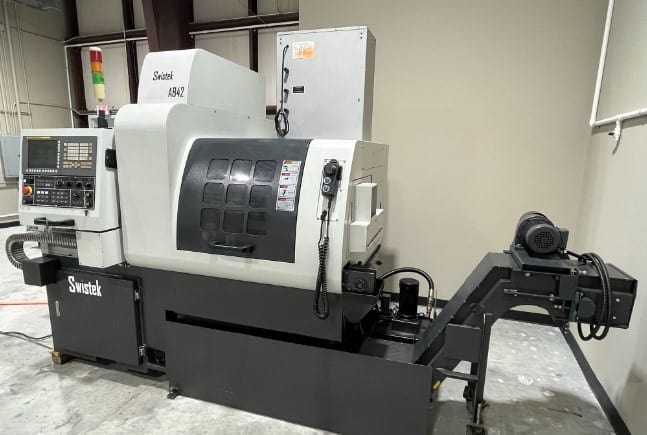

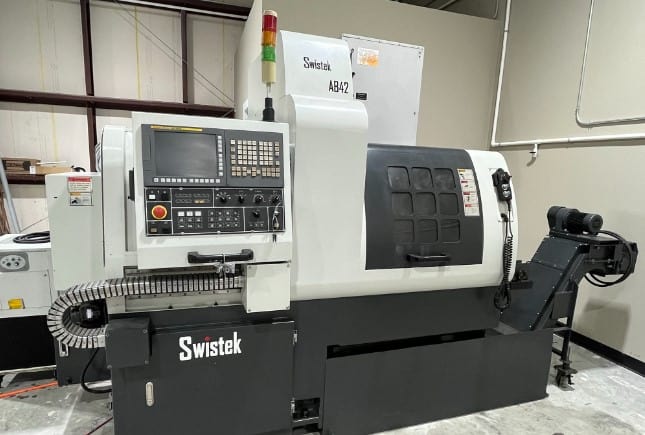

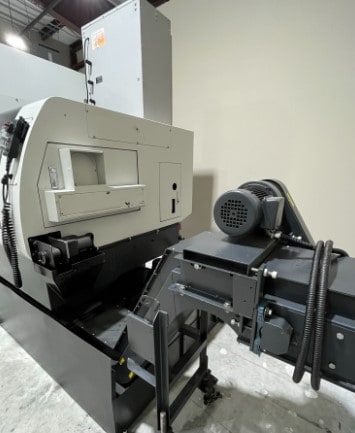

Used Swistek AB42 (2010) CNC Swiss Lathe for Sale. This pre-owned Swistek CNC swiss lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Swistek Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Spindle Speed |
7,000 RPM |
|---|---|
| Control |

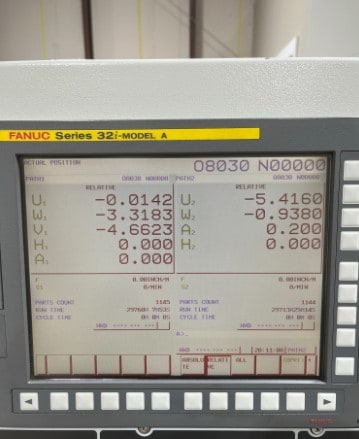

Fanuc 32i |
| Chip Removal |

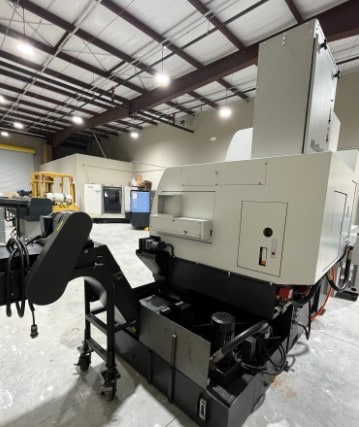

Chip Conveyor |
| Spindle Bore |
1.77" |
| Turning Diameter of Main & Sub Spindle |
1-5/8" |
| Turning Length |
8.66" |
| Drilling Capacity on Main & Sub Spindle |
.512" |
| Cross Drilling Capacity |
.512" |
| Tapping Capacity on Main & Sub Spindle |
M10 |
| Side Tapping Capacity |
M10 |
| OD Tools |
6 x (16x16), 5 x (20x20) |
| ID Tools |
5 (ER20) |
| Live Cross Tools (Main Spindle) |
5 (ER20) |
| Face Tool Holders (Sub Spindle) |
4 (12) |
| Tool Positions |
24 |
| Main & Sub Spindle Motor |
10 HP |
| Side Drilling Motor |
2 HP |
| End Drilling Motor |
1 HP |
| Machine Dimensions |
90" x 58" x 74" |
| Machine Weight |
8,850 Lbs |
Features
|
7-Axis |
Sub Spindle |
*
