Year 2011
Make Amada
Model EMK 3610NT

Description

33 Ton Turret Punch with RMP510 Load/Unload
Reference # 8074724

Price

Activate PricingInquire Now

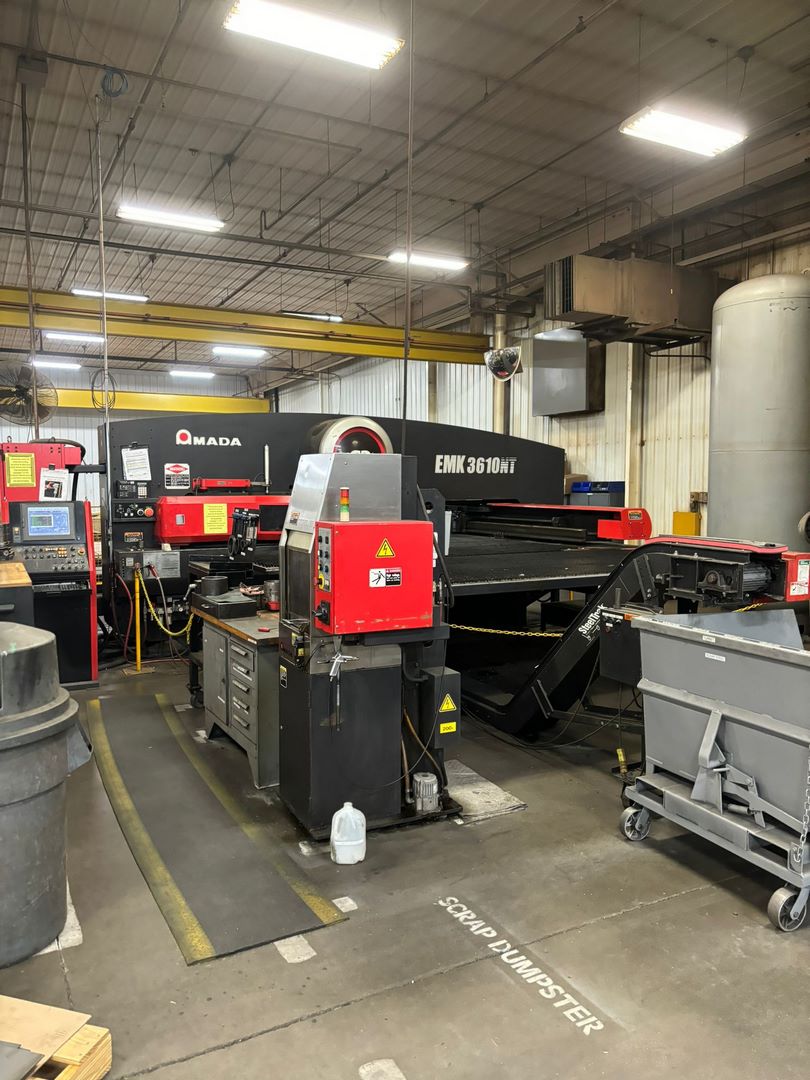

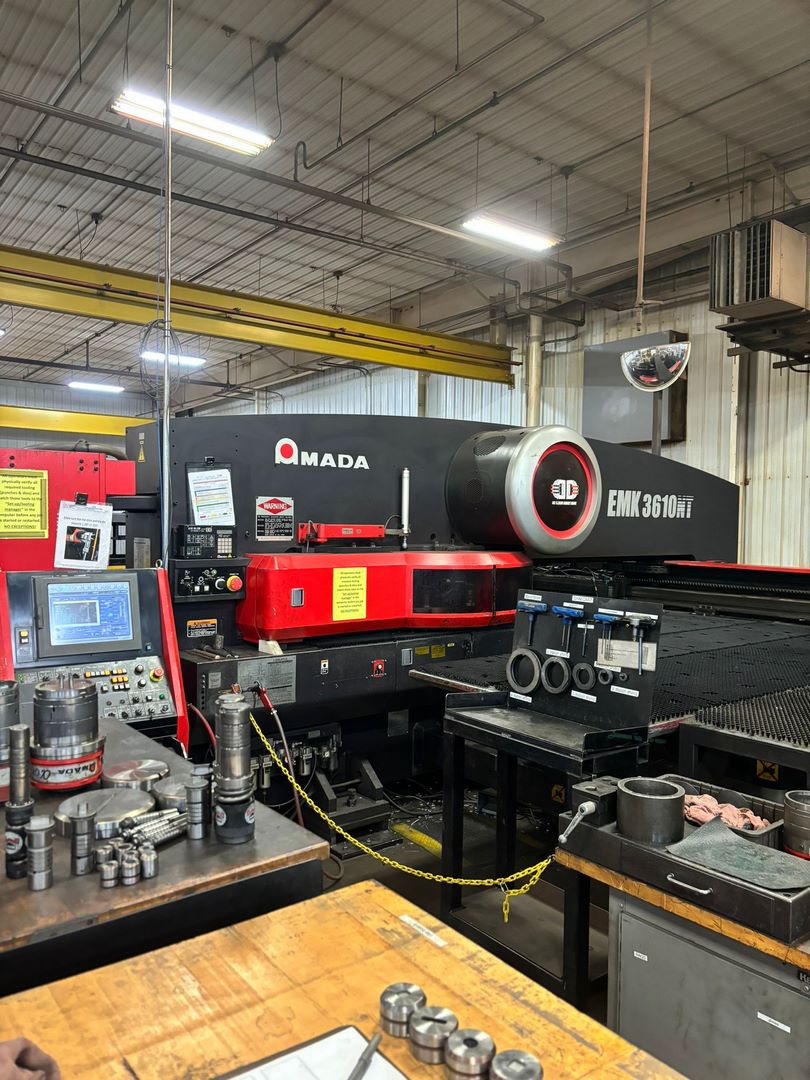

Used Amada EMK 3610NT (2011) Turret Punch for Sale.  This pre-owned Amada turret punch is located in the United States.  If you have any questions regarding this Amada Turret Punch, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Capacity

33 Ton

Sheet Width

60"

Sheet Length

100"

Turret Stations

58 Station, 4 A/I (2 X 11/4″ And 2 X 41/2″)

Throat Depth

60"

Feed Clearance

.984"

HPM

500 HPM (0.197″ Stroke & 1″ Pitch) 780 SPM (0.197″ Stroke & 0.039″ Pitch) 1800 SPM (0.055″ Pitch Marking)

Slide Type Die Holder

Standard

Axis Speed:

X-Axis: 3950″/Min. Y-Axis: 3150″/Min.

Slide Type Die Holder/Brush Table

Standard

Material

Mild Steel, Stainless Steel, Aluminum

Material Thickness Range

0.24 Gauge – 1/4″

Control

AMNC-F (Fanuc) Controller

Loading Height

Maximum Is 10.25″ Including Skid Height Of 4″

Material Cart Weight Capacity

5,500 Lbs

Material Separation

Edge Lifter, Magnetic Separator, Air Knife

Pallet

2 Pallets (Raw Materials and Finished Parts)

Electrical Requirements

230v/460v – 3 Phase

Electrical Supply Capacity

10 Kva (Not Including NCT Machine)

Air Requirements

75 PSI, 31.8 CFM

Overall Dimensions

201″ X 163″ X 105″

Features

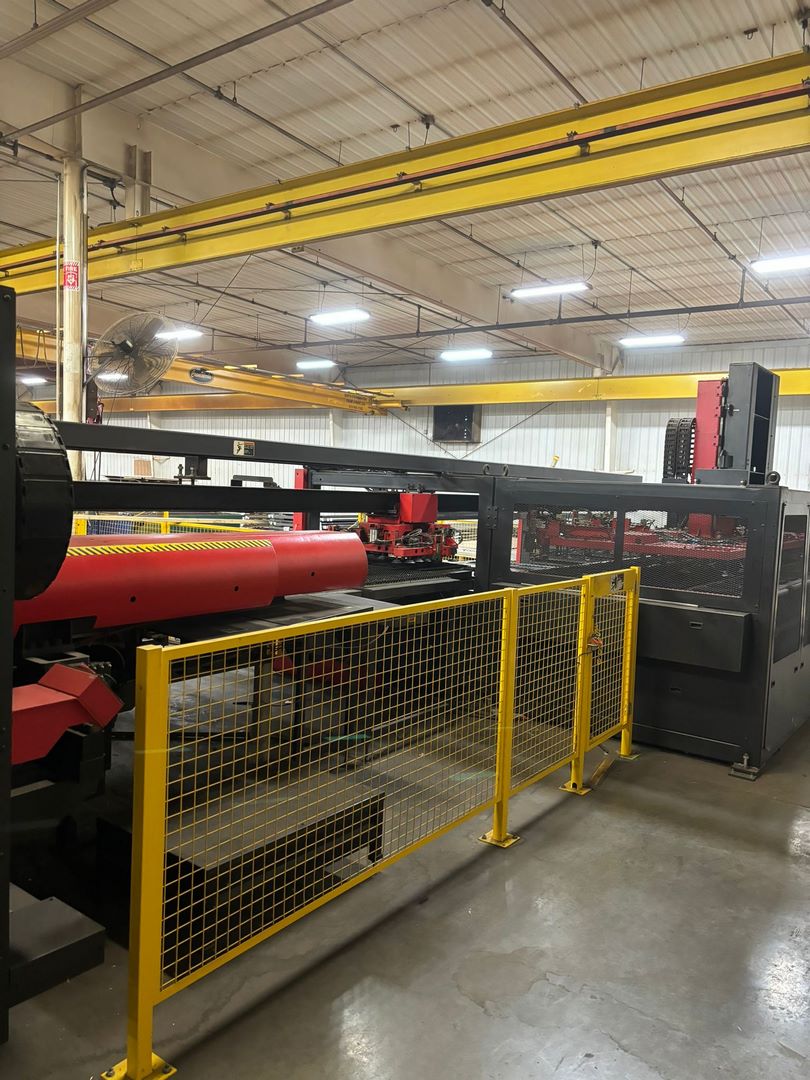

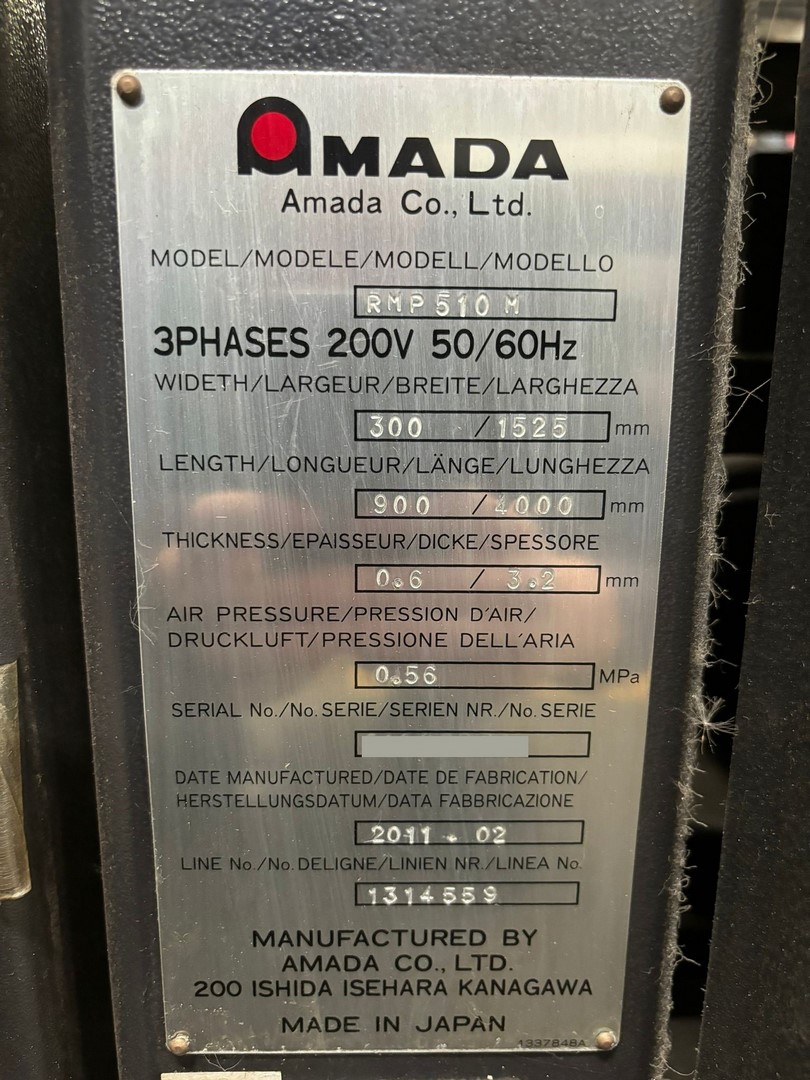

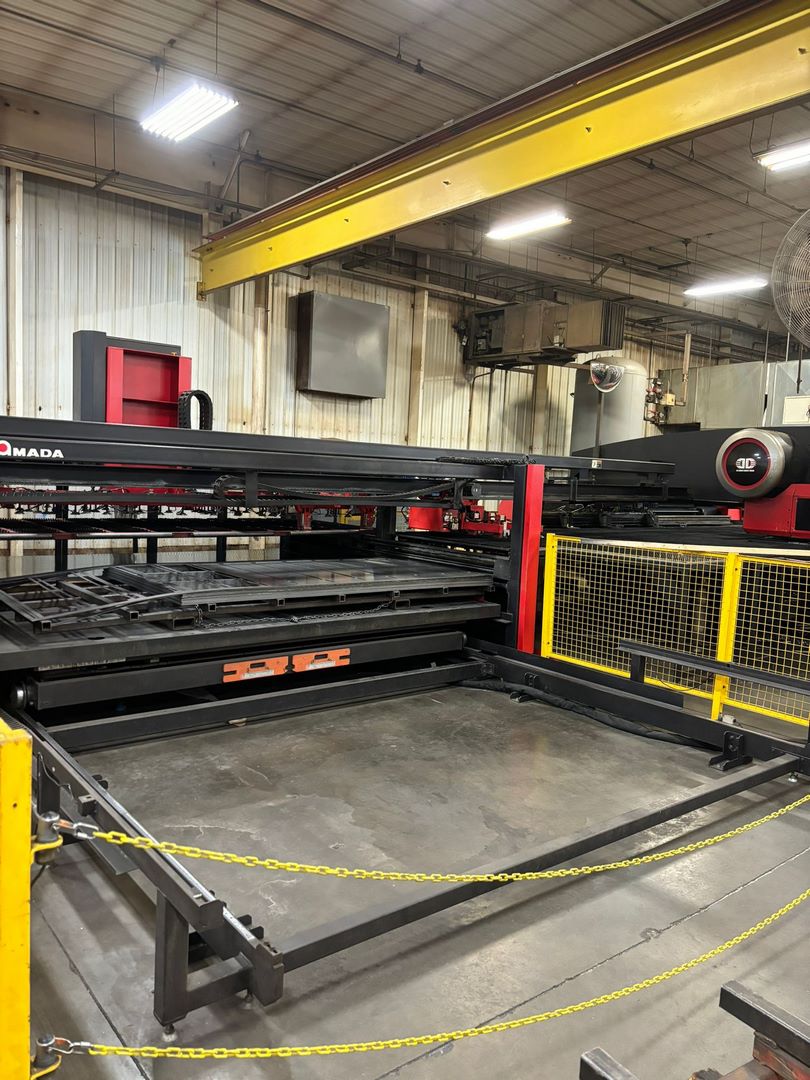

Automation is RMP510 Load/Unload
