| Year | 2011 |
|---|---|
| Make | Amada |
| Model | HDS 2204NT |
Description |

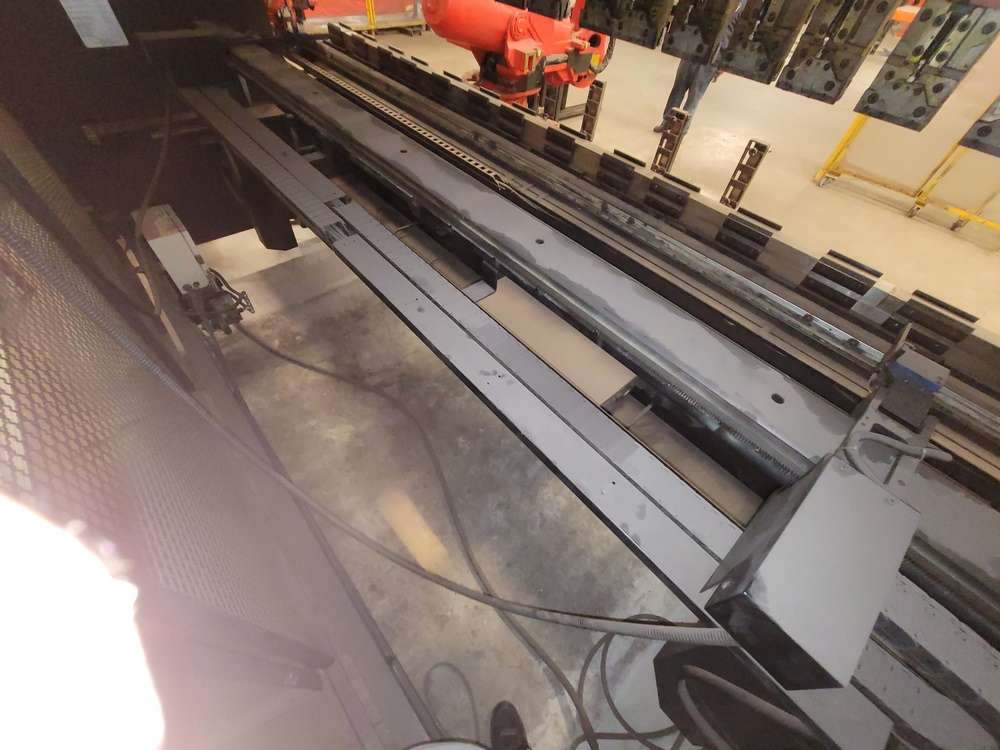

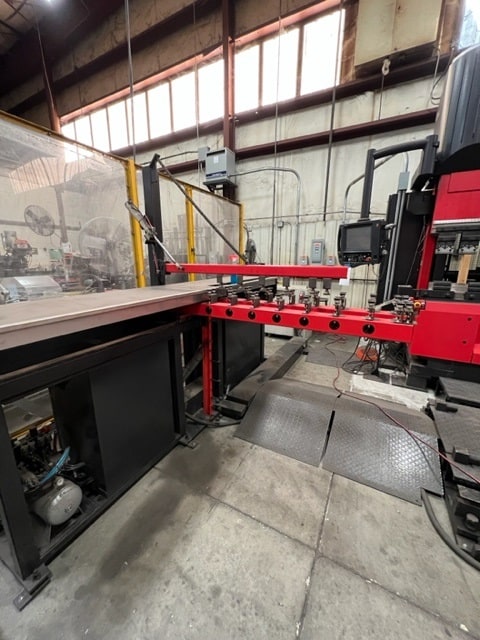

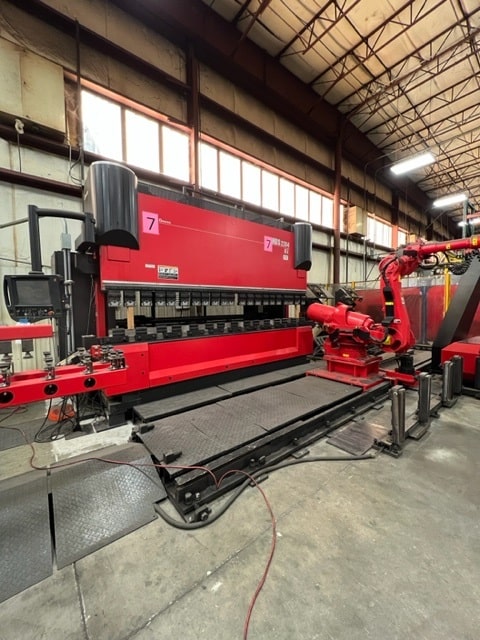

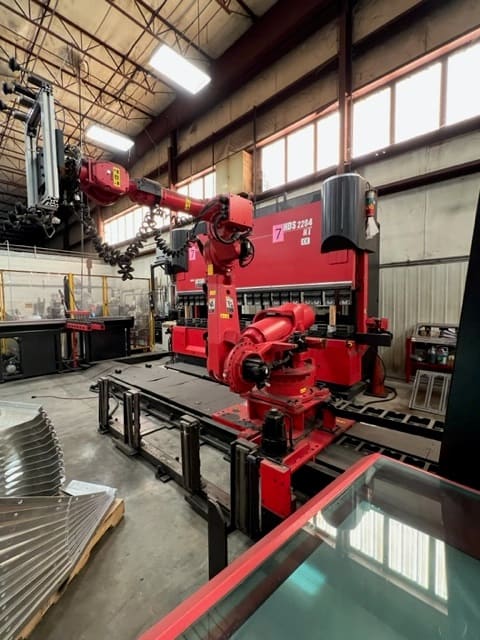

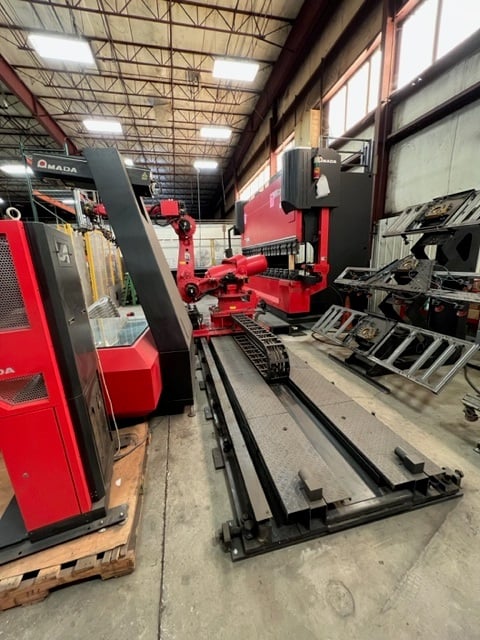

243 Ton x 14' Hydraulic Press Brake w/ Astro 165W NT Robotic Bending System |
| Reference # | 8072837 |
Price |
Activate PricingInquire Now |
Used Amada HDS 2204NT (2011) CNC Press Brake for Sale. This pre-owned Amada CNC press brake is located in New York. If you have any questions regarding this Amada Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
243 Ton |
|---|---|
| Overall Length of Bed |
14' |
| Control |

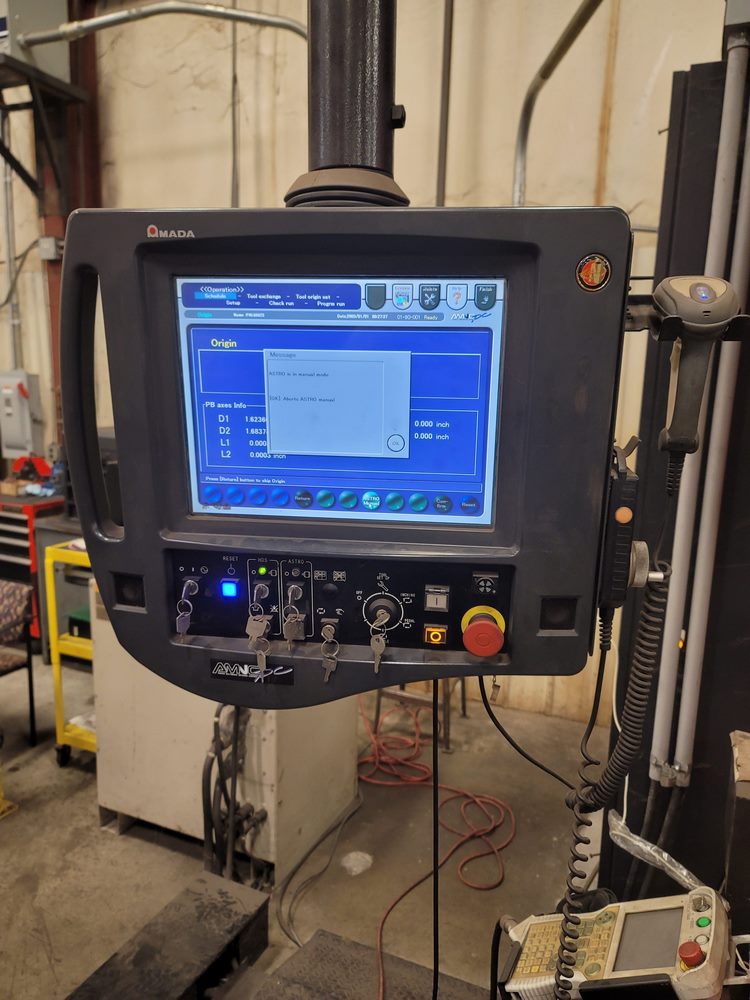

Amada AMNC |
| Distance Between Housings |
148" |
| Stroke |
9.84" |
| Open Height |
26" |
| Machine Length (C) |
224.8" |
| Machine Length (D) |
126.57" |
| Approach Speed |
7.87 IPS |
| Bending Speed |
0.78 IPS |
| Power Requirement |
99 Amps @ 200 Volts |
| Hydraulic Oil Capacity |
33.4 Gallons |
| Astro 165W Structure |
(A=Travel Axis) Vertical 6-Axis Multi-Joint Type + Traveling Axis 15.75 Ft, 20 Ft |
| Astro 165W Lifting Capacity |
364 Lbs (Includes Hands) |
| Max. Parts Size (Astro) |
59˝ x 118˝ (157˝ on HDS 2204 NT) |
| Min. Parts Size (Astro) |
5.9˝ x 5.9˝ |
| Thickness (Astro) |
0.024˝– (0.236˝ with Special Hands) |
| Power Requirement (Astro) |
6 KVA |
| Positioning Accuracy (Astro) |
±0.0027˝ (Robot), ±0.0078˝ (Axis) |
| Robot Weight (Astro) |
3,400 Lbs |
Features
|

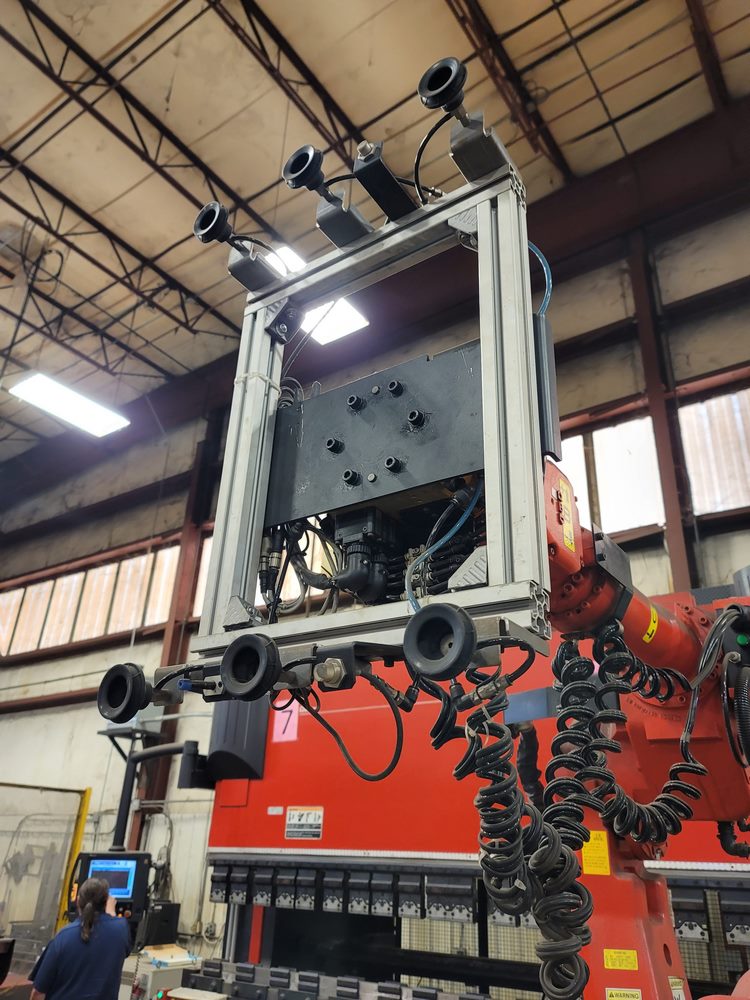

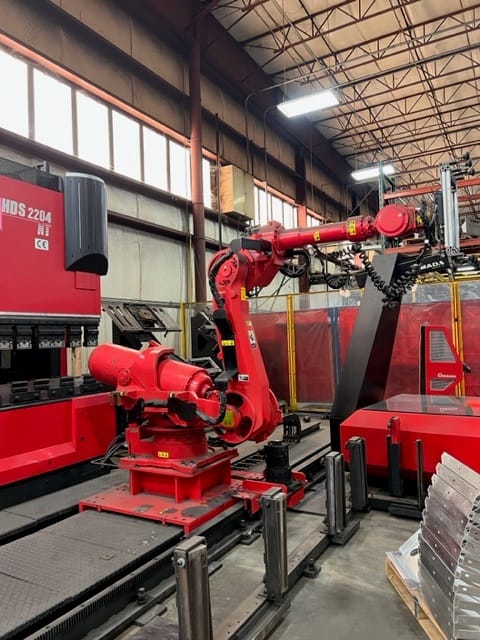

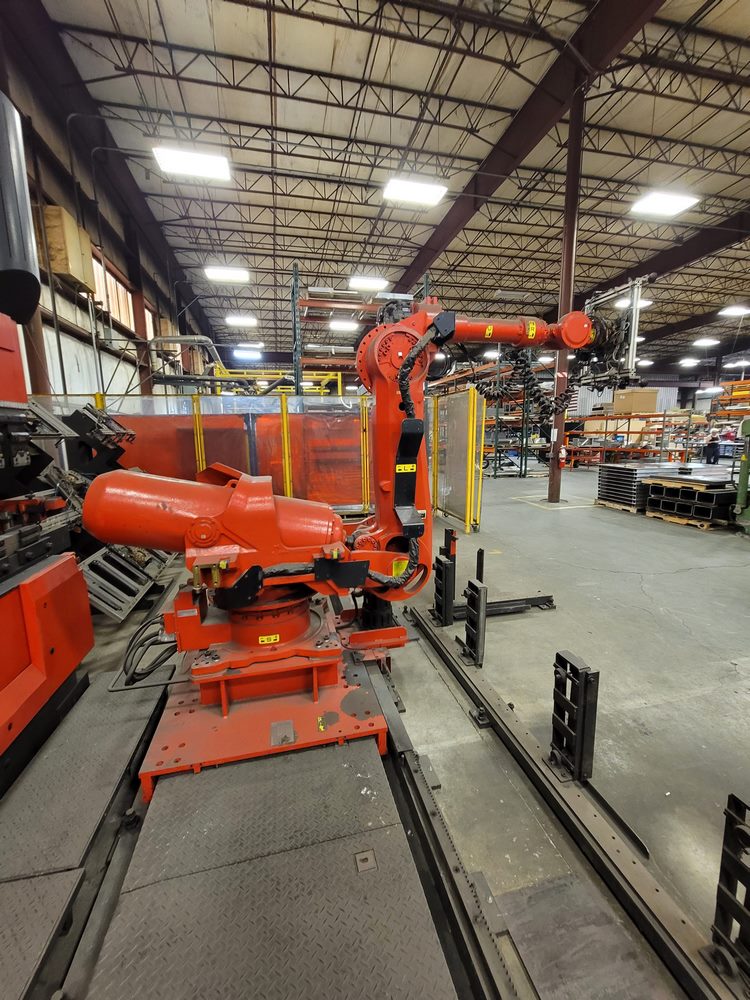

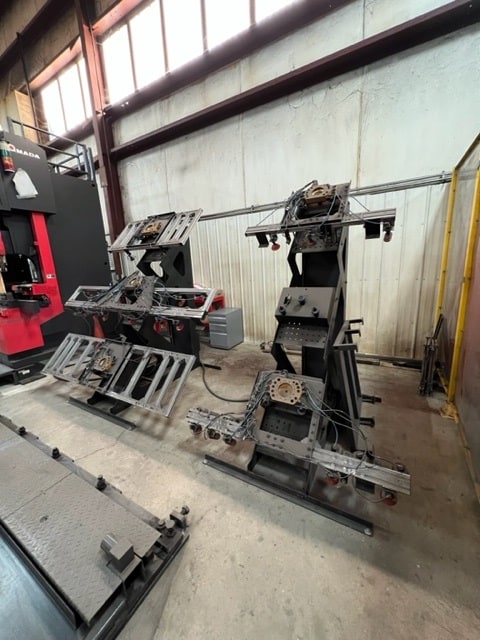

ASTRO 165W NT Robotic Bending System |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
