| Year | 2011 |
|---|---|
| Make | Amada |
| Model | Pulsar LC2415 A4NT |
Description |
5' x 8' 4kW CNC Laser |
| Reference # | 8074192 |
Price |
Activate PricingInquire Now |

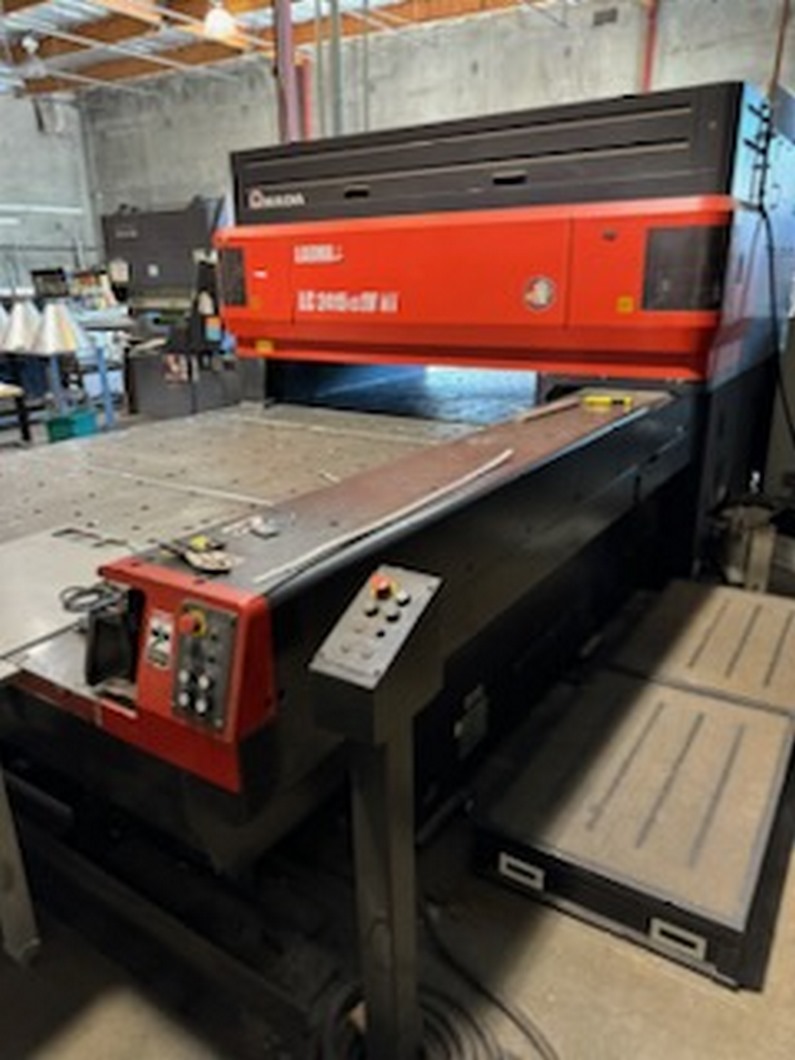

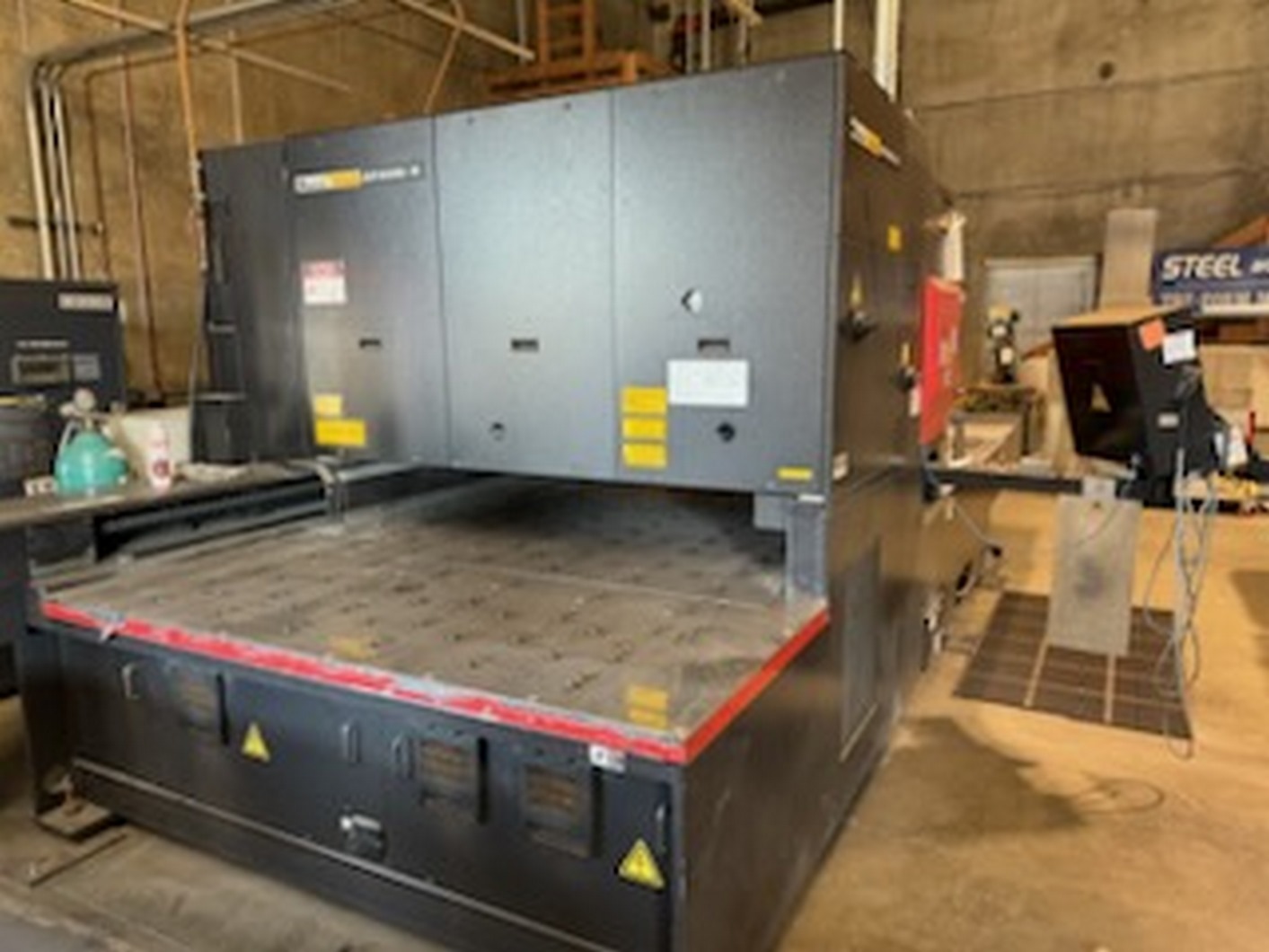

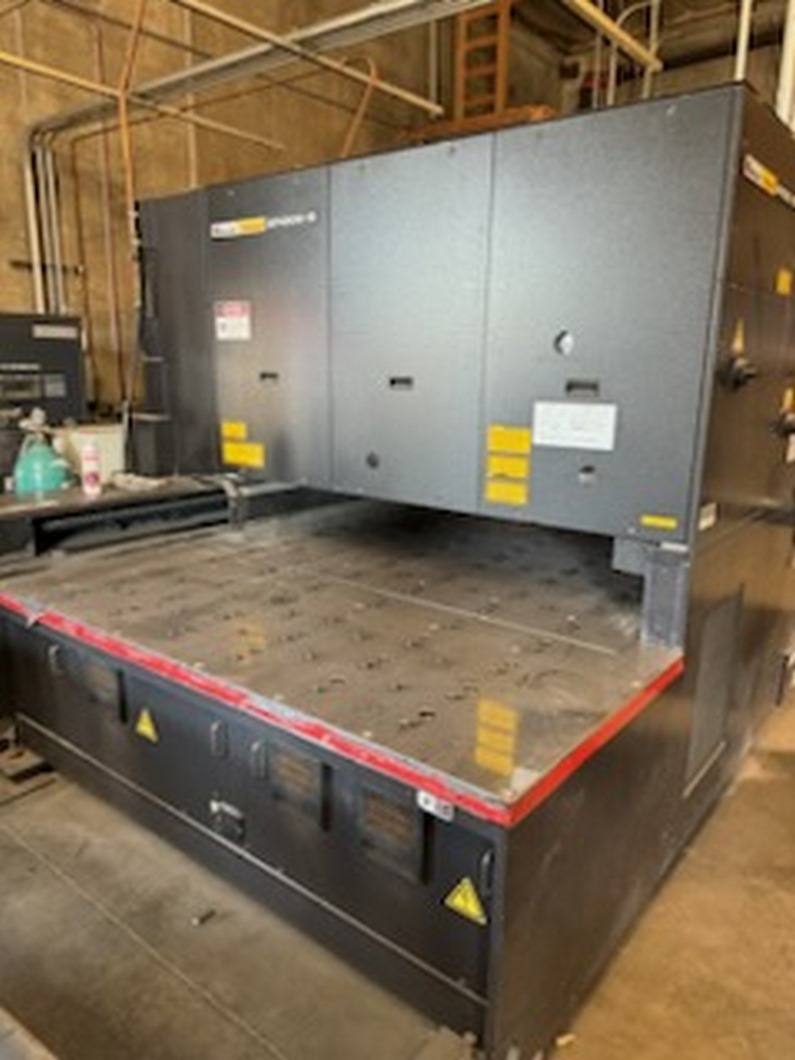

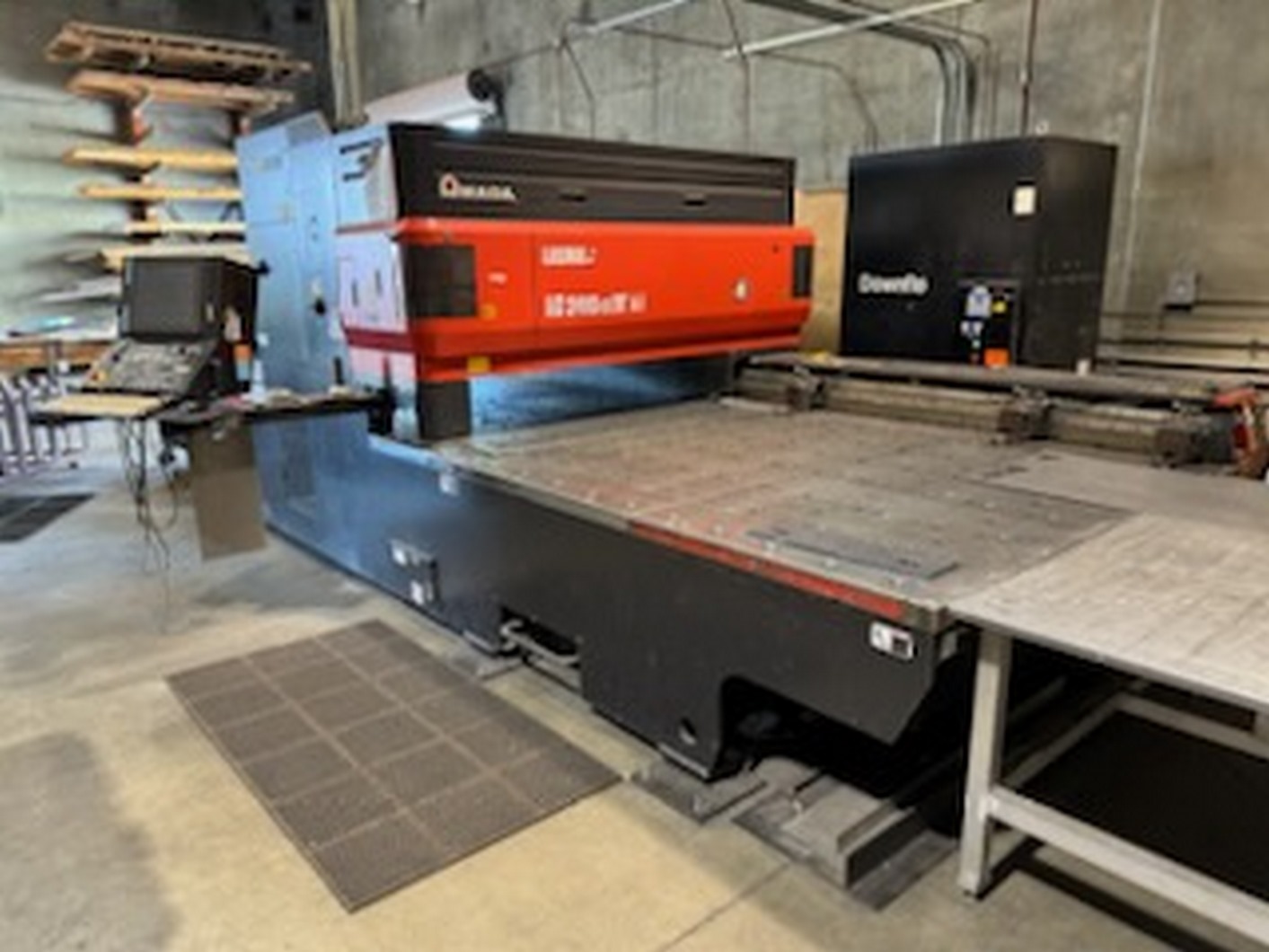

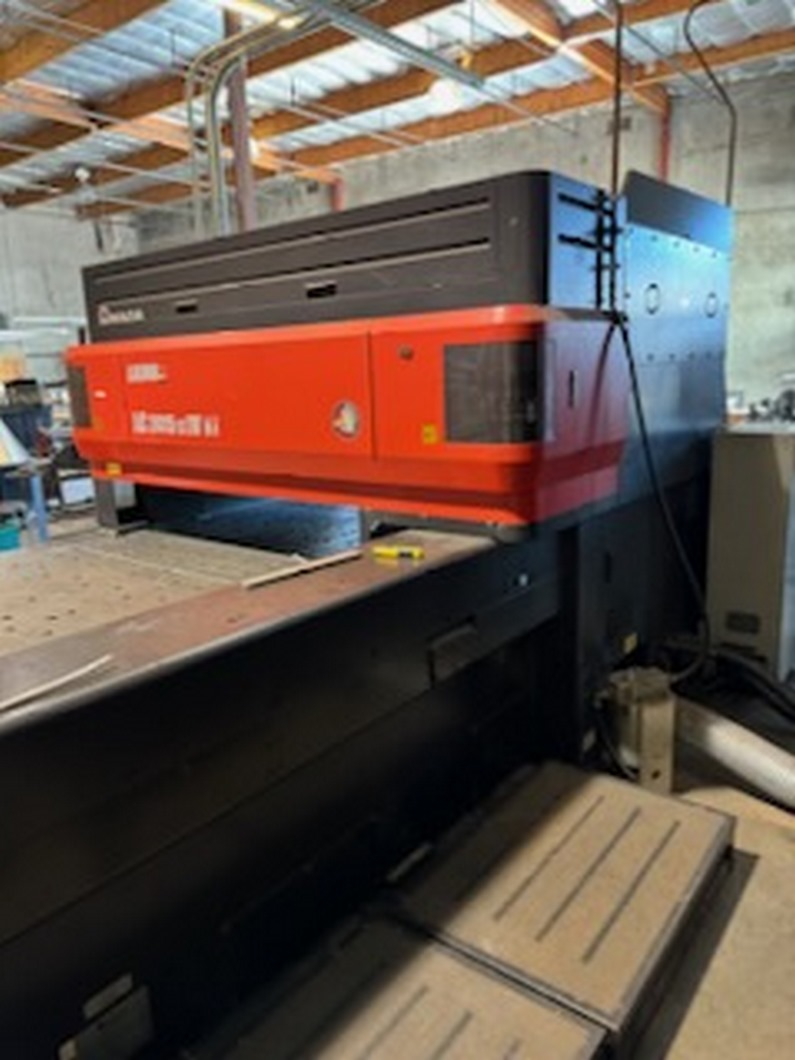

Used Amada Pulsar LC2415 A4NT (2011) CNC Laser for Sale. This pre-owned Amada CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Amada Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
8' |
| Max Wattage |
4,000 |
| Max Sheet Size |
61" (Y) x 198" (X) (with One Repositioning Cycle) |
| Max Axis Travel |
61" (Y) x 99" (X) x 11.8" (Z) x 0.78" (B) |
| Max Cutting Speed |
2,362 IPM |
| Max Speed |
2,362 IPM (Z-Axis) |
| Max Table Speed |
3,149 IPM per Axis (4,454"/min. 45O Vector) |
| Repeatability |
.0002" |
| Drive Motors |
FANUC AC Servo (X, Y, Z and B) |
| Travel Method |
X-Axis for Work Piece Movement, Y-Axis for Cutting Head |
| Work Chute |
66" (Y) x 21" (X) |
| Max Material Weight |
727 Lbs (5' x 10' x 3/8" or 4' x 8' x 1/2") |
| Machine Weight |
13,640 Lbs Including Laser Resonator |
Features
|

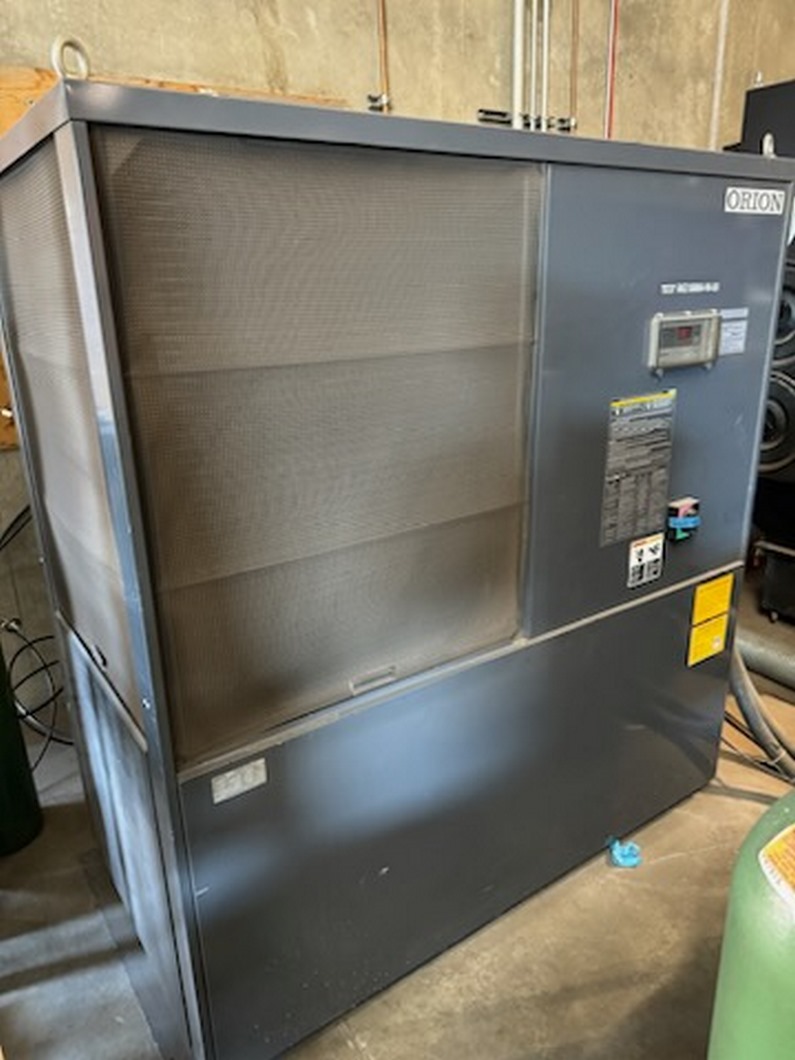

Chiller Unit |

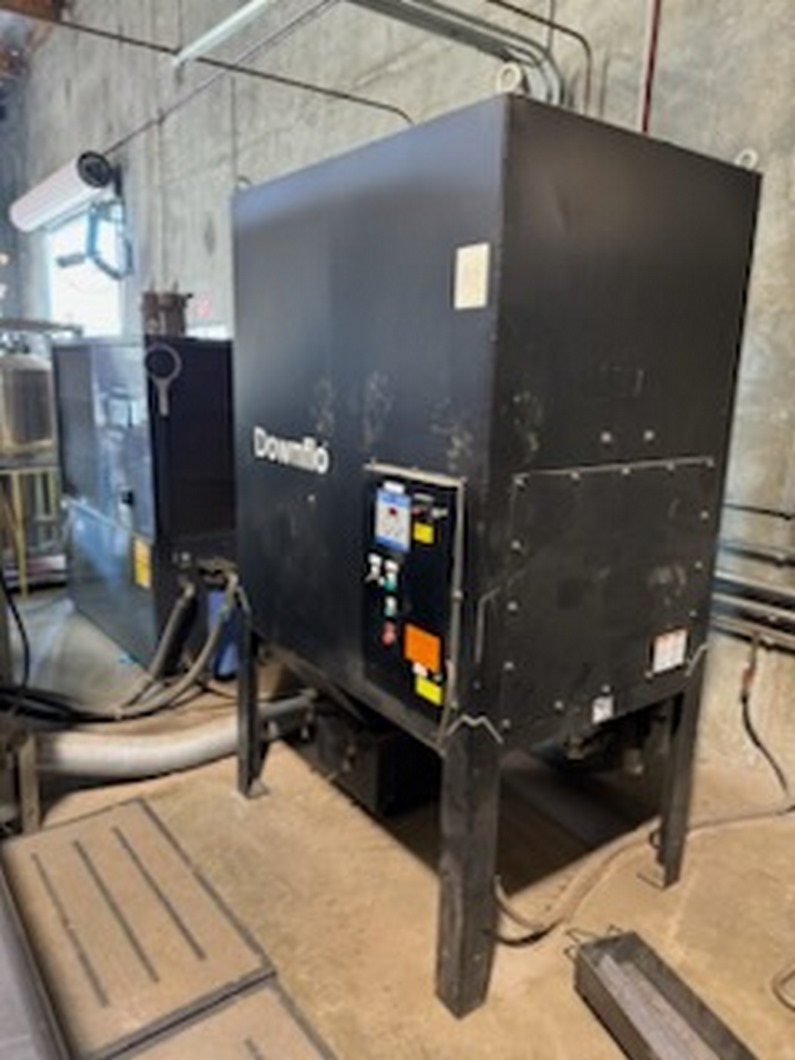

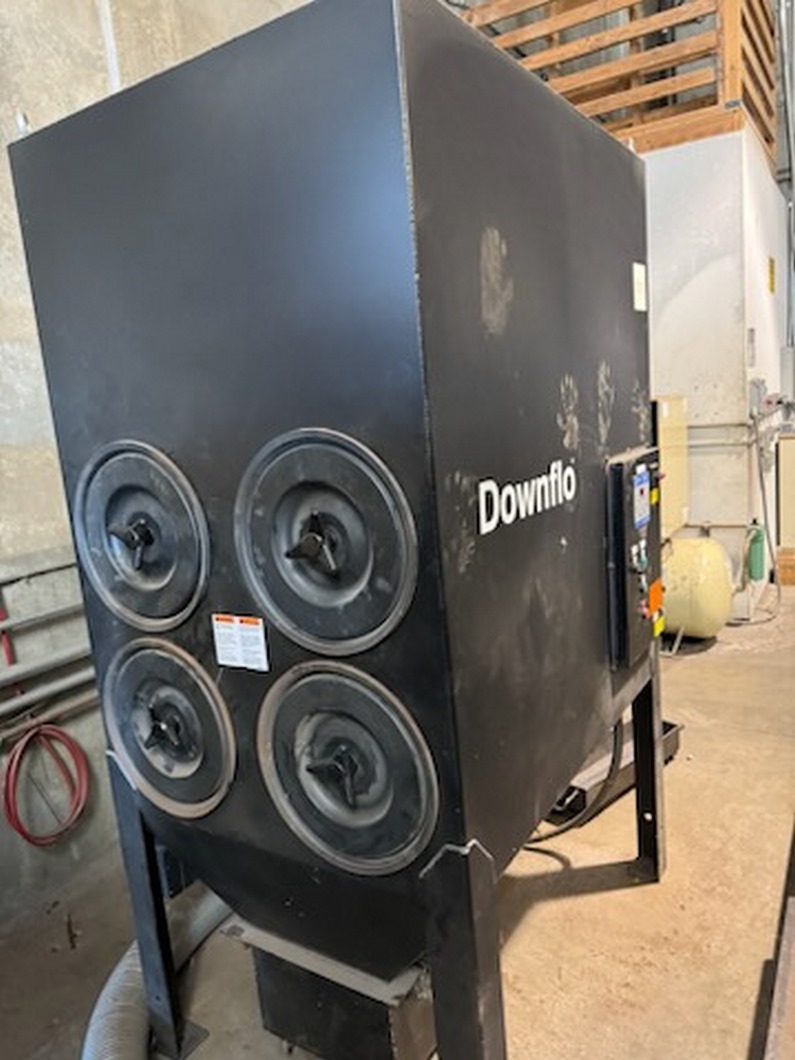

Dust Collector |
