| Year | 2011 |
|---|---|
| Make | Matsuura |
| Model | MAM72-100H |
Description |
CNC Horizontal Machining Center |
| Reference # | 8071385 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

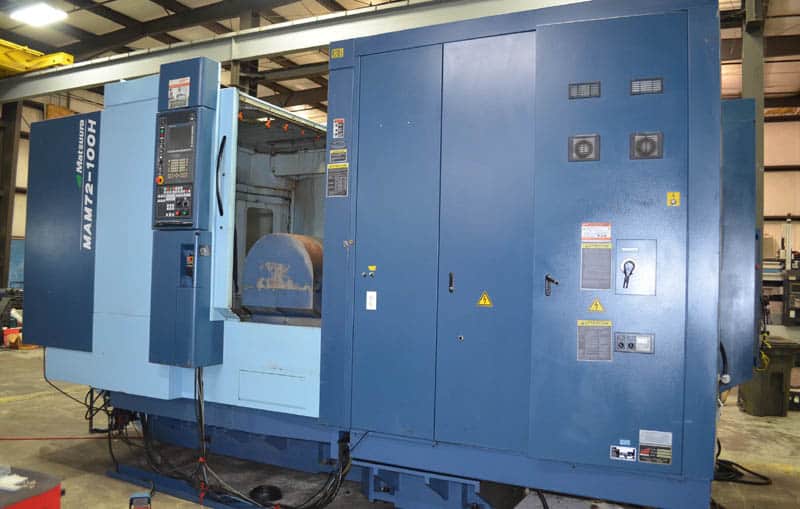

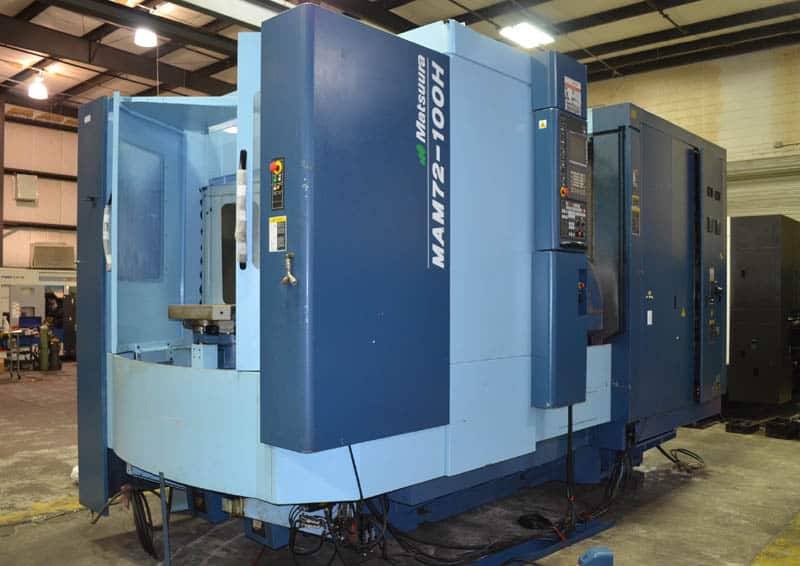

Used Matsuura MAM72-100H (2011) CNC Horizontal Machining Center for Sale. This pre-owned Matsuura CNC horizontal mill is located in Canada and available to be seen under power for an inspection. If you have any questions regarding this Matsuura Horizontal Machining Center, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Pallet Size (Millimeters) |
630 |
|---|---|
| Pallet Size |
24.8" x 24.8" |
| X-Axis Travel |
41.33" |
| Y-Axis Travel |
36.22" |
| Z-Axis Travel |
37.79" |

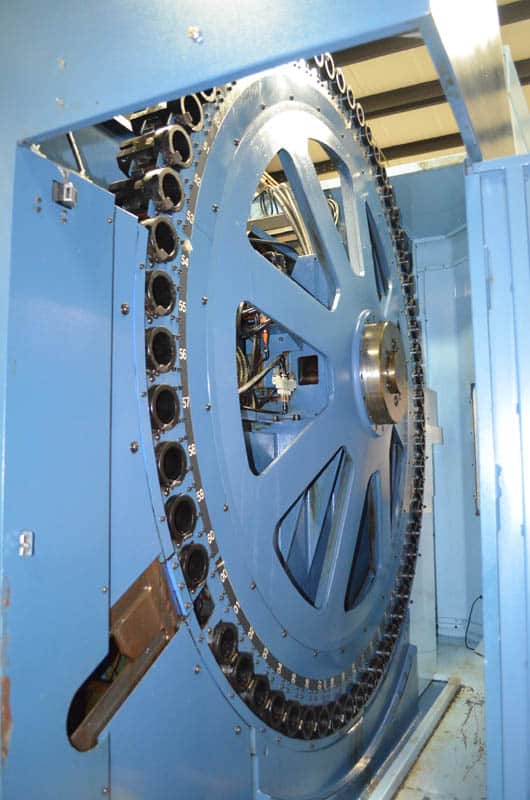

| Tool Magazine Capacity |
60 ATC |
| Spindle Speed |
10,000 RPM |
| Spindle Taper |
CAT 50 |

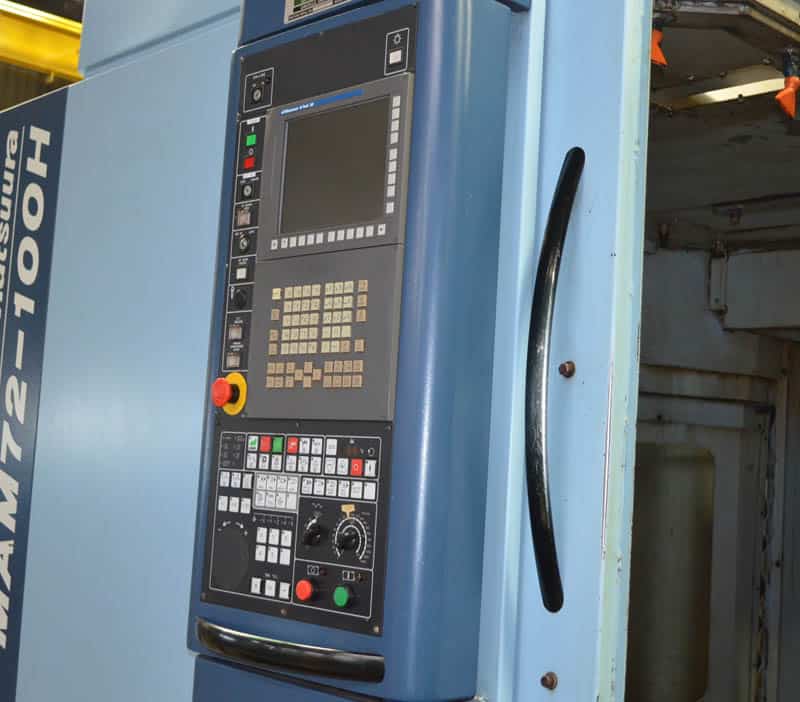

| Control |
Fanuc G-Tech 30i |
| Coolant |
Coolant Through Spindle |
Features
|
Removable Manual Pulse Generator |

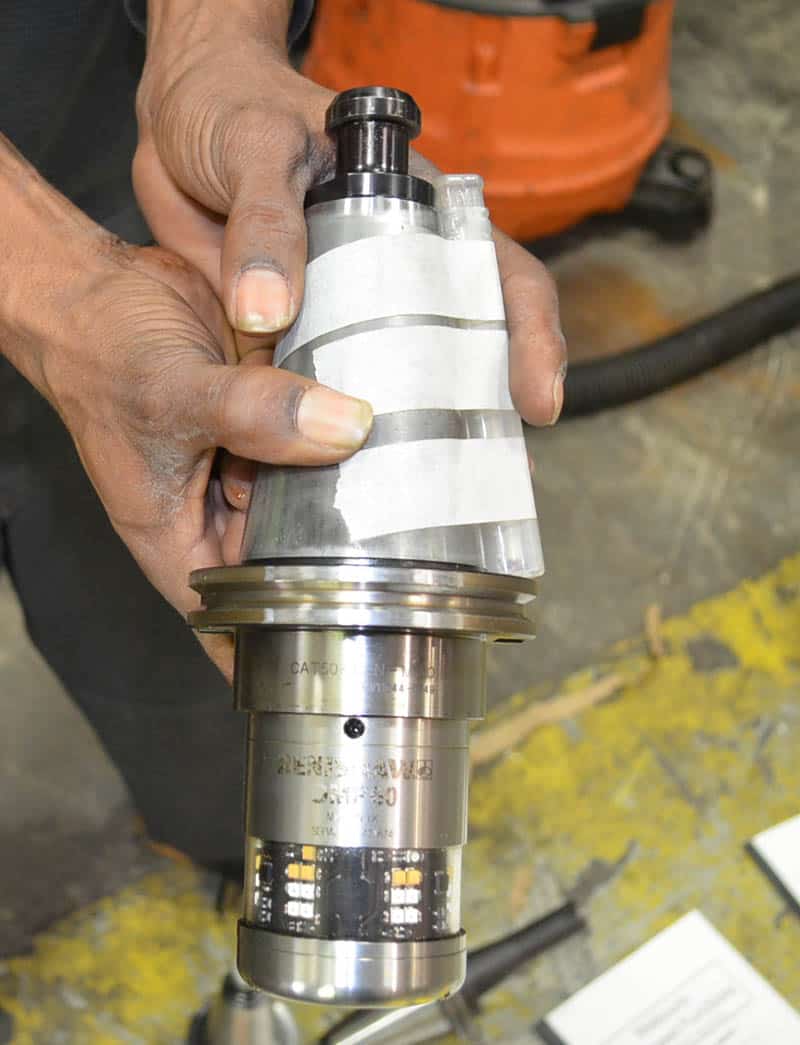

Renishaw Tool Probe OMP60 |
|
Renishaw Tool Setter (Laser) |
Spindle Lubrication Is Permanent Greased |
|
With Hybrid Ceramic Bearings |
Spindle Oil Cooler |
|
Thermal Compensation Function |
Turbo Micro-Fine II Chip Evacuation System – Includes: Lift-Up and Scrapper Type Conveyor |
|
Turbo Microscraper-S00 Drag Type Lift-Up Chip Conveyor |
AD-TAP Synchronized Tapping Function |
|
Automatic Grease Lubrication Unit |
Chip Flush System |
|
Coolant Thru Spindle – High Pressure Pump @ 300 PSI |
Direct Drive System for A and C Axes with Induction Scales/Dynamic Brake System |
|
Dual Internal Screw Conveyors (Left/Right) |
High Speed Machining Package |
|
Intelligent Protection System |
IPC Function (Intelligent Precision Contouring) |
|
Linear Scale Feedback For X/Y/Z Axis |
Matsuura High Torque CAT 50 10000 RPM Spindle (Max 700Nm/40/30HP) |
|
MIMS (Matsuura Intelligent Meister System) |
