| Year | 2011 |
|---|---|
| Make | Mazak |
| Model | HCN 5000-II |
Description |
CNC Horizontal Machining Center |
| Reference # | 8072362 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

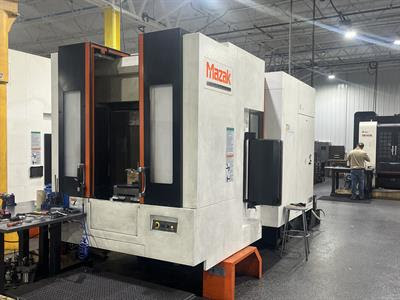

Used Mazak HCN 5000-II (2011) CNC Horizontal Machining Center for Sale. This pre-owned Mazak CNC horizontal mill is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mazak Horizontal Machining Center, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Pallet Size (Millimeters) |
500 |
|---|---|
| Pallet Size |
19.69" x 19.69" |
| X-Axis Travel |
28.74" |
| Y-Axis Travel |
28.74" |
| Z-Axis Travel |
31.5" |
| Tool Magazine Capacity |
60 ATC |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
CAT 40 |
| Control |

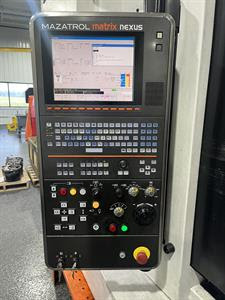

Mazatrol |
| Pallet Indexing |
Full 4th Axis |
| Pallet Weight Capacity |
1,102 Lbs |
| Rapid Traverse Rates X, Y, Z |
2,362 IPM |
| Cutting Feed Rate |
2,362 IPM |
| B - Axis Travel |
.001 N/C Rotary |
| Main Motor |
40 HP |
| Tool Diameter |
3.74" |
| Tool Length |
16.54" |
| Chip Removal |

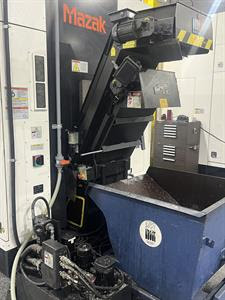

Concept 2000 Chip Conveyor Rear Exit |
| Coolant |
Through-Spindle Coolant |
| Pallet Surface to Spindle Center |
2.76" - 34.25" |
| Pallet Center To Spindle Gauge Line |
3.94" - 32.68" |
| Workpiece Dimensions |
31.5" X 39.37" |
| Machine Weight |
27,000 Lbs |
Features
|
Polar Coordinates Input |
(2) Pallets |
|
12.1 TFT Color Touch Screen |
Rotation |
|
Scaling |
Pitch Error Compensation |
|
Synchronous Tapping |
Transformer |
|
Tilted Work Plane |
Absolute Positioning |
|
USB |
ATLM and Tool Breakage Detection |
|
Auto On/Off |
Coolers for Ballscrews (X/Y/Z) |
|
EIA 3D Comp |
EIA Helical Tap Cycle |
|
EIA Pattern Cycle |
G00 Slope Constant |
|
IC Memory Card Interface |
Inch/Metric Switchable |
|
Location Bore Tap Pallets |
Niagara Coolant |
