| Year | 2011 |
|---|---|
| Make | Mitsubishi |
| Model | EA8 |
Description |
EDM Sinker |
| Reference # | 8071592 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

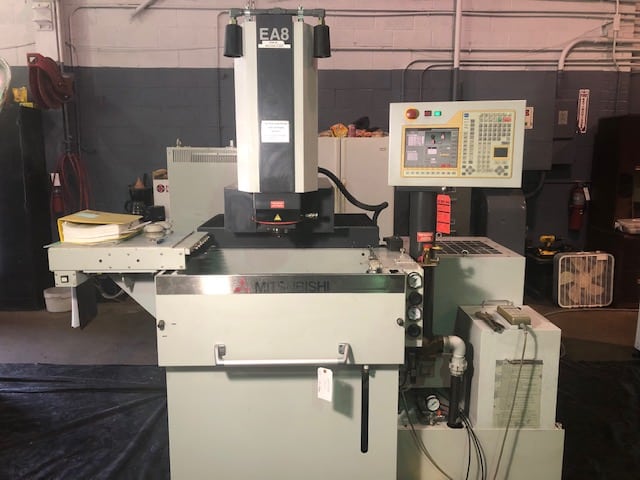

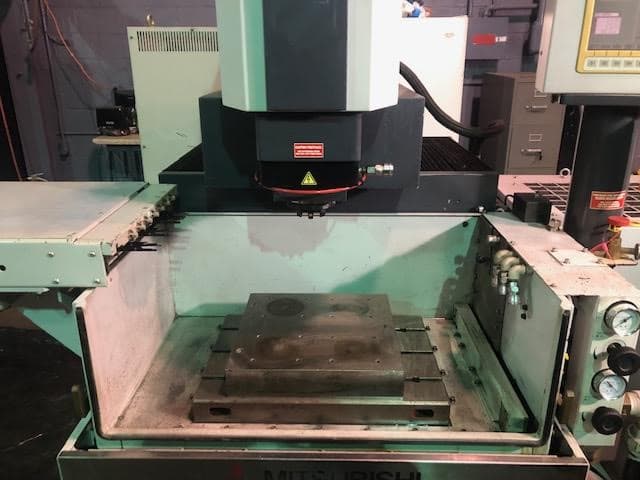

Used Mitsubishi EA8 (2011) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM sinker is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
11.8" |
|---|---|
| Y-Axis Travel |
9.8" |
| Z-Axis Travel |
9.8" |

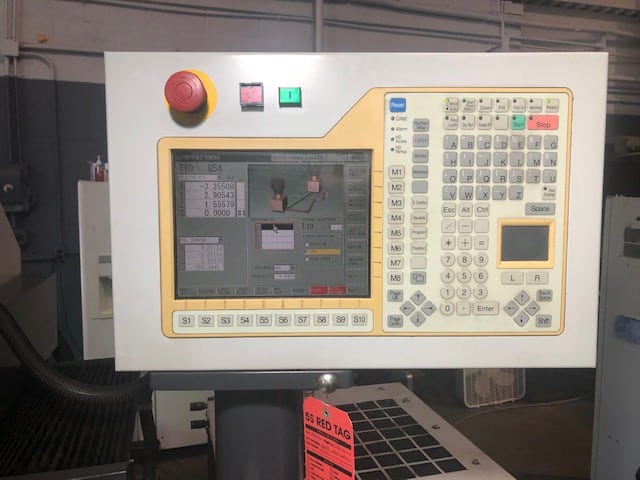

| Control |
Mitsubishi |
| Tool Changer |
4/7 Shuttle |
| Power Source |
60/80 AMP |
| C-Axis |
Yes |
| Chuck |
3R |
| Power Requirement |
200-220/3/60 |
| Min. Drive Resolution |
.000002” |
| Min. Command Input |
.00001” |
| Rapid Travel Speed (inch / min.) |
78.74" |
| Max. RPM |
10 / 20 |
| Min. Indexing Angle |
.001" |
| Dielectric Fluid Level (Max / Min) |
7.84 / 3.9" |
| Reservoir Capacity |
50 Gal |
| Floor to Table Level Distance |
32.68" |
| Table to Platen Distance |
7.87" – 17.72" |
| Min. Drive Unit |
.001" |
| Max. Electrode Weight |
11 Lbs |
| Max. Workpiece Weight |
1,200 Lbs |
| Work Tank Internal Dimensions |
30.31" x 19.69" x 9.84" |
| Table Dimensions |
19.69" x 13.78" |
| Installation Dimensions |
63.39" x 66.02" (W x D) |
| Machine Unit Dimensions |
37.80" x 57.09" x 78.35" (W x D x H) |
| Machine Unit Weight |
3,000 Lbs |
Features
|
Positioning Detector Optical Rotary Encoder |
Program Support Function ESPER |
|
Rapid Fill/Drain Manual |
Rotary Encoder Glass Scale Feedback |
|
Up/Down Style Front Door Work Tank Access |
CPU/Type 64 Bit/PC |
|
Direct Drive Motor Coupling Type |
Fan Cooler Temperature Control Type |
|
Filtering Method Paper Cartridge (1pc) |
Graphic Display 10.4” TFT Color LCD |
|
Intelligent AC Servo Drive Motor |
Machine Structure Fixed Table/Traveling Column |
|
Machining Function Fuzzy Pro II Plus |
