Year 2011
Make Neff
Model H200-100M

Description

200 Ton Vertical Injection Molding System
Reference # 8070828

Price

Activate PricingInquire Now

Used Neff H200-100M (2011) Injection Molding Machine for Sale.  This pre-owned Neff plastic injection molding machine is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this Neff Injection Molding Machine, please feel free to contact us.  You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Capacity

200 Ton

Shot Size

N/A

Stroke

15"

Open Height

45.5"

Shut Height

30.5"

The original purpose of this line of equipment is described as such:

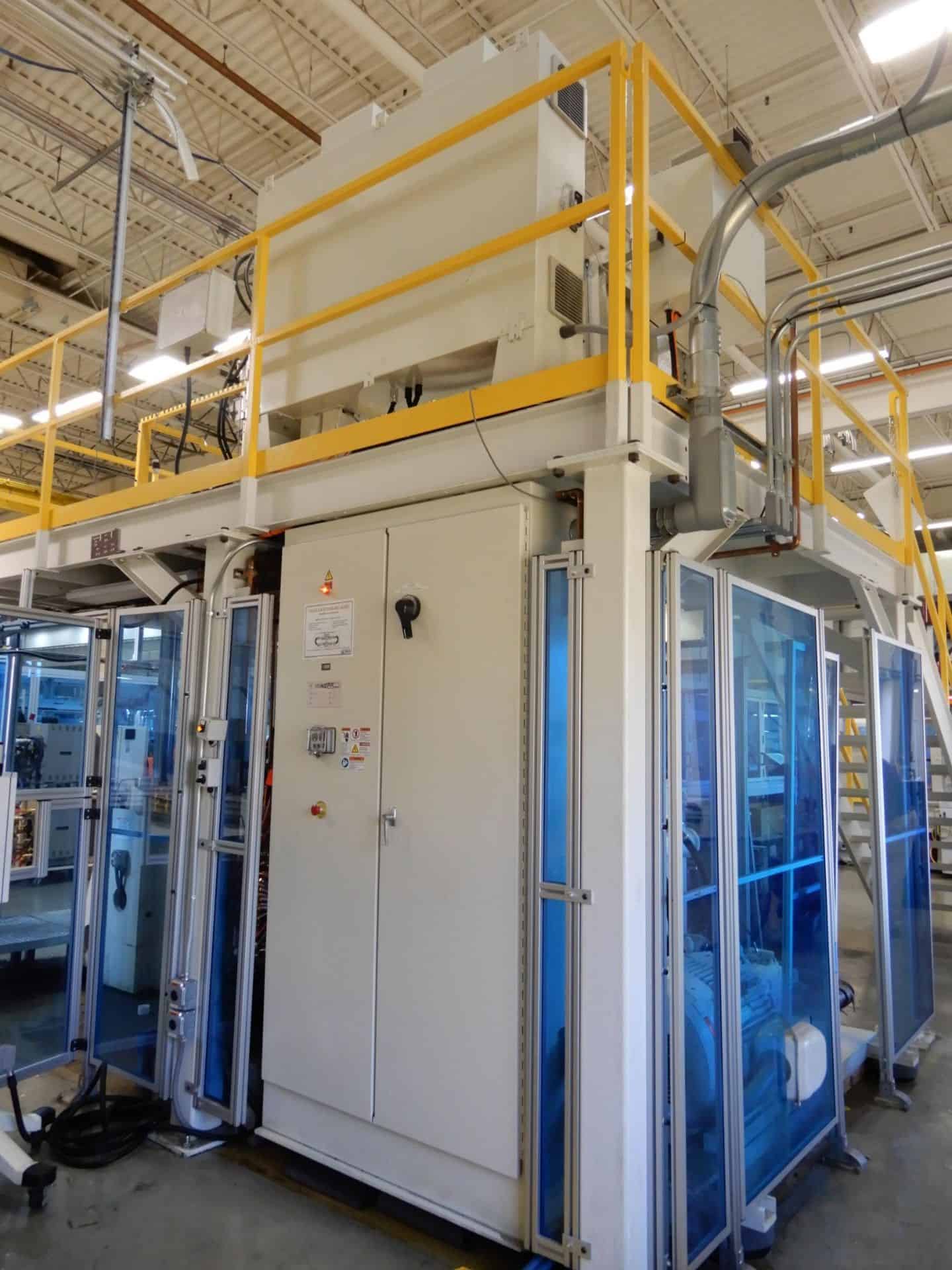

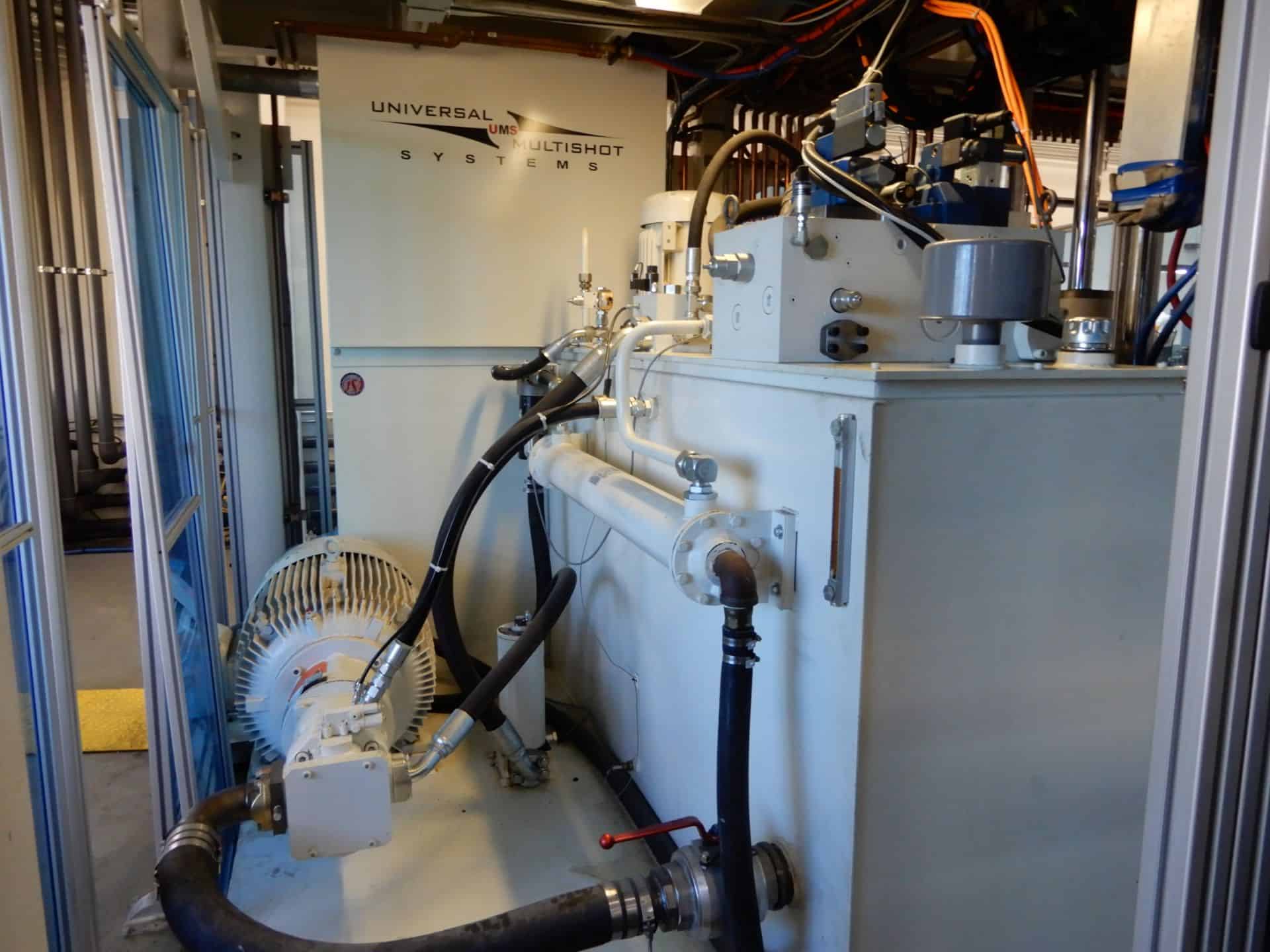

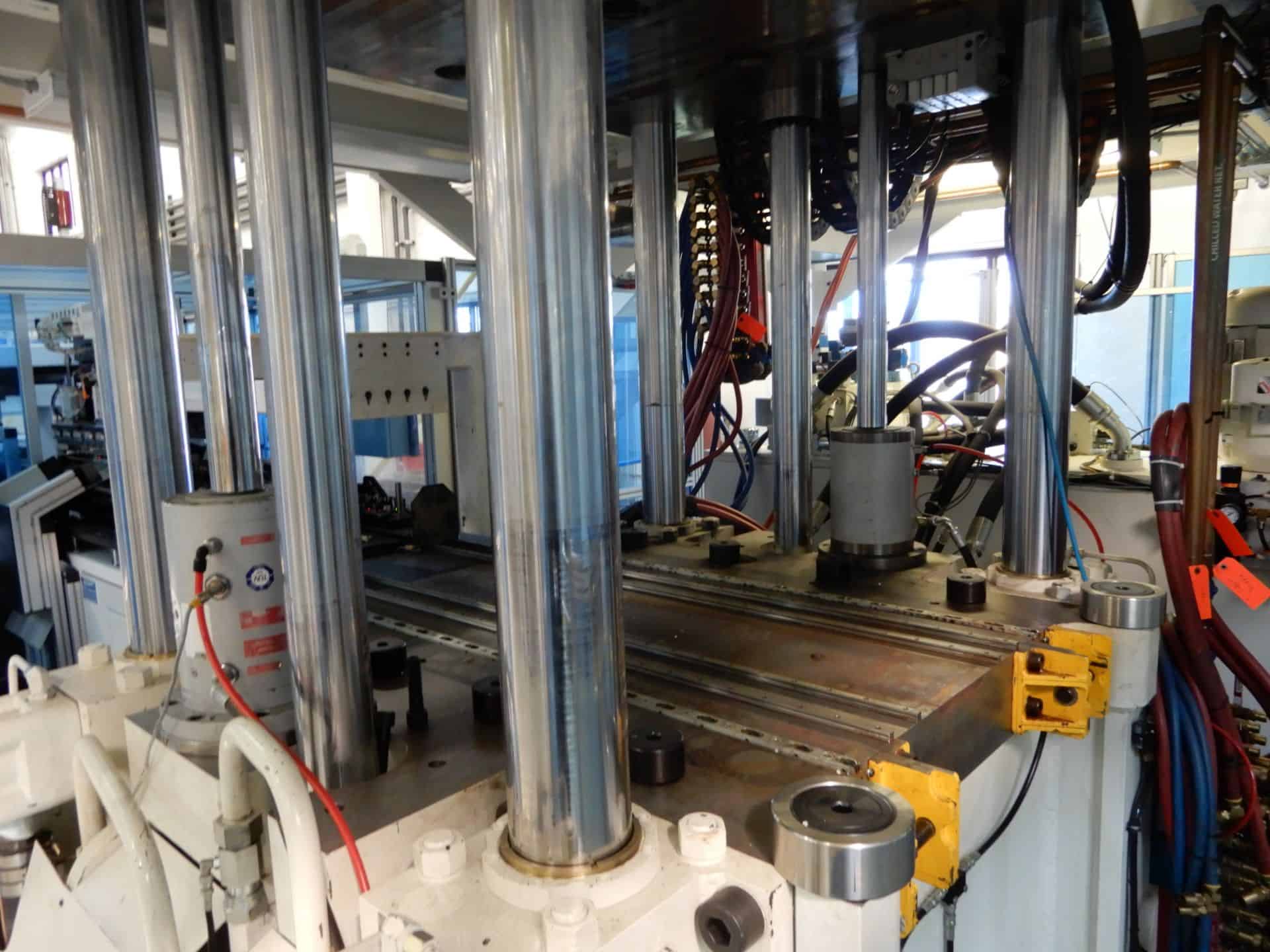

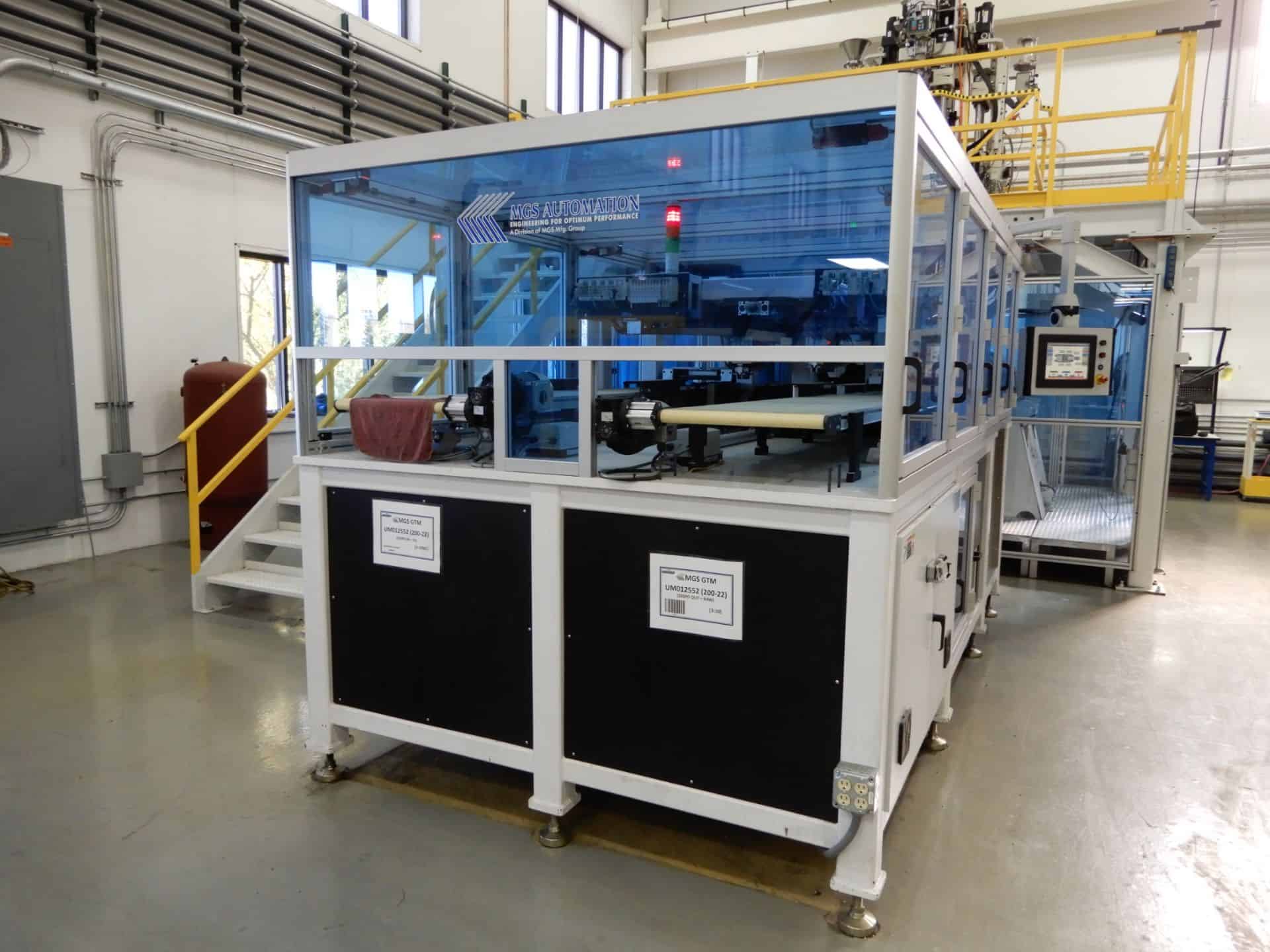

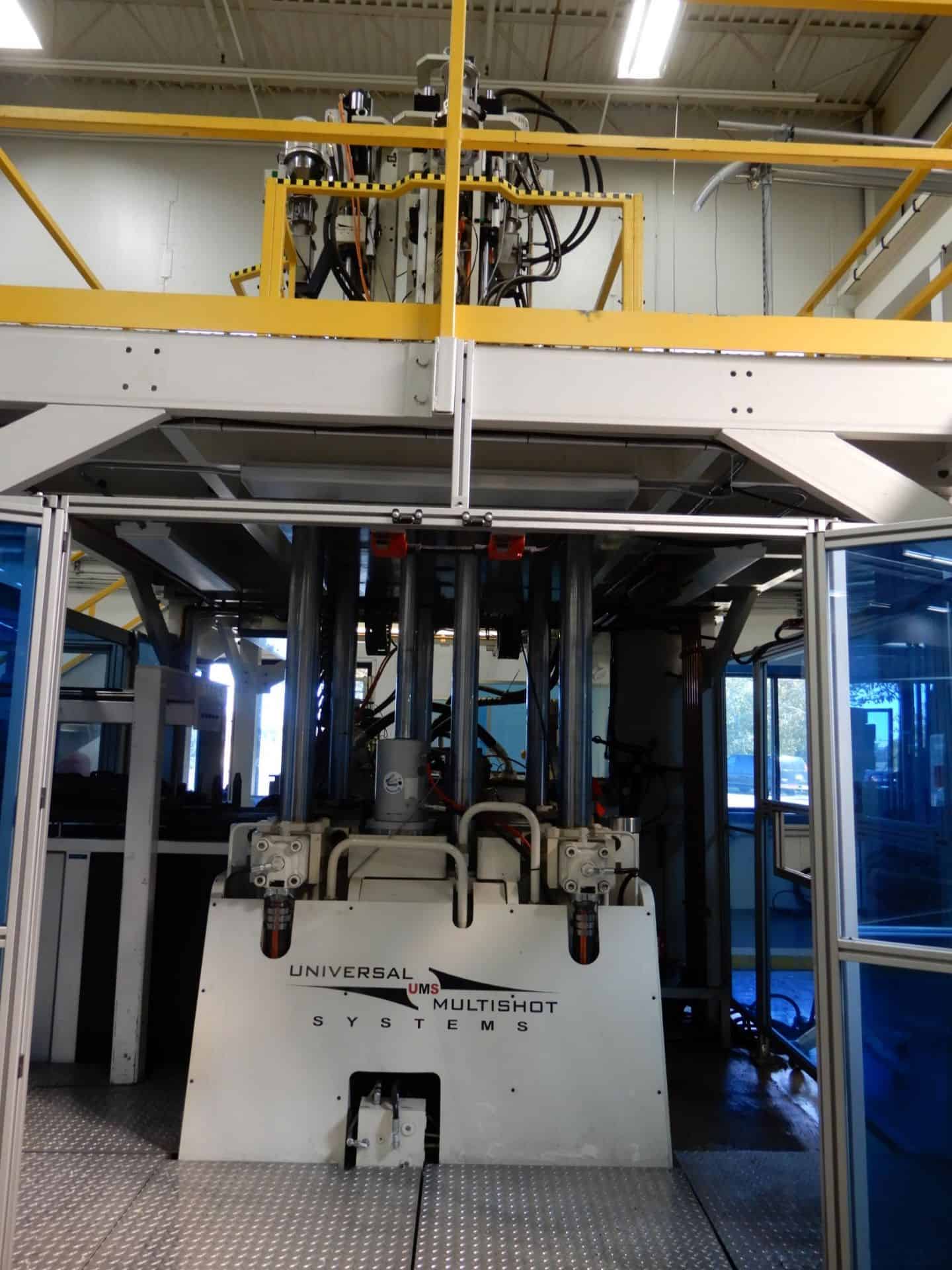

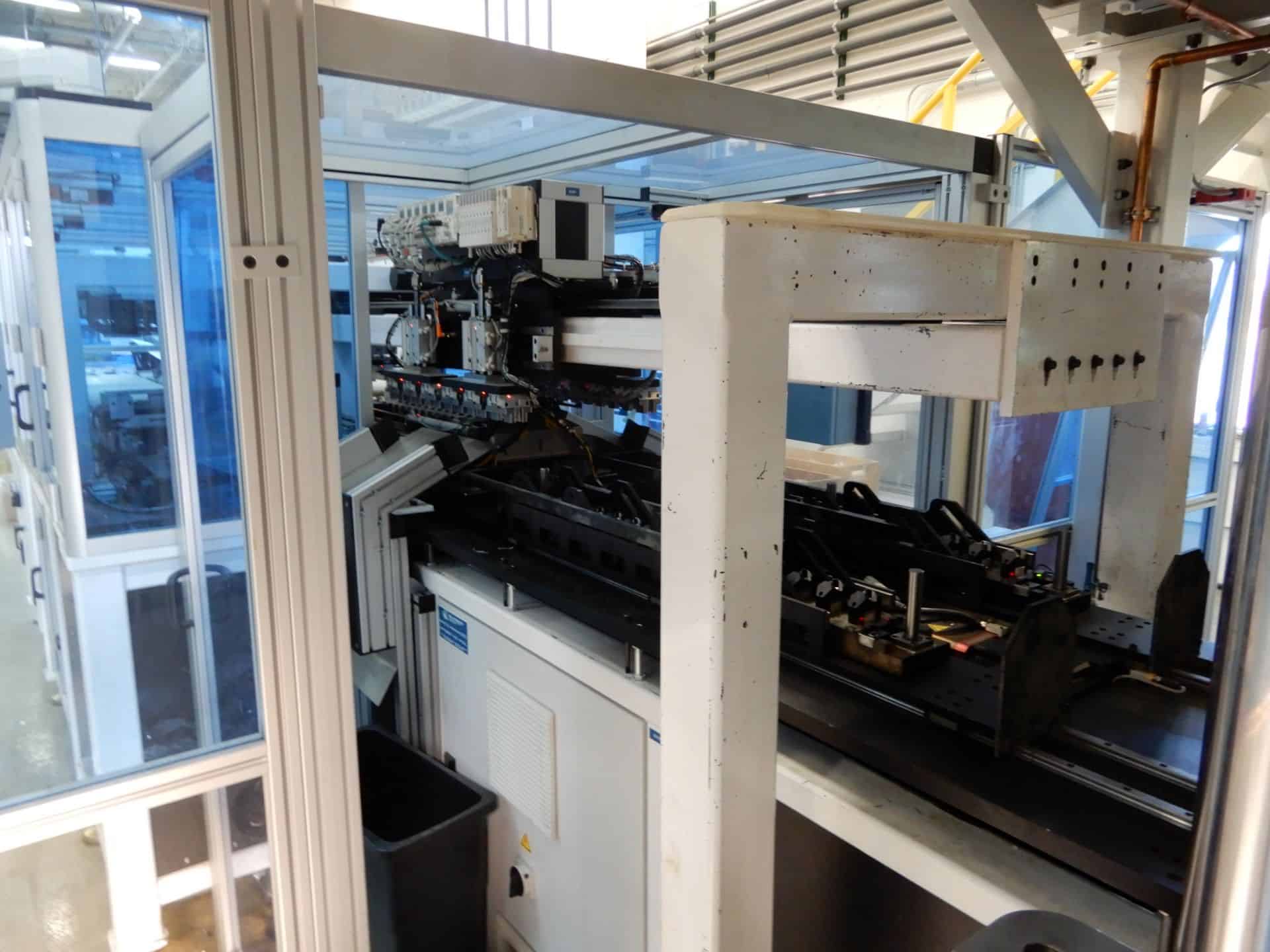

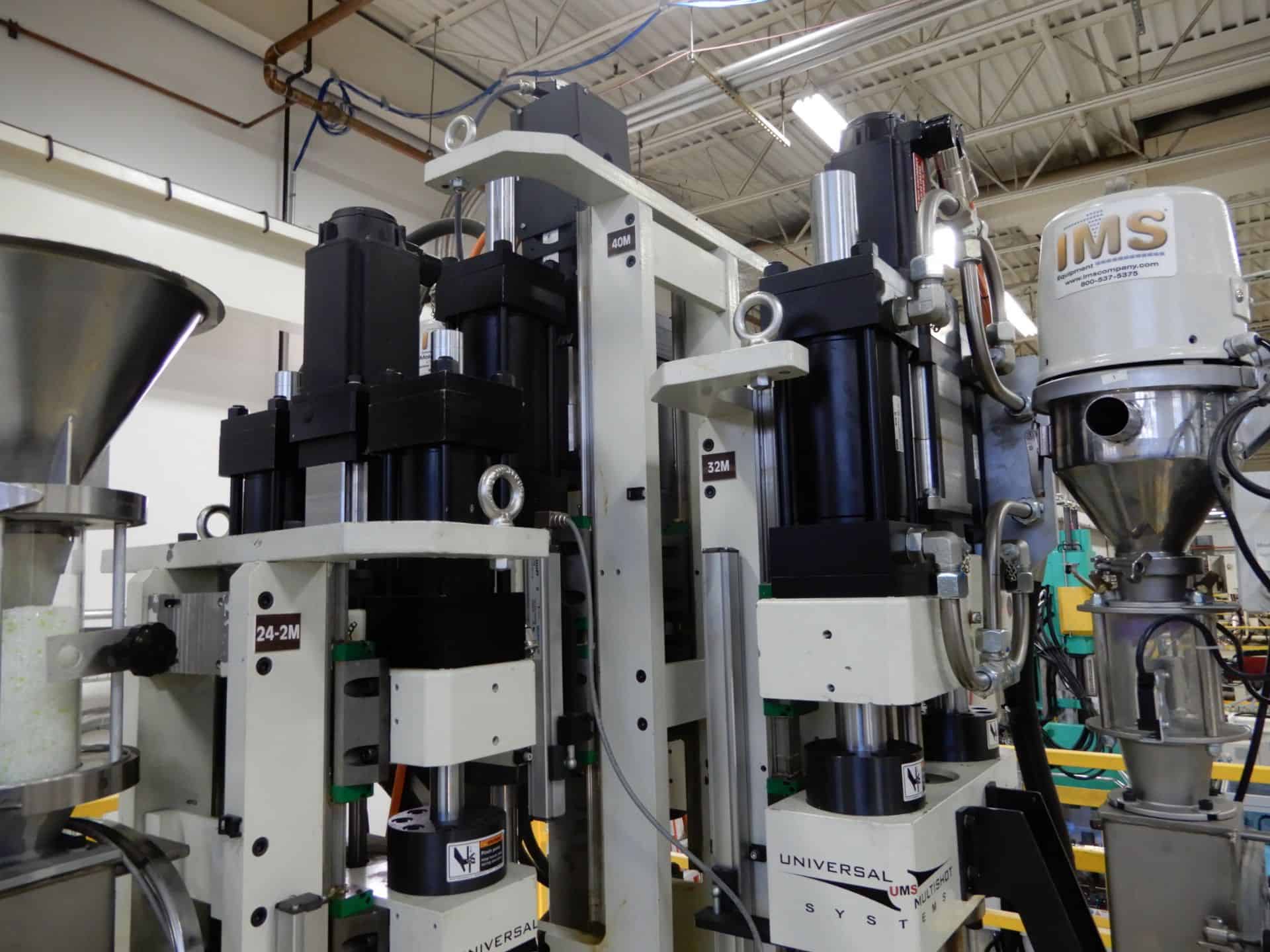

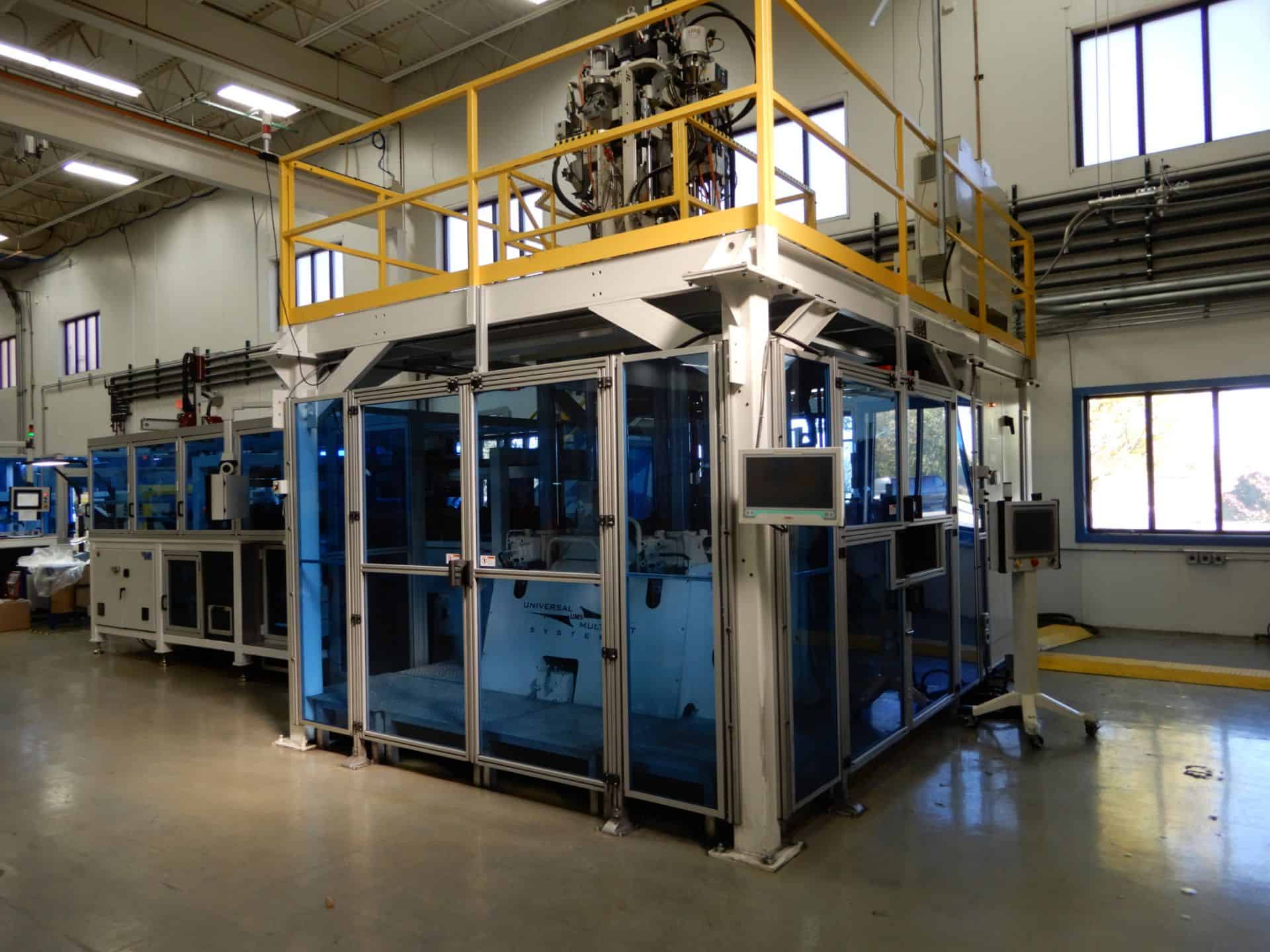

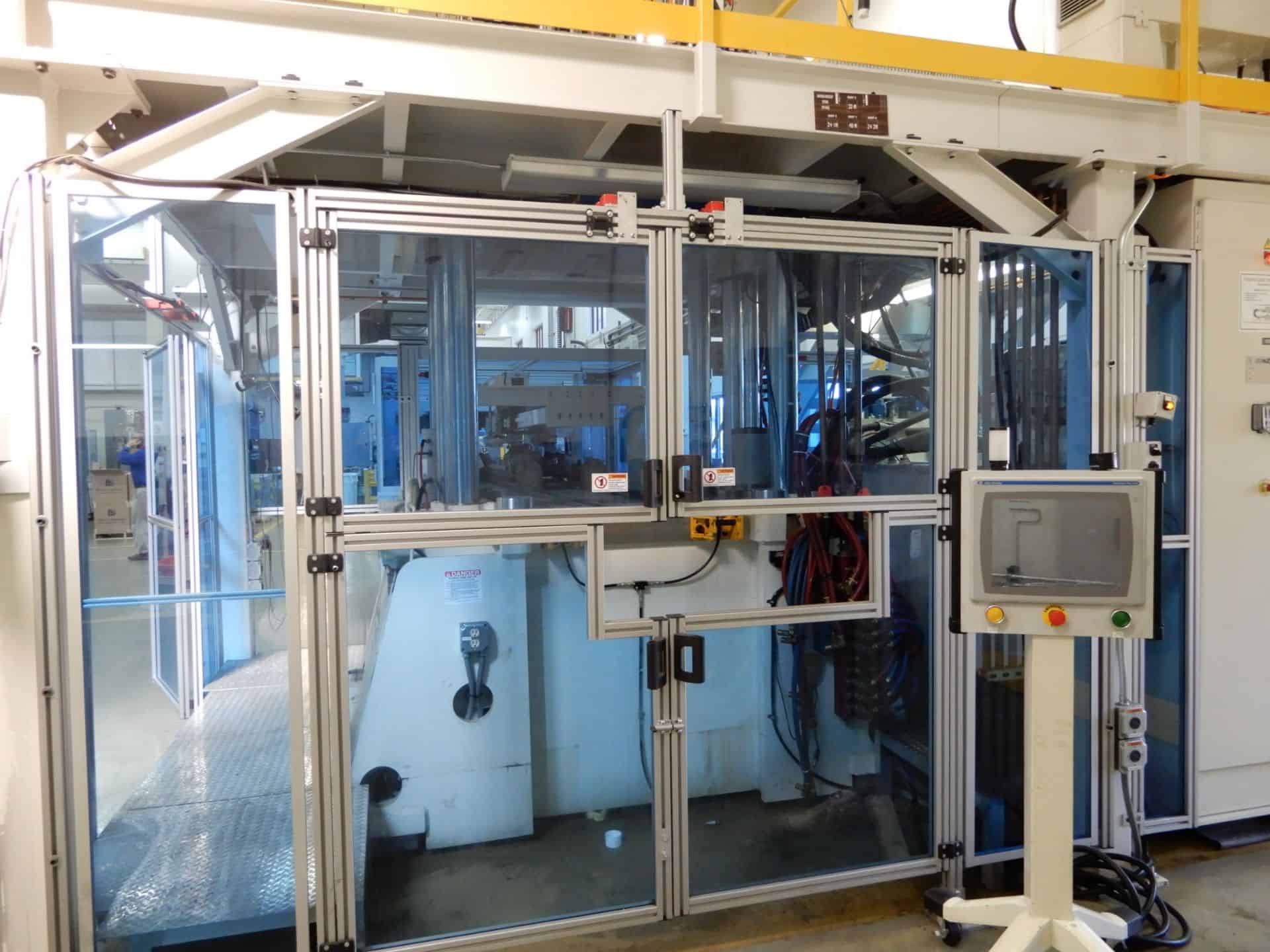

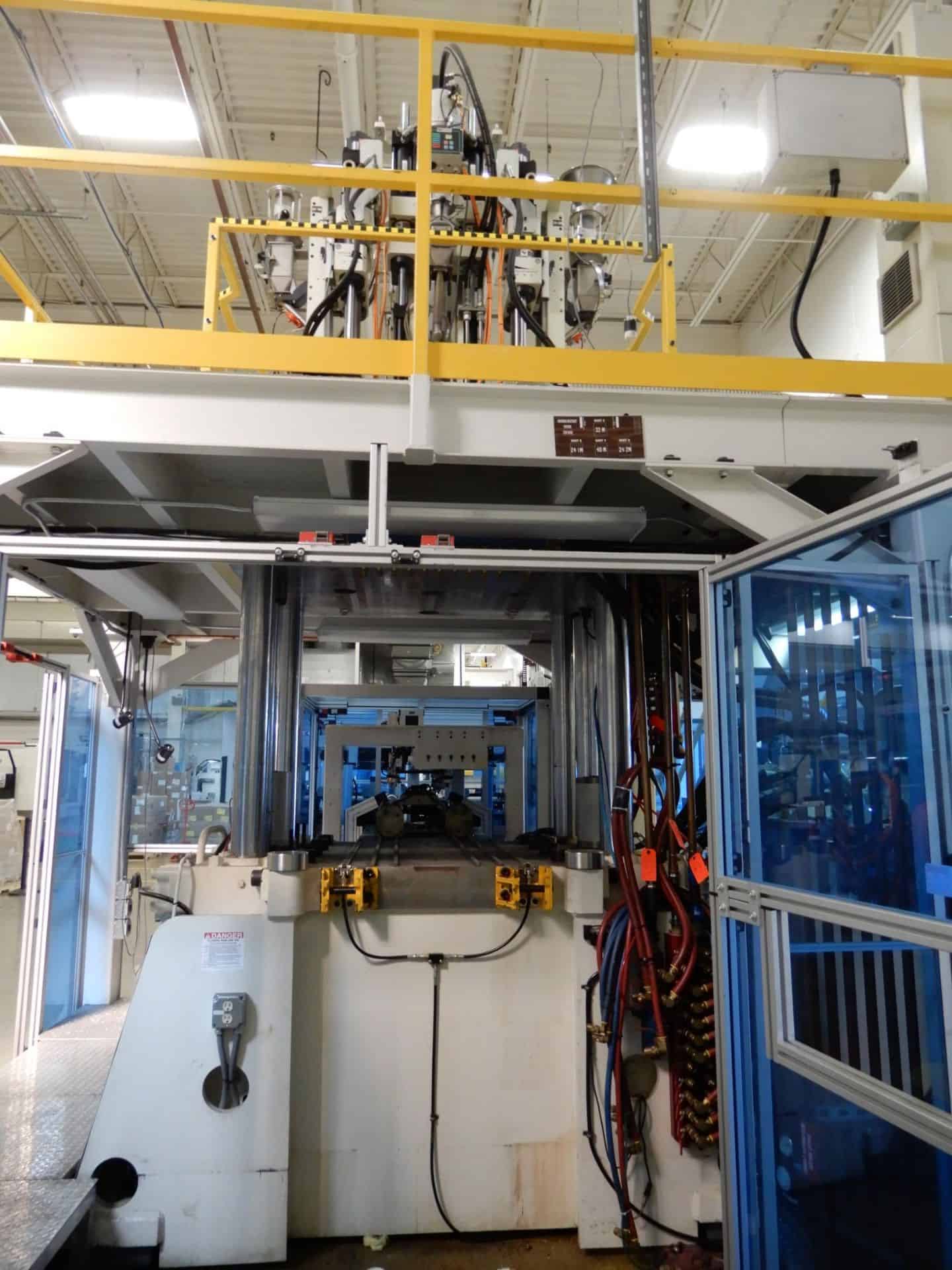

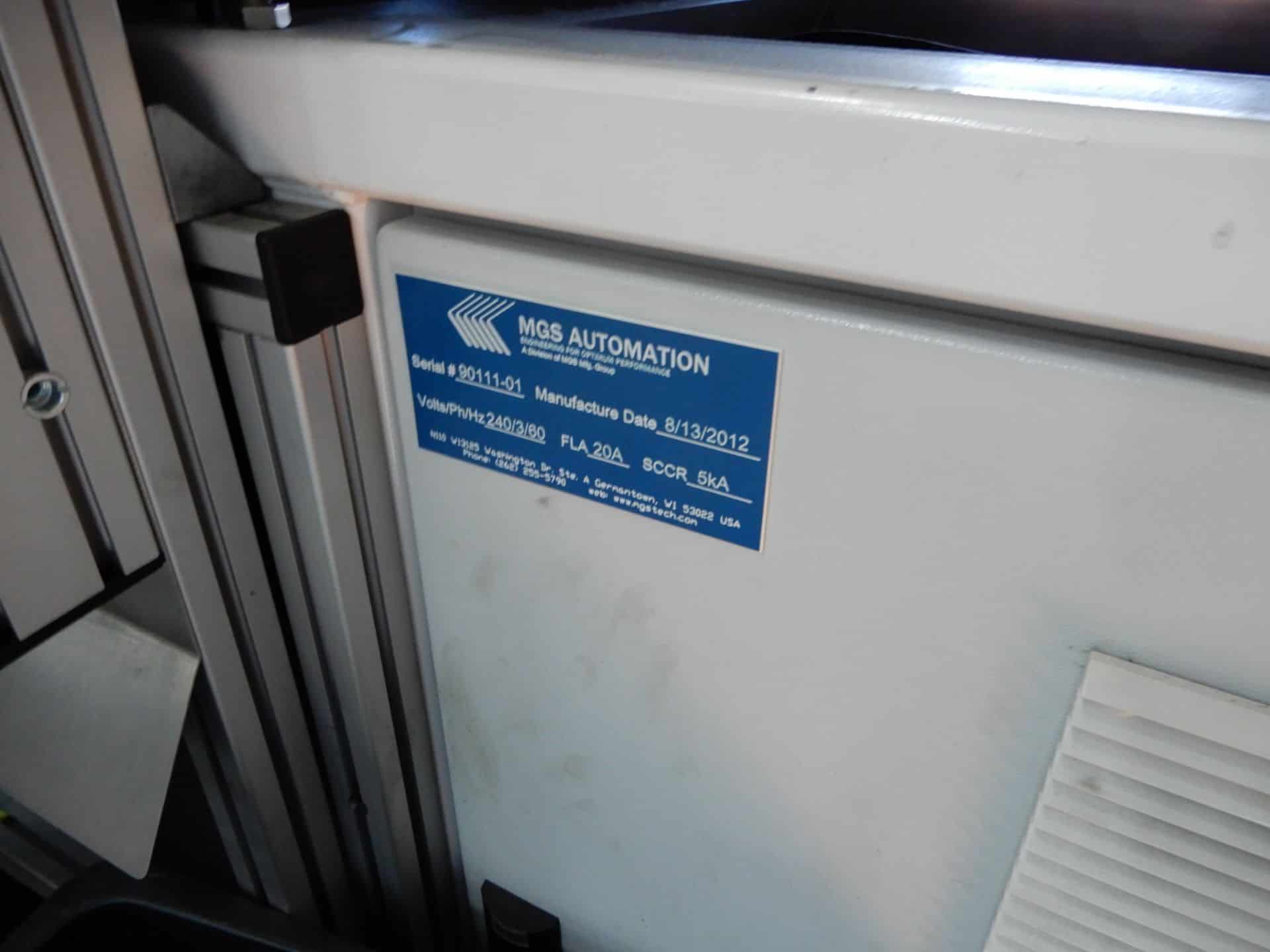

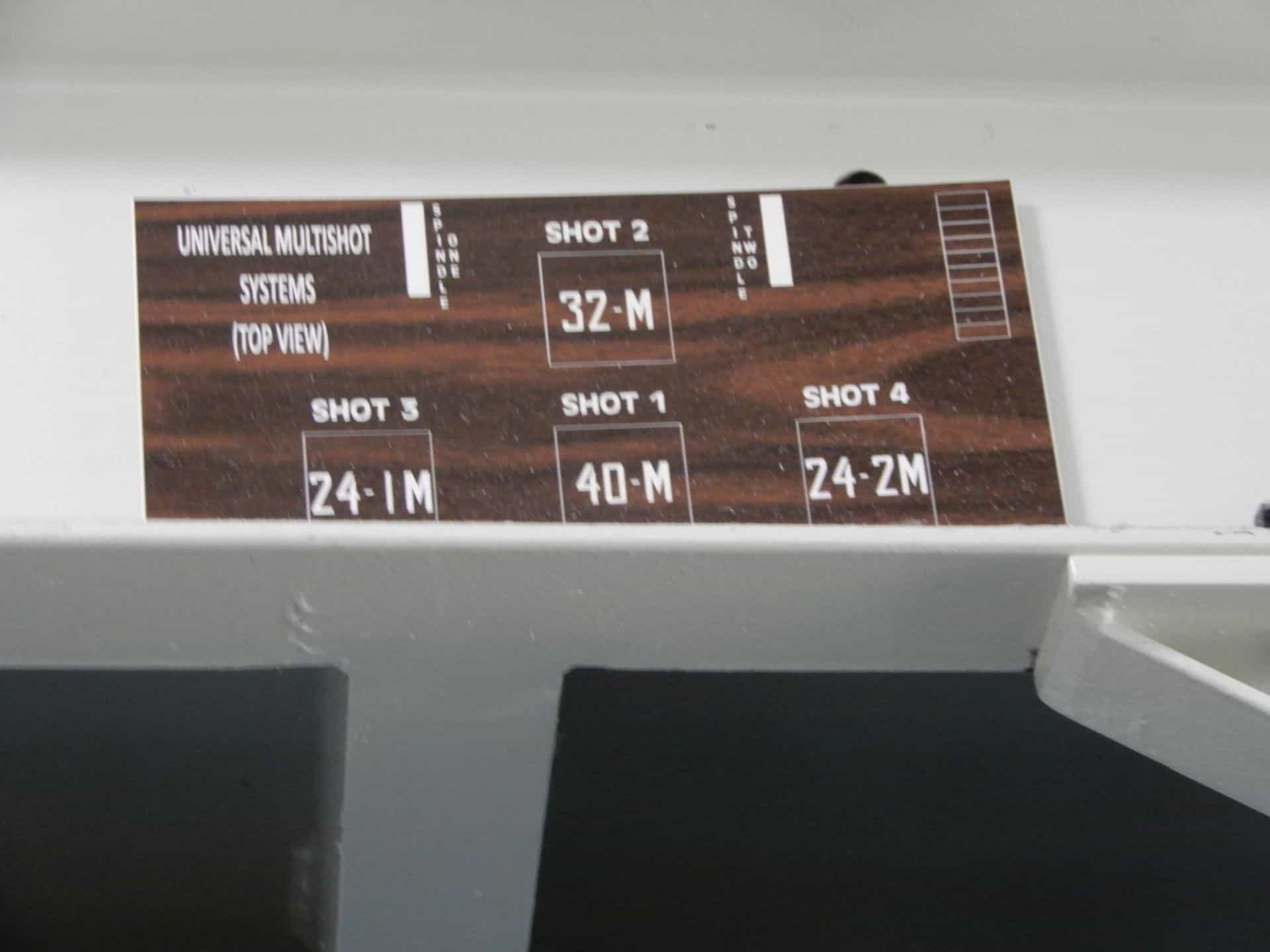

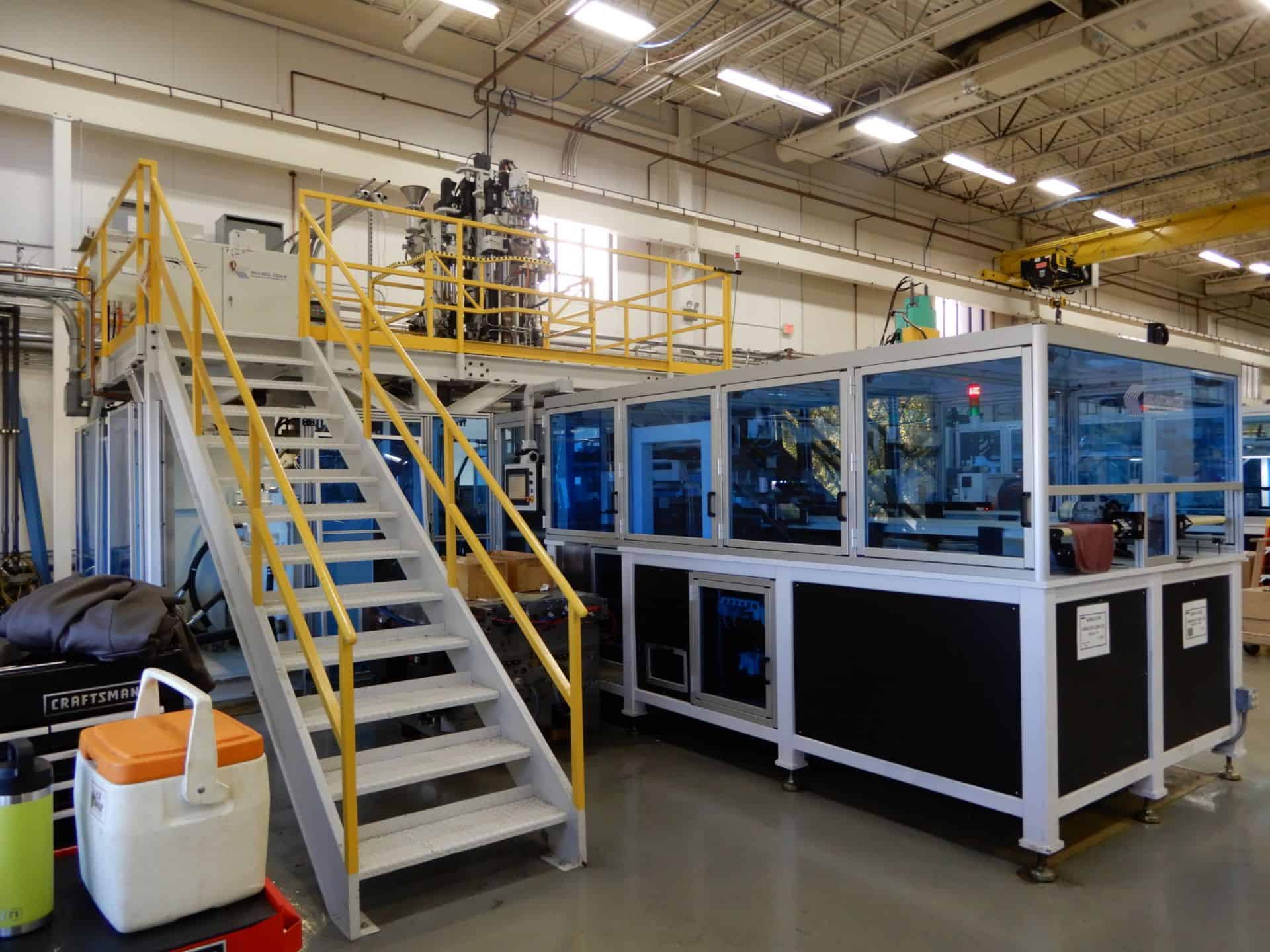

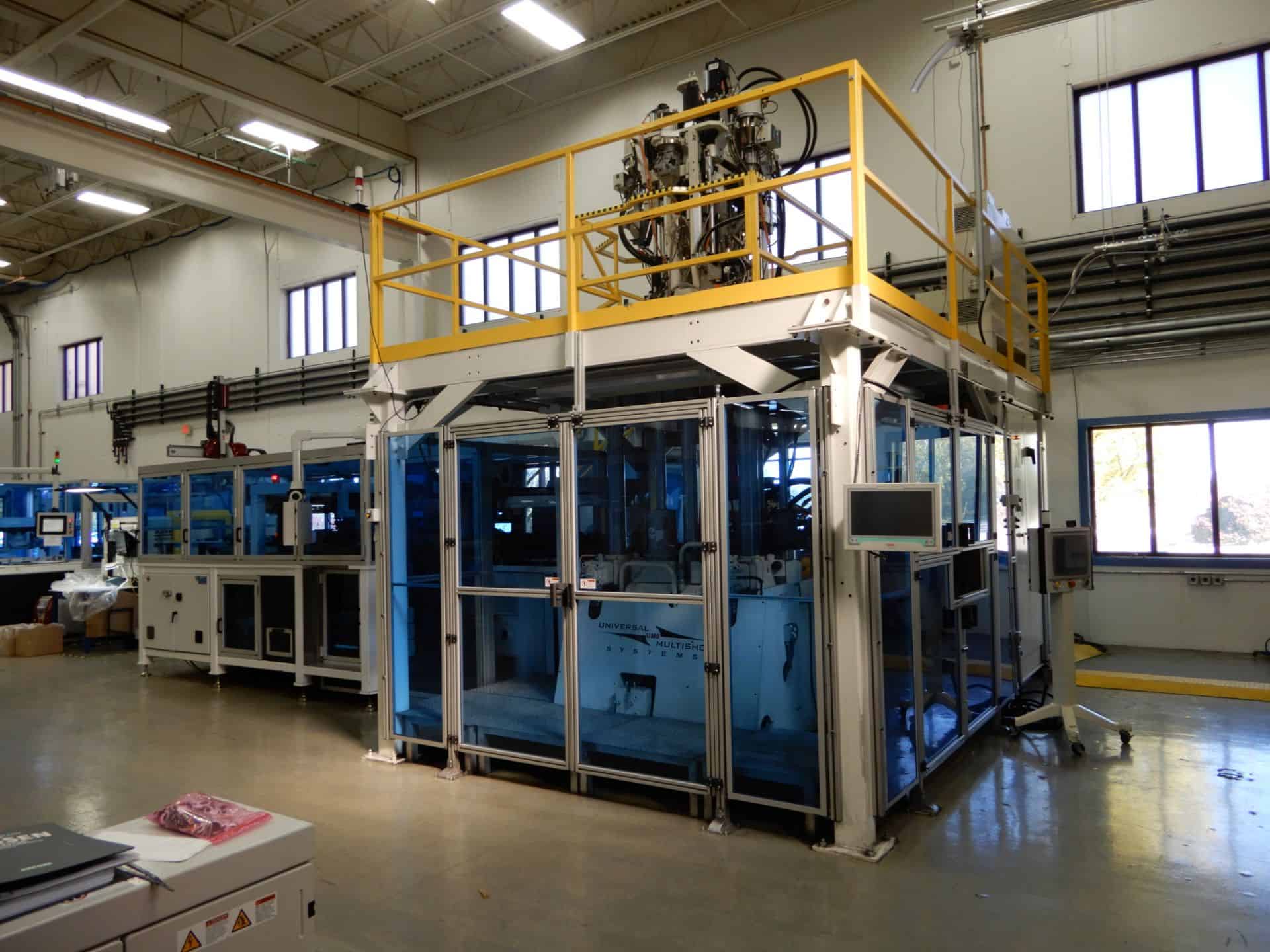

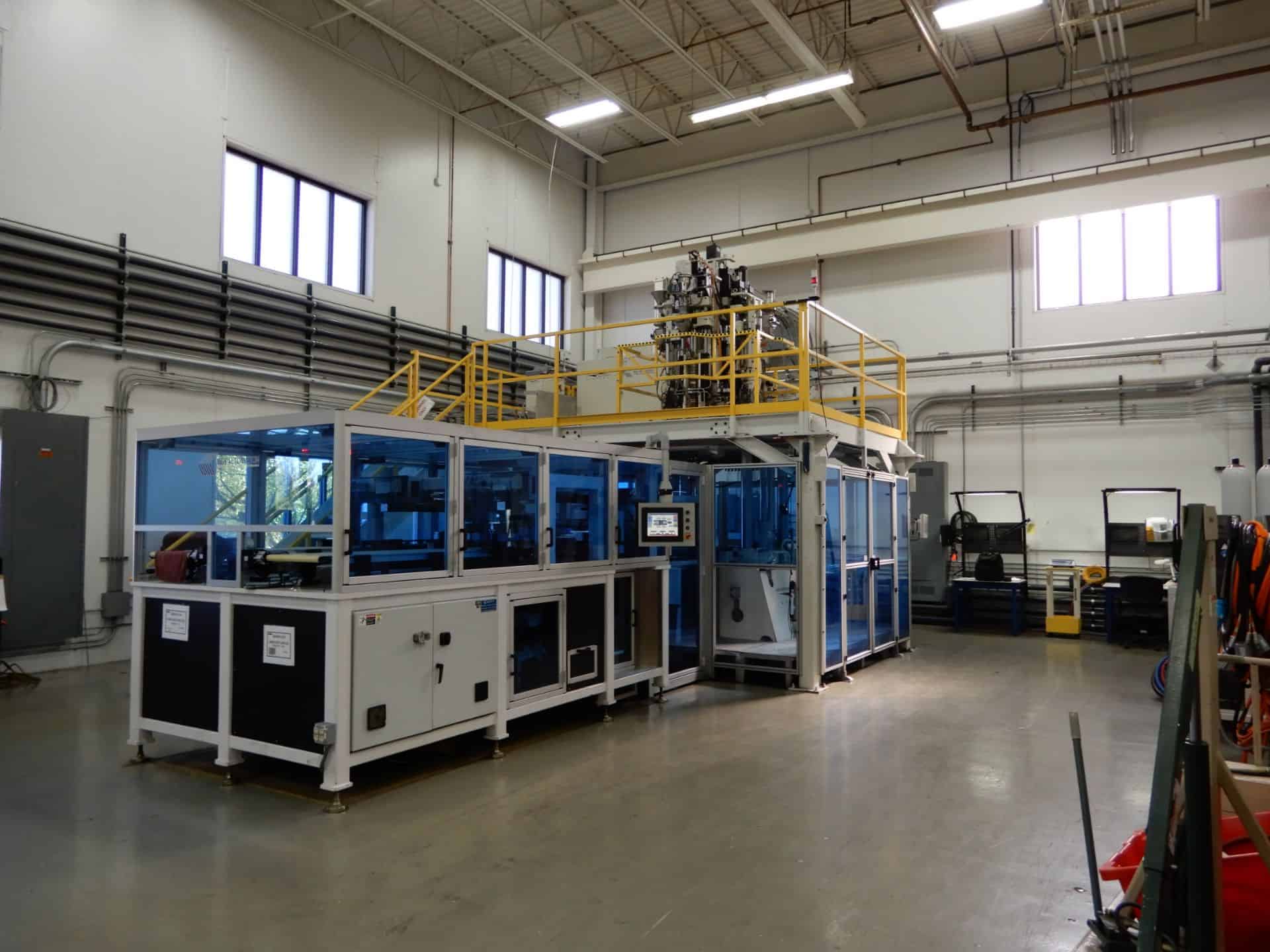

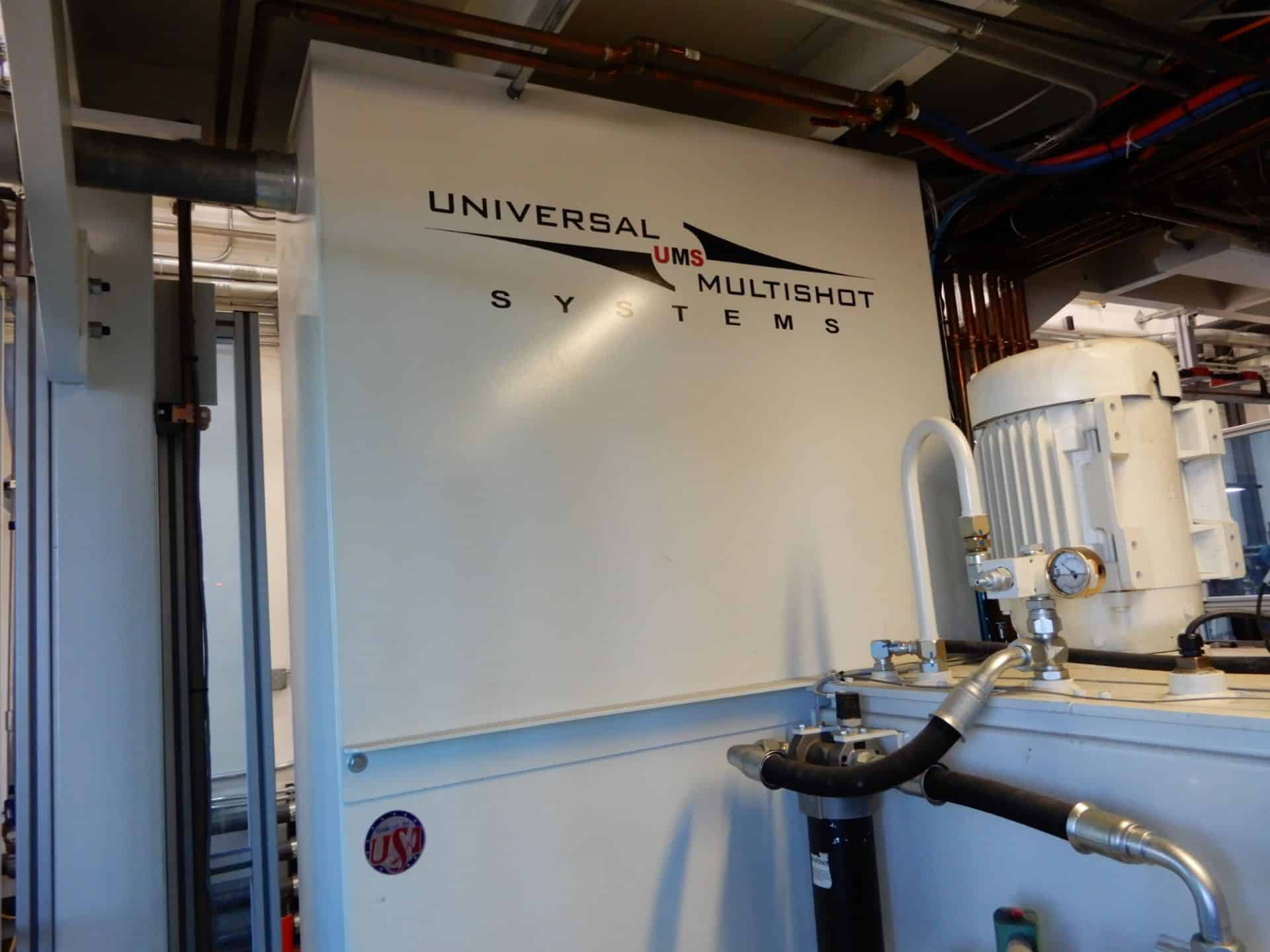

The original purpose of this line of equipment is described as such: Fully automated MGS Multishot™ 200 ton vertical injection molding system consisting of Neff 200 ton down-acting hydraulic press, 45” x 130” bed size, 4 post, 5” diameter posts, floor mounted, 100 HP hydraulic drive, 15 HP cooling unit, molding press has die fed multi-color 4 side injection system, with (2) 24mm extruders, 1.55 oz PS, 1.248 oz PP shot, (1) 36mm extruder, 4.815 oz PS, 3.862 oz PP shot, (1) 40mm extruder, 7.026 0z, 5.635 oz shot screws, each has IMS rotary polystyrene and polypropylene pellet feeder, includes MGS Automation pick and place discharge unit in plexiglass enclosure, mezzanine included, built 2012, previously used for multi-color plastic pharmaceutical medical device application for R&D application

Note

4 Post Down Acting Hydraulic Press. built in 2011 for a medical device project that was subsequently cancelled, press has "Try-Out" use only.

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
