| Year | 2011 |
|---|---|
| Make | Omax |
| Model | 55100-X5 |
Description |
4.6' x 8.4' CNC Waterjet |
| Reference # | 8072246 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

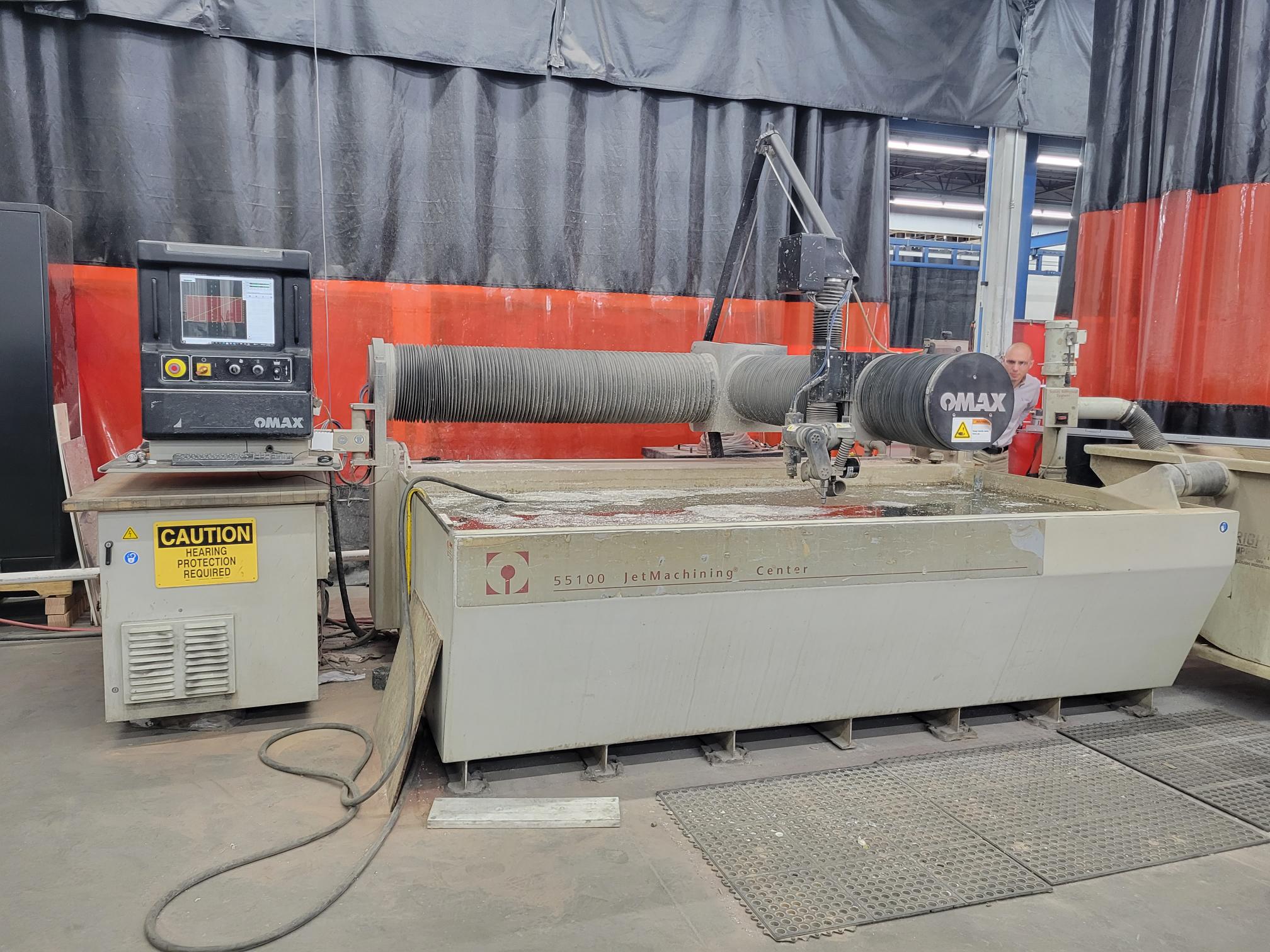

Used Omax 55100-X5 (2011) CNC Waterjet for Sale. This pre-owned Omax CNC waterjet is located in Oregon. If you have any questions regarding this Omax Waterjet, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
4.6' |
|---|---|
| Table Length |
8.4' |
| Control |
Intellimax |

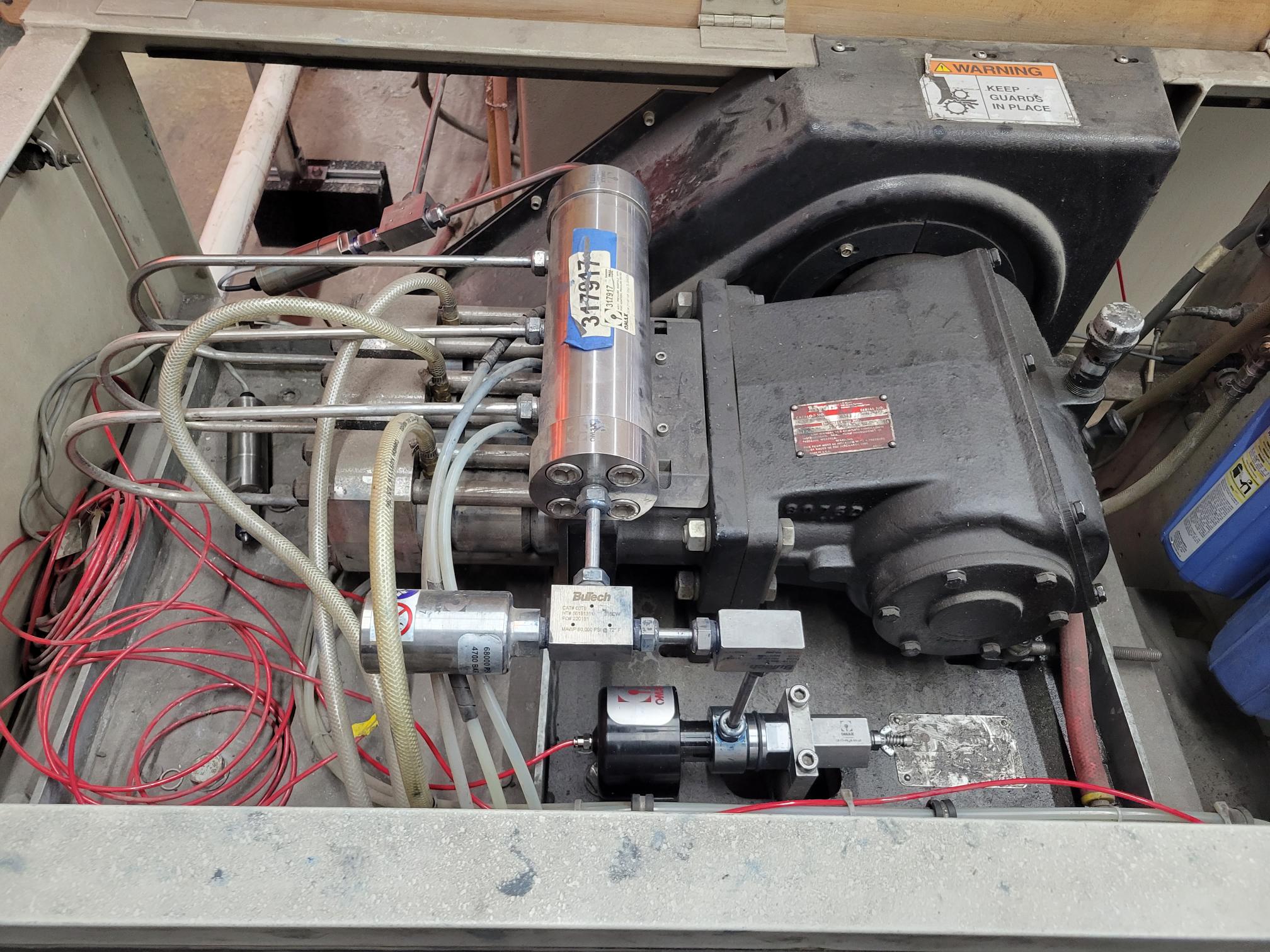

| Pump |
40 HP |
| Max Cutting Pressure |
55,000 PSI |
| Power Requirement |
460/3/60 |
| Table Size |
125" X 65" |
| Over One Foot Travel |
+/-0.003” 0.08 mm |
| Repeatability |
+/-0.002” 0.051 mm |
| Squareness |
0.002” per foot 0.17 mm/m |
| Straightness |
0.003” per foot 0.25 mm/m |
| Backlash |
0.0007” max. 0.018 mm |
| Note |
Machine Available Febuary of 2023 |
Features
|
Pre-Loaded Ballscrews with Recirculating Ball Bearings and Hardened Precision Ground Ways |
Brushless Servo Motors |
|

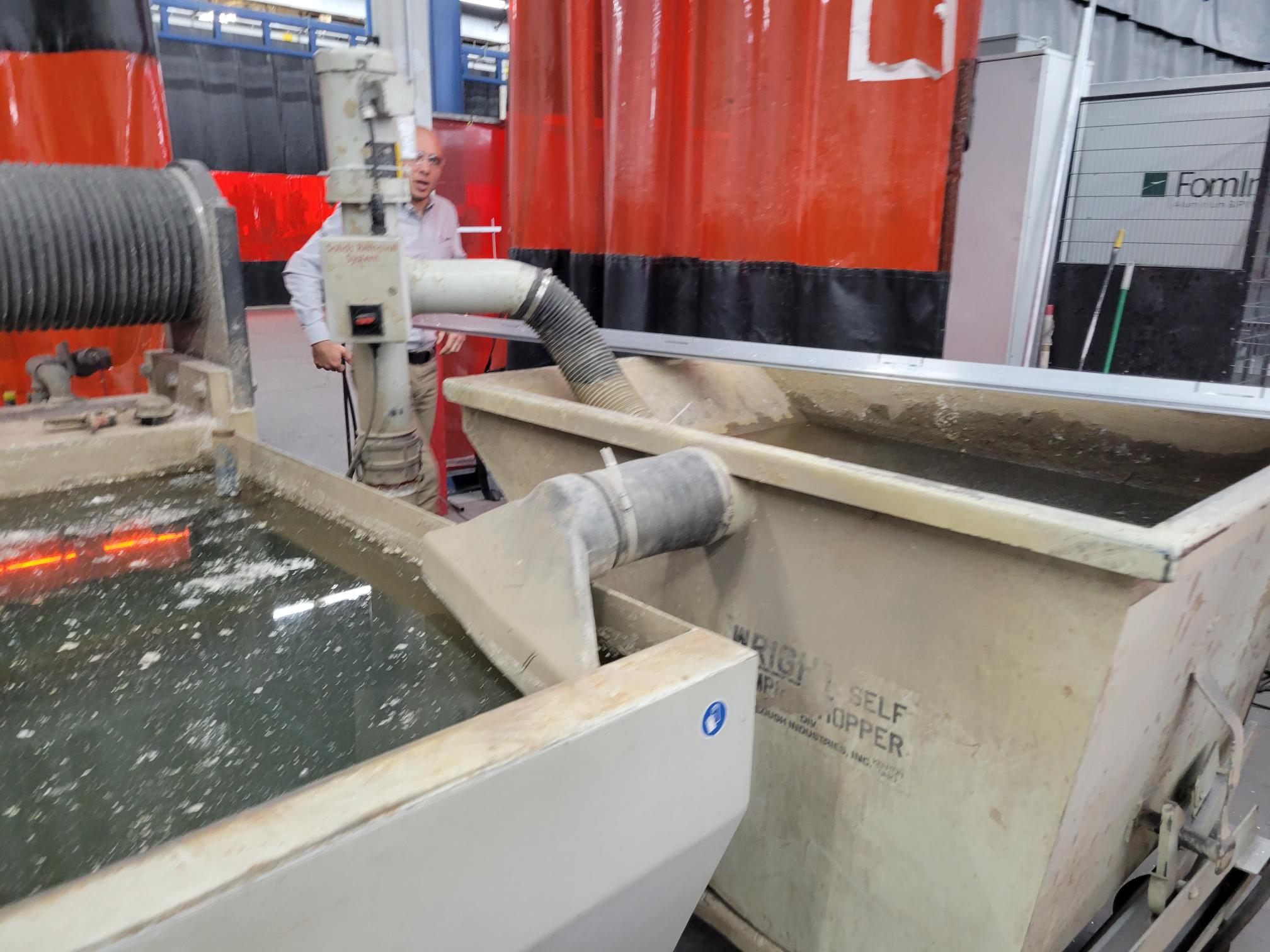

EBBCO Garnet Removal System |
600 lb Abrasive Delivery System |
|
Tilt-A-Jet Cutting Head |
Digital Drives |
|
OMAX Patented Motion Control Software Incorporating Windows XP Software |
Optimal Stack Height Calculator - Maximizes Your Machine Time by Stacking Materials |
