Year 2011
Make Roku-Roku
Model HCS-548EX

Description

CNC Vertical Machining Center
Reference # 8071877

Price

Activate Pricing

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

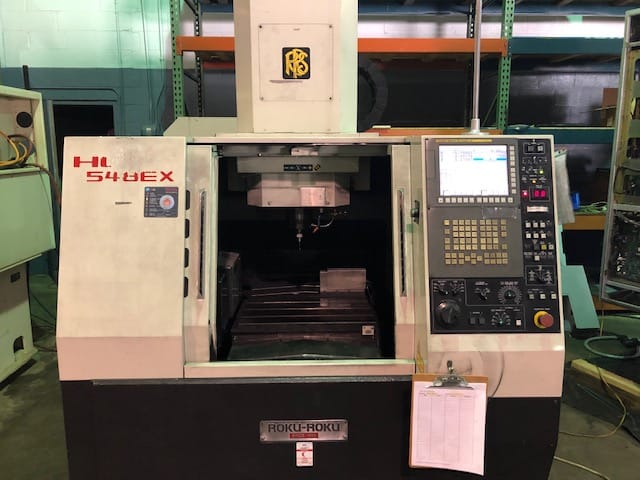

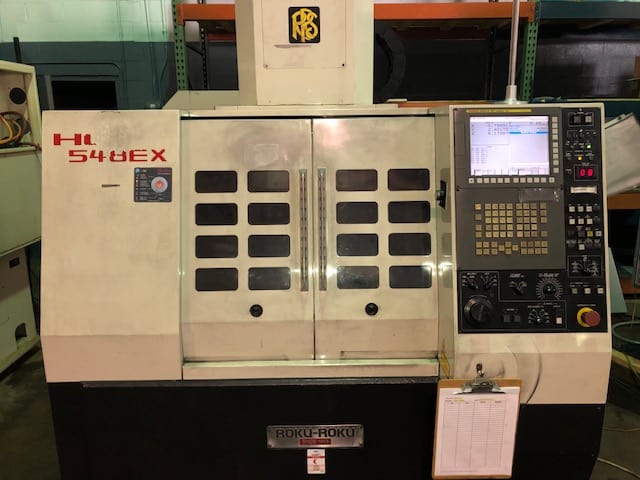

Used Roku-Roku HCS-548EX (2011) CNC Vertical Machining Center for Sale.  This pre-owned Roku-Roku CNC vertical mill is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this Roku-Roku Vertical Machining Center, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

X-Axis Travel

18.1"

Y-Axis Travel

14.1"

Z-Axis Travel

10.2"

Spindle Speed

32,000 RPM

Spindle Taper

HSK 40

Spindle Motor

8.5 HP

Tool Magazine Capacity

12 ATC

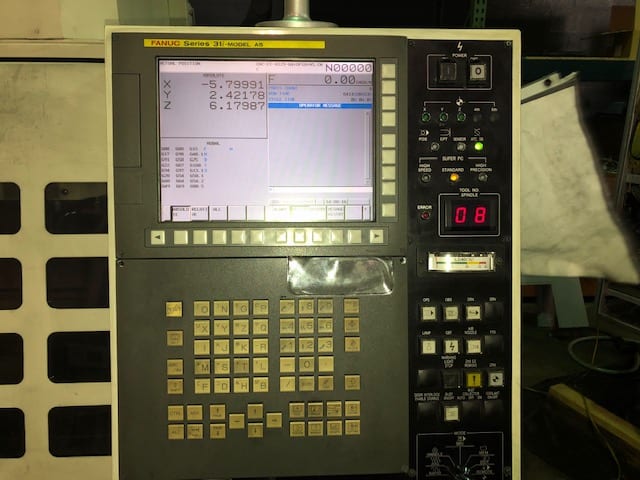

Control

Fanuc 31i

Power Requirement

200-220/3/60

Maximum Tool Diameter

2.36”/3.00” (Without Adjacent Tools)

Spindle Motor

8.4 HP

Spindle Speeds

200-32,000 RPM

Axis Feed (AC Digital) (X,Y,Z)

3.5 HP

Measured Circularity

(2.000 Dia. @ 8 IPM) 0.00010"

Repeatability

+/- 0.00006"

Positioning Accuracy

+/- 0.00010" Full Stroke

High-Speed Mode

1,181 IPM

Rapid Traverse (X, Y, Z,)

1,181 IPM

Cutting Feedrate Normal Mode

315 IPM

Maximum Tool Weight

6.60 Lbs

Maximum Tool Length

9.84”

Maximum Load on Table

440 Lbs

Distance Between Table Top and Spindle Nose

5.9”–16.1" (Min/Max)

Table Work Area

23.6” X 14.1”

Table Height from Floor

31.49”

Machine Height

98.4”

Floor Space

78.7” x 108.7”

Machine Weight

8,830 Lbs

Note

Recently Replaced Spindle Inquire for Documentation

Features

Under Power

Tool Change Type Magazine Direct Type

Tool Selection Type Fixed Address Type

Air Blast Through Spindle Equipped

Air Purge Equipped

Blum Probing System

Cartiridge Style Spindle for Easy Change Out

Greased Spindle

Linear Glass Scales
