| Year | 2012 |
|---|---|
| Make | Fanuc |

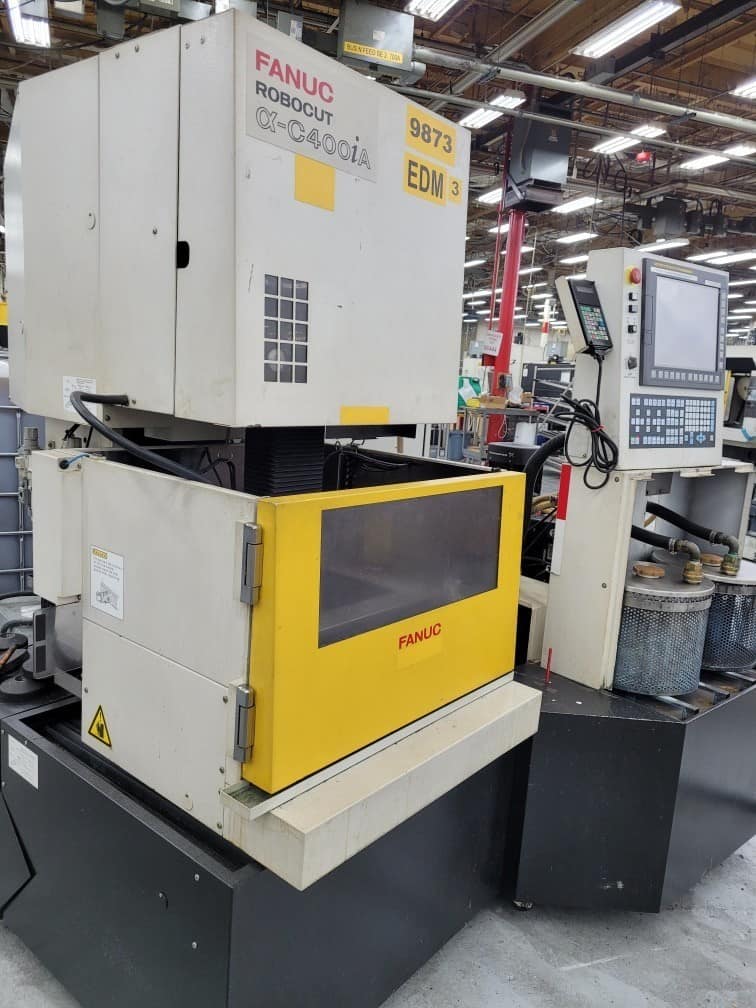

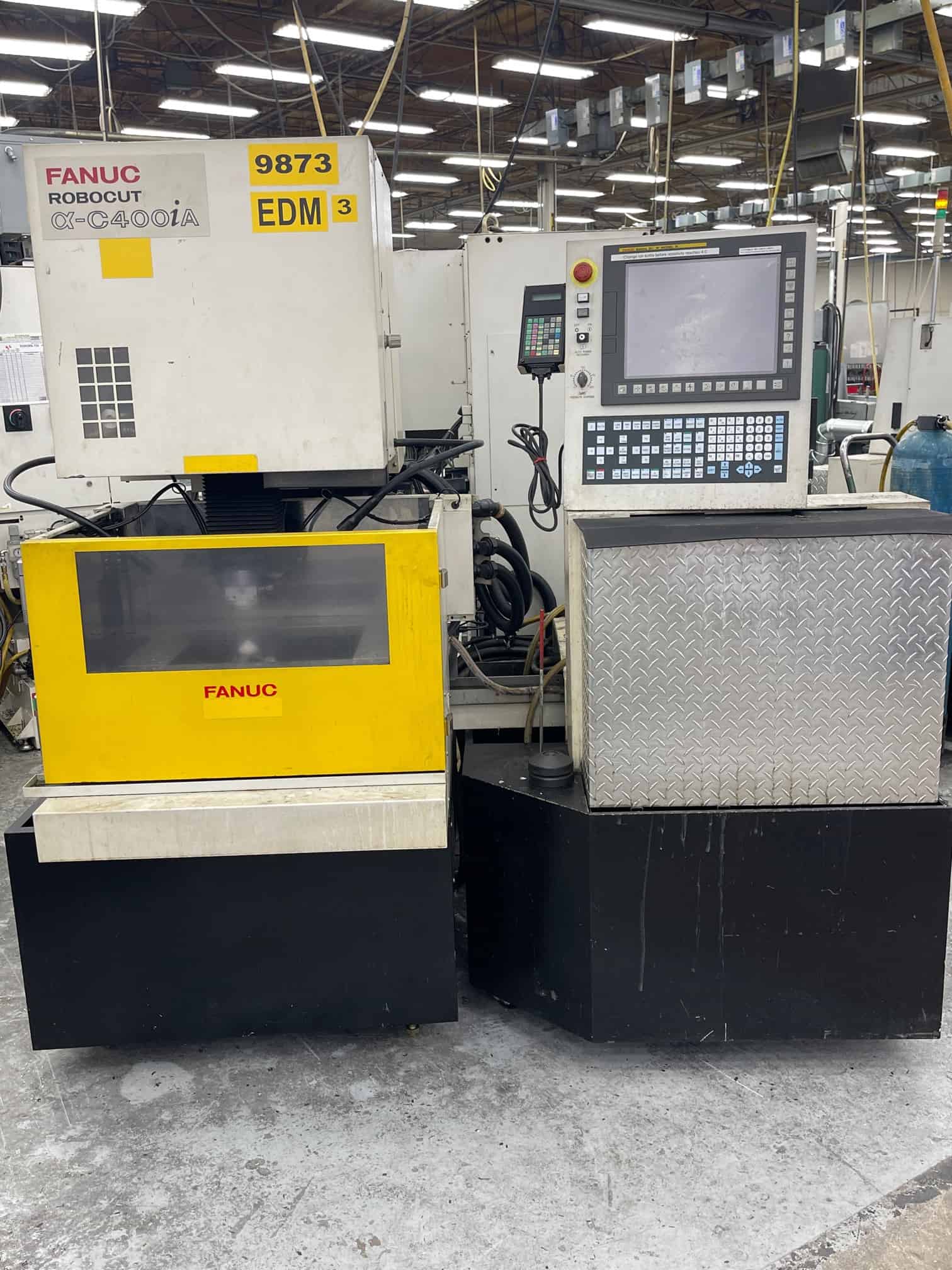

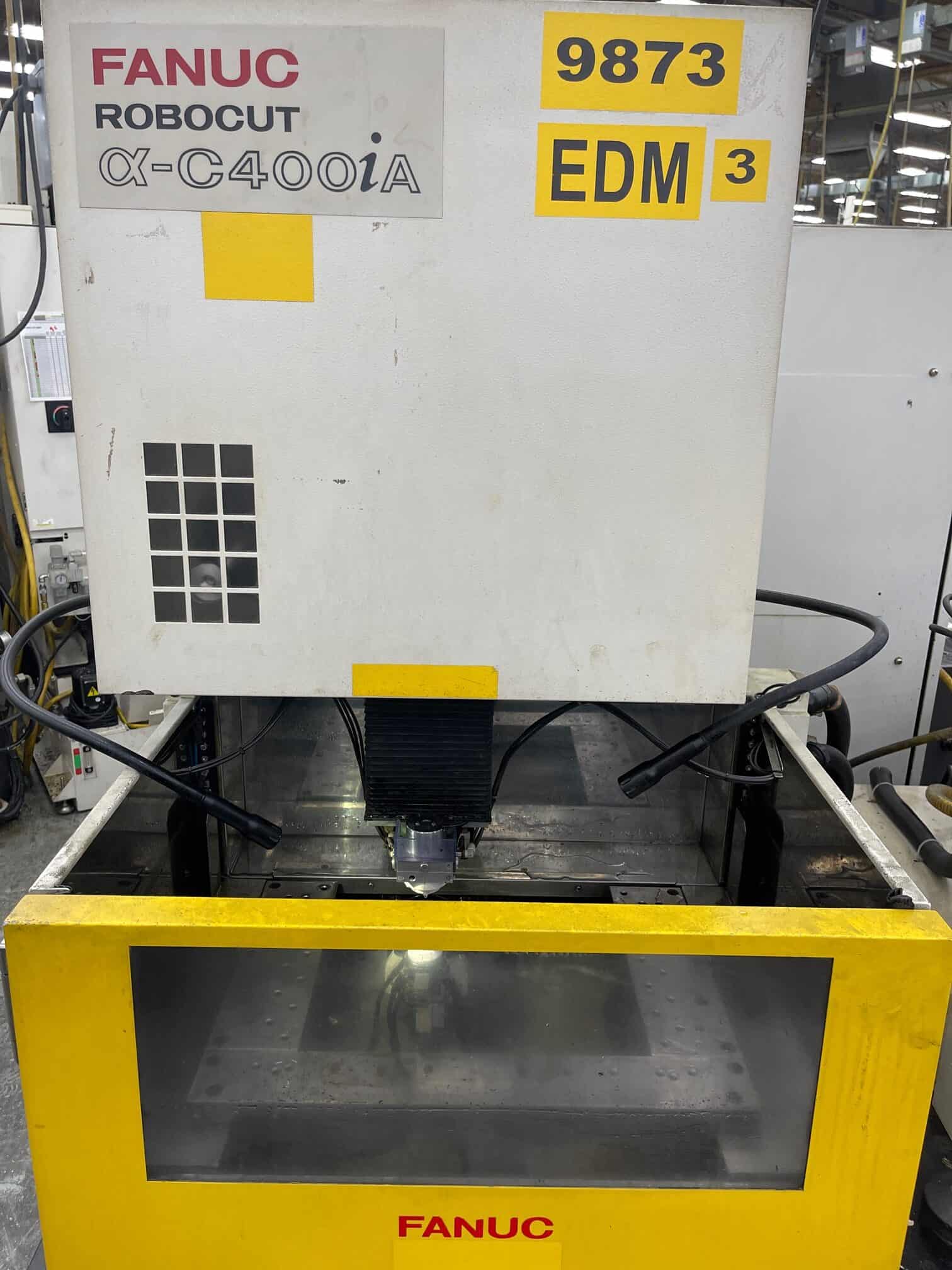

| Model | Robocut a-C400iA |
Description |
EDM Wire |
| Reference # | 8070522 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
14.6" |
|---|---|
| Y-Axis Travel |
10.6" |
| Z-Axis Travel |
10" |
| Control |

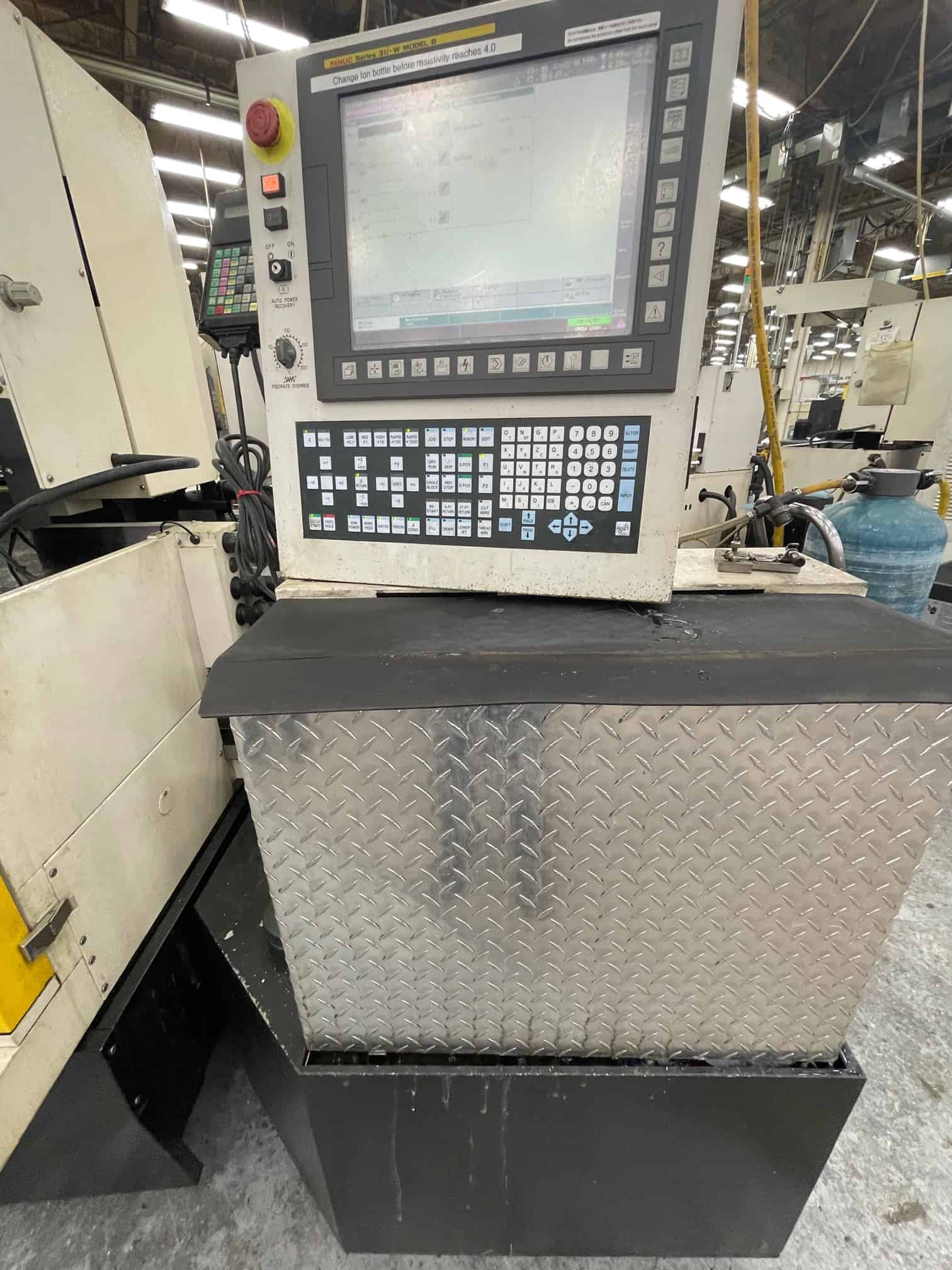

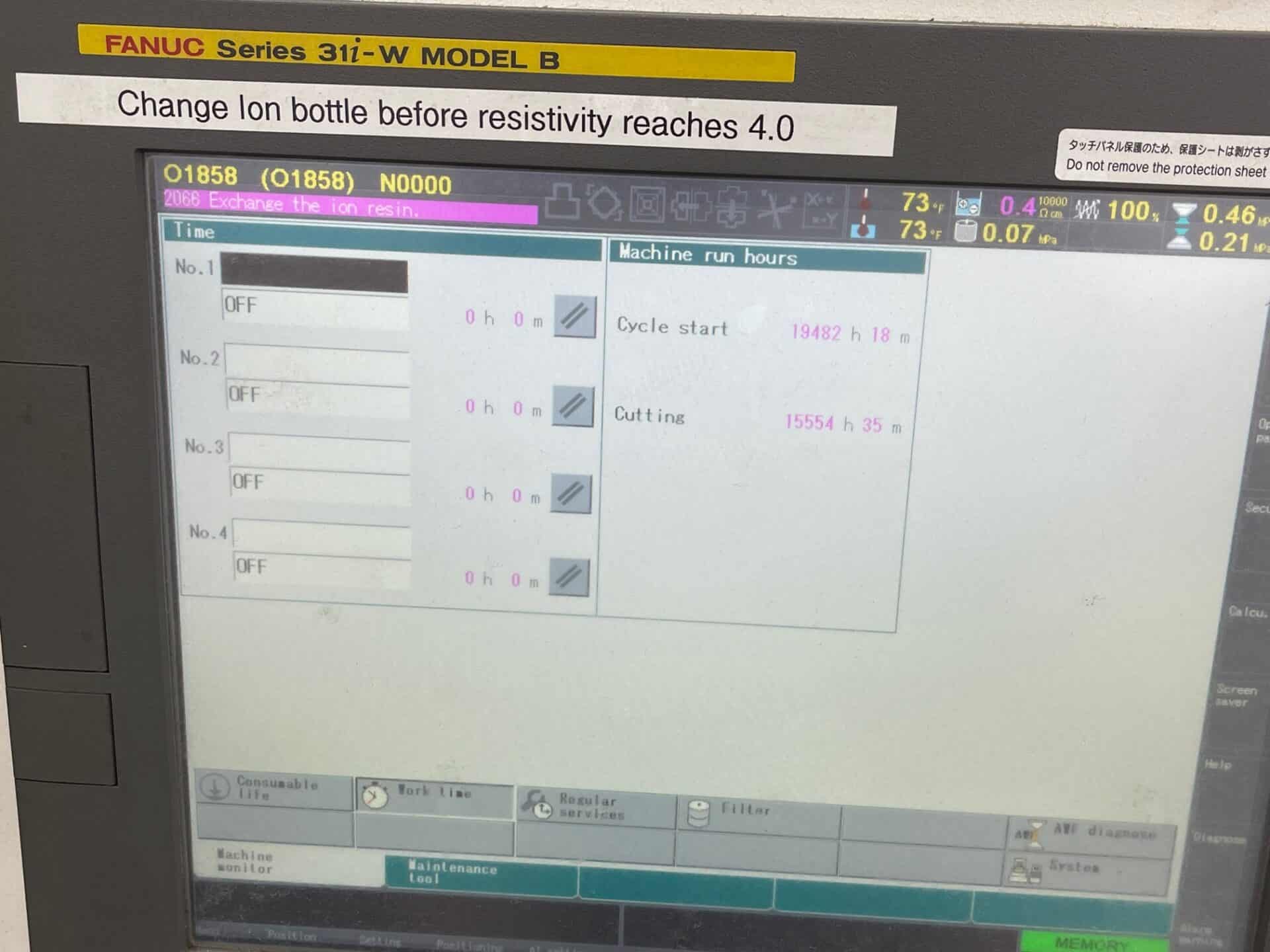

Fanuc 31i-WB |
| U/V Axis Travel |
2.36" x 2.36" |
| Degree Taper Cutting |
30 Degree at 3.3" |
| Inside Tank Dimensions |
30.5" x 23.6" |
| Power Requirement |
200-220/3/60 |
| Glass Scale Feedback |
.00000004 Rotary |
| Max Workpiece Size |
30.5" x 23.6" x 10" |
| Max Submerged Depth |
9.84" |
| Max Workpiece Weight |
1,100 Lbs |
| Wire Diameter |
.008" - .012" |
| Max Cutting Speed |
.012 Coated Wire, 2.4" Thick, D2 33.5 Sq In/Hr |
| Positioning Accuracy |
+/- .0001 |
| Dielectric Capacity |
145 Gallons |
| Machine Footprint |
76" x 87" x 77"H |
| Machine Weight |
4,000 Lbs |
| Note |
No Wire Alignment Gauge, Transformers Not Included |
Features
|
4MB Part Storage |
AC Servo Drive Motors |
|
Auto Wire Threading |

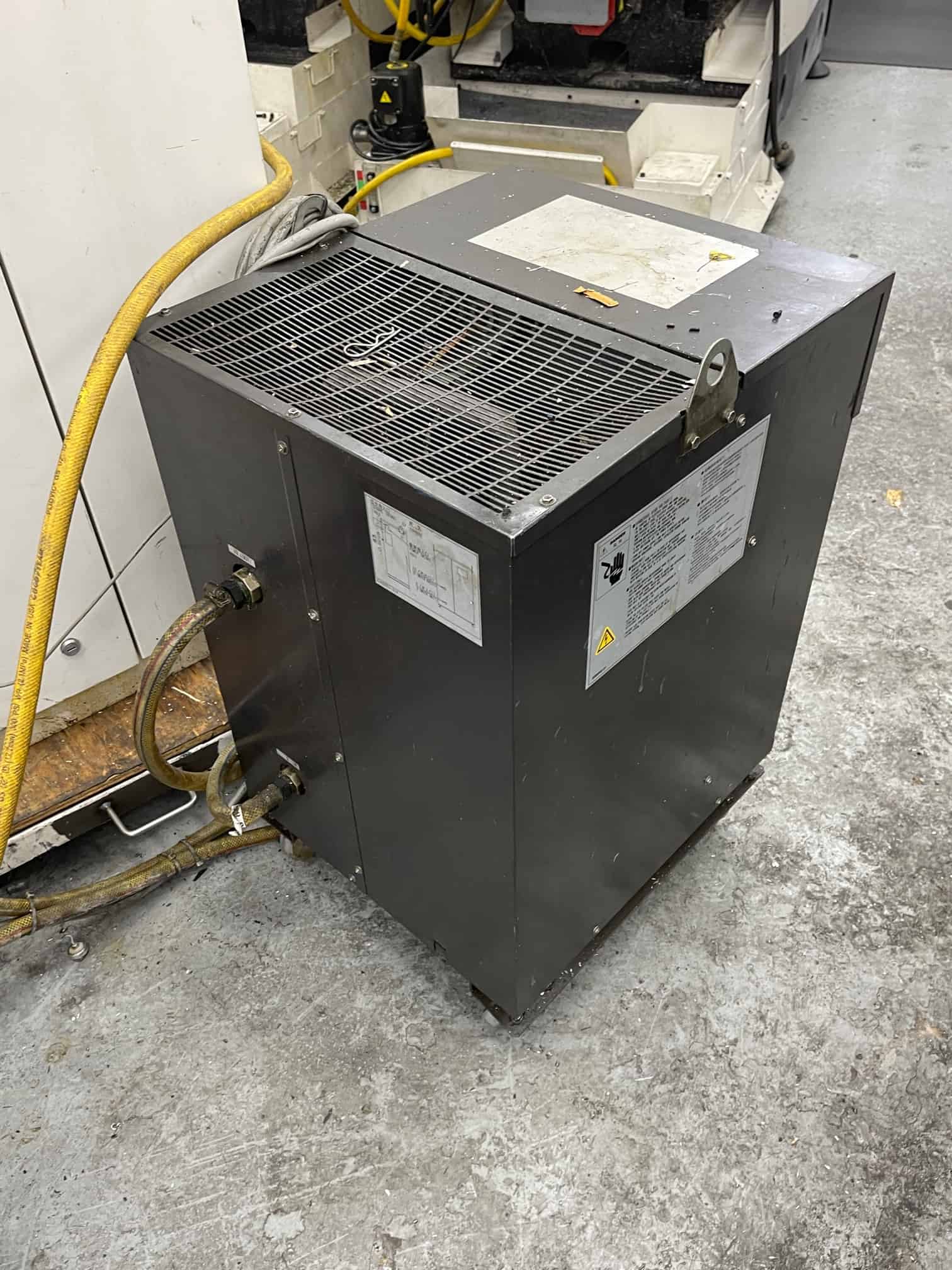

Electric Chiller |
|
Electronic Manuals |
Glass Scale Feedback |
|
10-Second Automatic Threading |
13KVA Total Power |
|
15" Color LCD Touch Screen |
RS232 Ethernet Interface |
|
Submerged Cutting |
Wire Chopper |
|
AC & DC Generator Switchable |
AIP2 Discharge Control |
|
Built-in Conversational Programming |
Ethernet Connectivity |
|
Fanuc Auto Wire Feed |
Keyboard / USB / CF Card and Ethernet |
|
X / Y / U / V / Z Servo Closed Loop System |
