| Year | 2012 |
|---|---|
| Make | Makino |
| Model | U3 |
Description |
EDM Wire |
| Reference # | 8071431 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

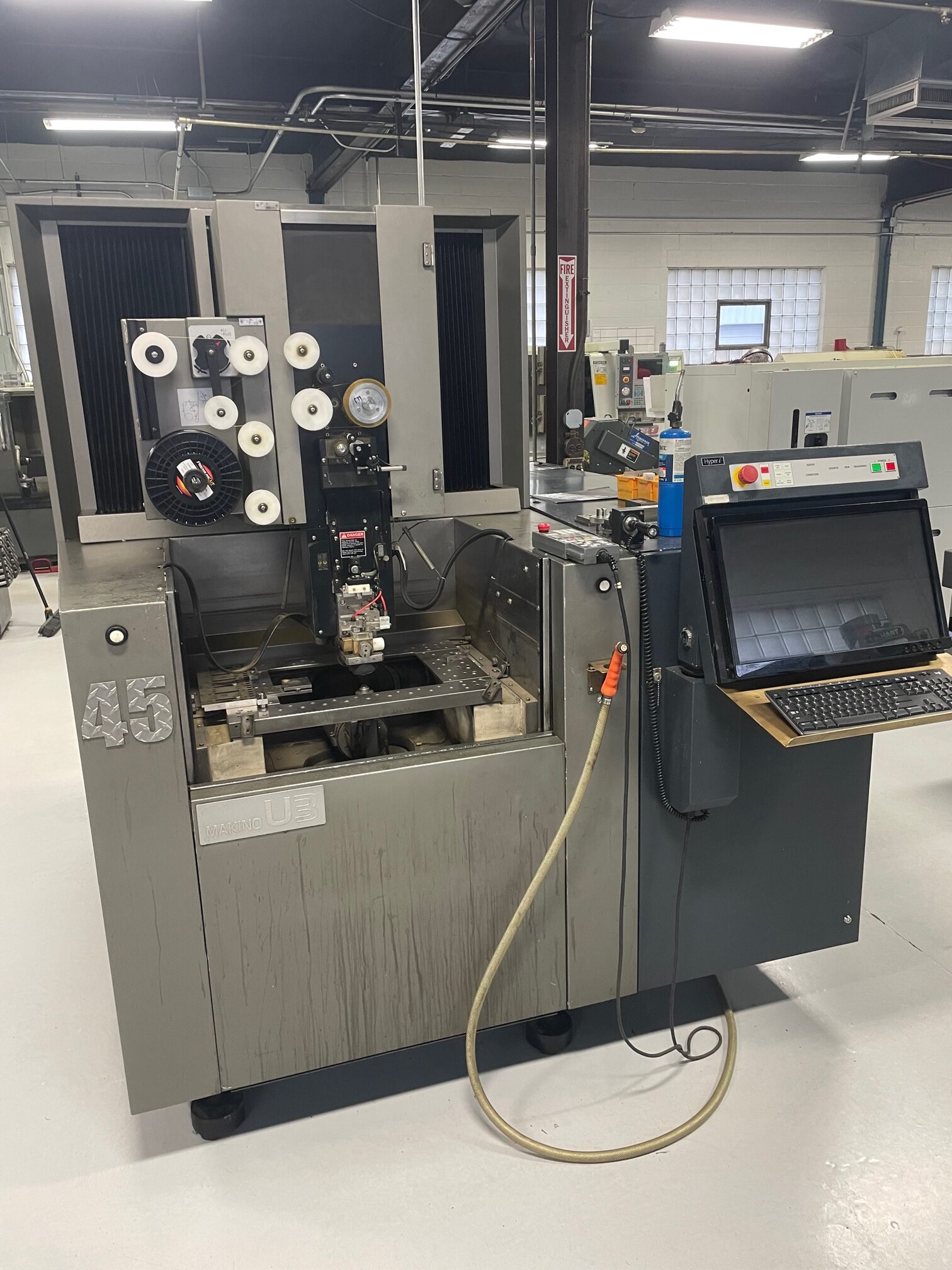

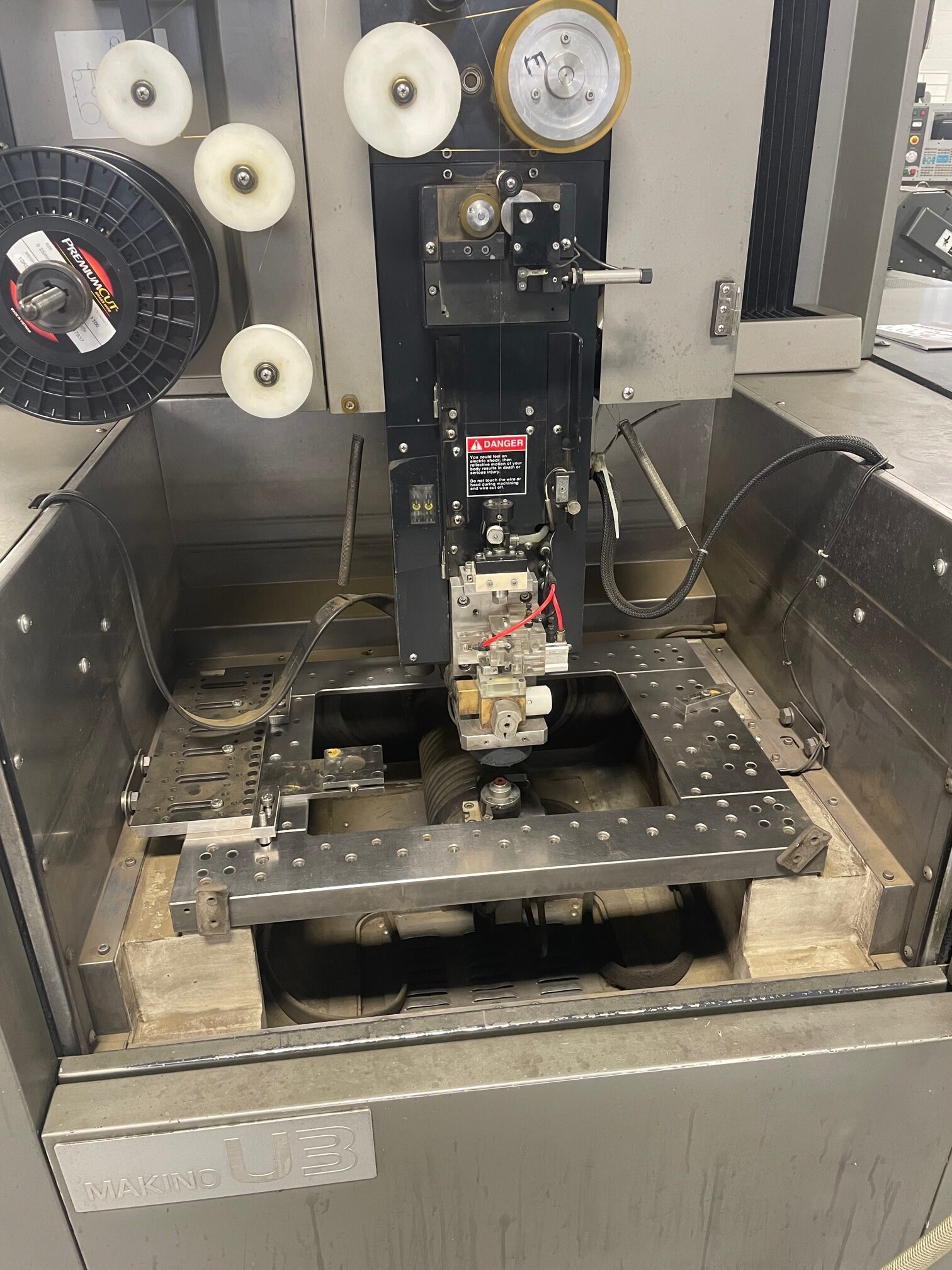

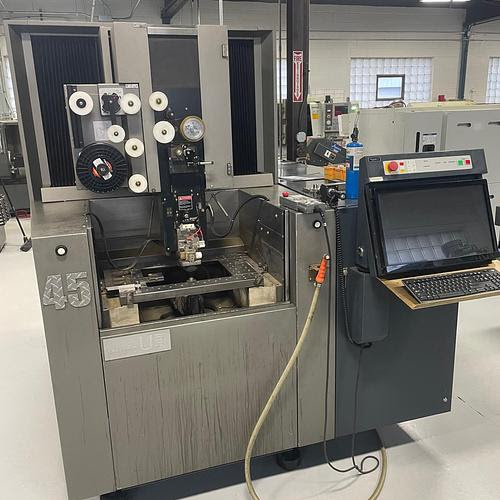

Used Makino U3 (2012) CNC EDM for Sale. This pre-owned Makino CNC EDM wire is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Makino EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
14.6" |
|---|---|
| Y-Axis Travel |
10.8" |
| Z-Axis Travel |
8.7" |

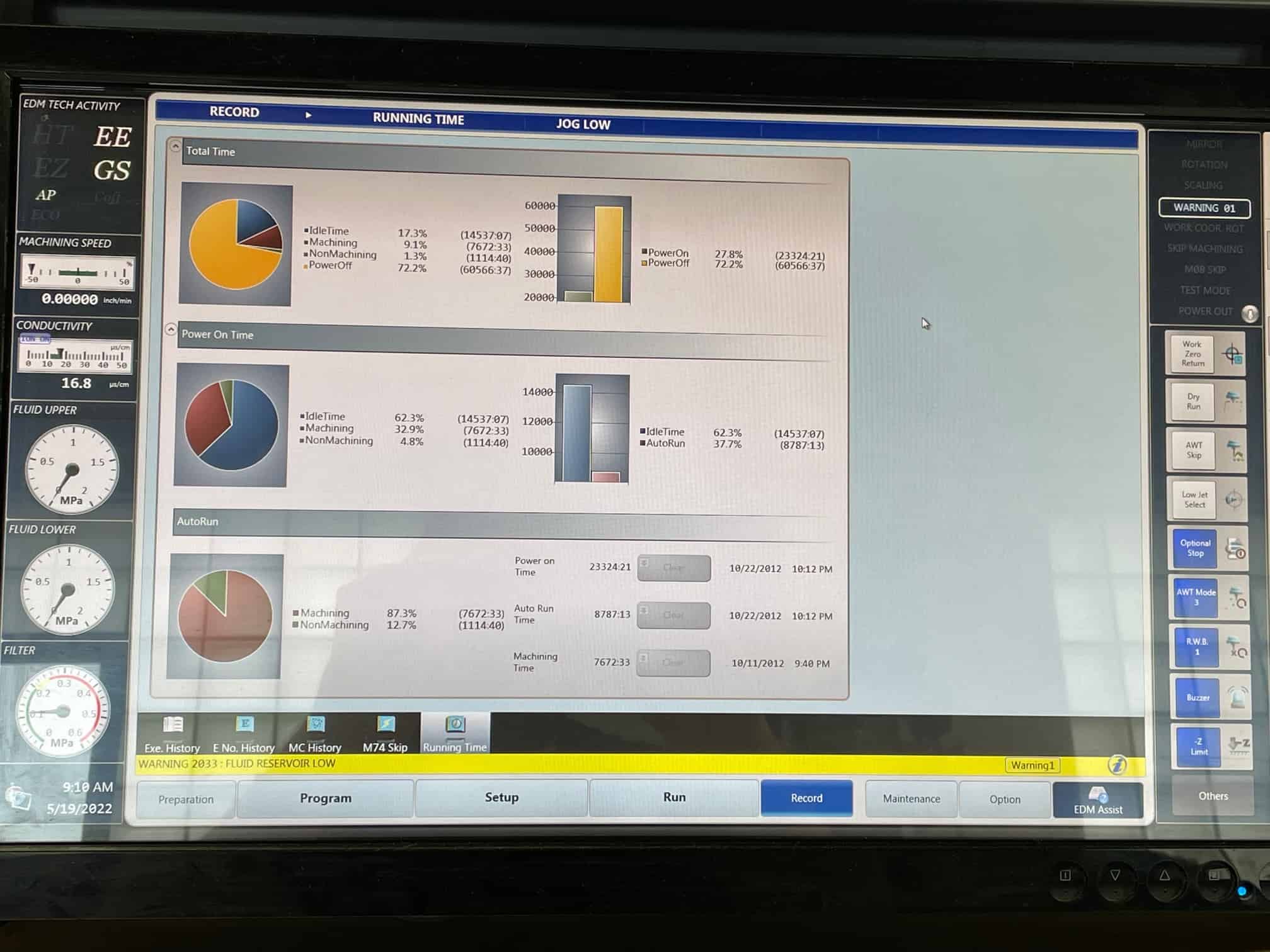

| Control |
Makino PC Based |
| U/V Axis Travel |
2" X 2" |
| Degree Taper Cutting |
15 Degrees |
| Inside Tank Dimensions |
31.01" x 24.04" |
| Power Requirement |
480/3/60 |
| Available Wire Size |
0.004" - 0.012" |
| Tank Size |
31.10" x 24.05" x 10.04" Tall |
| Max. Work Piece Size |
30.3" x 23.2" x 8.7" Tall |
| Table Size (Three Sided Table) |
24.8" x 17.7" |
| Max. Wire Spool Weight |
22 Lbs |
| Max. Workpiece Weight |
1,323 Lbs |
| Machine Dimensions |
91" x 77" x 83" Tall |
| Machine Weight |
7,054 Lbs |
Features
|
Auto Wire Threading |

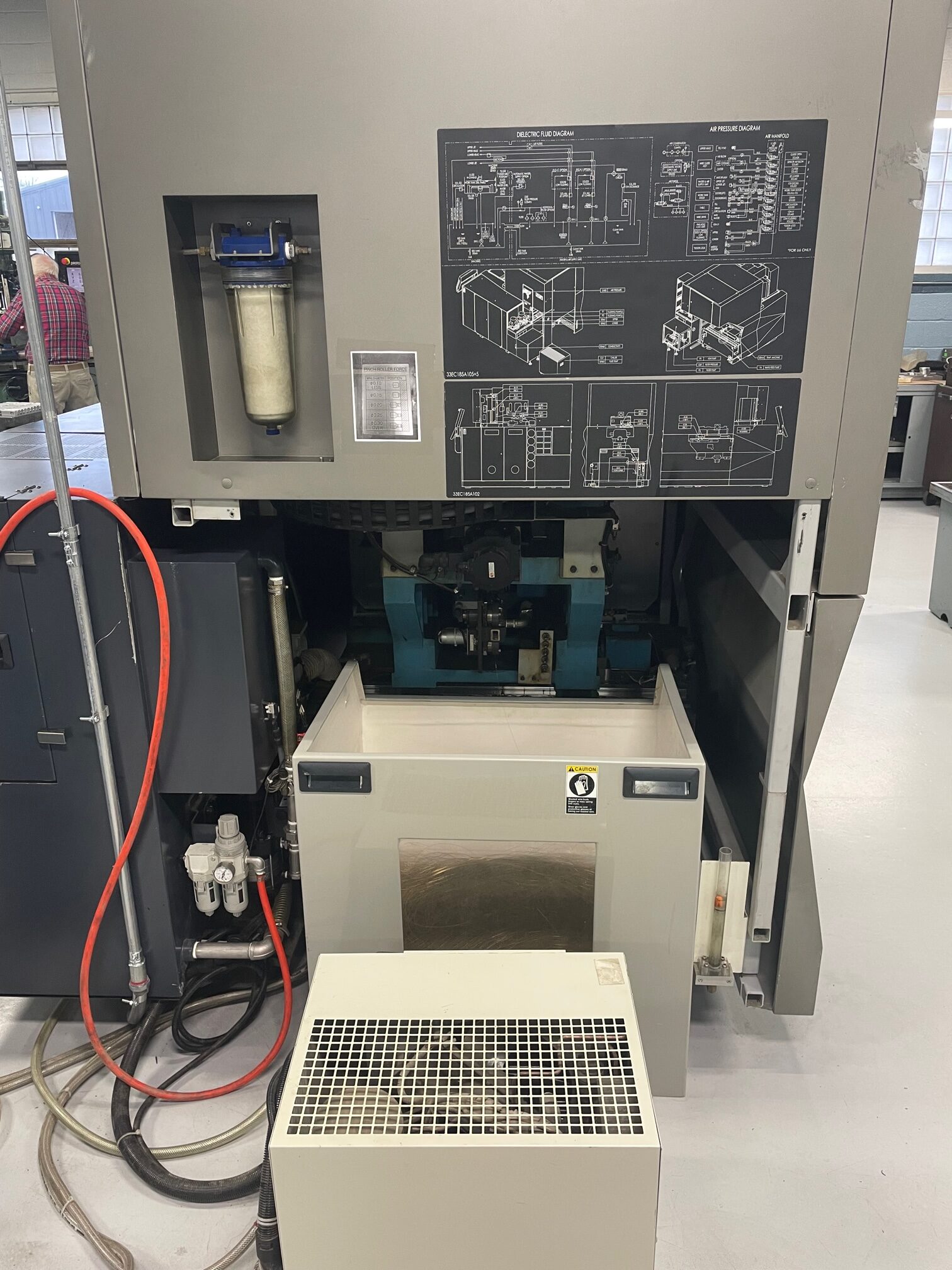

Chiller |
|
Glass Scale Feedback |
Rotary Encoders |
|
Submersible Flushing |
Automatic Temperature Control Chiller |
|
Complete Dielectric Filtration System |
PICO Guides (Round) |
