Year 2012
Make Mitsubishi
Model MWX3-612

Description

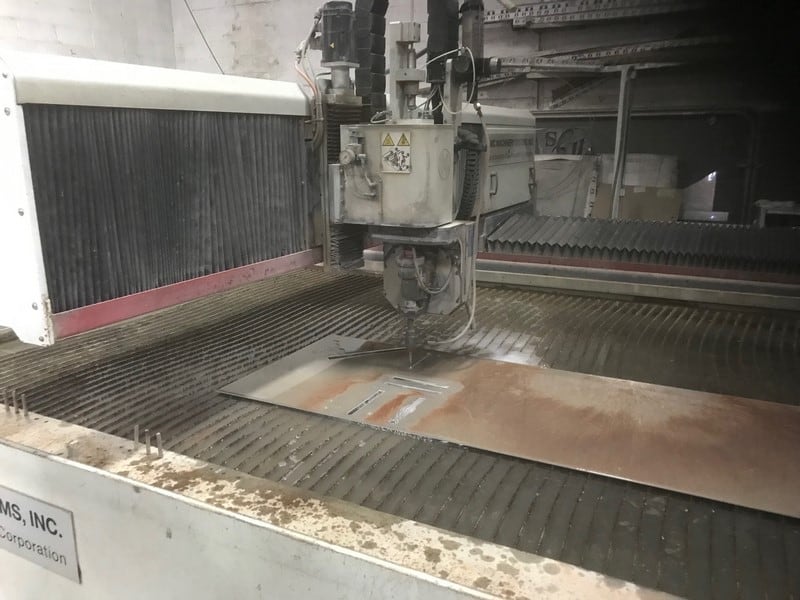

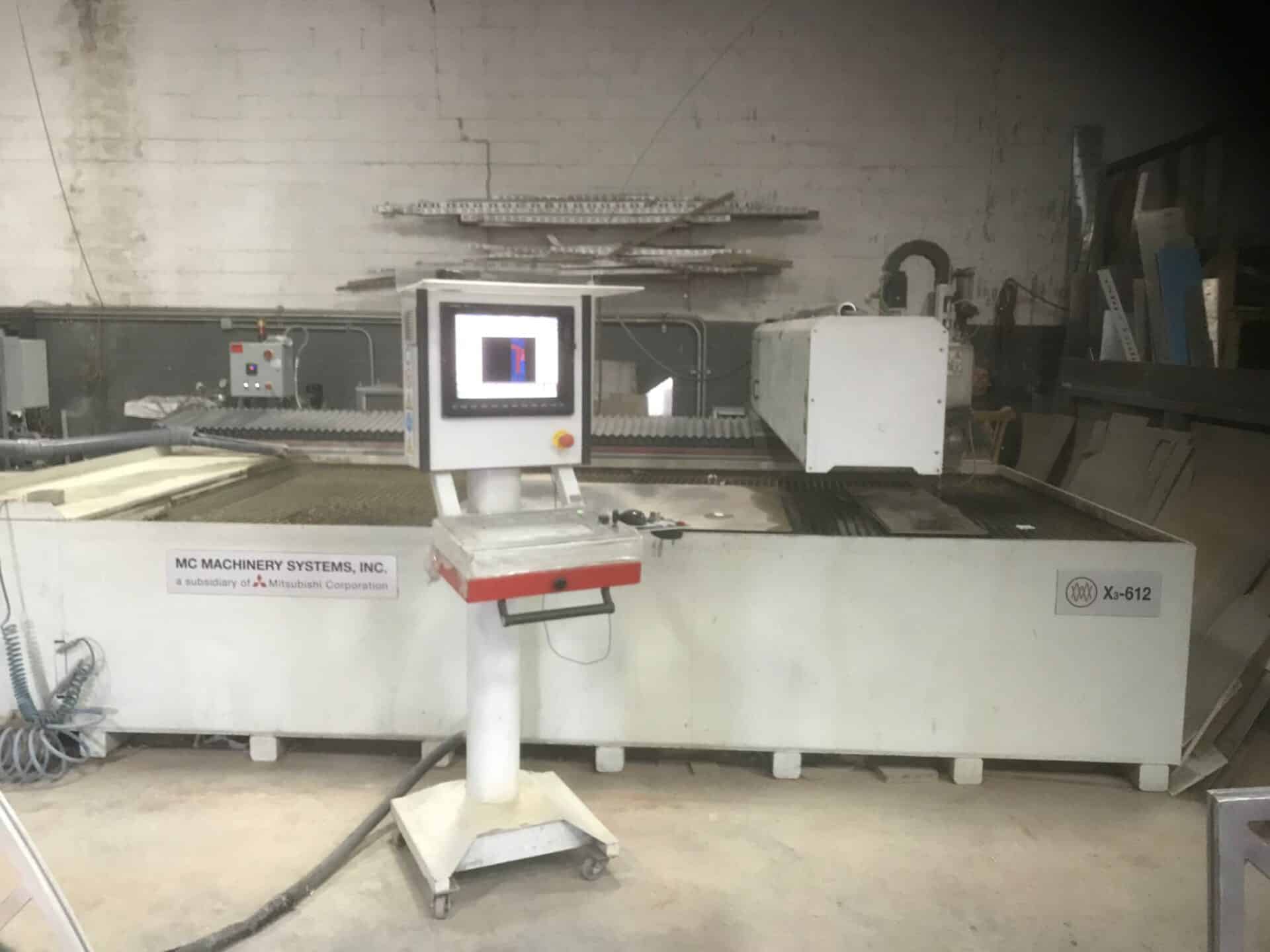

6' x 12' CNC Waterjet with Power Bevel Cutting Head
Reference # 8040021

Price

Activate PricingInquire Now

Specifications

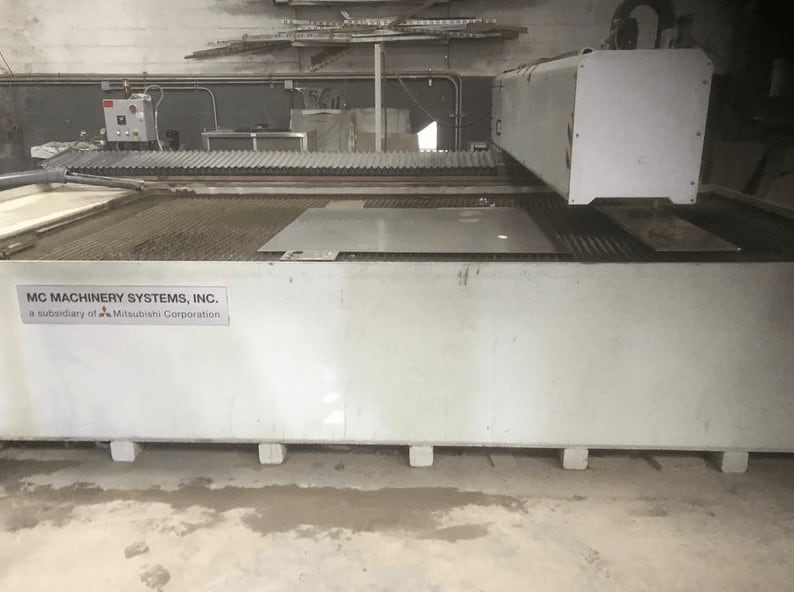

Table Width

6'

Table Length

12'

Programmable Z Axis

10" Stroke

Pump

40 HP

Abrasive Hopper

670 Lbs

Max Cutting Pressure

55,000 PSI

Water Consumption GPM

.65

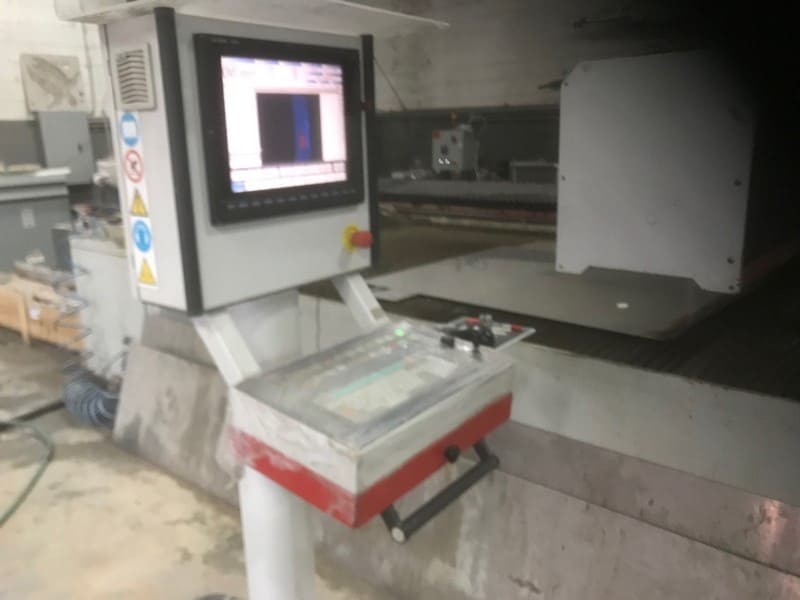

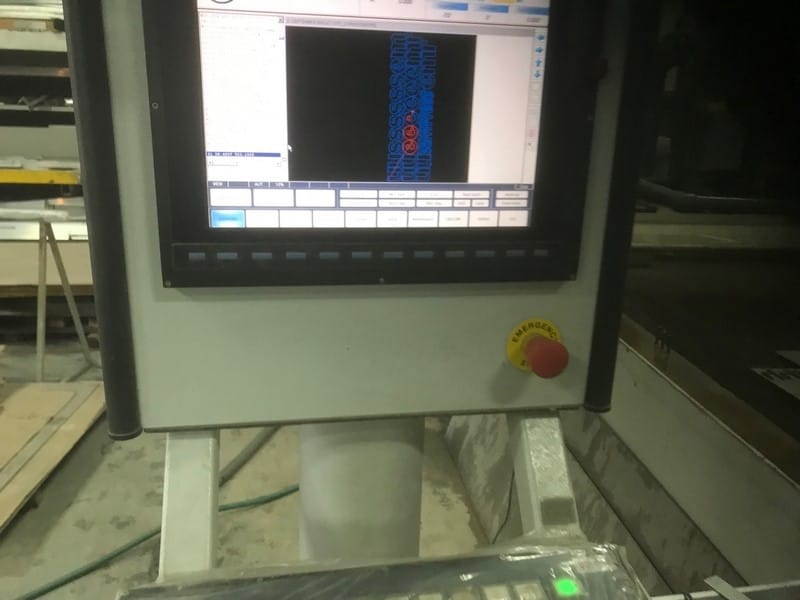

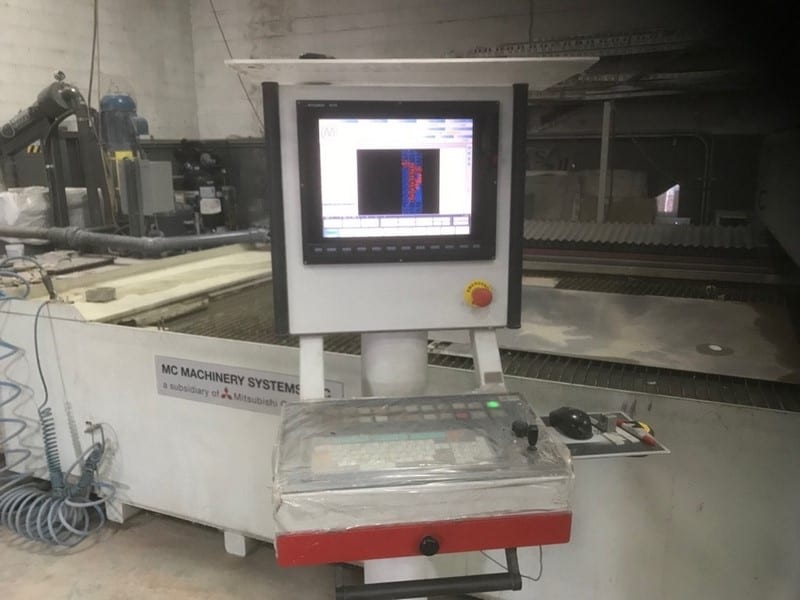

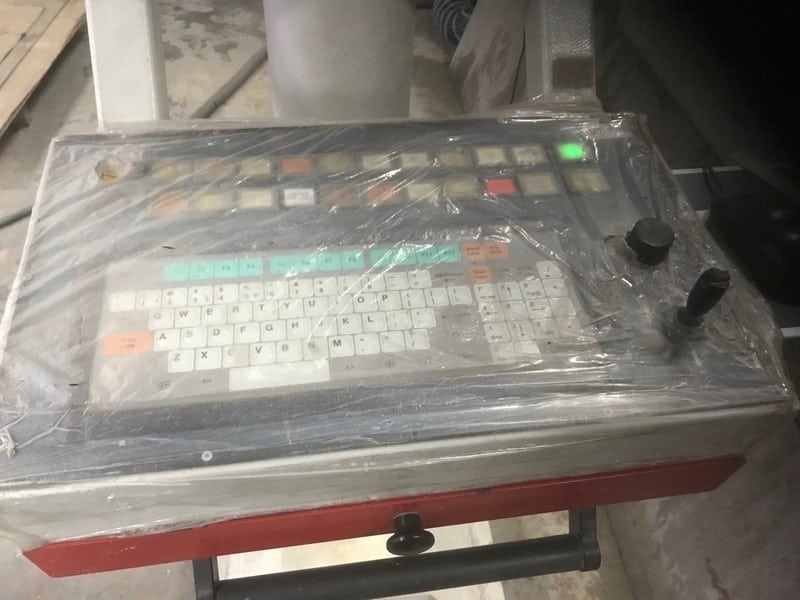

Control

Mitsubishi M720

Machine Weight

20,000 lbs

Note

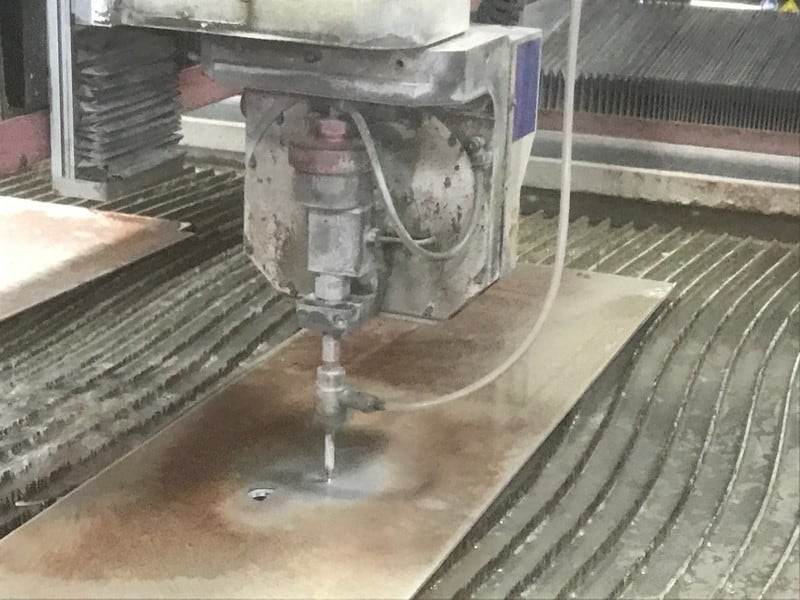

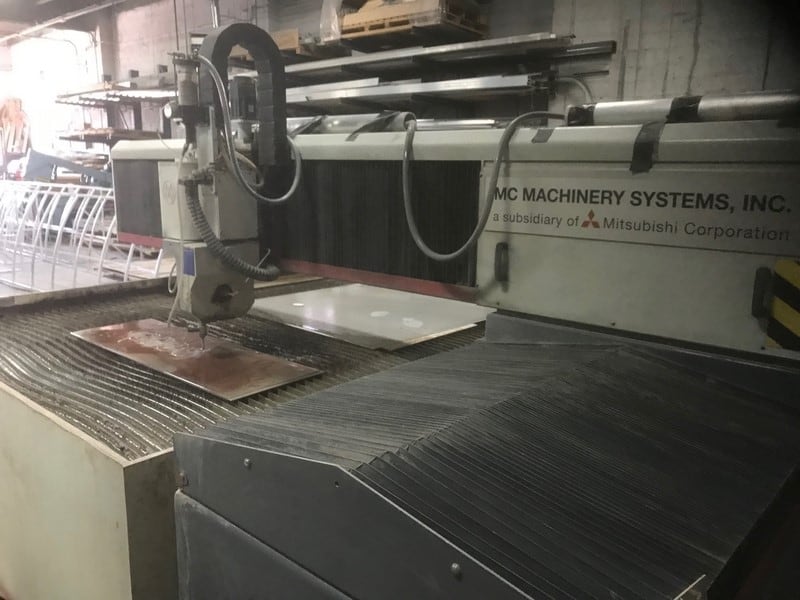

Bevel Head Unit includes a 4th Axis C-Axis and 5th Axis A-Axis the C-Axis allows for 180 degree rotation to allow the machine to cut any of the four sides of a typical plate. The A-Axis is a positioning axis only, without circular interpolation, and allows for up to 45 degrees angle rotation to cut beveled angles and weld prep angles into the plate material.

Features

Abrasive Metering System Manally Adjust By Dial

Automatic Z Axis Touch Probe And Programmable

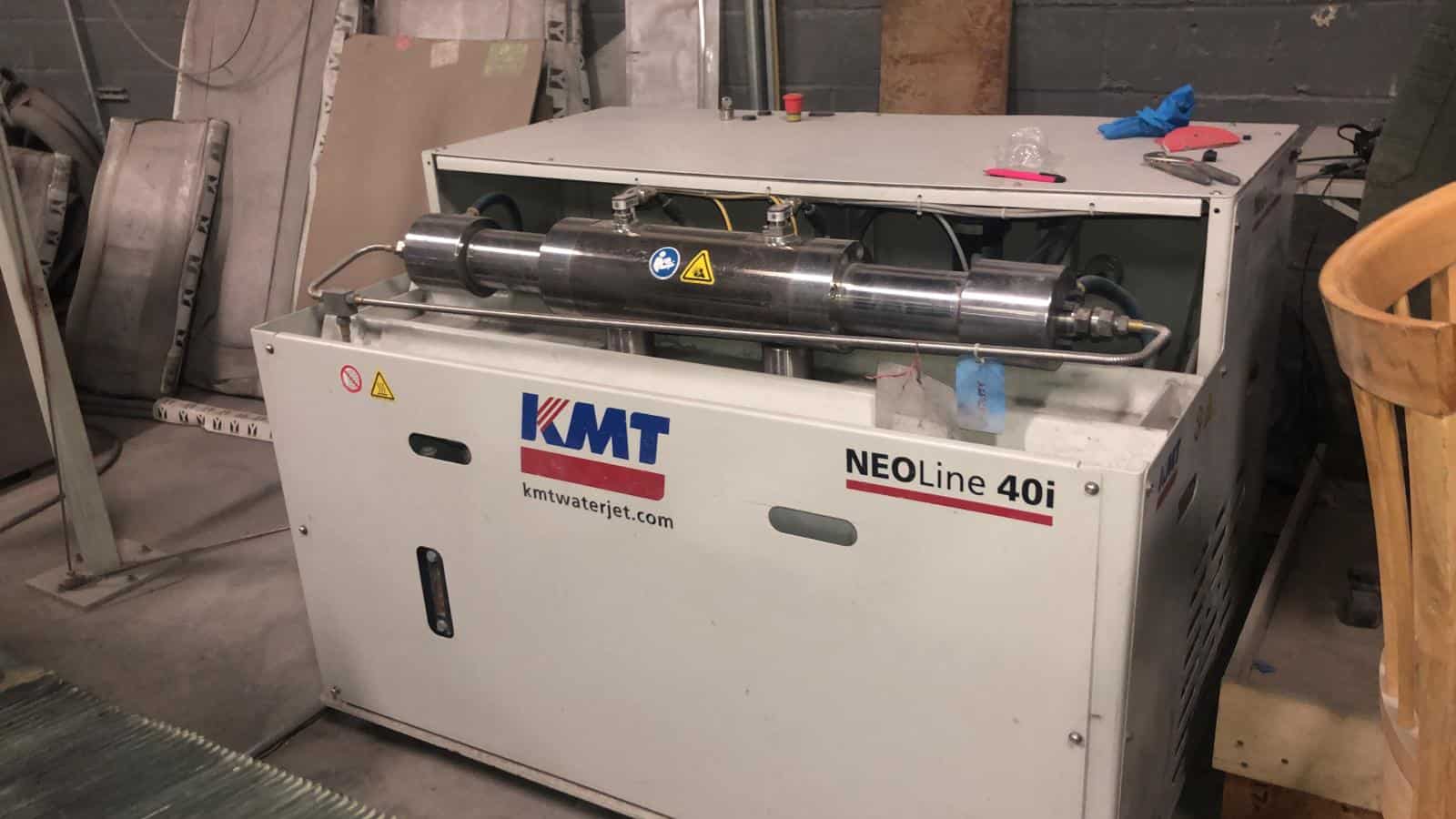

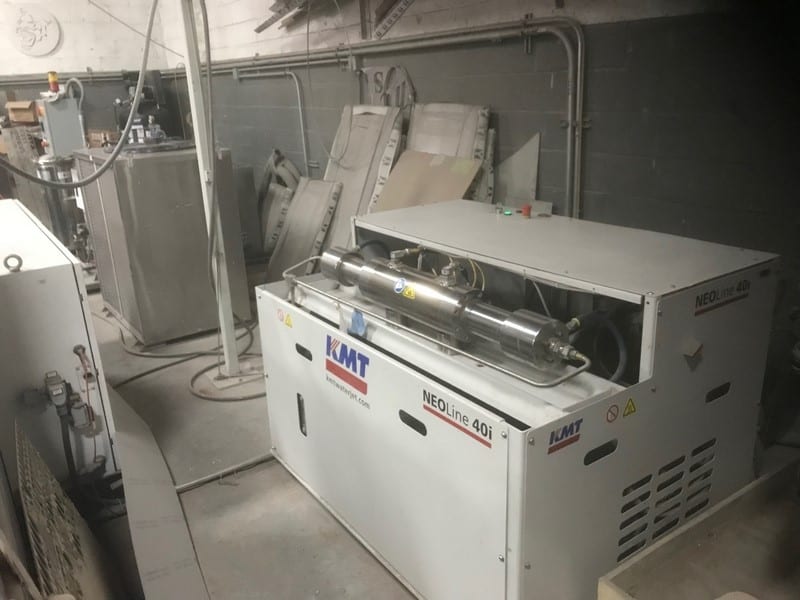

KMT Neoline 40i Intensifier Pump

Metamation CAD/CAM Software

True Shape Nesting

Ethernet Interface

USB Port
