| Year | 2012 |
|---|---|
| Make | Okamoto |
| Model | ACC-24-40CA1 |
Description |
Surface Grinder |
| Reference # | 8072800 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

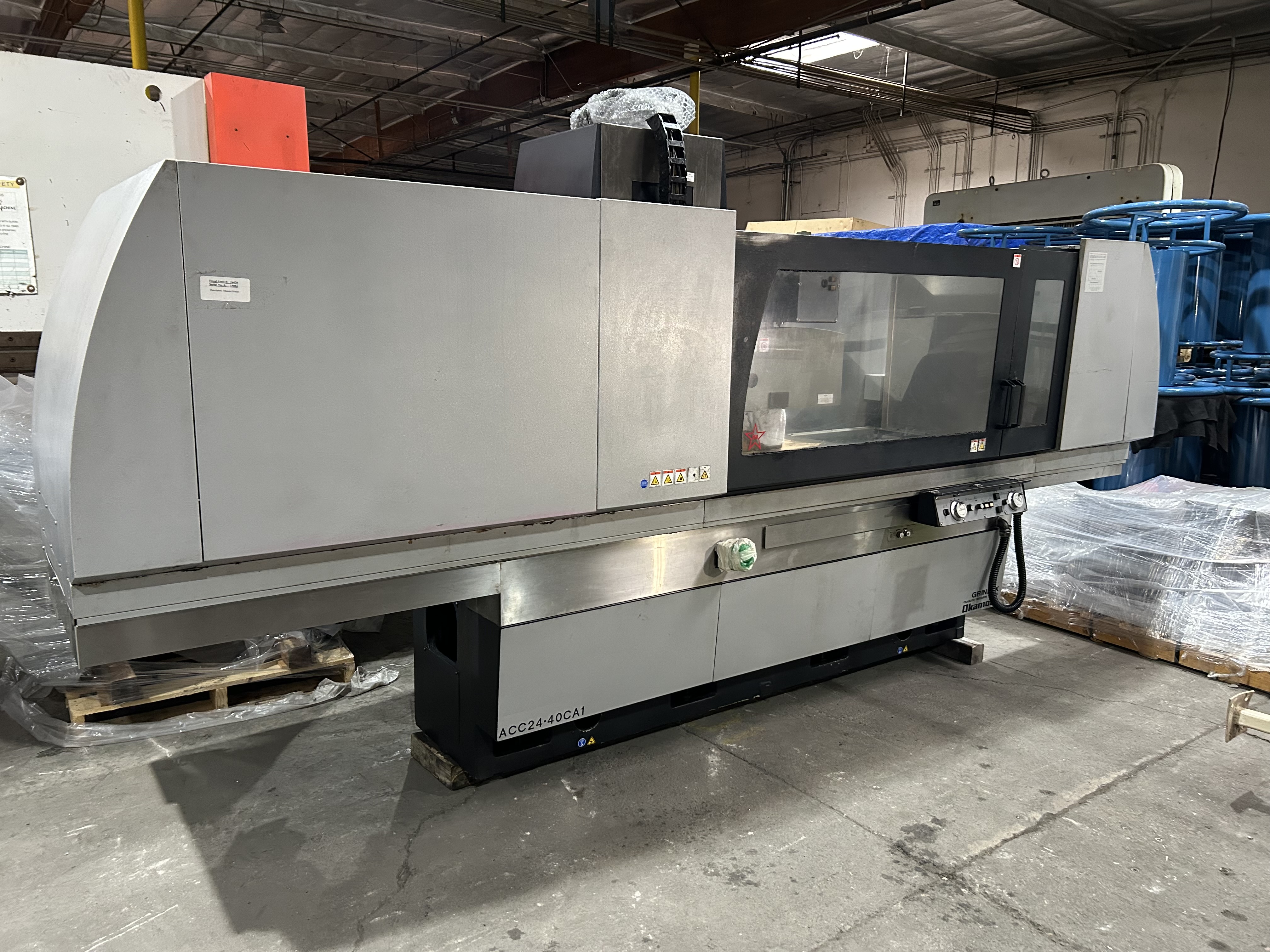

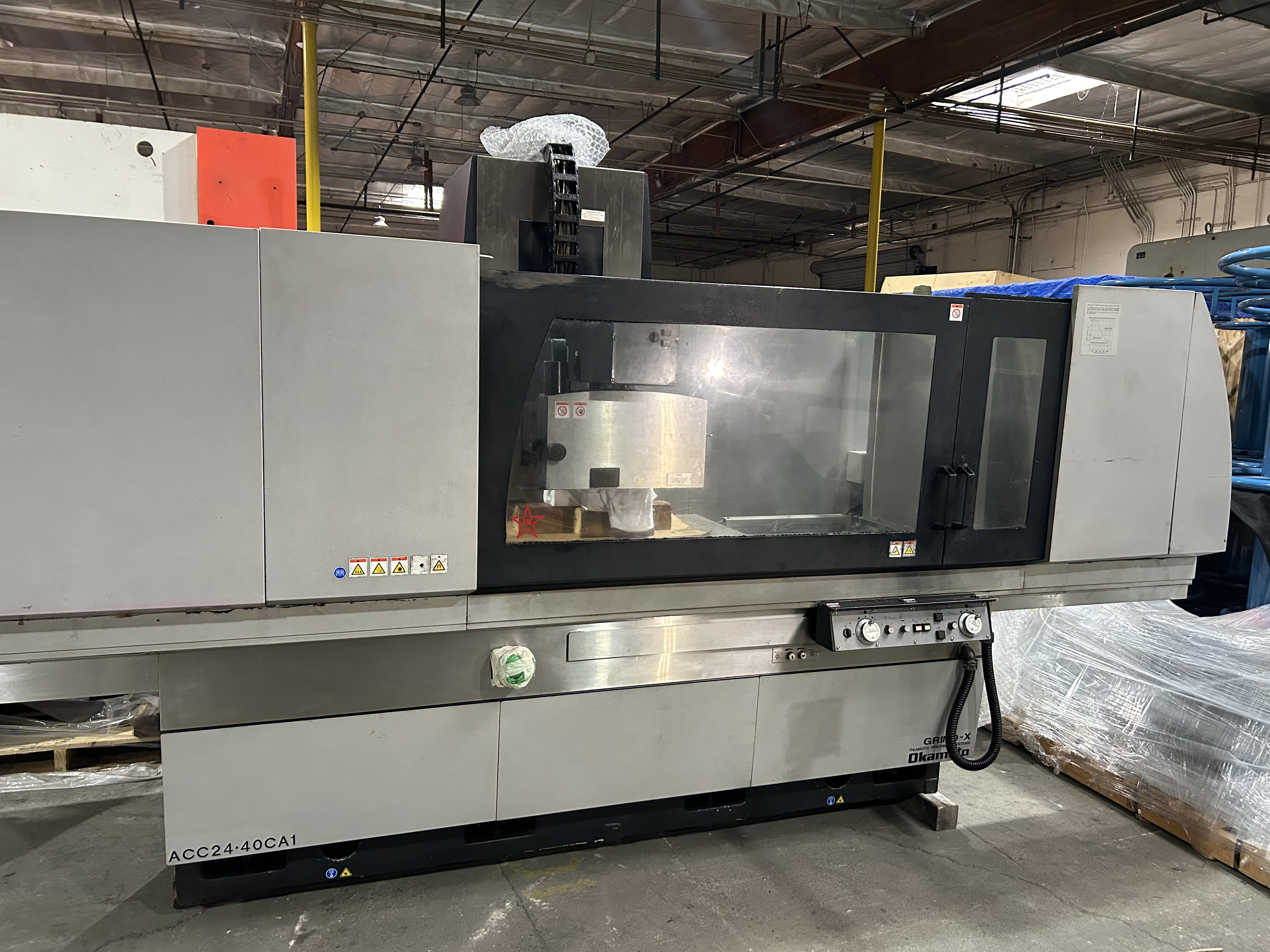

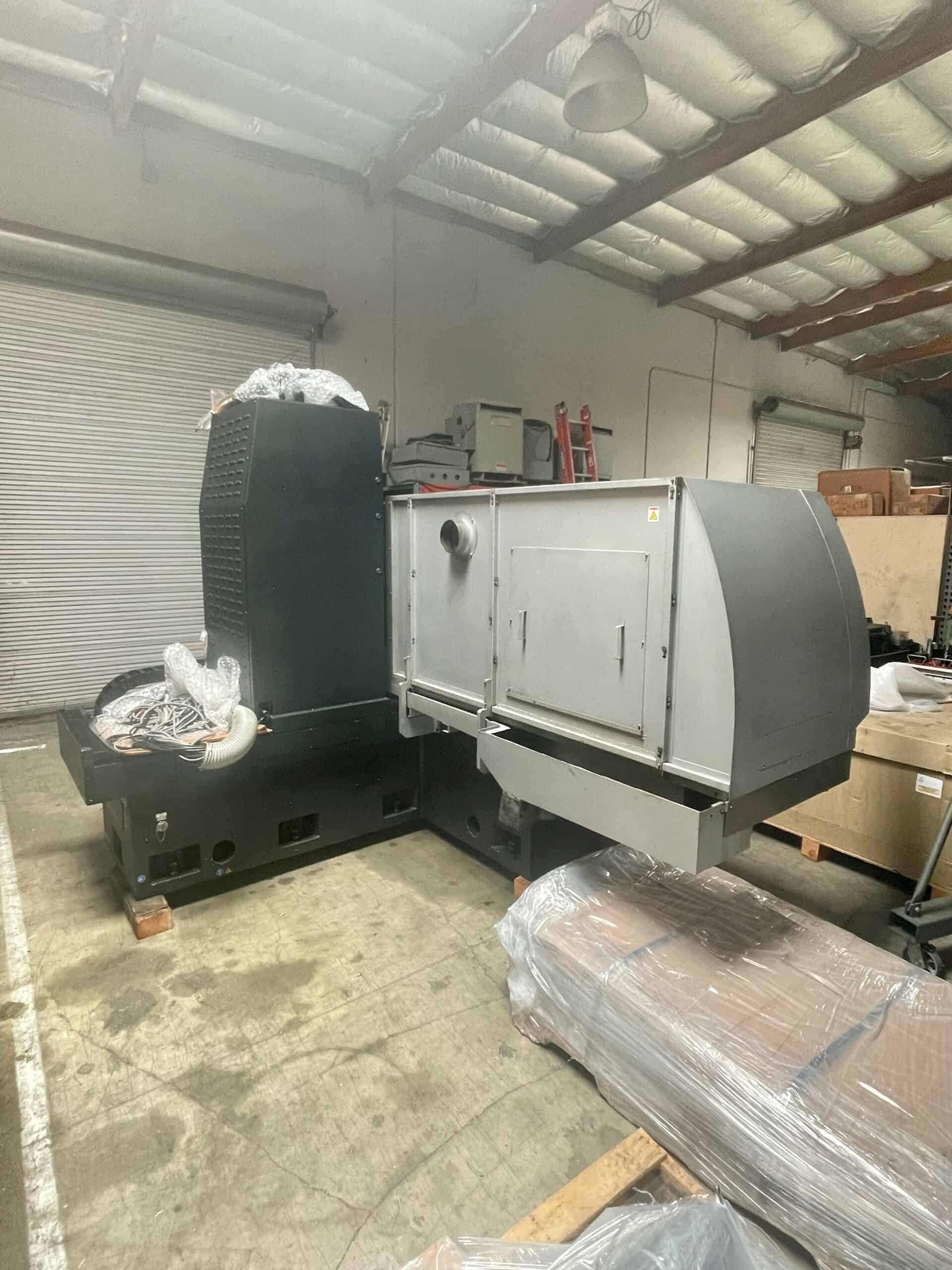

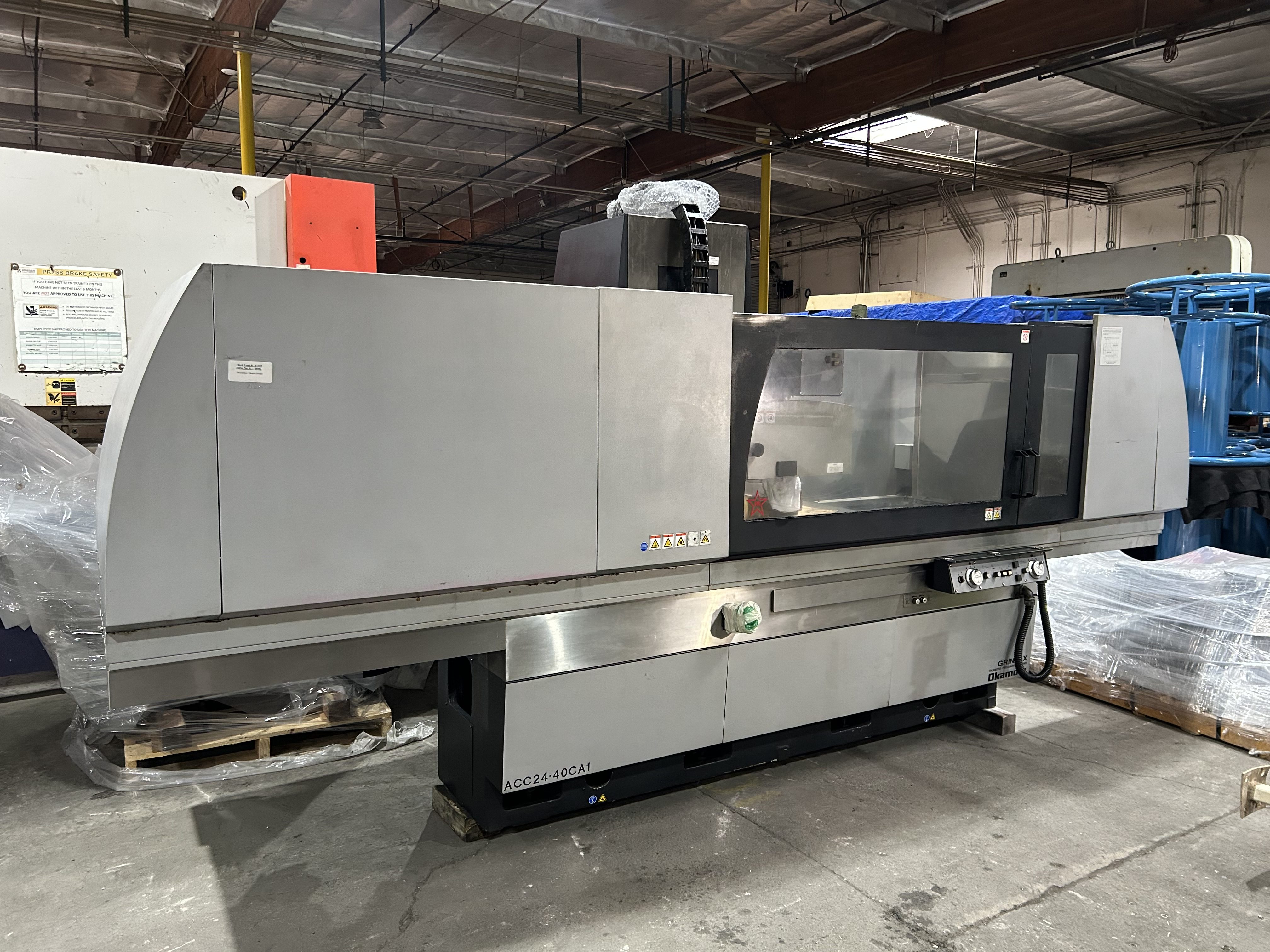

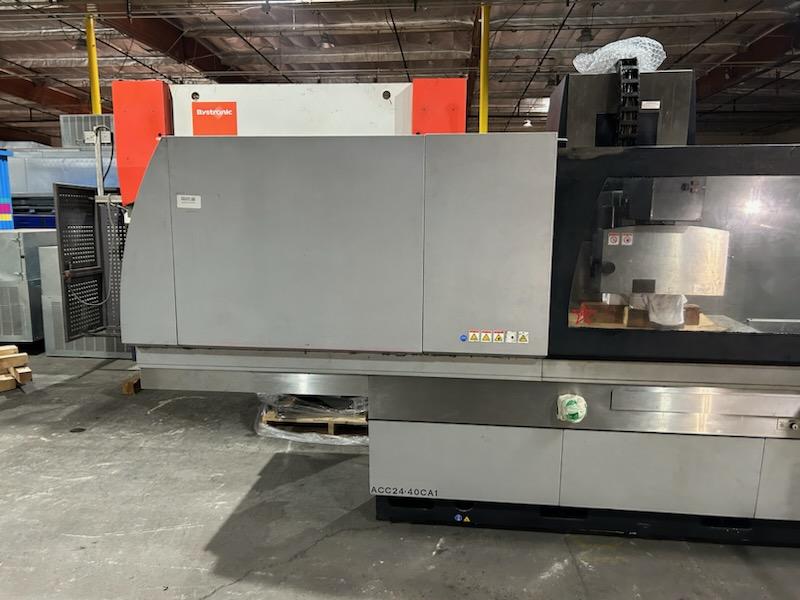

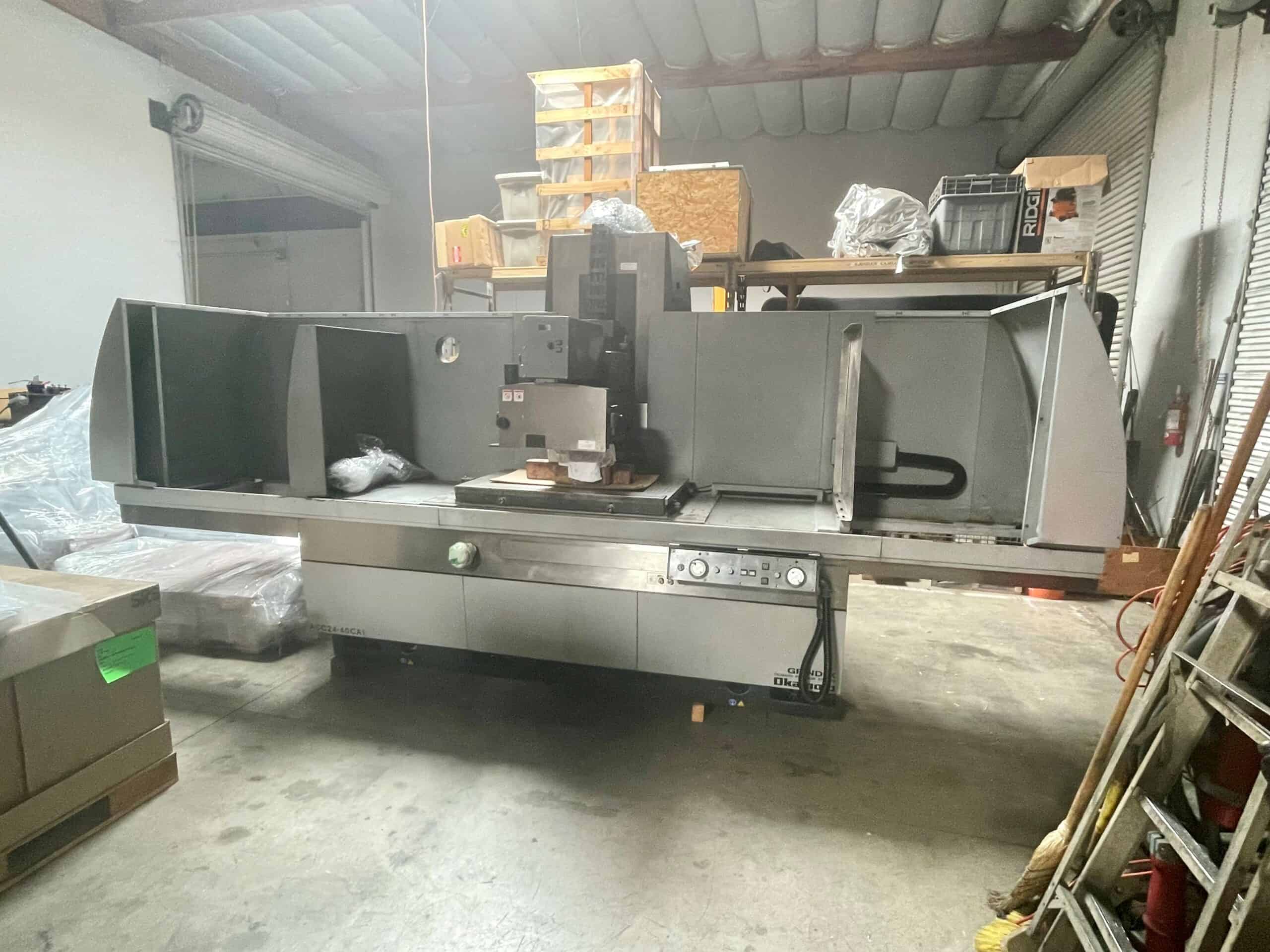

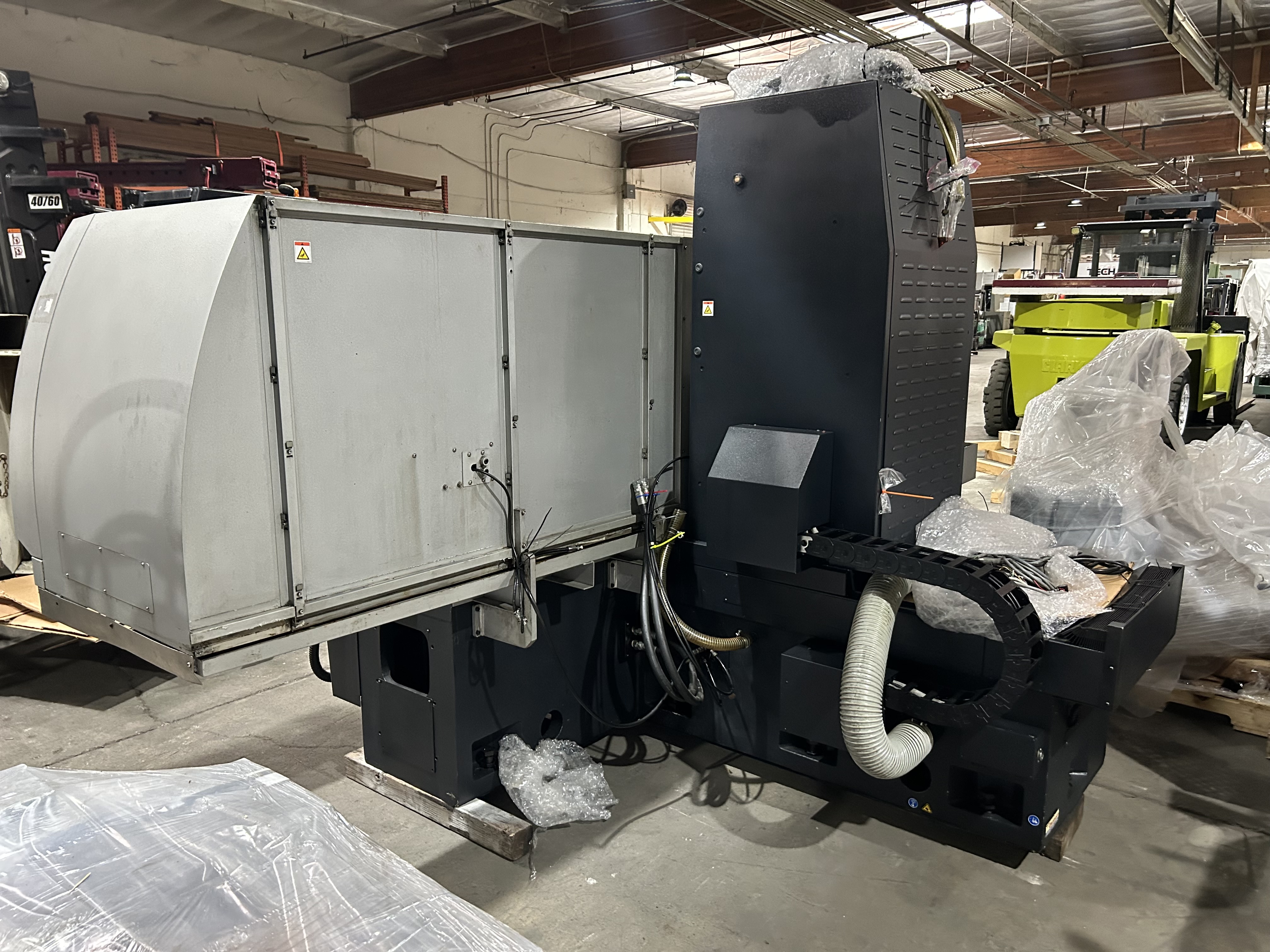

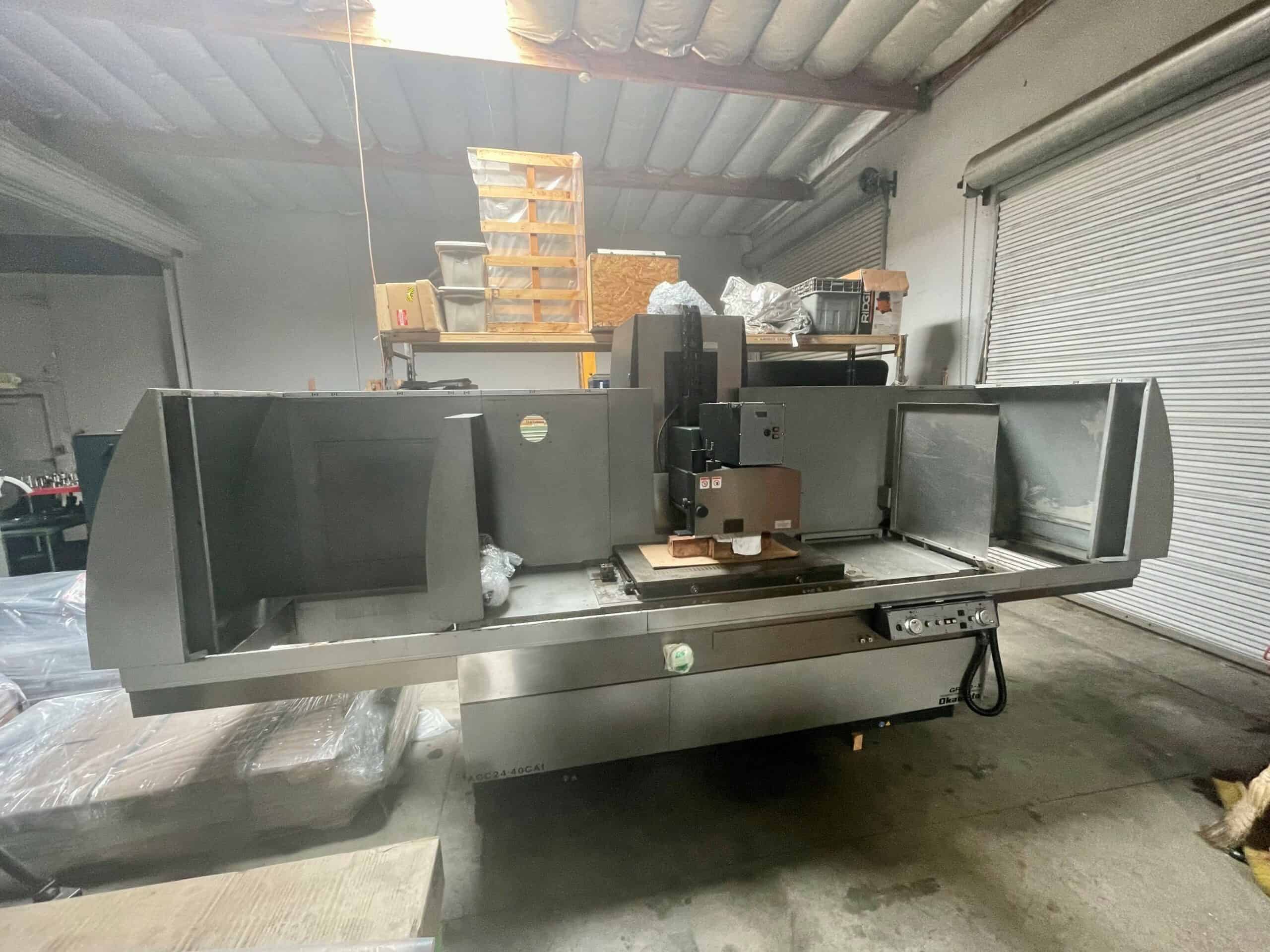

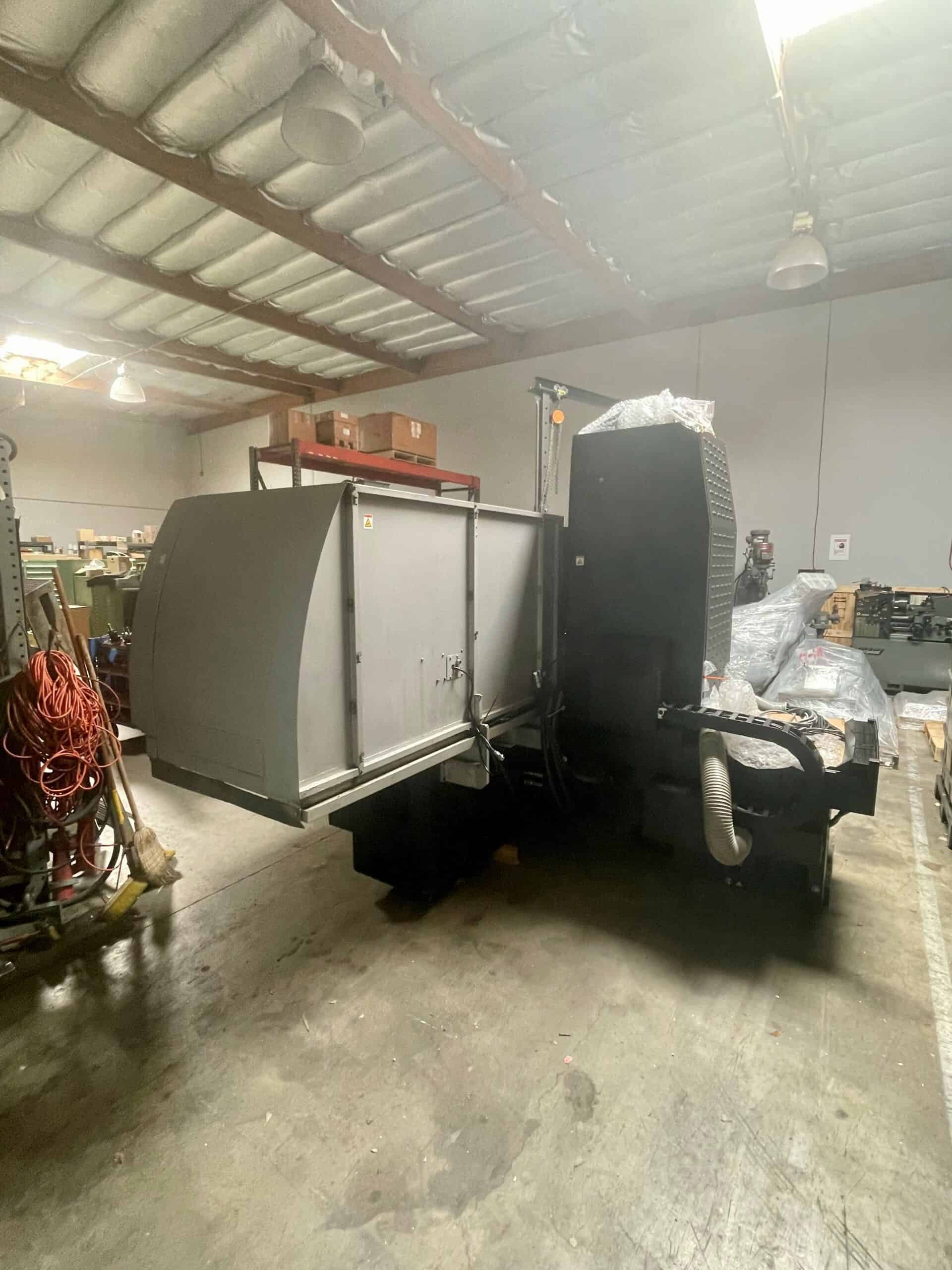

Used Okamoto ACC-24-40CA1 (2012) Surface Grinder for Sale. This pre-owned Okamoto CNC surface grinder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Okamoto Surface Grinder, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Grinding Capacity |
24" x 40" |
|---|---|
| Grinding Wheel Arbor |
5" |
| Max Longitudinal Travel |
47.2" |
| Max Cross Travel |
25.7" |
| Magnetic Chuck Size |
24 x 40 x 3.9 inch |
| Intermittent Crossfeed |
0.02 – 0.79 inch/min |
| Continuous Crossfeed Rate |
0 – 78.7 inch/min. |
| Crossfeed Per Revolution (x1, x5, x20) |
0.01, 0.05, 0.2 inch |
| Handfeed Dial Graduation (x1, x5, x20) |
0.0001, 0.0005, 0.002 inch |
| Rapid Feed Rate |
157.5 inch/min. |
| Rapid Feed Rate (Wheelhead) |
39.4 inch/min. |
| Manual Pulse Feed per Graduation (x.1, x1, x5) (Wheelhead) |
0.00001, 0.0001, 0.0005 inch |
| Manual Pulse Feed per Revolution (x.1, x1, x5) (Wheelhead) |
0.001, 0.010, 0.05 inch |
| Automatic Vertical Feed per Table Stroke |
0.00005 - 0.0015 inch (10 Settings) |
| Grinding Wheel Spindle Motor |
10 HP |
| Grinding Wheel Speed |
200 – 2500 RPM/60 Hz |
| Grinding Wheel Size |
16" x 2" x 5" (D x W x B) |
| Table Load Capacity (Including Chuck |
3,308 Lbs |
| Floor Space |
175" x 159" x 90" |
| Machine Weight |
16,530 Lbs |
| Note |
Machine Has Been Remanufactured by Okamoto Corp |
Features
|
5 HP Hydraulic Pump |
Desired Power Supply Included |
|
Electro-Magnetic Chuck |
3-Point Table Dressing Unit |
|
Automatic Dress Cycle with Wheel |
Automatic Wheel Head Approach |
|
Coolant System |
Coolant System with Paper Filter |
|
Hydraulic Oil Temperature Regulator |
Kanetsu Electro-Magnetic Chuck (Traverse Pole Type) |
|
Retraction to Start Position |
Shift Plunge Cycle |
|
Side Grinding Software |
Signal Light |
|
Wear Compensation |
