Year 2012
Make Perisco Leonardo
Model SUPER-LM-0-20/20


Rotational Molder
Reference # 8072346


Activate PricingInquire Now

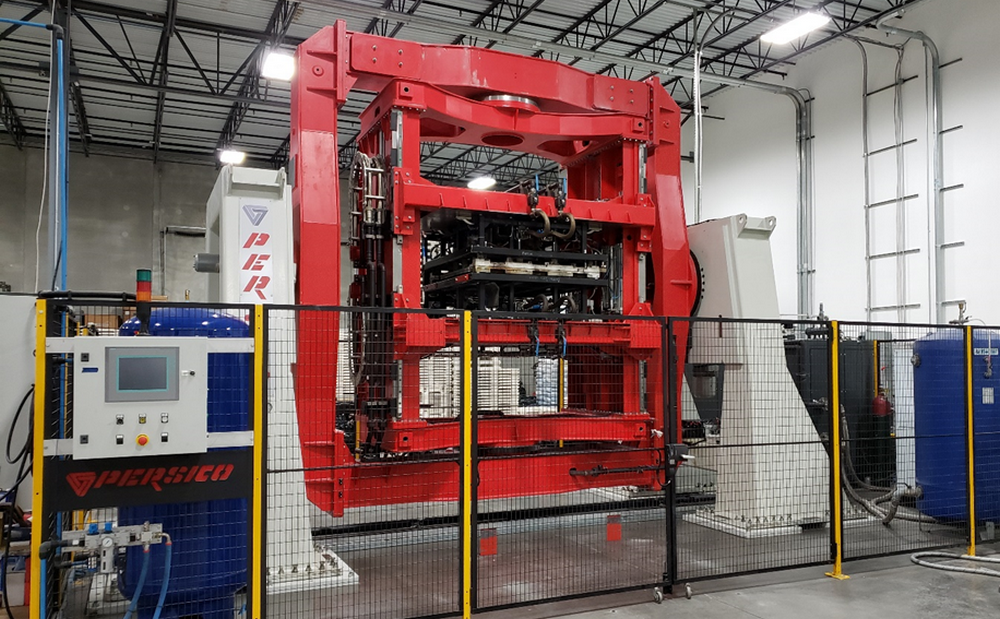

Used Perisco Leonardo SUPER-LM-0-20/20 Rotational Molder for Sale.  This pre-owned Perisco Leonardo rotational molding machine is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this Perisco Leonardo Rotational Molder, please feel free to contact us.  You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.


Max Mold Size Capacity

78.74" x 78.74" x 39.37"

Max Mold Weight

4409 lbs


Siemens S7 1500 PLC

Electrical Requirements

400 VAC / 60 Hz / 24A / 15 KW

Machine Footprint

24’5” x 11’

Enclosure Footprint

31’7” x 21’2”


The machine swings on 2 axis (vertical approx. 25 to 30 feet and horizontal approx. 18 to 20 feet) at the same time, one inside the other. It also comes with a heat exchanger and a TWK thermal fluid boiler - approximate Footprint: 13’4” x 4’4”, and there is also the fencing system and hyper chiller.

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
