| Year | 2012 |
|---|---|
| Make | Sumitomo |
| Model | SE180DUZ-C360 |
Description |
180 Ton 4.4 oz Shot Size Electric Injection Molding Machine |
| Reference # | 8074599 |
Price |
Activate PricingInquire Now |
Used Sumitomo SE180DUZ-C360 (2012) Injection Molding Machine for Sale. This pre-owned Sumitomo plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Sumitomo Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
180 Ton |
|---|---|
| Shot Size |
4.4 oz |
| Tie Bar Spacing |
22.04" x 20.07" |
| Platen Size |
28.34" x 26.38" |
| Max Daylight |
32.48" |
| Min /Max Mold Height |
7.08"/17.72" |
| Ejector Stroke |
3.93" |

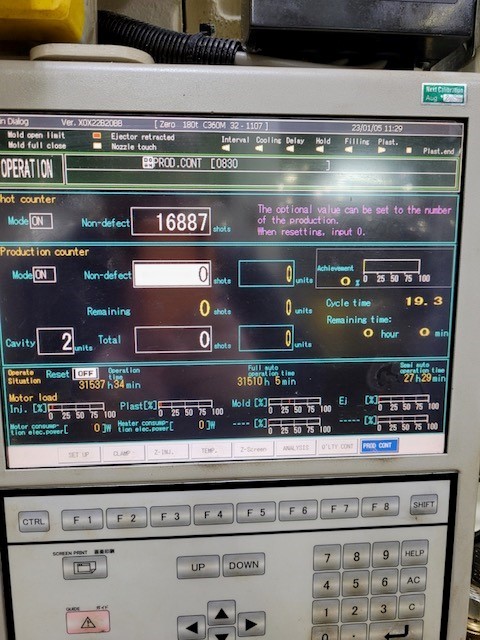

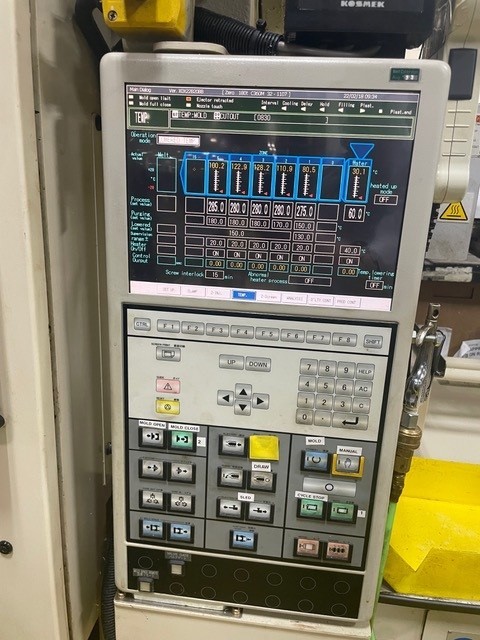

| Control |
Sumitomo |
| Weight |
10,800 Lbs |
| Dimensions |
198" L x 48.5" x 79.68" |
| Note |
(3) Machines Available, Price Per Machine |
Features
|

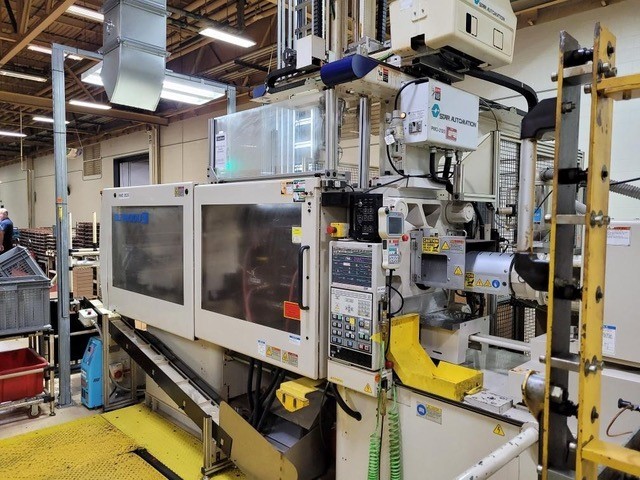

Includes 2012 Star Robot TWS-800VI-380 5-Axis Servo Robot |
JIS Platens And Knock-Out Pattern |
|
Z Wear Screw Wexco 777 Barrel |
Core Pull |
|
Air Blow |
Robot Interface |
|
SPI Robot Interface (Euromap 67) 50-Pin |
Under Power |
