| Year | 2012 |
|---|---|
| Make | Tauring |
| Model | Alpha 200 |
Description |
Angle Roll |
| Reference # | 8073478 |
Price |
Activate PricingInquire Now |

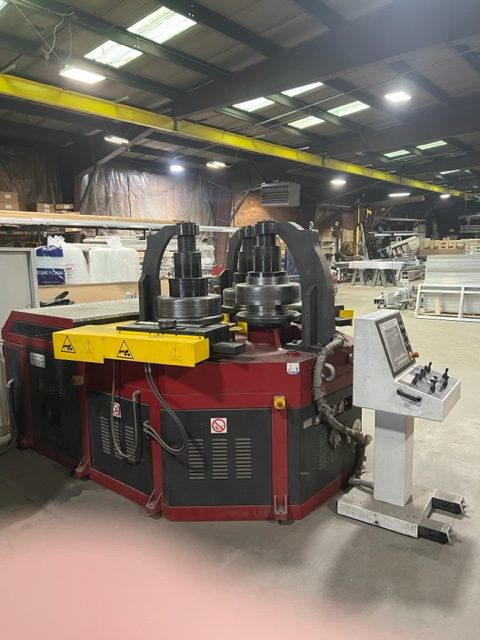

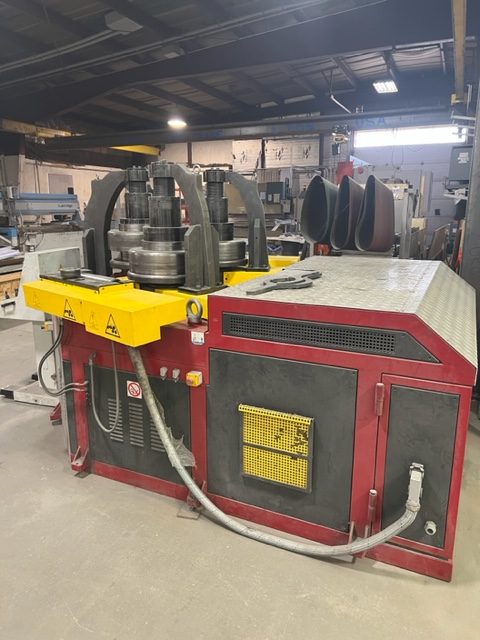

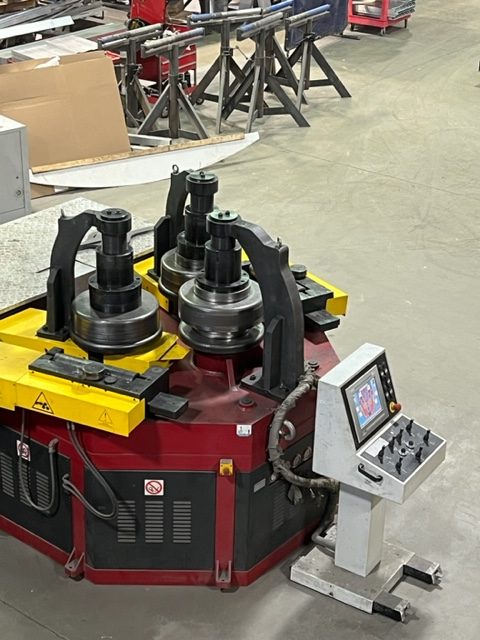

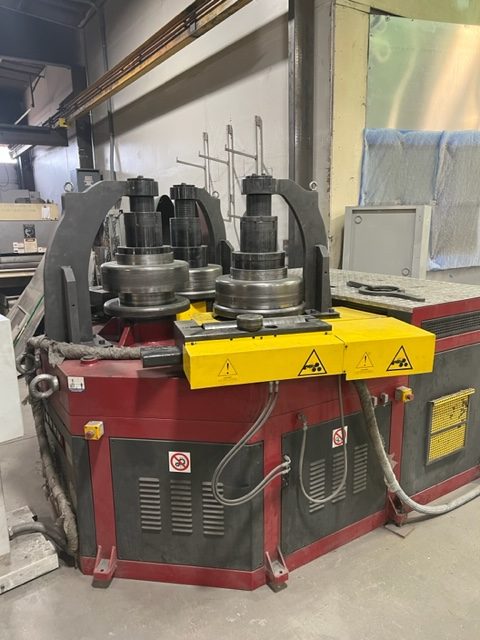

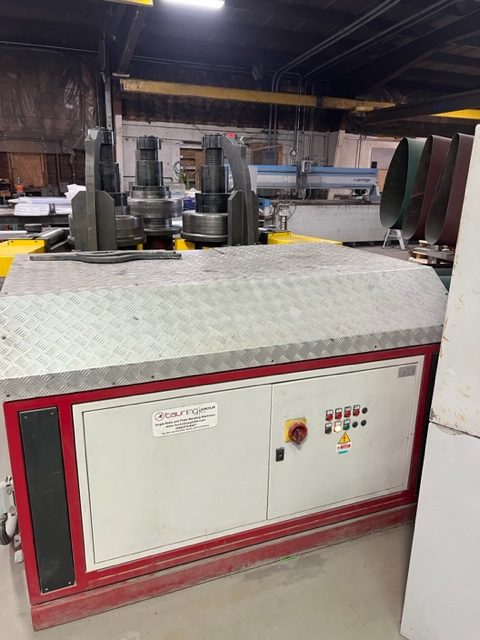

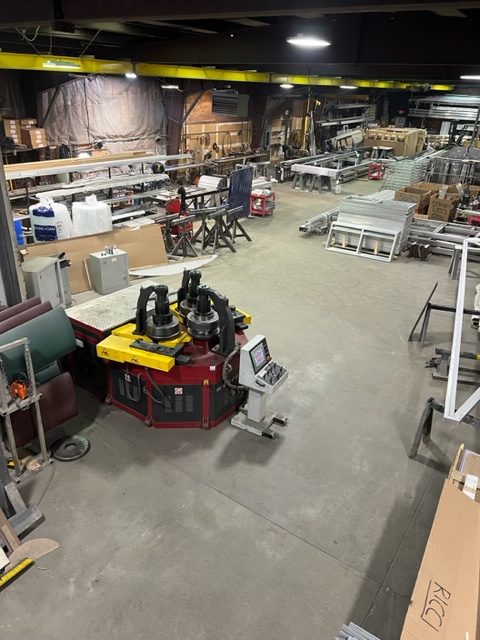

Used Tauring Alpha 200
Specifications
| Round Tube - Size |
10.75" x 0.5" |
|---|---|
| Square Tube - Size |
10" x 10" x .40" |
| Square Tube Min. Radius |
80" |
| Flat Bar (Hard Way) - Size |
10" x 2.3 / Min. Radius: 32" |
| Angle (Leg Out) - Size |
.8" x 7.8" x 0.78" |
| Angle (Leg Out) Min. Radius |
78" |
| H Beam - Size |
IPE 330 / Min. Radius: 75" |
| Round Tube Min. Radius |
87" |
| Shaft Diameter |
19.29" |
| Standard Shaft Working Length |
15.75" |
| Shaft Revolutions Per Minute |
7.1 RPM |
| Motor |
24.1 HP |
| Voltage |
230 Volt/3 Phase/60Hz |
| Driven Rolls |
3 |
| Universal Tool Set |
1 |
| Machine Dimensions |
41" W x 61" L x 74" H |
| Machine Weight |
22,046 Lbs |
Features
|
Hydraulic Roll Adjustment |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
