| Year | 2012 |
|---|---|
| Make | Tsugami |
| Model | B0385L |
Description |

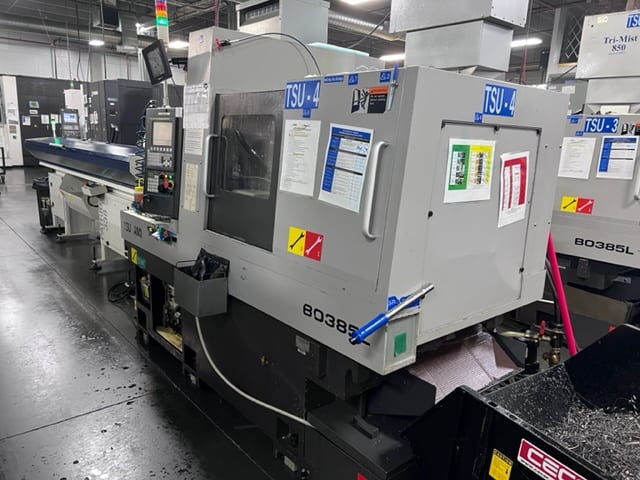

CNC Swiss Lathe |
| Reference # | 8071750 |
Price |
Activate Pricing |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Used Tsugami B0385L (2012) CNC Swiss Lathe for Sale. This pre-owned Tsugami CNC swiss lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Tsugami Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Bar Capacity |
1.26" |
|---|---|
| Spindle Speed |
6,000 RPM |
| Control |

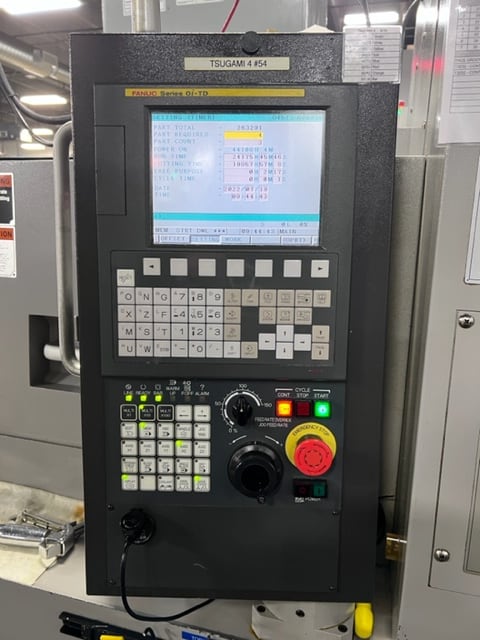

Fanuc Oi-TD |
| Working Barstock Diameter |
8 to 32 mm |
| Max Machining Length |
100 mm |
| Max Main Spindle Drilling Diameter |
13 mm |
| Max Main Spindle Tapping Diameter |
M12 |
| Max Back Spindle Chucking Diameter |
38 mm |
| ax Back Spindle Drilling Diameter |
12 mm |
| Max Back Spindle Tapping Diameter |
M12 |
| Max Cross Drilling Diameter |
10 mm |
| Max Cross Tapping Diameter |
M8 |
| Max Tool Spindle Slotting Cutter Diameter |
45 mm |
| Main Spindle Speed |
200 to 6000 RPM |
| Back Spindle Speed |
200 to 7000 RPM |
| Tool Spindle Speed |
200 to 5000 RPM |
| Rapid Traverse Rate |
45 m/min (X1, Y1) Z1: 24m/min (X2: 32m/min) |
| Main Spindle Motor |
10 / 15 HP |
| Chip Removal |
Chip Conveyor |
| Machine Dimensions |
10,200 Lbs |
| Machine Weight |
99” x 53” x 78” |
Features
|
Fire Suppression System |
Parts Catcher |
|

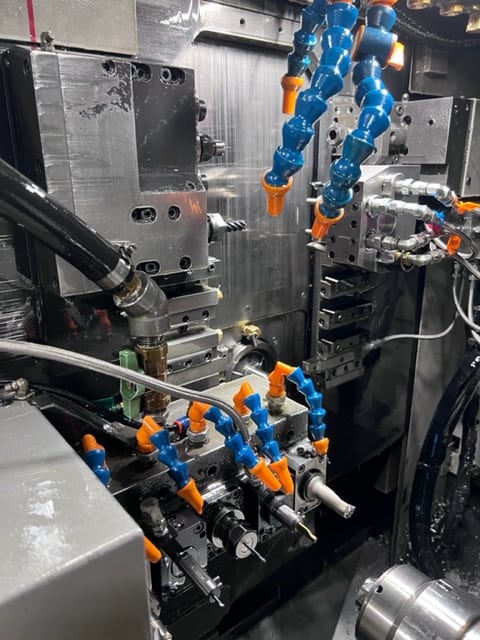

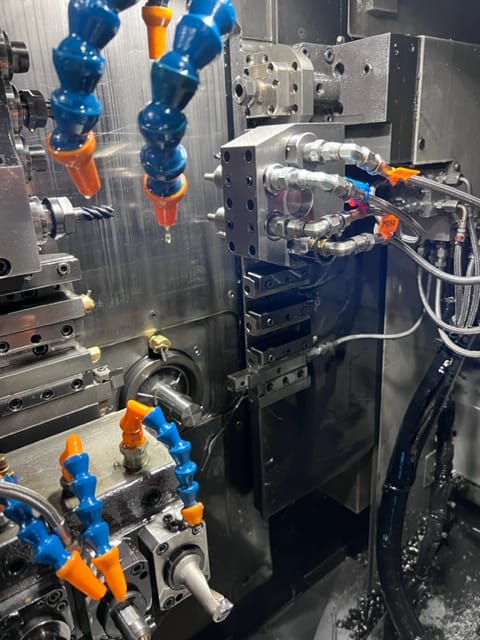

Sub Side Driven Spindle Tool Post |
5-Axis |
|
Tri-Mist 850 Mist Collector |
All Available Static and Live Tool Holders |
|

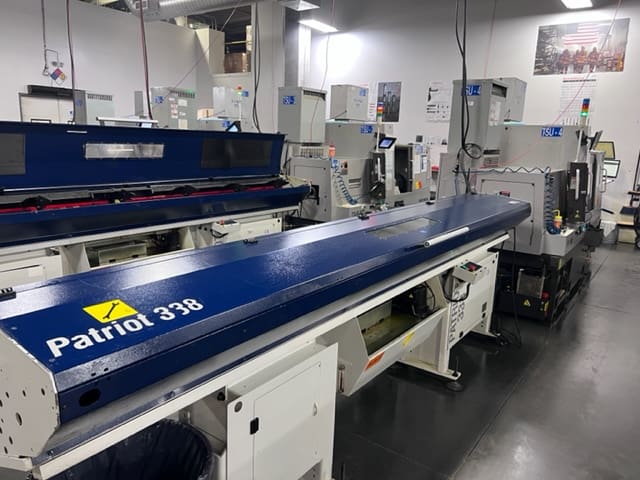

Edge Patriot 338 Bar Feeder |

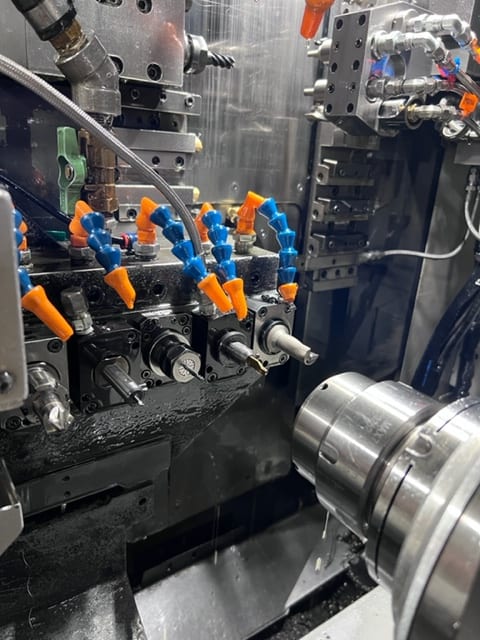

Main & Sub Spindle Collet Type Chuck Units |
|

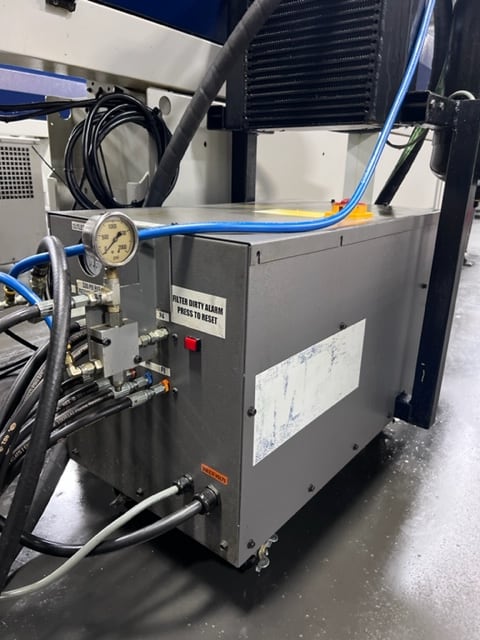

MP Systems High Pressure Coolant Pump |
