Year 2013
Make Flow
Model Mach 3 1313b

Description

4.2' x 4.2' XD Head CNC Waterjet
Reference # 8070972

Price

Activate PricingInquire Now

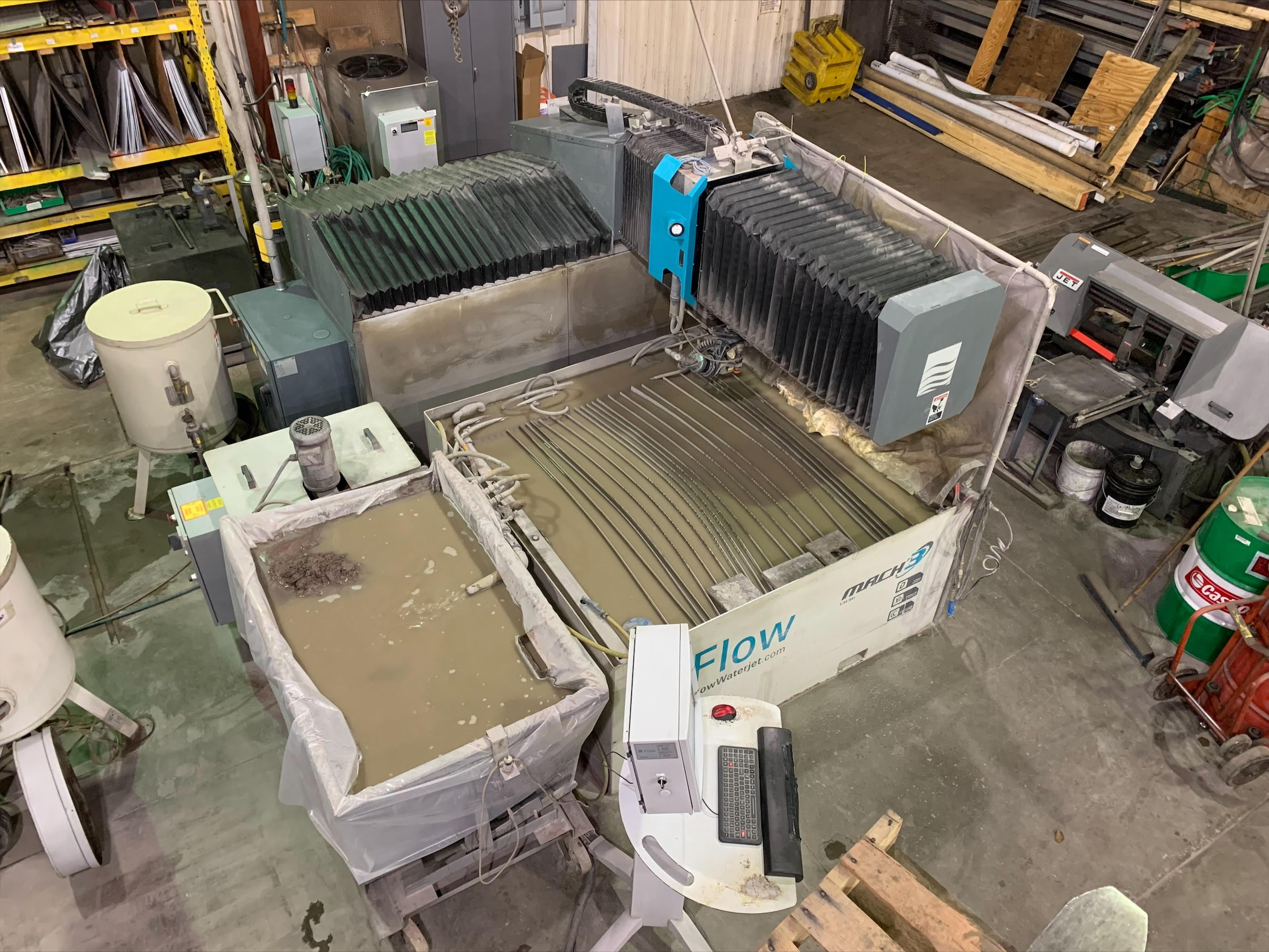

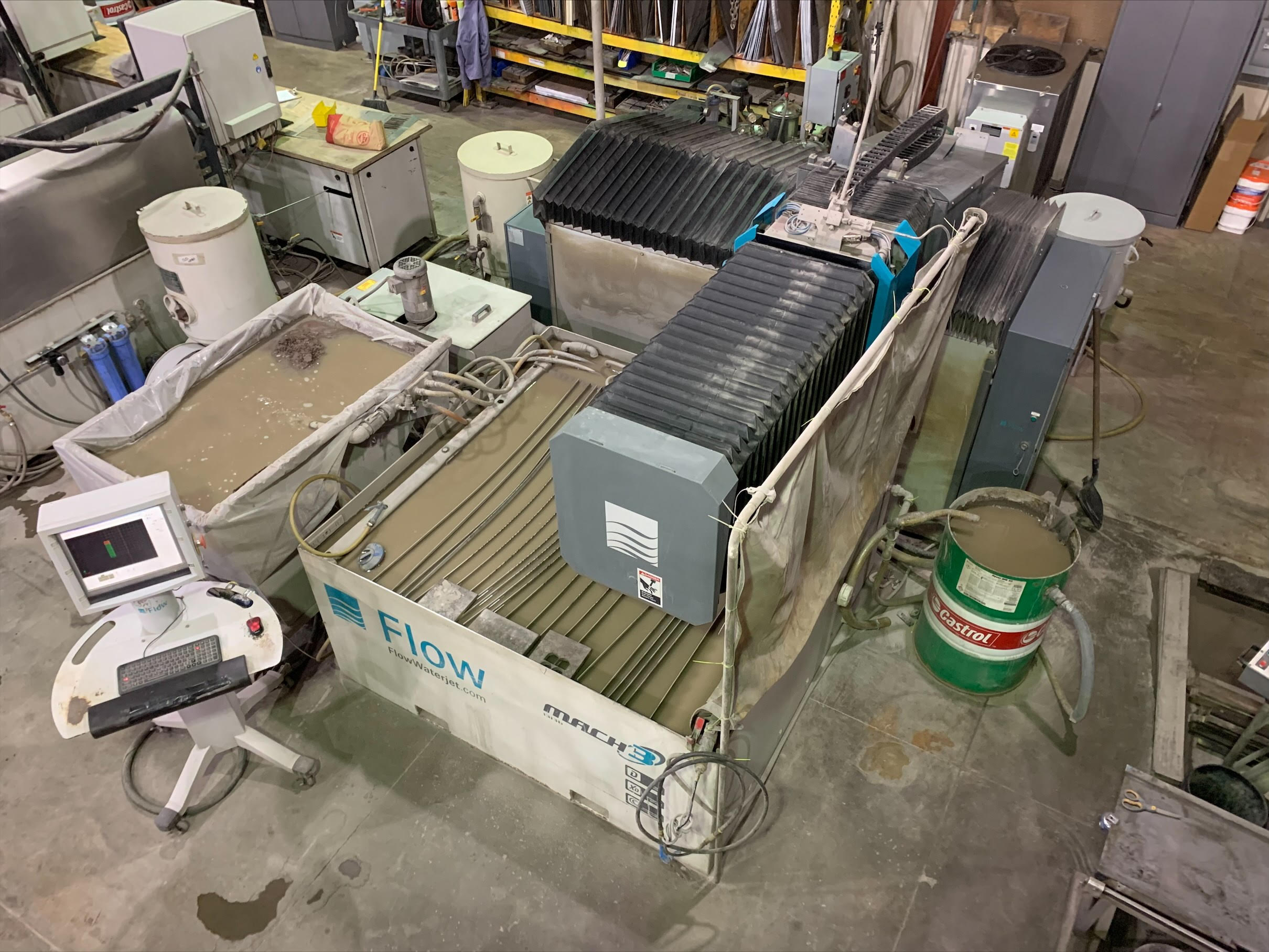

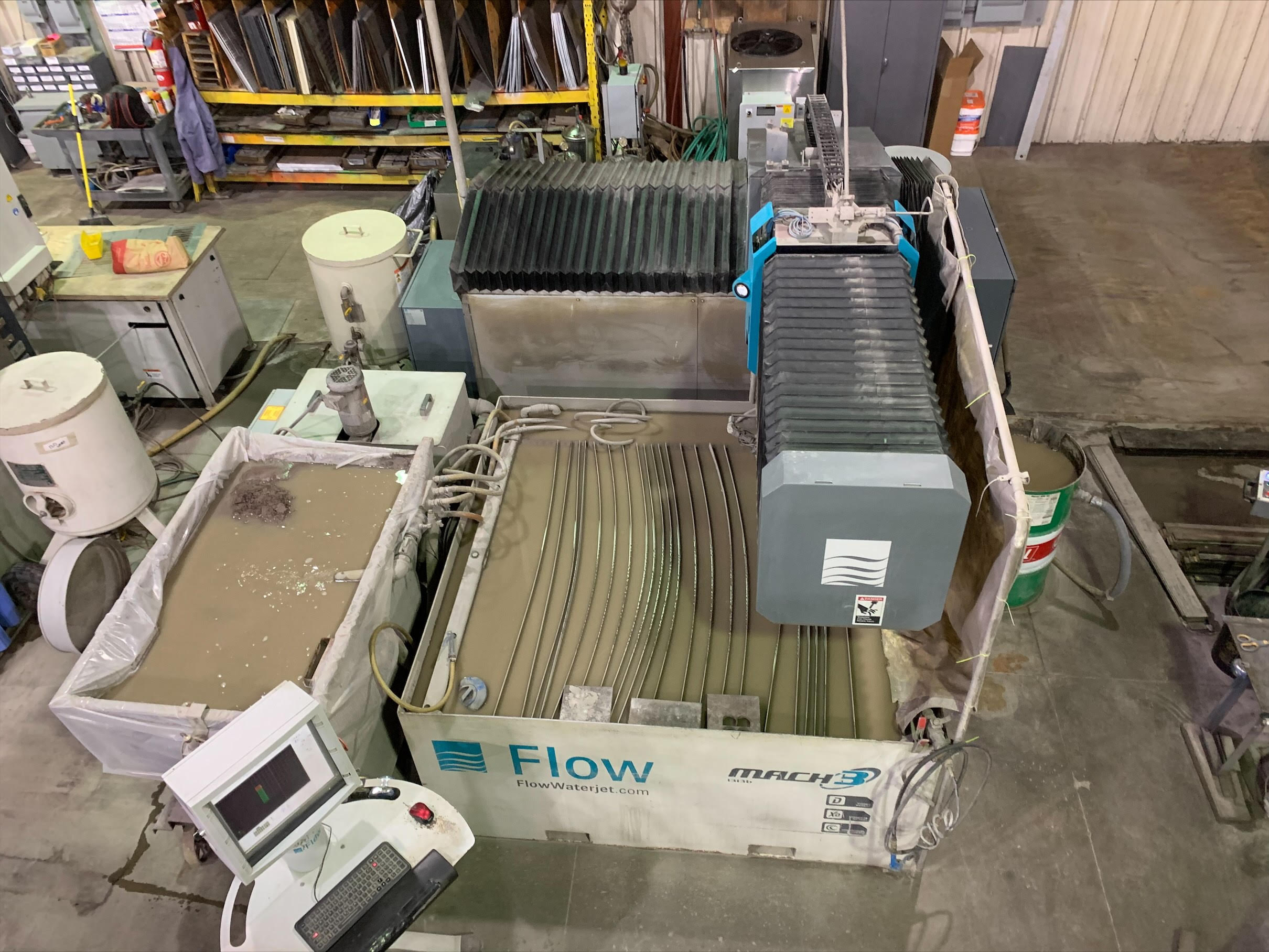

Used Flow Mach 3 1313b (2013) CNC Waterjet for Sale.  This pre-owned Flow CNC waterjet is located in Ohio.  If you have any questions regarding this Flow Waterjet, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Table Width

4.2'

Table Length

4.2'

Control

Flowmaster Expert

Pump

50 HP

Max Cutting Pressure

60,000 PSI

Power Requirement

460-480/3/60

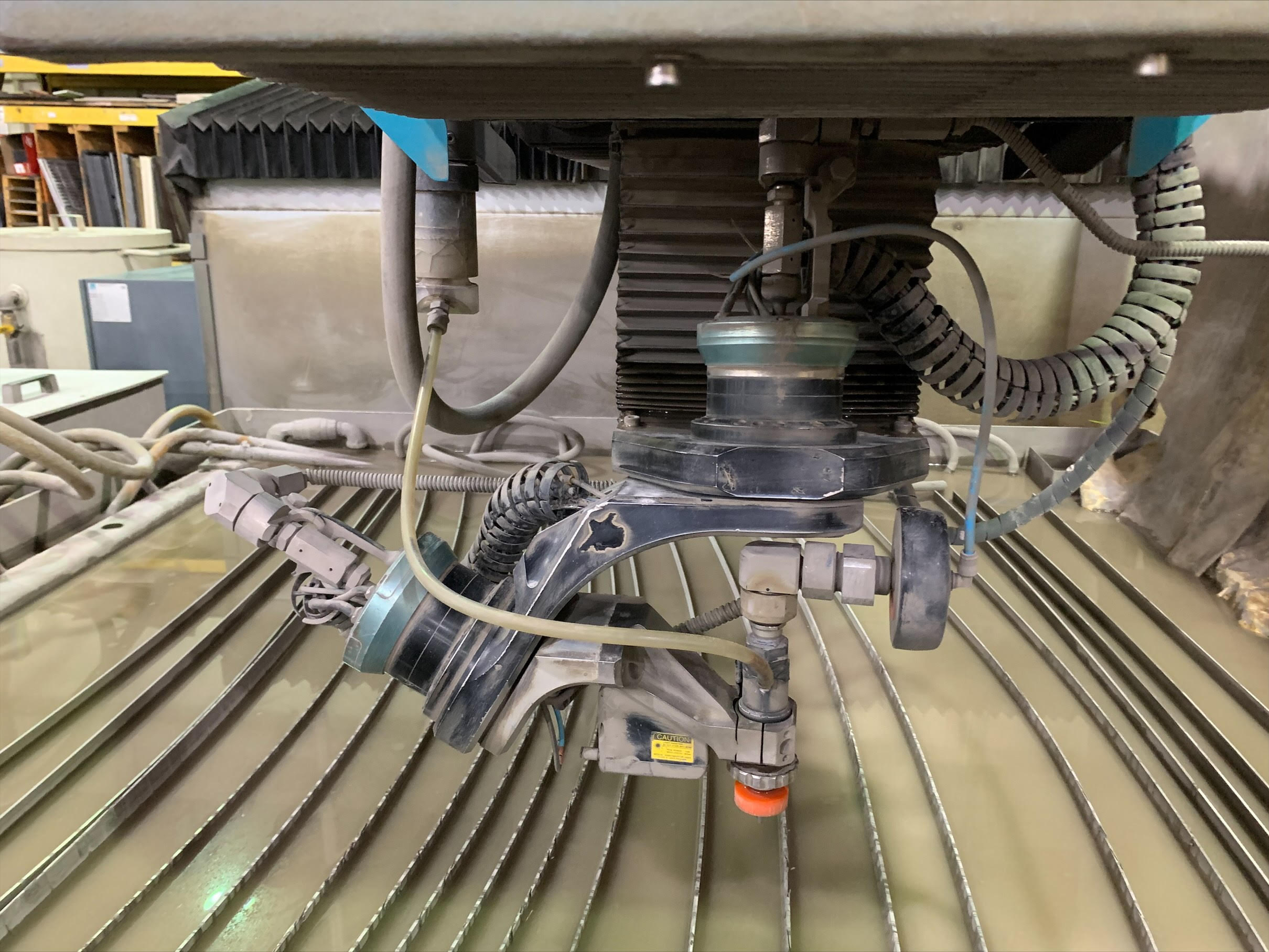

5-Axis XD Head

+/- 60 Degrees

Z-Axis Servo Driven

7"

Linear Positioning Accuracy

+/- .003

X and Y Repeatability

+/- .002

Rapid Speed

500 IPM

Note

Machine Not Available Until May-June

Features

3D Cutting

3D Drawing in Z Plane

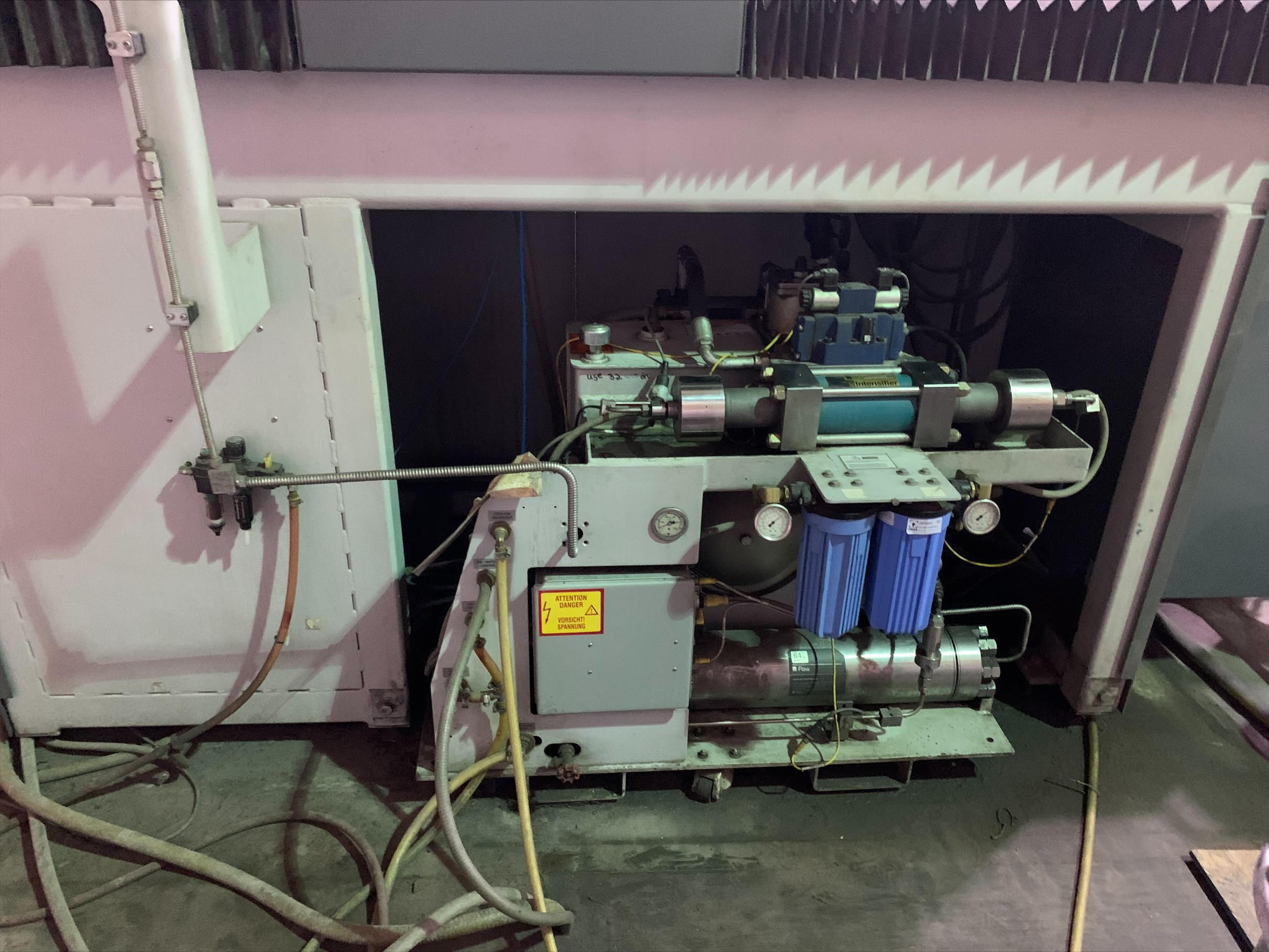

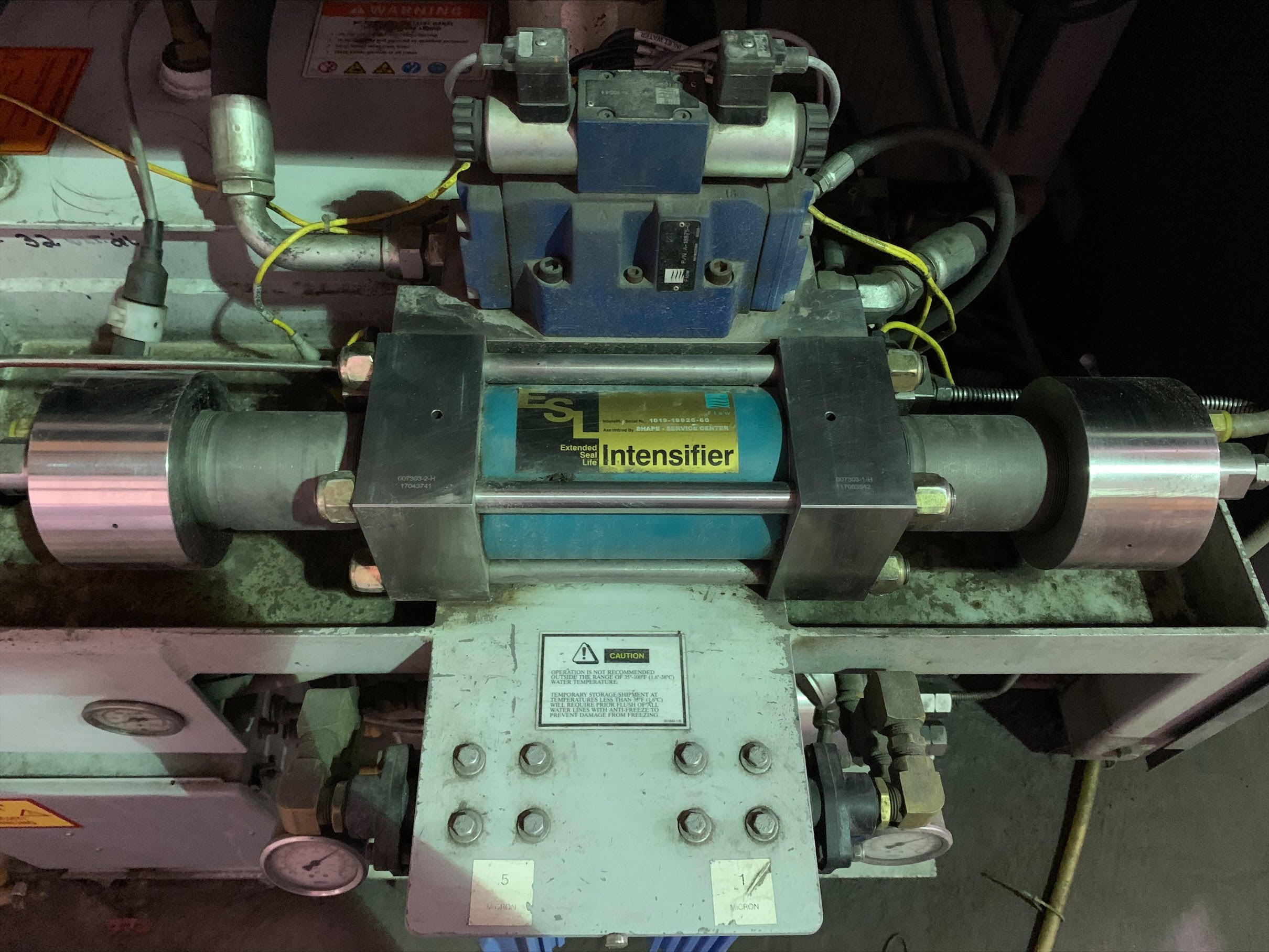

50iS Intensifier Pump

All AC Servo Driven Ballscrews

Easy to Use CAD Drawing and Editing Tools

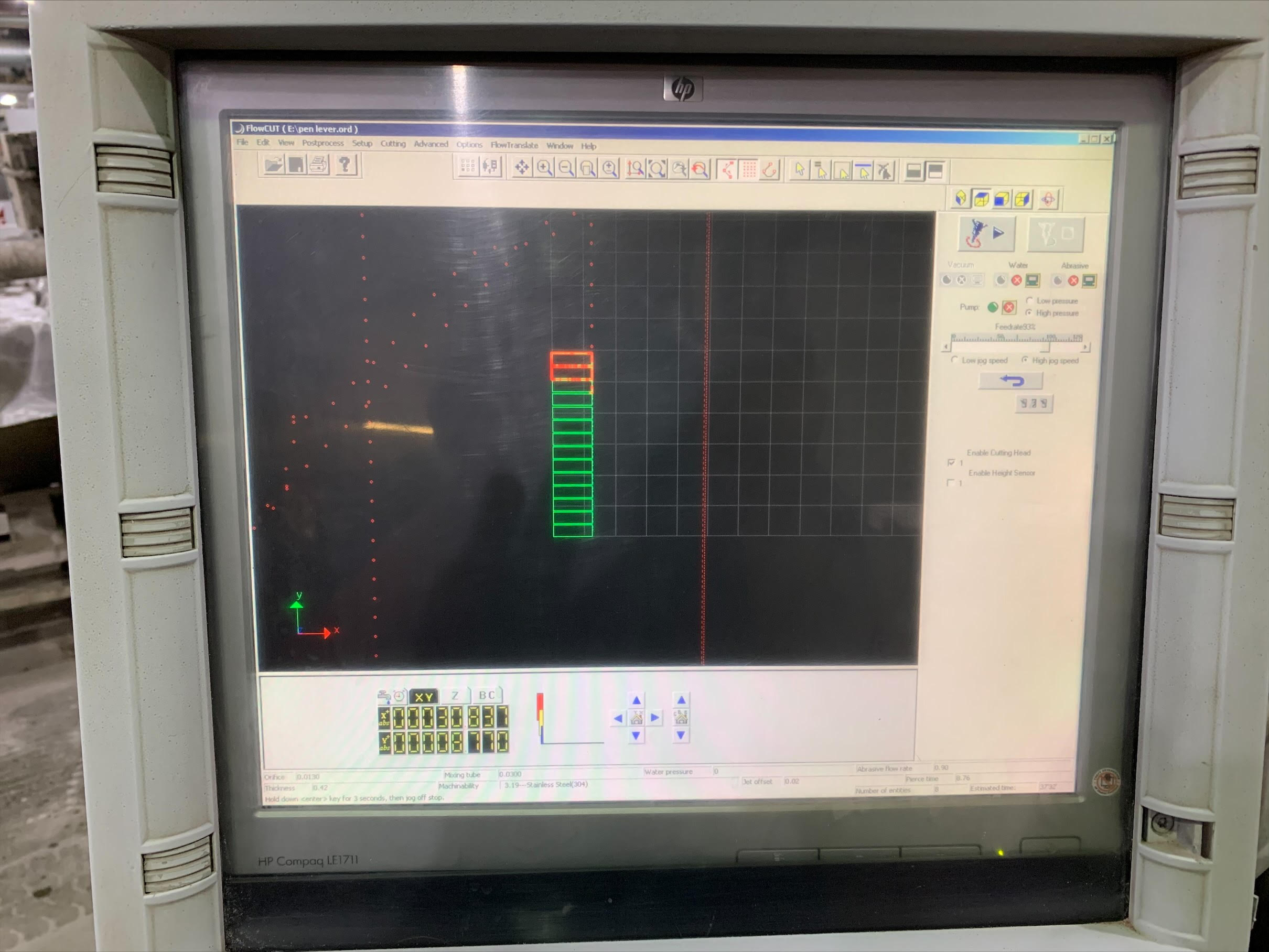

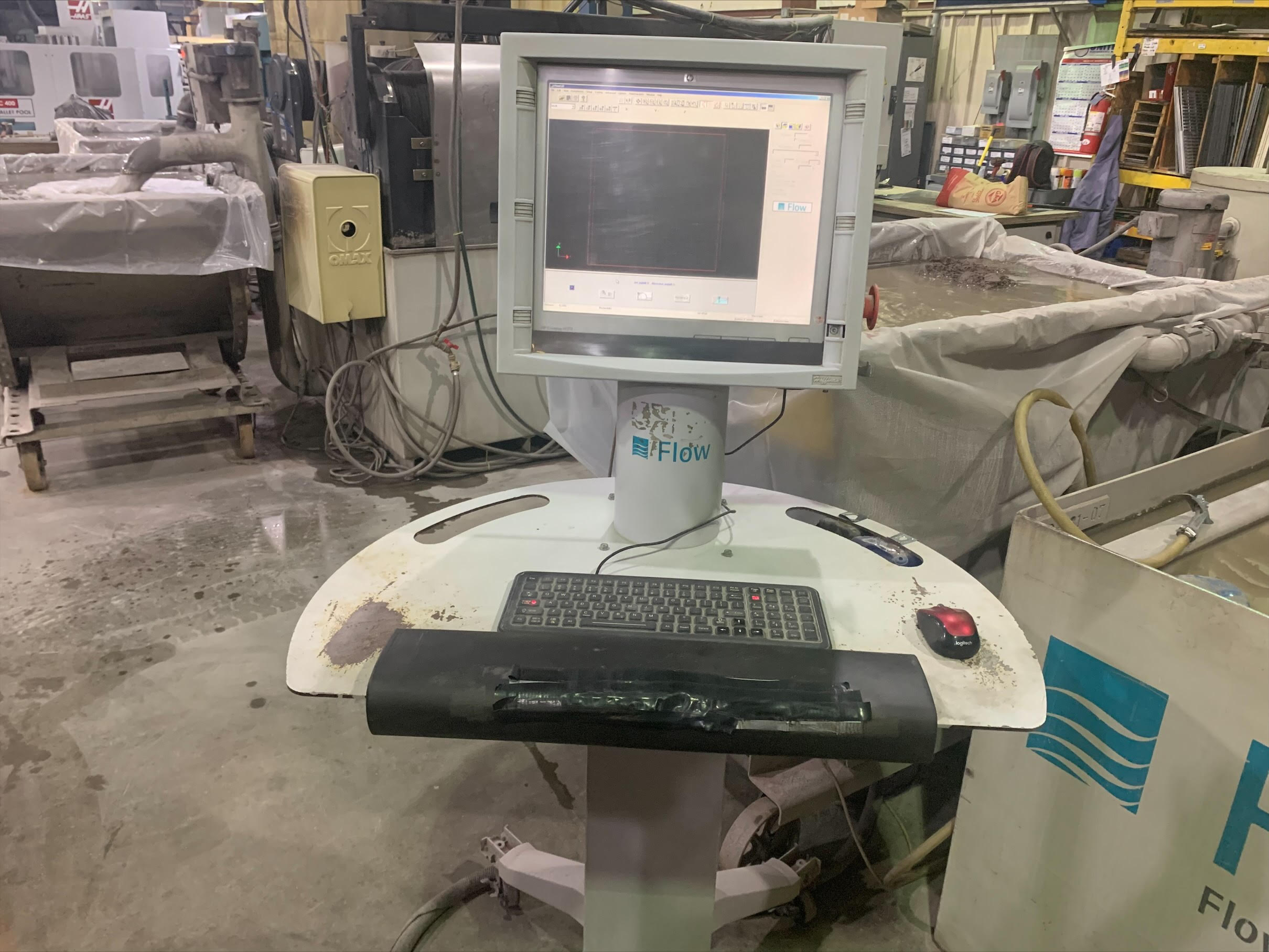

Flowmaster Windows Based PC Controller

Imports Industry Standard DXF/DWG/IGS/CADKEY/CDL/HPL Files

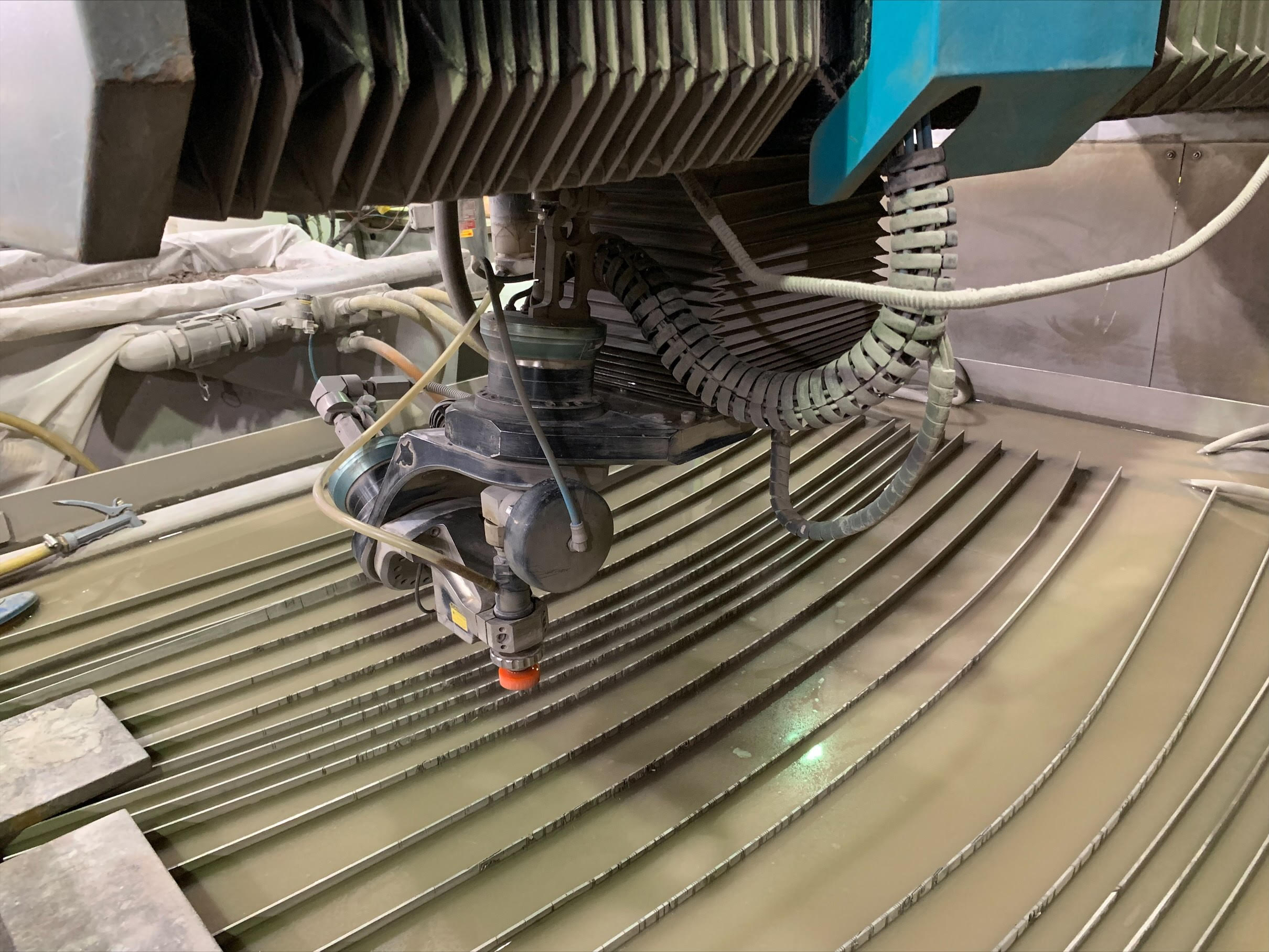

Paser ECL Cutting Head

Pneumatically Powered & Manually Controlled Dramatic Increase in Cutting Cleanliness

Waterveyor Garnet Removal System

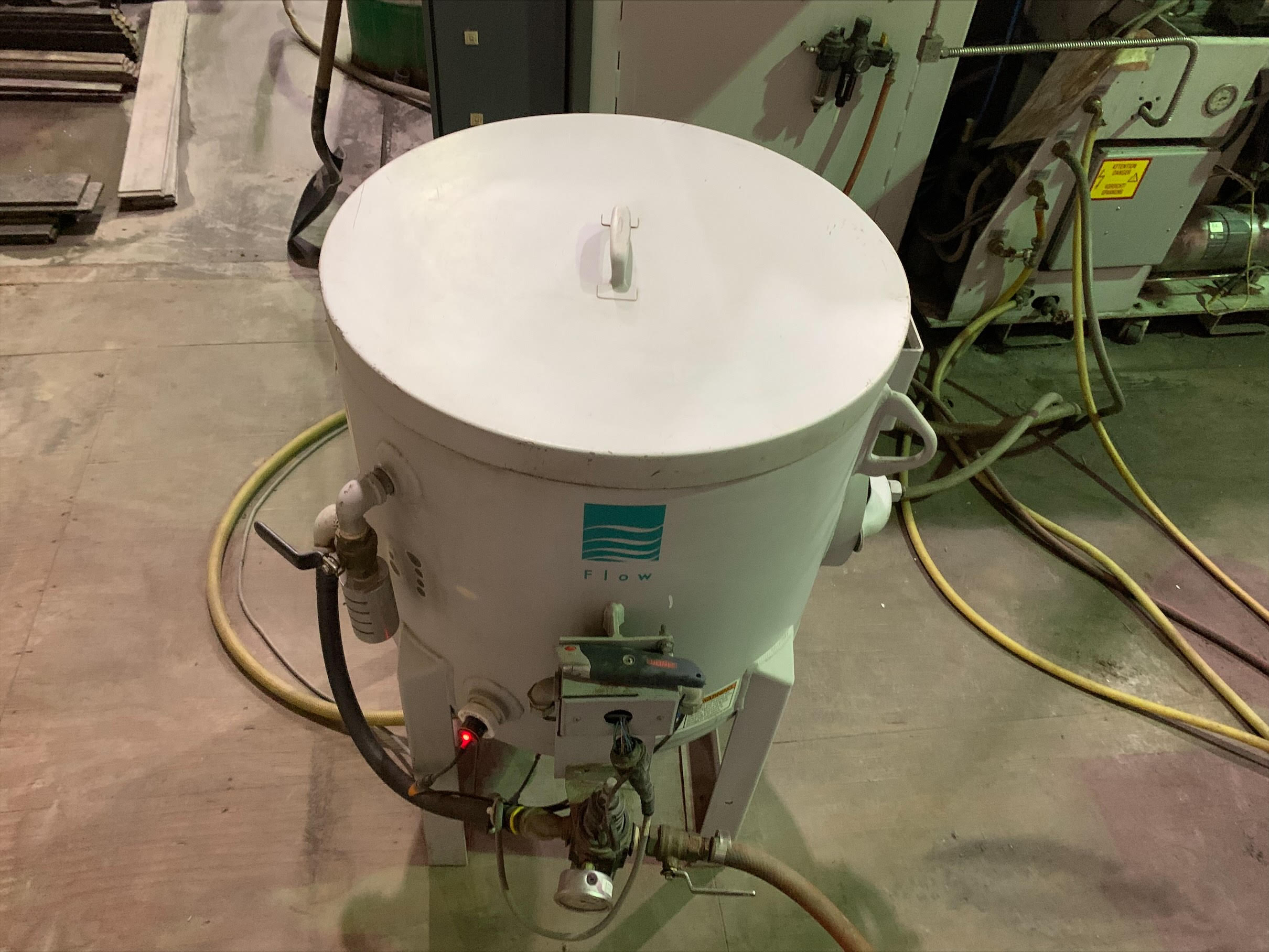

600 lbs Abrasive Hopper

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
