| Year | 2013 |
|---|---|
| Make | Flow |
| Model | Mach 3 4020b |
Description |
6.6' x 13.1' DWJ Head CNC Waterjet |
| Reference # | 8074355 |
Price |
Activate PricingInquire Now |

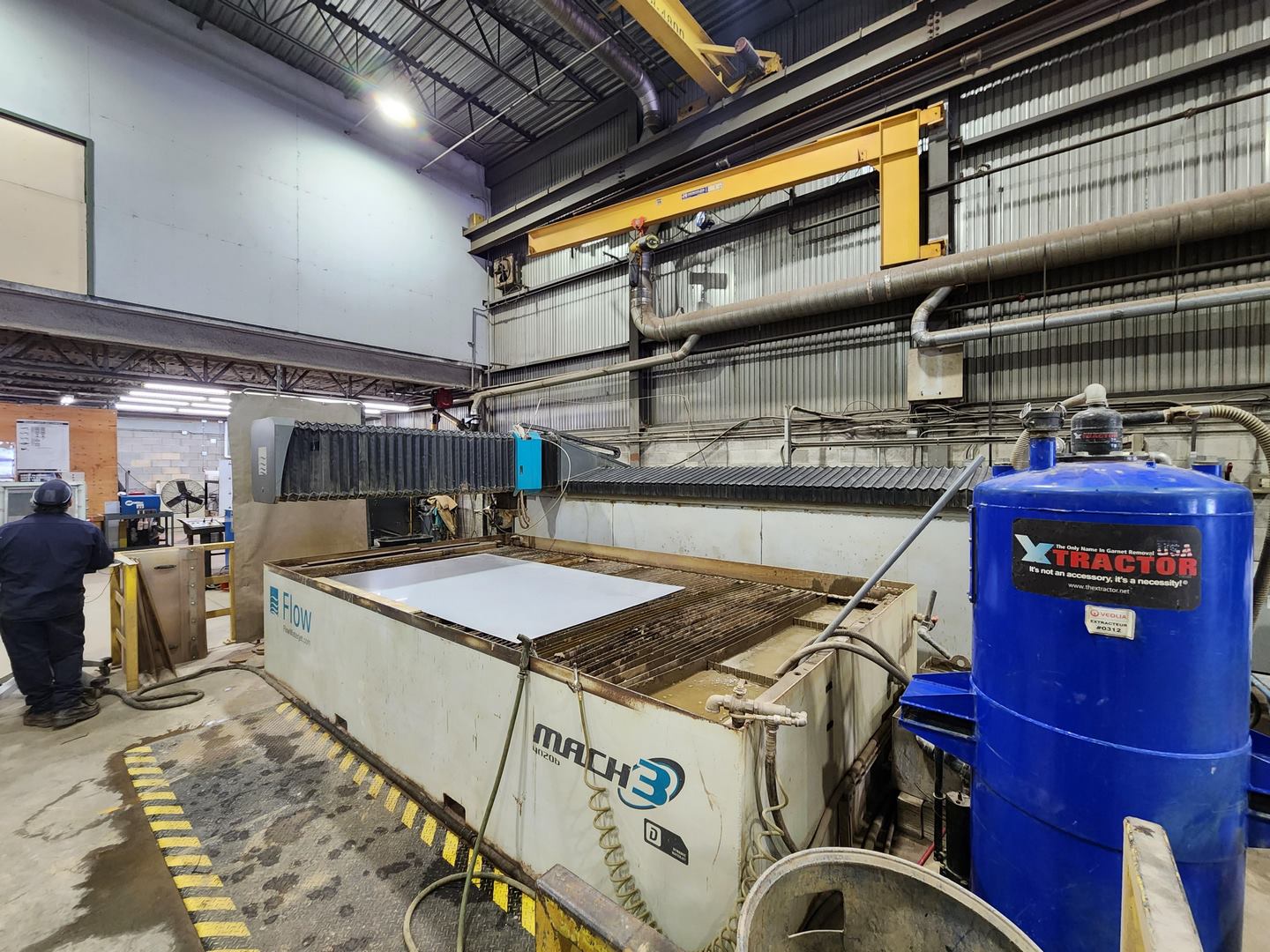

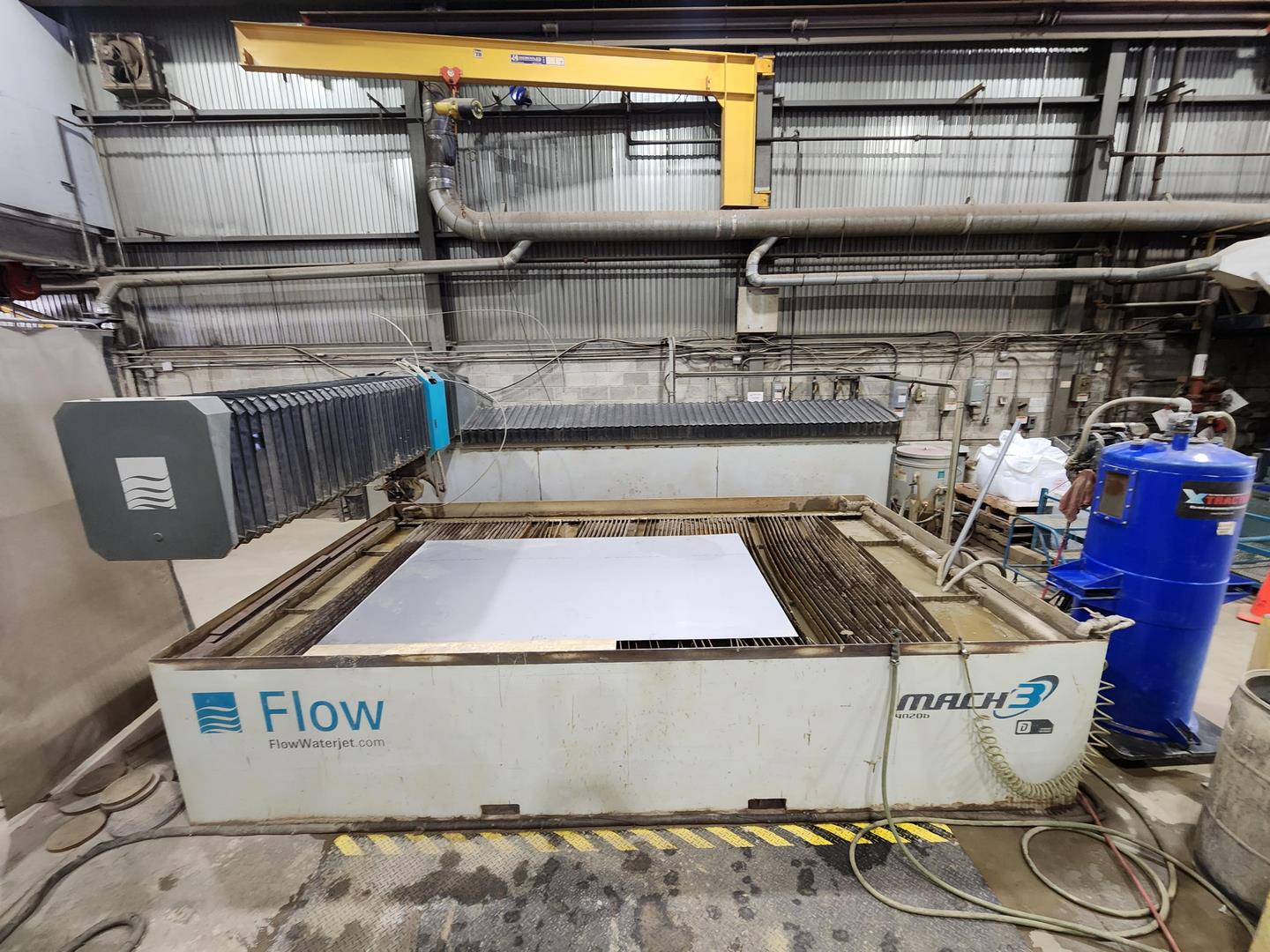

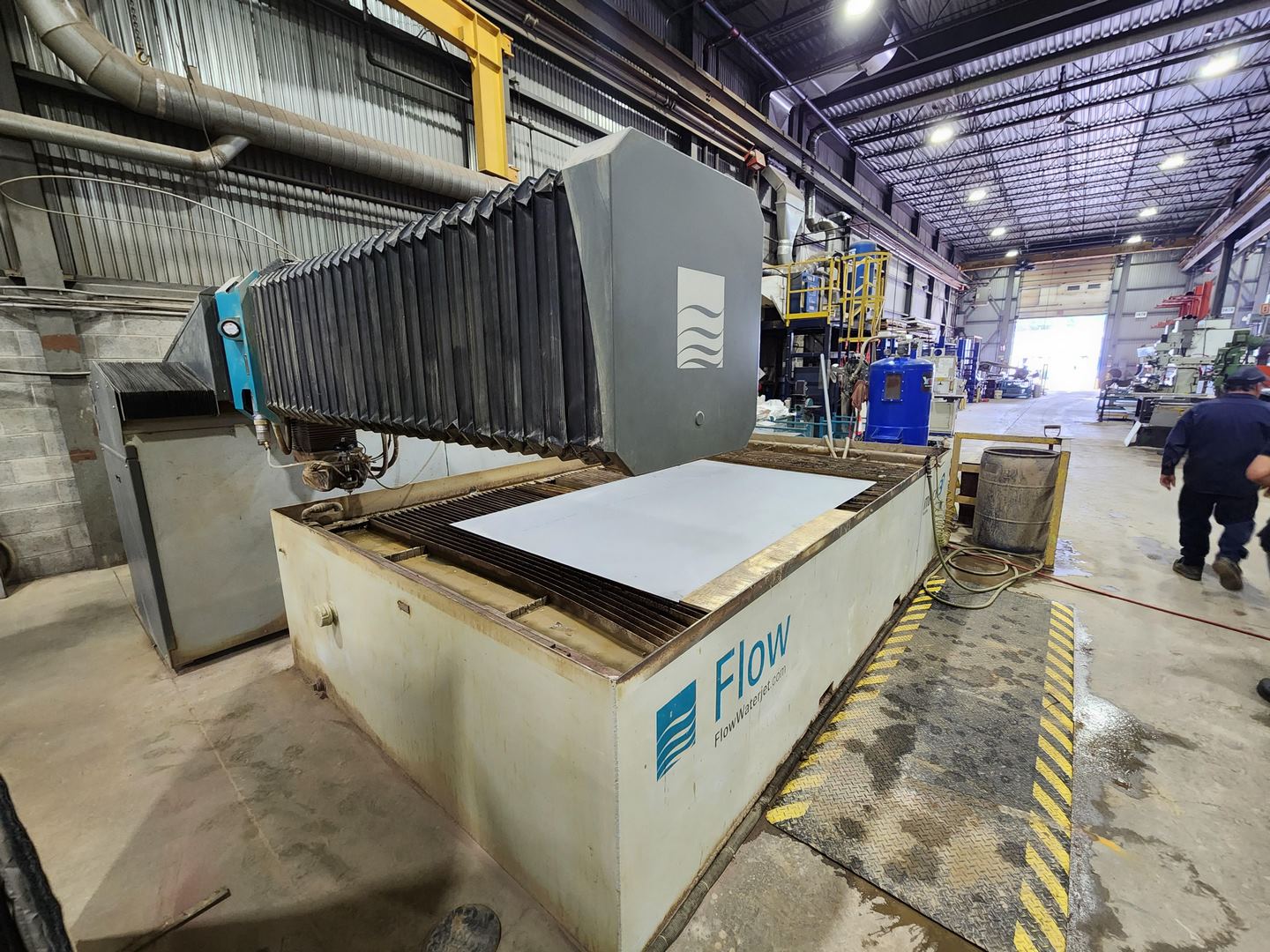

Used Flow Mach 3 4020b (2013) CNC Waterjet for Sale. This pre-owned Flow CNC waterjet is located in Canada. If you have any questions regarding this Flow Waterjet, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
6.6' |
|---|---|
| Table Length |
13.1' |
| Control |
Flowmaster |
| Pump |
30 HP |
| Max Cutting Pressure |
60,000 PSI |
| Rapid Traverse Speed |
1,400 IPM |
| Max Contouring Speed |
1,000 IPM |
| Linear Straightness |
.001" / 3ft |
| Repeatability |
.002" |
| Power Requirement |
460/3/60 |
Features
|

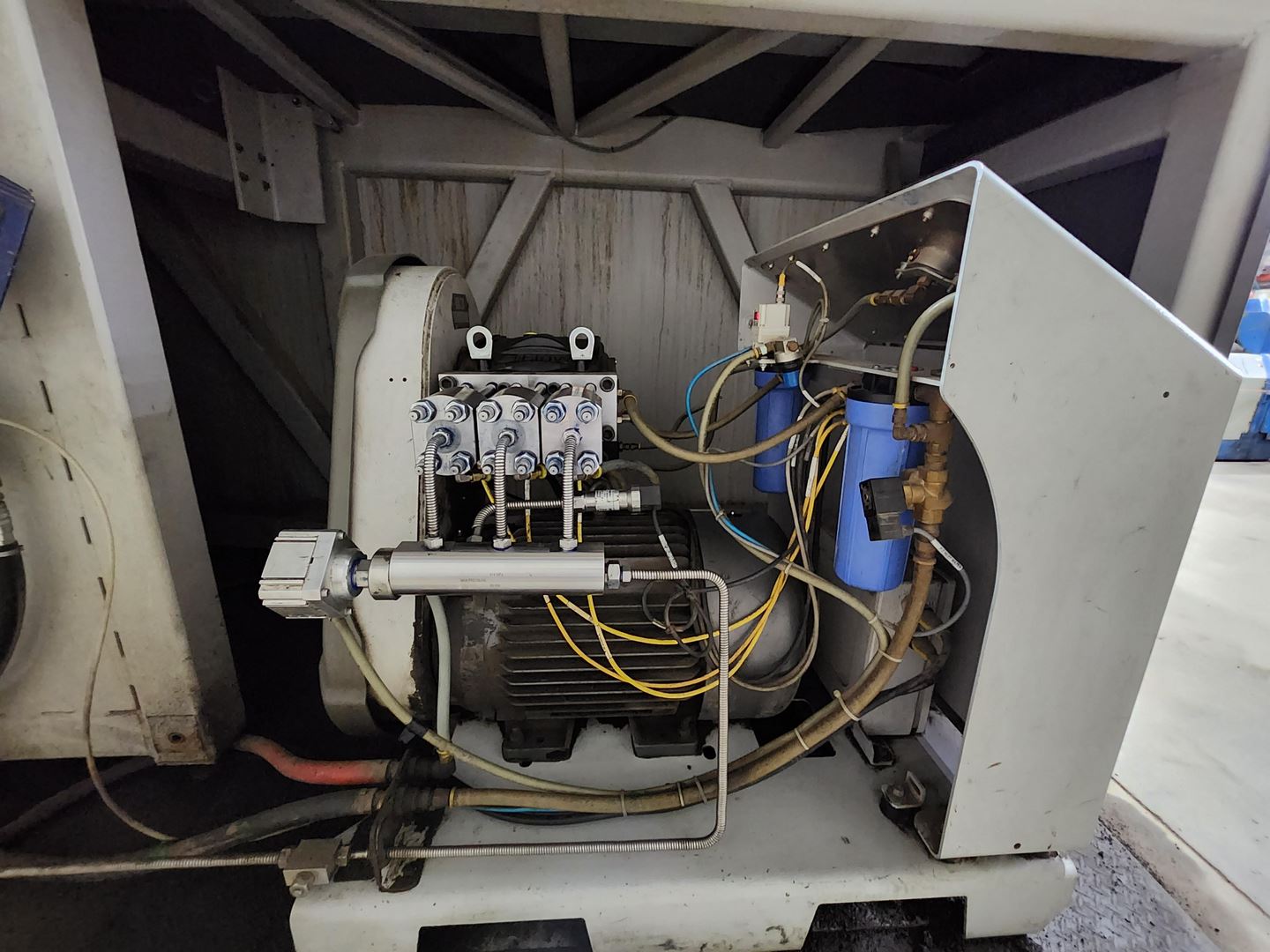

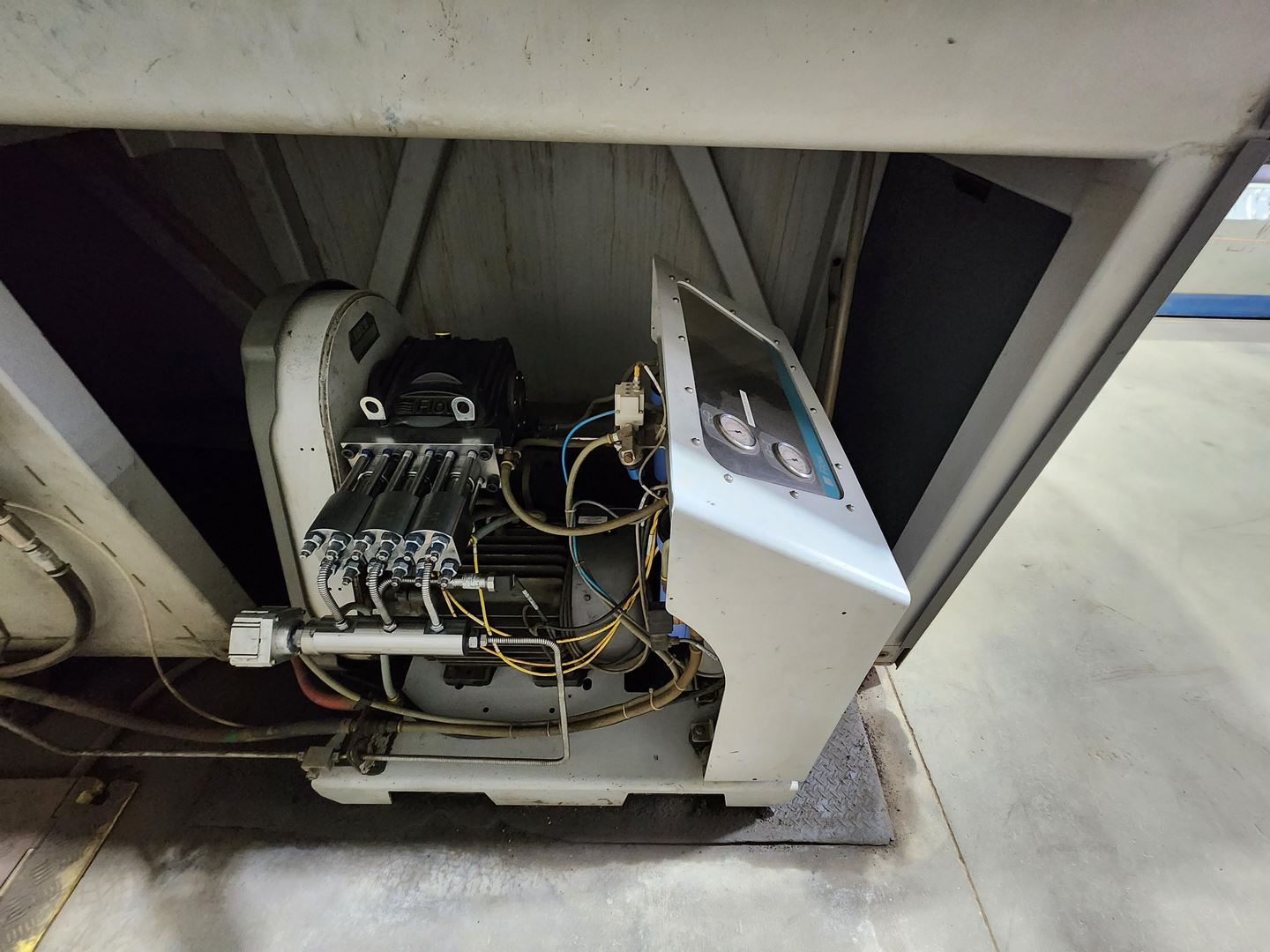

30HP Hyplex Efficiency Pump |
Flow Array Nesting Module |
|
Fully Programmable Servo-Driven Precision Z-Axis (12") |

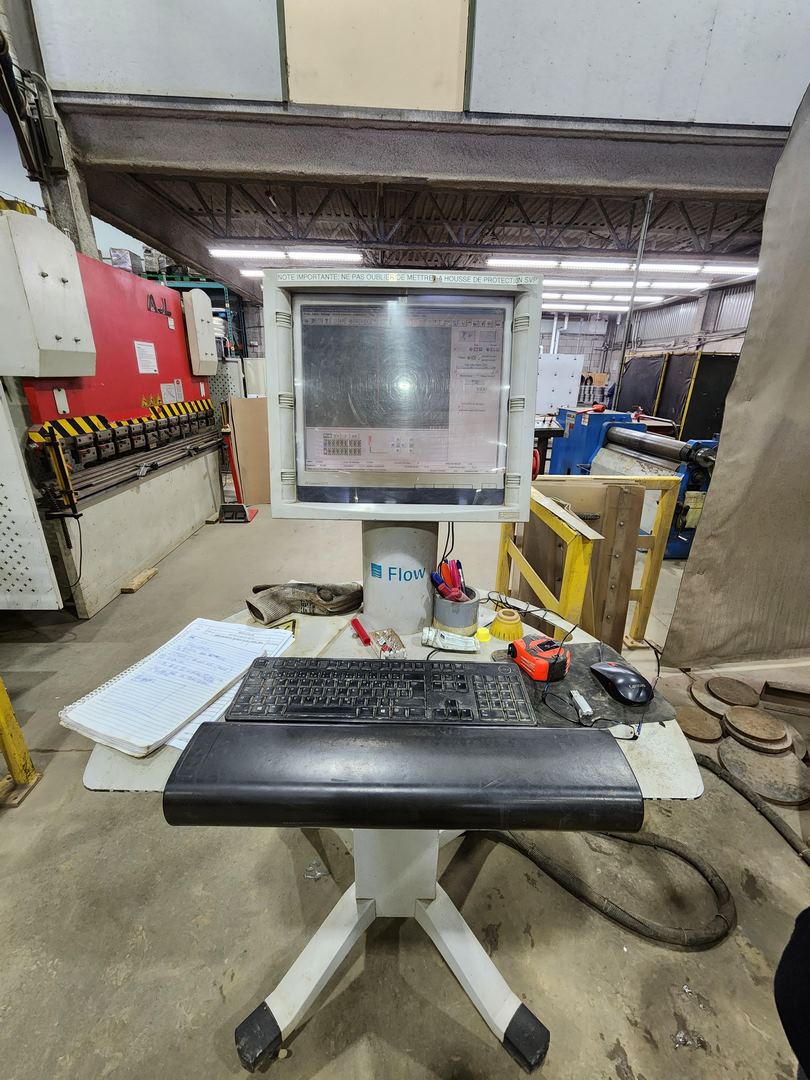

Roll Around Controller with 15" Color Touch Screen |
|
Abrasive Hopper with Lower Level Warning |
Dynamic Taper Compensating Head |
|
Graphic Programming with No G Code Needed |

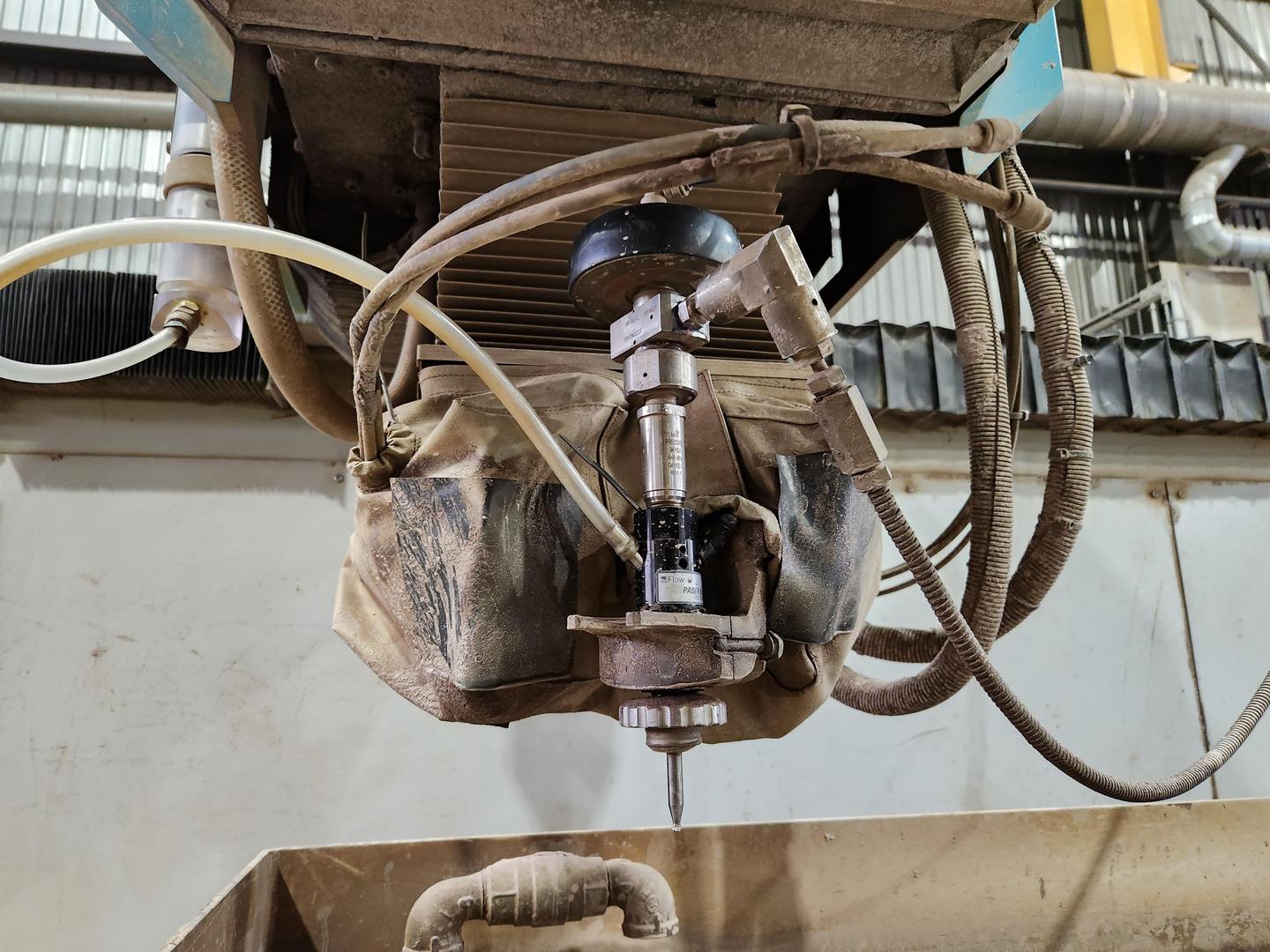

Paser 4 Cutting Head |
*
