| Year | 2013 |
|---|---|
| Make | Flow |
| Model | Mach 3 4020b-X5 |
Description |
6.6' x 13.1' XD Head CNC Waterjet |
| Reference # | 8073539 |
Price |
Activate PricingInquire Now |

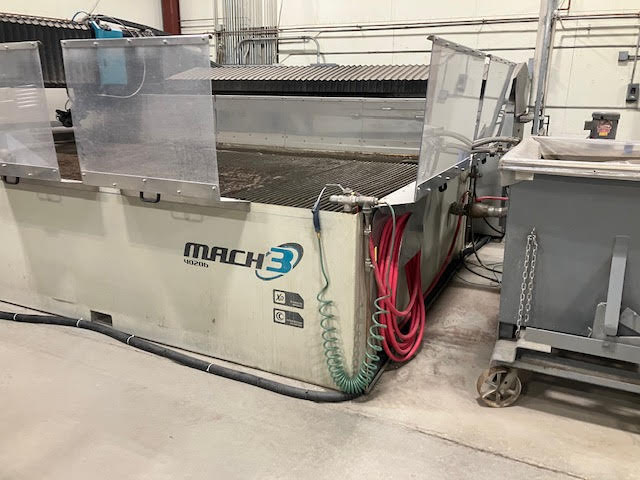

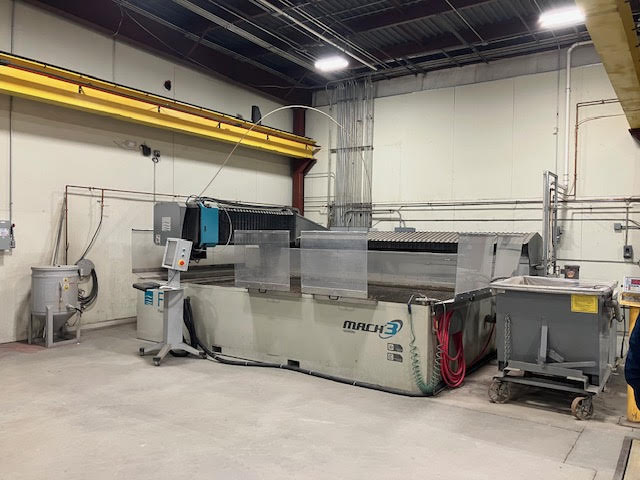

Used Flow Mach 3 4020b-X5 (2013) CNC Waterjet for Sale. This pre-owned Flow CNC waterjet is located in Ohio. If you have any questions regarding this Flow Waterjet, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
6.6' |
|---|---|
| Table Length |
13.1' |
| Control |
Flowmaster |
| Pump |
50 HP |
| Max Cutting Pressure |
94,000 PSI |
| Rapid Traverse |
1,400 IPM |
| Max Contouring Speed |
1,000 IPM |
| Linear Straightness |
.001" per 3ft |
| Repeatability |
.002" |
| Power Requirement |
460/3/60 |
Features
|
Base Rails Below the Top of the Catcher |

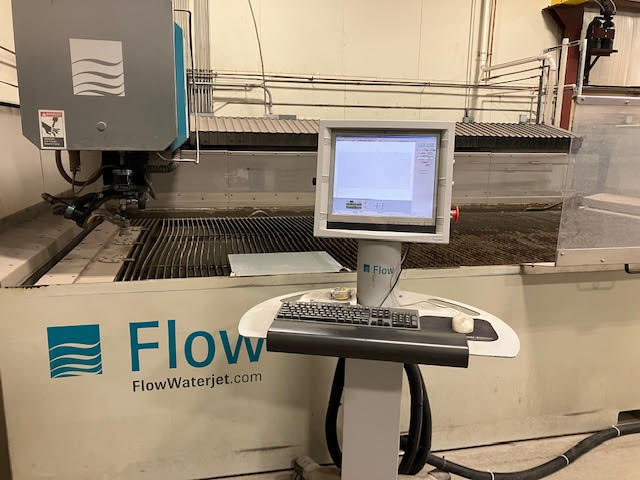

Color Monitor Touchscreen 15" with Roll Around Control |
|
Standard Air-Conditioned Motion Components |
Standard Touch Screen Mobile Control Station/Cabinet |
|

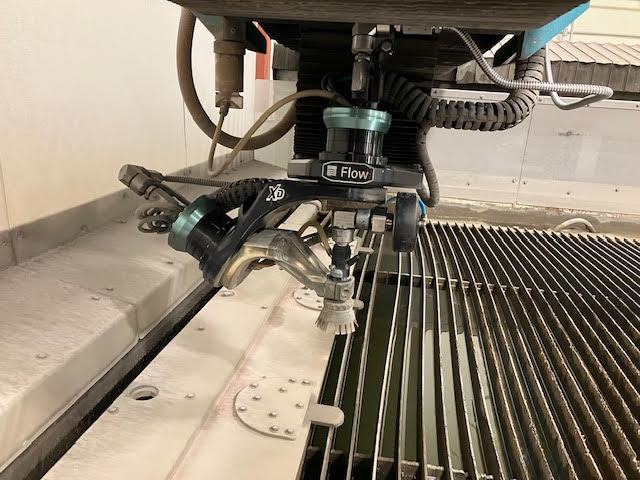

XD Dynamic 5 Axis Cutting Head with Taper Compensation |

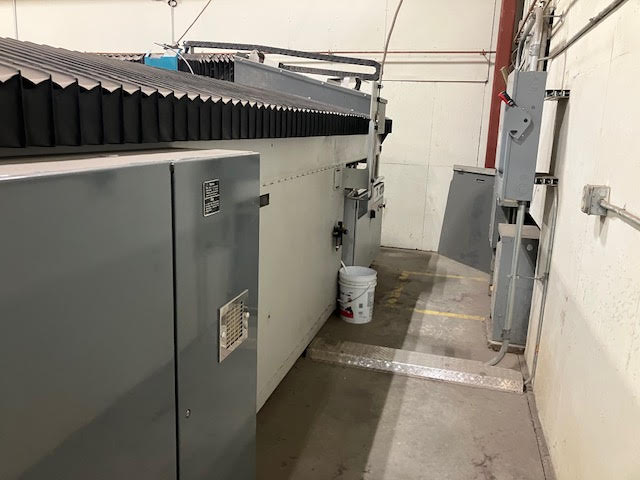

Protection Package Is Heavy-Duty Collapsing Bellows to Protect Base and Bridge Rail Systems |
|
3D Expert Desktop Software |

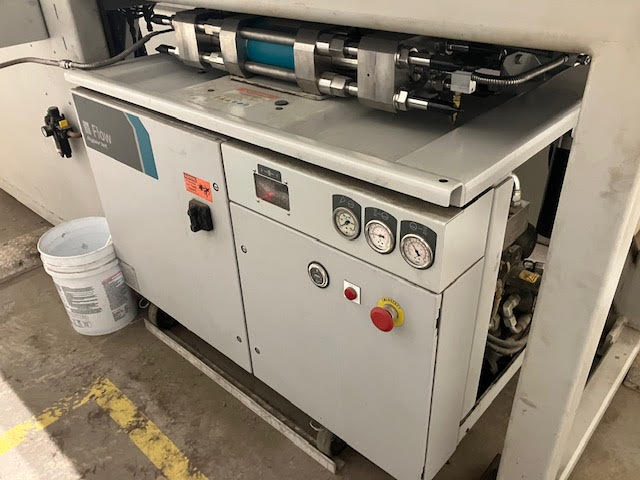

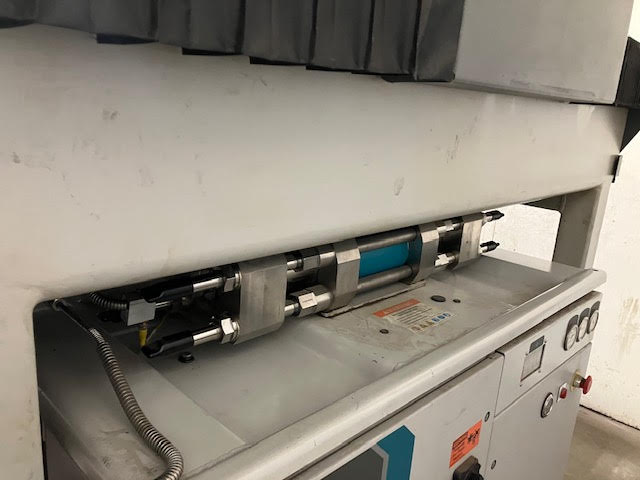

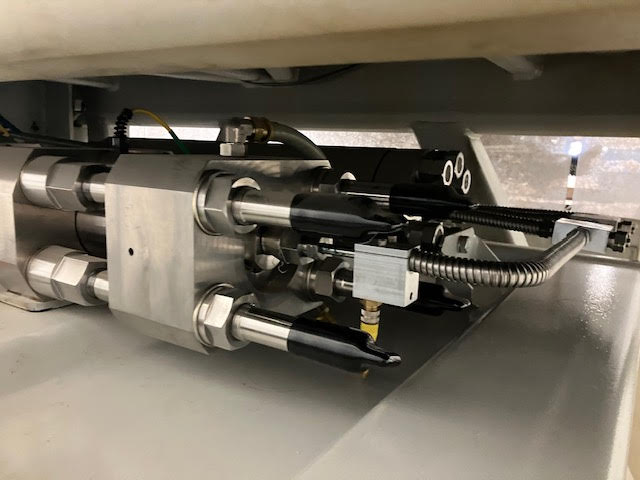

50 HP Hyperjet 94k PSI Intensifier Pump |
|

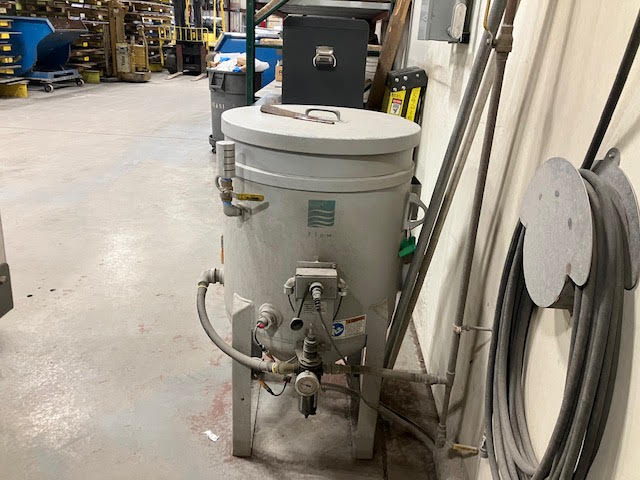

Abrasive Hopper with Lower Level Warning |
Dual-Drive Base Axis (Each of The Base Axes Have Dedicated Servo Drives) |
|
Eliminating Errors Caused by Thermal Expansion Due to Catcher Tank Heat and To Isolate the Motion |
Flow Nesting Module |
|
Fully Programmable 12" Servo-Driven Z-Axis |
Graphic Programming with No G Code Needed |
|
Paser 4 Cutting Head |
